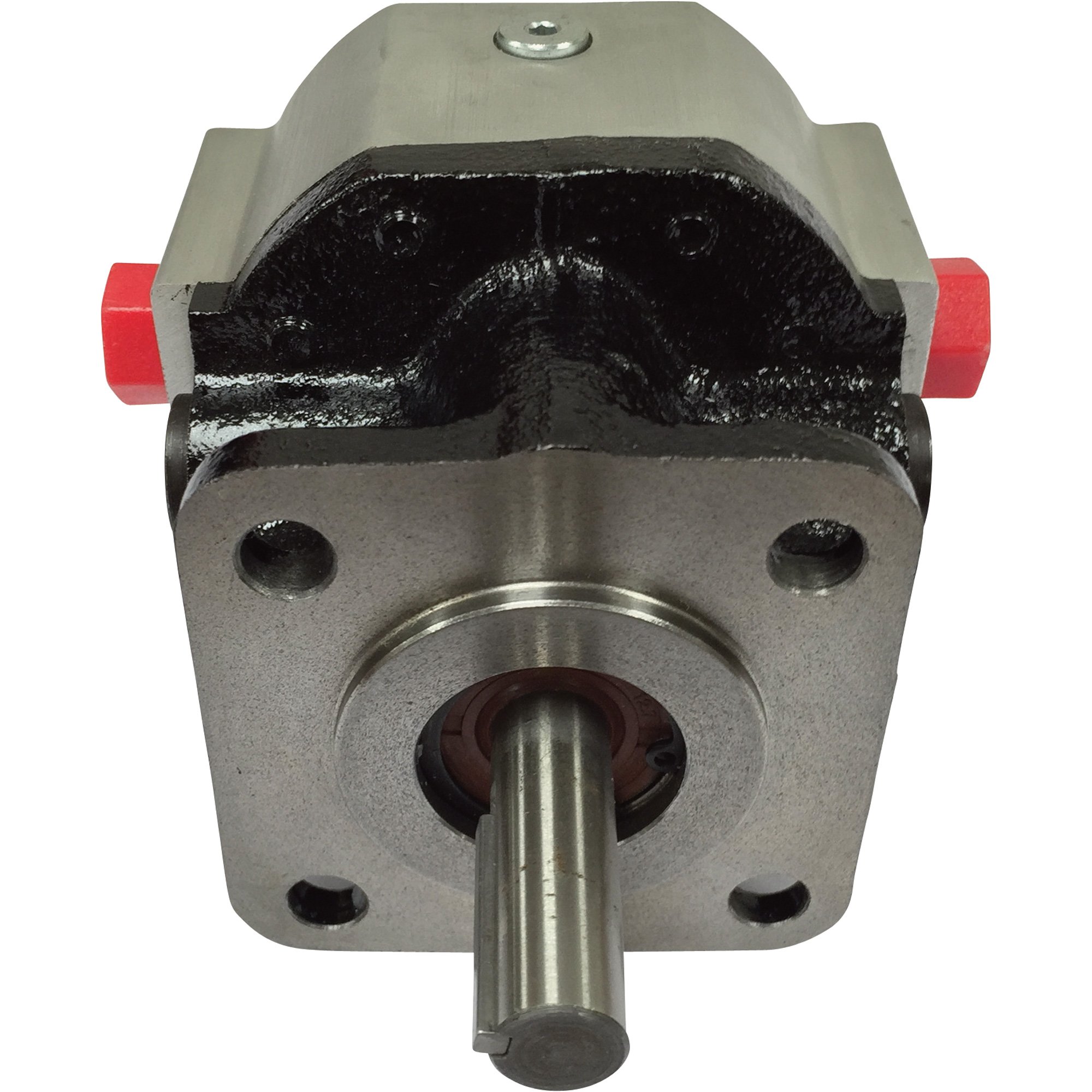

NorTrac Bi-Rotational Hydraulic Pump, 1.1 GPM, 1/2in. Dia. Shaft, Model# CBS6-F1.OSS

Item# 47345
NorTrac Bi-Rotational Hydraulic Pump, 1.1 GPM, 1/2in. Dia. Shaft, Model# CBS6-F1.OSS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Bi-Rotational Hydraulic Pump, 1.1 GPM, 1/2in. Dia. Shaft, Model# CBS6-F1.OSS

Click or Tap image to Zoom

  •  2-piece cast iron construction for long life
  • CBS6 pump features 90% volumetric efficiency and 88% mechanical efficiency
  • 1/2in. dia. extended shaft delivers 3,600 rotations per minute
  •  Excellent cycle times
  • High power density

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This single stage NorTrac® Bi-Rotational Hydraulic Pump/Motor has a low noise CBS6 bi-directional gear pump/motor allowing for either clockwise or counter-clockwise operation. Two check valves ensure safe, smooth operation in either direction. The light overall weight is ideal for all applications.

What's Included

  •  (1) Bi-rotational hydraulic pump
  •  (1) Front cover
  • (1) Rear cover

Downloads

Product Manual

Features + Benefits

  •  2-piece cast iron construction for long life
  • CBS6 pump features 90% volumetric efficiency and 88% mechanical efficiency
  • 1/2in. dia. extended shaft delivers 3,600 rotations per minute
  •  Excellent cycle times
  • High power density
  • 4-bolt flange with 1.78in. dia. pilot
  •  Inlet and outlet side ports with SAE O-ring 9/16-18UNF

Key Specs

AttributeSpecification

item#

47345

Brand

NorTrac

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

3.8 LB

Max. PSI

4,000
AttributeSpecification

Max. Flow Rate

1.1 GPM

Shaft Diameter

0.5 in

Shaft Type

Keyed

Stage

Single-Stage

Material

Cast Iron

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Can this be belt driven, thanks

    1. I am currently running this with a pully and fan belt with no problems.

      Helpful?

    2. The NorTrac Bi-Rotational Pump/Motor can be belt driven as long as a pillow block for radial loading support is installed.

      Helpful?

  2. How many LBS of lifting force will this motor produce?

    1 answer

    1. Depending on what is driving the motor, motors would produce Torque at the shaft. Torque = displacement X pressure/6.28 for a maximum pressure of 3000 PSI continuous.

      Torque = .0708 x 3000/6.28 = 33.82 in lbs or 2.81 ft lbs

      Helpful?

  3. What is the exact Displacement per Revolution?

    The specs says that this pump pumps 1.1 Gallons per minute. It also says that the pump can turn at 3600 rpm. This would imply a Displacement per Revolution of about .071 Cubic Inches. Is this accurate? The design specifications that I require need a Displacement per Revolution similar to this. So what is the Displacement per Revolution of this pump?

    1 answer

    1. The displacement on this pump would be about .071 cubic inches per revolution..

      Helpful?

  4. These pumps are listed as Pump/Motor.. Is it possible to use this pump as a motor?

    1 answer

    1. This NorTrac Pump/Motor can be used as a motor to operate equipment.

      Helpful?
