NorTrac Bi-Directional Hydraulic Gear Pump, 8 GPM, 5/8in. Dia. Shaft, Model# CB2A-F9SXA

Item# 47362
NorTrac Bi-Directional Hydraulic Gear Pump, 8 GPM, 5/8in. Dia. Shaft, Model# CB2A-F9SXA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

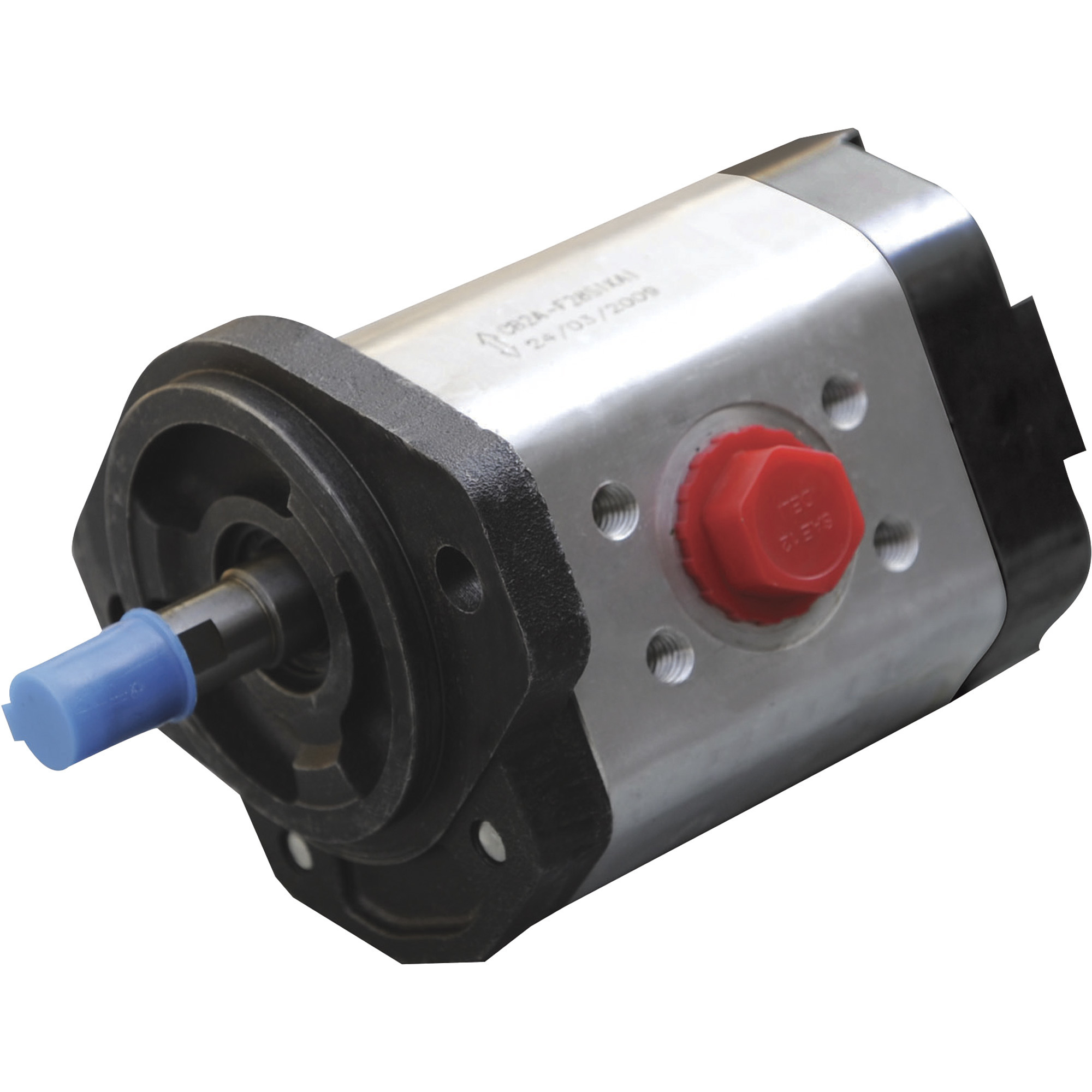

NorTrac Bi-Directional Hydraulic Gear Pump, 8 GPM, 5/8in. Dia. Shaft, Model# CB2A-F9SXA

Click or Tap image to Zoom

  • 3-piece cast iron construction for long life
  • Pump features 90% volumetric and 88% mechanical efficiency
  • 5/8in. dia. extended shaft delivers 3,600 rotations per minute
  • Excellent cycle times
  • High power density

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This single stage NorTrac® Bi-Directional Hydraulic Gear Pump has a low noise CBS6 bi-directional gear pump allowing for either clockwise or counter-clockwise operation. The light overall weight is ideal for all applications.

What's Included

    (1) Bi-directional hydraulic gear pump (2) Bearing blocks (1) Housing (1) Front cover (1) Rear cover

Downloads

Product Manual

Features + Benefits

  • 3-piece cast iron construction for long life
  • Pump features 90% volumetric and 88% mechanical efficiency
  • 5/8in. dia. extended shaft delivers 3,600 rotations per minute
  • Excellent cycle times
  • High power density
  • Bi-rotational pressure balanced
  • 1-1/16-12UNF SAE O-rings on side and rear inlet ports; 7/8-14UNF SAE O-rings on side and rear outlet ports; 9/16-18UNF SAE O-ring on rear drain port
  • Includes a pair of precision gears supported by 2 aluminum bearing blocks, housing and front and rear covers
  • Axial clearance can be automatically compensated by the pressure balanced bearing blocks
  • Continuous usage

Key Specs

AttributeSpecification

item#

47362

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

9.0 LB

Max. PSI

3,625

Max. Flow Rate

8 GPM
AttributeSpecification

Shaft Diameter

0.62 in

Shaft Type

Keyed

Pump Type

Gear

Stage

Single-Stage

Material

Cast Iron

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Which kind of adapter do I use if I mount on a 8hp gas engine ?

    1 answer

    1. The pump mounting bracket, item 3042, will work with this pump and select 8 HP engines.

      Helpful?

  2. Since this pump has a drain port, are there check valves isolating the shaft seal from the two ports? What is the shaft seal pressure rating

    1 answer

    1. The pump has the drain port, because there are no check valves. The manufacturer does not give a shaft seal pressure rating.

      Helpful?

  3. What size are the port holes? Also, how long is the output shaft?

    1 answer

    1. The side or inlet ports are 1-1/16-12 (#12 SAE O-ring Boss) and the rear or outlet ports are 7/8-14 (#10 O-ring Boss). The total length of the shaft is 1-5/16".

      Helpful?

  4. I notice you have answered the question if this can be belt driven. Is a bearing block needed? Or can you just put a pulley on and go? Thanks...

    1 answer

    1. This gear pump can be used with a belt drive pulley system, however it would need a pillow block. At this time, Northern Tool + Equipment does not offer a pillow block that fits this gear pump.

      Helpful?

  5. What motor size is recommended for this? Can I use a drill?

    1 answer

    1. When the motor is running at 1500 psi you would need approximately a 3.97 HP electric motor. A drill would not be able to be used.

      Helpful?

  6. Is this pump rated to be belt driven?

    1 answer

    1. This gear pump can be used for belt driven applications.

      Helpful?

  7. What is this pump's displacement?

    8 GPM is meaningless without the RPM it is rated at.

    1 answer

    1. The displacement of the unit is 9.55 (0.584) mL/r(in³/r). The unit will output 2,000 rated RPM's and 4,000 max.

      Helpful?

  8. What are the bolt hole dimensions on the mounting flange

    1 answer

    1. The mounting holes on the flanges are 4.189" center to center. The have a 0.433" diameter.

      Helpful?

  9. Port Configuration- States in dwg side ports are inlet and rear are outlet. Can the pump be installed with side port inlet and opposite side port out

    1 answer

    1. This gear pump can be installed with side port inlet and opposite side port outlet for either rotation/direction (clockwise and counterclockwise).

      Helpful?

  10. what is the length of pump from mounting flange to back of pump

    1 answer

    1. The length of this NorTrac gear pump from the mounting flange to the back of the pump is 4.308 inches.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
