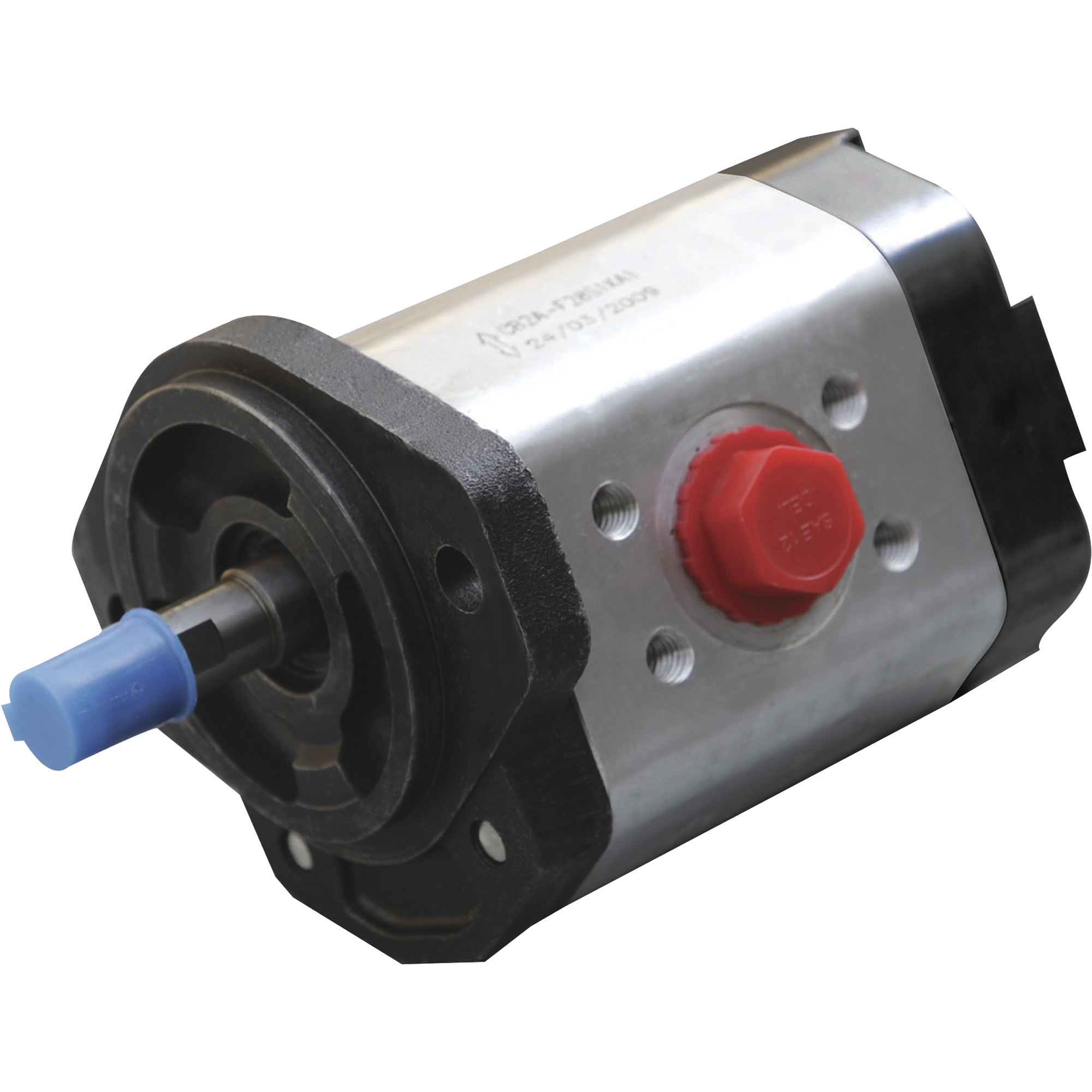

NorTrac Bidirectional Hydraulic Gear Pump, 5.5 GPM, 5/8in. Shaft, Low-Noise CBS6 Design

Item# 47360
On Sale
NorTrac Bidirectional Hydraulic Gear Pump, 5.5 GPM, 5/8in. Shaft, Low-Noise CBS6 Design

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Bidirectional Hydraulic Gear Pump, 5.5 GPM, 5/8in. Shaft, Low-Noise CBS6 Design

Click or Tap image to Zoom

  • 3-piece cast iron construction for long life
  • Pump features 90% volumetric and 88% mechanical efficiency
  • 5/8in. dia. extended shaft delivers 3,600 rotations per minute
  • Excellent cycle times
  • High power density

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This single-stage NorTrac Bidirectional Hydraulic Gear Pump has a low-noise CBS6 bidirectional gear pump allowing for either clockwise or counterclockwise operation. The light overall weight is ideal for all applications.

What's Included

    (1) Bidirectional hydraulic pump (2) Bearing blocks (1) Housing (1) Front cover (1) Rear cover

Downloads

Product Manual

Features + Benefits

  • 3-piece cast iron construction for long life
  • Pump features 90% volumetric and 88% mechanical efficiency
  • 5/8in. dia. extended shaft delivers 3,600 rotations per minute
  • Excellent cycle times
  • High power density
  • Birotational pressure balanced
  • 1-1/16-12UNF SAE O-rings on side and rear inlet ports; 7/8-14UNF SAE O-rings on side and rear outlet ports; 9/16-18UNF SAE O-ring on rear drain port
  • Includes a pair of precision gears supported by 2 aluminum bearing blocks, housing and front and rear covers
  • Axial clearance can be automatically compensated by the pressure-balanced bearing blocks
  • Continuous usage

Key Specs

AttributeSpecification

item#

47360

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

9.25 LB

Max. PSI

3,625

Max. Flow Rate

5.5 GPM
AttributeSpecification

Shaft Diameter

0.62 in

Shaft Type

Keyed

Pump Type

Gear

Stage

Single-Stage

Material

Cast Iron

Thread Type

Other

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Can this pump run at 5400 rpms

    1 answer

    1. This pump is designed to run at a maximum of 3,600 RPM.

      Helpful?

  2. Ports

    Can I just plug ports that are not needed? What do I do with the drainage hole?

    1 answer

    1. The ports that are not needed can be plugged. The drain port on the rear cover must be drained back to tank or tee drain port into the suction hose of the gear pump.

      Helpful?

  3. What gpm and PSI at 3600 RPM

    1 answer

    1. This pump is rated at 5.5 GPM at 3600 RPMs.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
