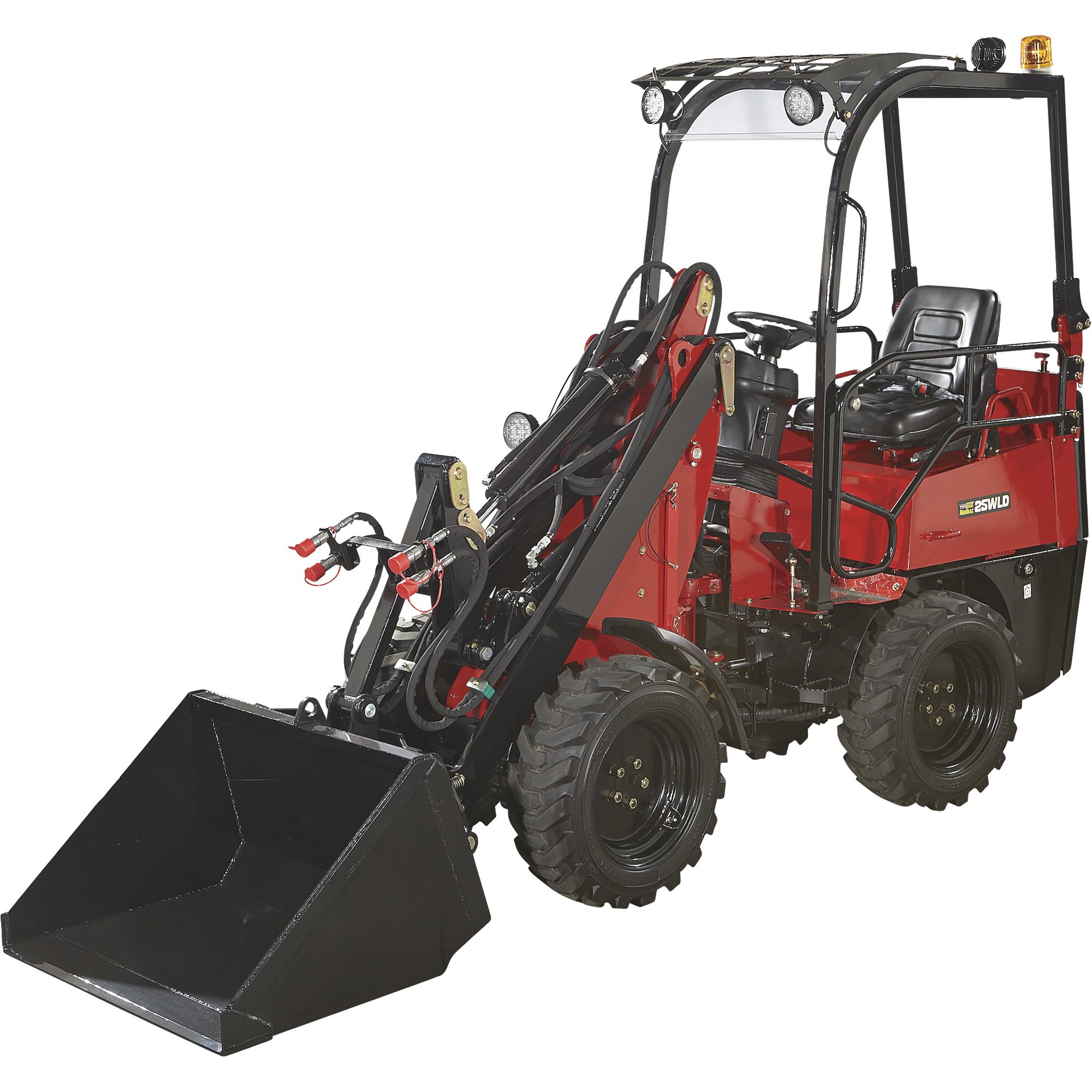

NorTrac 25WLD 25 HP Mini Compact Articulated Wheel Loader — Diesel Powered

Item# 4212500
NorTrac 25WLD 25 HP Mini Compact Articulated Wheel Loader — Diesel Powered

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac 25WLD 25 HP Mini Compact Articulated Wheel Loader — Diesel Powered

Click or Tap image to Zoom

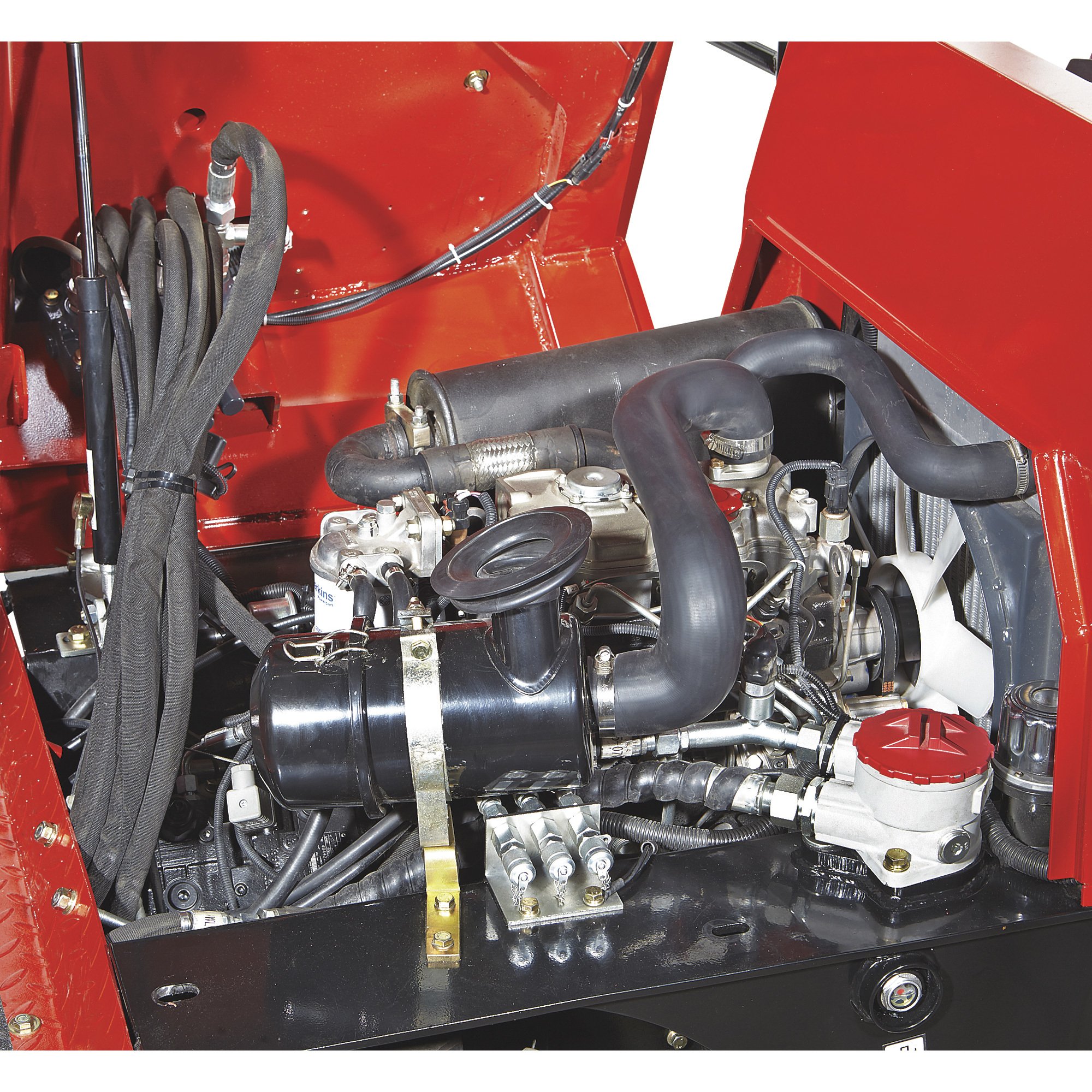

  • 25 HP Perkins 403F-11 EPA tier 4-final, 3-cylinder liquid-cooled diesel engine with glow plugs
  • Hydraulic joystick control of the high-capacity lift arm and self-leveling bucket for easy operation
  • Hydrostatic 4-wheel drive system and articulated power steering for exceptional handling and superb maneuverability in confined spaces
  • Standard skid steer adapter plate and dual front quick-connect hydraulics allow for the use of a wide array of interchangeable attachments (sold separately)
  • Hydraulic pressure: 2610 PSI

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorTrac® 25 HP Mini Compact Articulated Wheel Loader is an ultra-versatile, compact yet powerful unit that landscapers, hobby farmers, ranchers, recreational land owners, municipalities and rental business owners will appreciate. This AWL blends all the best attributes of skid steers and tractors. The almost unbelievable maneuverability in tight quarters is a treat that needs to be experienced firsthand, and the easy operation that comes with hydrostatic 4-wheel drive combined with a steering wheel can help turn inexperienced operators into master handlers in almost no time. Standard hydraulic connectivity is teamed with a standard skid steer adapter plate, allowing you to interchange a wide array of universal attachments with the included standard bucket to diversify your capabilities.

What's Included

    (1) NorTrac 25WLD 25 HP Mini Compact Articulated Wheel Loader

Downloads

Product Manual

Features + Benefits

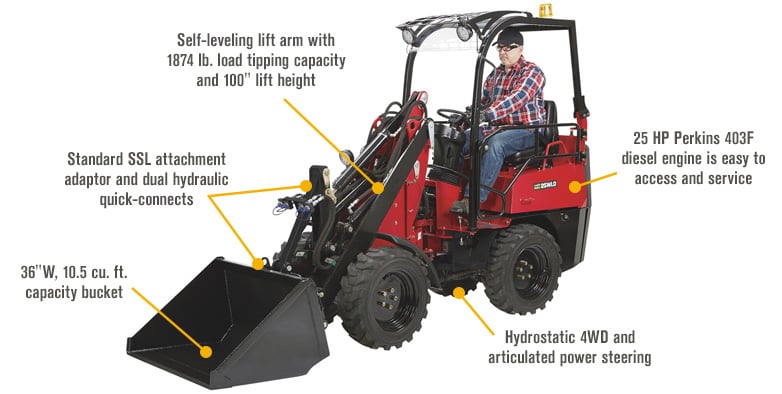

  • 25 HP Perkins 403F-11 EPA tier 4-final, 3-cylinder liquid-cooled diesel engine with glow plugs
  • Hydraulic joystick control of the high-capacity lift arm and self-leveling bucket for easy operation
  • Hydrostatic 4-wheel drive system and articulated power steering for exceptional handling and superb maneuverability in confined spaces
  • Standard skid steer adapter plate and dual front quick-connect hydraulics allow for the use of a wide array of interchangeable attachments (sold separately)
  • Hydraulic pressure: 2610 PSI
  • Standard 10.5 cu. ft. (0.39 cu. yd.) capacity bucket is 36in.W with 100in. max. lift height
  • Industrial tread tires provide great traction that's gentler on landscapes
  • Maximum operating capacity is 937 lbs.

Key Specs

AttributeSpecification

item#

4212500

Brand

NorTrac

Manufacturer's Warranty

24 months parts / 24 months labor

Ship Weight

3685.0 LB

Product Type

Wheel Loader

Engine Brand

Perkins

Engine Displacement

1130 cc

Horsepower

25

Cylinders (qty.)

3

Max. RPM

2,800

Max. Torque

47.6 ft-lbs.

Blade Width

36 in
AttributeSpecification

Digging Depth

29.25 in

Ground Clearance

8.21 in

Bucket Capacity

39.64 Gal

Lift Capacity

1,874 lb

Max. Lift Height

100 in

Displacement

69 in³

Fuel Type

Diesel

Brake Type

Hydrostatic

Bore Diameter

3 in

Stoke Length

3.2 in

Product Weight

3,685 lb

Dimensions L x W x H (in.)

142.31 x 36.625 x 86.31 in

Reviews

Questions & Answers

Questions

1–7 of 7 Questions
Sort by:

  1. what is the hydraulic flow rate for aux. hydraulics?

    This is a big spec to have listed on your site as it is needed to size the correct hydraulic motors for attachments

    1 answer

    1. The hydraulic flow rate is 7.9 gallons per minute.

      Helpful?

  2. tipping load?

    so tipping load is usually 2x capacity. does that mean the rated operating capacity is actually 937lbs? And is that at the pin or at 24" away?

    1 answer

    1. The rated maximum operating capacity is 937 pounds. The measurements of what the loader can do are at the pin.

      Helpful?

  3. What is the overall height?

    1 answer

    1. This NorTrac Wheel Loader is 86.3 inches tall overall.

      Helpful?

  4. Will there be a cab on this loader anytime soon? Or a soft side cab available as an accessory?

    1 answer

    1. At this time there are no plans for adding a cab to the loader or offering a soft side cab as an accessory.

      Helpful?

  5. Who actually makes this?

    I was wondering who actually makes these for you guys?
    I'm seriously considering these for my Dad's business and I would like to know the brands so I can get parts and service them loccaly and in the field.

    1 answer

    1. These loaders and the mini track hauler are made at one of our Chinese manufacturing facilities. They do not carry a brand name other than NorTrac. Parts are available through our NorTrac parts department.

      Helpful?

  6. potential attachments

    Is there a listing of compatible attachments? I.E. Snow Plow, Snow blower, Sweeper, other...?

    1 answer

    1. This compact articulated wheel loader features a standard skid steer adapter plate and dual front quick-connect hydraulics allow for the use of a wide array of interchangeable attachments (sold separately).

      Helpful?

  7. What slope (in degrees) is this capable of handling front to back and side to side?

    1 answer

    1. No slope degree rate is given. Per the manual, you would need to travel in the correct direction on a slope, going up and down. It should not be driven side by side on a slope.

      Helpful?
