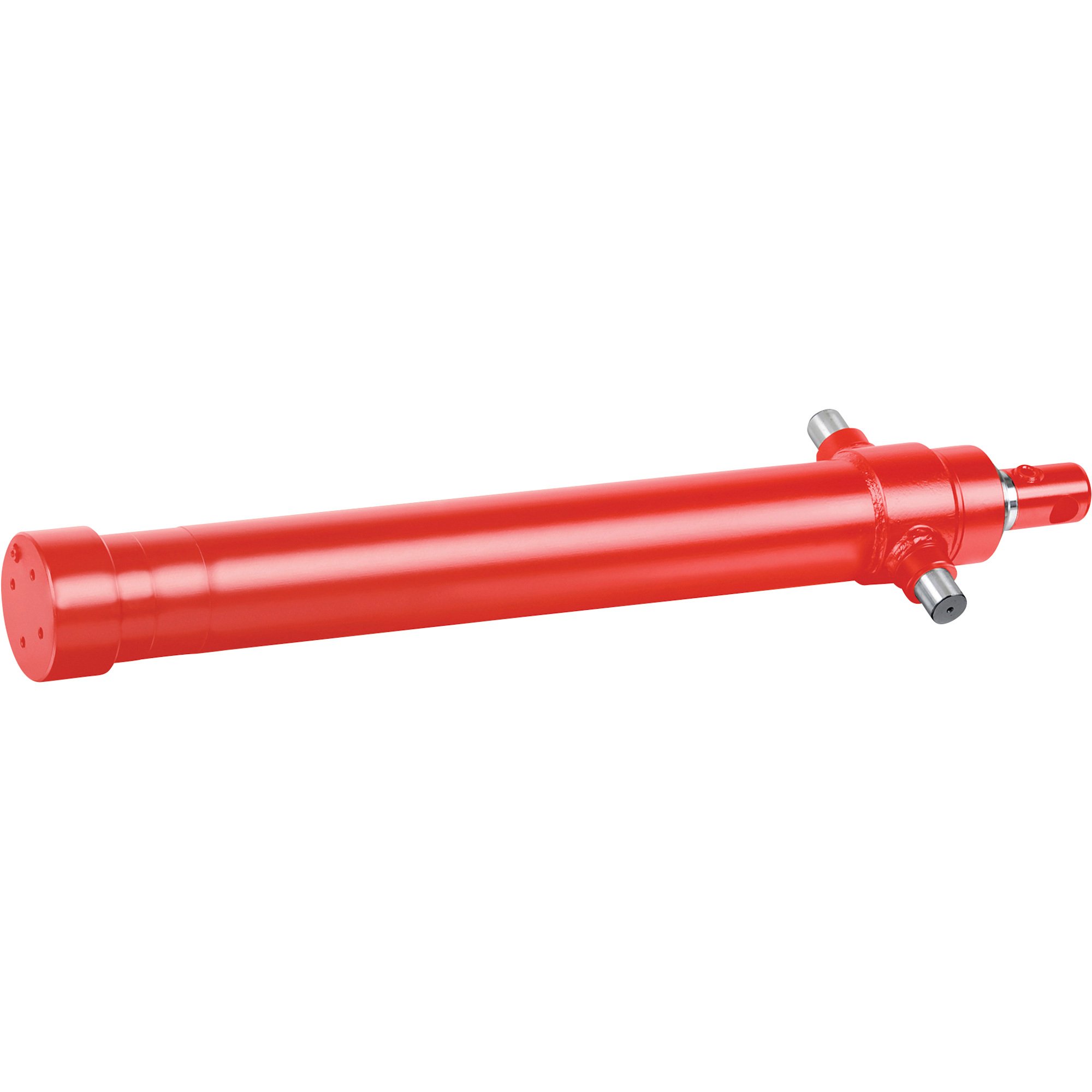

Nortrac 12-Ton Telescopic Hydraulic Cylinder — 2500 PSI, 4.43in. Bore, 144in. Stroke

Item# 66745
Nortrac 12-Ton Telescopic Hydraulic Cylinder — 2500 PSI, 4.43in. Bore, 144in. Stroke

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Nortrac 12-Ton Telescopic Hydraulic Cylinder — 2500 PSI, 4.43in. Bore, 144in. Stroke

Click or Tap image to Zoom

  • 12-ton capacity with 2500 max. PSI working pressure to handle the tough jobs
  • 144in. stroke length; 56 3/4in. closed pin center; Inside bore dia.: Bore 1 – 3.94in.; Bore 2 – 3.15in.; Bore 3 – 2.36in.; 2in. shaft dia.
  • Trunnion mount with angular swivels allows for a small amount of misalignment
  • Micro-honed inside and chrome-plated outside to increase corrosion, wear resistance and durability
  • Telescopic design requires less space, as multiple stages enable longer strokes to be achieved

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Nortrac® 12-Ton Telescopic Hydraulic Cylinder has multiple stages that enable longer strokes to be achieved, using less space. The cylinder is ideal for use in dump trailers. Includes swivel trunnion.

What's Included

  • (1) 12-ton telescopic hydraulic cylinder with swivel trunnion mount

Downloads

Product Manual

Features + Benefits

  • 12-ton capacity with 2500 max. PSI working pressure to handle the tough jobs
  • 144in. stroke length; 56 3/4in. closed pin center; Inside bore dia.: Bore 1 – 3.94in.; Bore 2 – 3.15in.; Bore 3 – 2.36in.; 2in. shaft dia.
  • Trunnion mount with angular swivels allows for a small amount of misalignment
  • Micro-honed inside and chrome-plated outside to increase corrosion, wear resistance and durability
  • Telescopic design requires less space, as multiple stages enable longer strokes to be achieved
  • 1/2in. NPT port
  • Oil volume: 5.12 lbs.

Key Specs

AttributeSpecification

item#

66745

Brand

NorTrac

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

109.5 LB

Max. PSI

2,500

Bore Diameter

4.43 in

Stroke Length

144 in
AttributeSpecification

Cylinder Capacity

24,000 lb

Pin Diameter

1.5 in

Port Size

0.5 in

Oil Volume

5.12 lb

Product Weight

166 lb

Dimensions L x W x H (in.)

56 3/4 x 10 15/32 x 4 7/16

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Is this a single-acting or double-acting cylinder?

    1 answer

    1. This is a single-acting cylinder.

      Helpful?

  2. What size gallon oil tank reservoir do I need to use with this 144 inch telescopic cylinder?

    1 answer

    1. The minimum size tank this would require is a 4.89 gallon tank.

      Helpful?
