NorthStar ATV Tree Sprayer, 26-Gallon Capacity, 5.5 GPM, 12 Volts
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 12V, 5.5 GPM NorthStar NSQ Series on-demand pump provides faster priming and longer life; 60 PSI max.
- 100% continuous duty rating
- Patented DXS-3 valves are made with chemical-resistant Viton for faster priming, better performance and longer life
- Santoprene diaphragm for superior reliability and chemical resistance
- Unique pressure switch design slowly cycles the pump for less switch and motor wear
See full description
What's Included
- (1) Sprayer (1) Remote rocker switch (1) Set of tie-down straps
Downloads

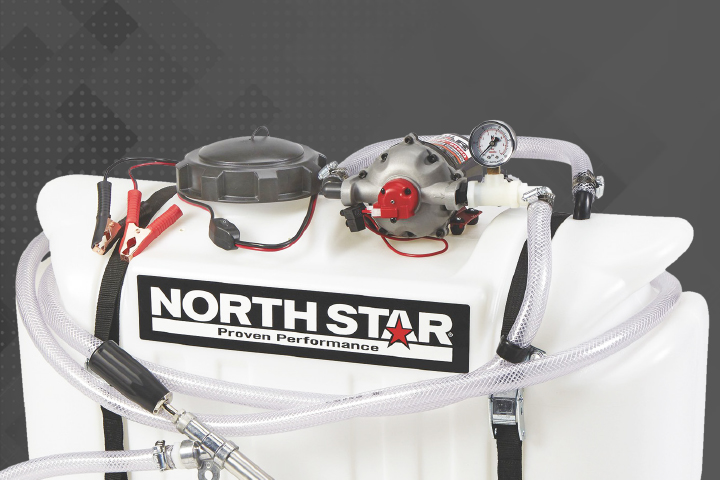

DESIGNED FOR EASY USE
Equipped with quick-connect ports for HASSLE-FREE CHANGES and a VARIABLE AGITATION VALVE to keep chemicals properly mixed

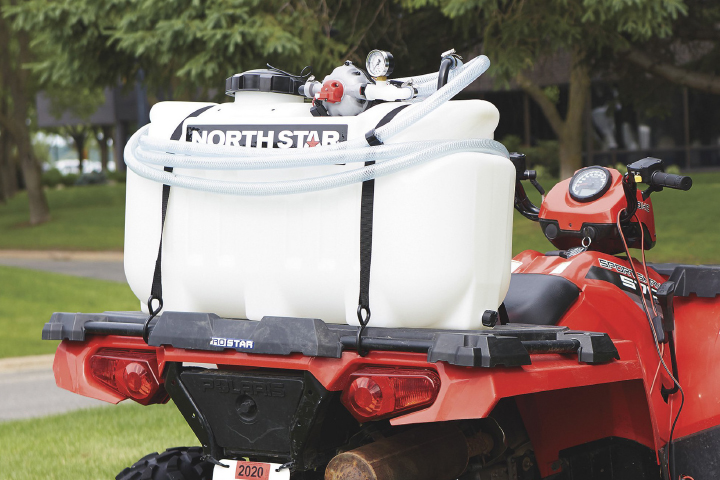

DURABLE CONSTRUCTION
Built to WITHSTAND HARSH ENVIRONMENTS and chemicals, ensuring LONG-TERM SERVICE and reliability

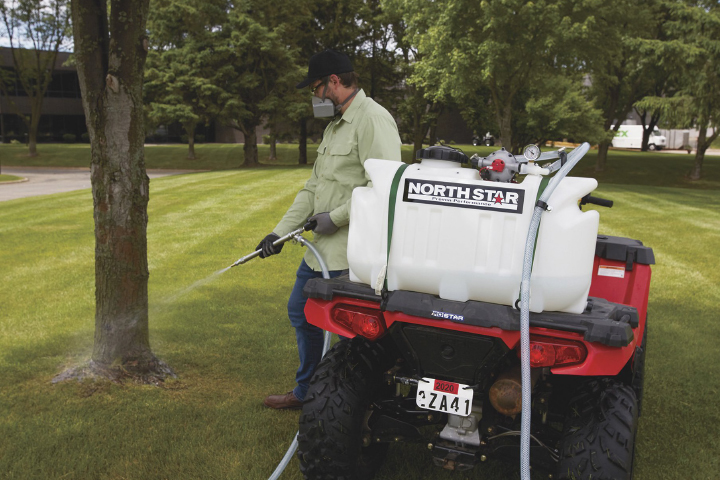

OPTIMIZED FOR ROUNDUP®
Fully compatible with ROUNDUP® AGRICULTURAL HERBICIDES, offering flexibility in application

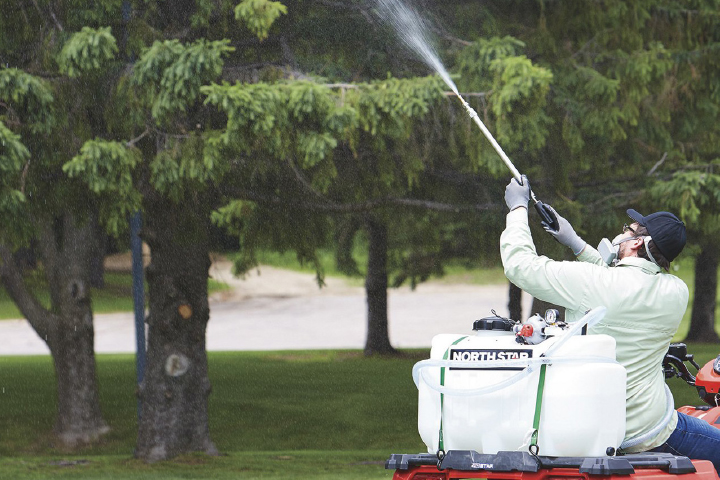

MAXIMUM REACH
Designed to spray areas up to 30 FEET HIGH directly from your ATV, providing safety and convenience

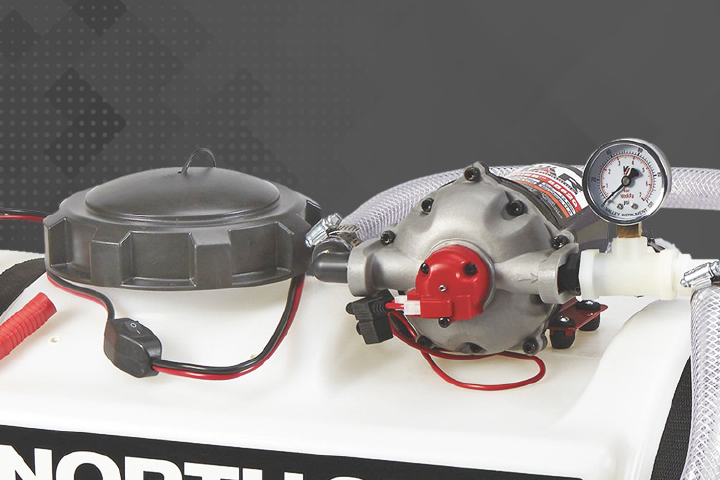

EFFICIENT OPERATION
Includes a REMOTE ROCKER SWITCH and pressure gauge for precise control over your spraying tasks
Features + Benefits
- 12V, 5.5 GPM NorthStar NSQ Series on-demand pump provides faster priming and longer life; 60 PSI max.
- 100% continuous duty rating
- Patented DXS-3 valves are made with chemical-resistant Viton for faster priming, better performance and longer life
- Santoprene diaphragm for superior reliability and chemical resistance
- Unique pressure switch design slowly cycles the pump for less switch and motor wear
- Quick-connect ports for easy changes
- Large 26-gallon tank design features extra-thick walls made with a special polymer for superior chemical and UV resistance
- Compatible with Roundup agricultural brand herbicides
- Built-in variable agitation valve keeps chemicals properly mixed
- Spray gun nozzle is matched to pump's flow and pressure to produce maximum spray height; adjusts from cone to stream; stream shoots up to 50ft. horizontally and 30ft. vertically
- 15ft. x 3/4in. clear reinforced poly vinyl chloride hose makes monitoring chemical flow simple
- Large-diameter hose reduces restrictions and improves performance at nozzle
- Easy-fill 6in. dia. tank lid
- Easy-empty tank-bottom drain
- Includes pressure gauge and remote rocker switch
- Attaches to an ATV with the included tie-down straps
See All Broadcast + Spot Sprayers
See All NorthStar Broadcast + Spot Sprayers
Currently Viewing This Product
Specifications
26 Gal
10 Gal
9 Gal
55 Gal
5.5 GPM
1.1 GPM
3 GPM
2.2 GPM
60 PSI
100 PSI
60 PSI
70 PSI
30 ft
14 ft
-
19 ft
Cone, Stream
Cone, Stream
Broadcast
Cone, Stream
Tree
Deluxe
Handheld
Spot
No
No
No
No
Northstar NSQ Series
Northstar Quick-connect
Diaphragm
Northstar NSQ Series
180 in
180 in
96 in
180 in
lb
lb
42.0000 lb
lb
34.0 x 14.5 x 21.5 in
25.25 x 16.5 x 12.0 in
21.5 x 24.5 x 19.75 in
39.0 x 30.0 x 40.0 in
-
-
Yes
Yes
-
-
5.4 ft
14 ft
-
-
Poly
-
-
-
15 in
-
