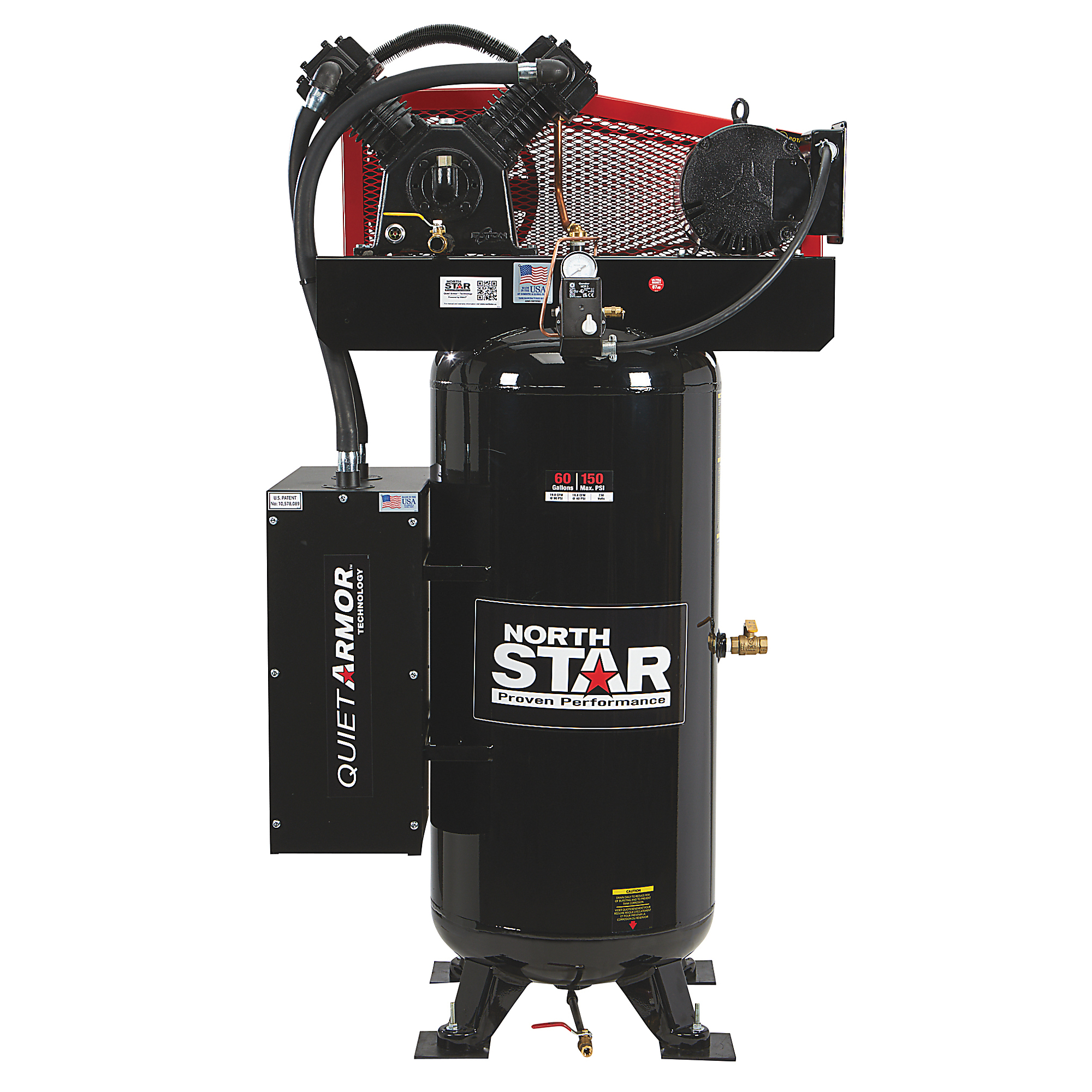

NorthStar Air Compressor with Quiet Armor, 60 Gal., 5 HP, 19 CFM @ 90 PSI, 150 Max. PSI, 230V, Single Phase

Item# 5899641
"NorthStar Air Compressor with Quiet Armor, 60 Gal., 5 HP, 19 CFM @ 90 PSI, 150 Max. PSI, 230V, Single Phase"
On Sale
NorthStar Air Compressor with Quiet Armor, 60 Gal., 5 HP, 19 CFM @ 90 PSI, 150 Max. PSI, 230V, Single Phase

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Air Compressor with Quiet Armor, 60 Gal., 5 HP, 19 CFM @ 90 PSI, 150 Max. PSI, 230V, Single Phase

Click or Tap image to Zoom

$2199.99
Reg $2299.99Save $100.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    1 in stock at Fredericksburg VA

  • Quiet Armor operates at 67dB, a level no louder than a normal conversation
  • 5 HP, 230V single-phase industrial motor
  • Performs at 19 CFM @ 90 PSI with 150 PSI max. pressure for optimum tool performance
  • Single-stage, low 730 RPM, 2-cylinder cast iron belt drive pump for maximum performance and durability
  • 5-stage filtration system for extended compressor life and reduced contamination in airlines

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Air Compressor with Quiet Armor, 60 Gal., 5 HP, 19 CFM @ 90 PSI, 150 Max. PSI, 230V, Single Phase
  • NorthStar Maintenance Kit for Quiet Armor Compressors
  • NorthStar Quiet Armor Electronic Dual Timer Auto Tank Drain
  • Milton 3/4in. MNPT x 1/2in. FNPT Reducer Bushing Hose Fitting, Model# S-652-8
Price for all four:

$2500.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar Air Compressor with Quiet Armor offers 5 HP, 60-gallon capacity and 19 CFM @ 90 PSI with 150 max. PSI. This single-stage, single-phase vertical air compressor runs on an industrial 1,740 RPM 4-pole electric motor with a 1.1 service factor and is designed for up to 50,000 hours of use with proper maintenance. It features patented Quiet Armor technology with our 5-stage air intake noise reduction technology, creating noise levels no louder than a normal conversation. This unit also offers a solid cast iron high-flow 730 RPM, 2-cylinder splash lube pump with removable disc valves and solid steel rods for maximum performance and durability. The ASME tank is powder coated and includes a ball valve tank drain. This compressor does not include an electrical cord; it requires hardwiring by a certified electrician.

What's Included

    (1) NorthStar Air Compressor with Quiet Armor

Downloads

Product Manual
Safety Data Sheet
Play Item Video

ACTION SPEAKS LOUDER THAN DECIBLES

TOUGH + EFFICIENT + DEPENDABLE + DURABLE … ALL WITH LESS NOISE!


QUIETER OPERATION

Exclusive Quiet Armor™ technology with 5-stage air intake noise reduction produces up to 50% LESS NOISE than leading commercial-grade compressors.


LONG-LASTING SERVICE

Single-phase industrial motor with low RPM, 4-pole motor and extra-low service factors that combine to extend motor life.


INDUSTRIAL PUMP CONSTRUCTION

Solid cast iron pump with low RPM for maximum durability - designed for 50,000 hours of use.


DEPENDABILITY GUARANTEED

Backed by a 4-year consumer warranty and a 2-year commercial warranty to ensure excellence.

Features + Benefits

  • Quiet Armor operates at 67dB, a level no louder than a normal conversation
  • 5 HP, 230V single-phase industrial motor
  • Performs at 19 CFM @ 90 PSI with 150 PSI max. pressure for optimum tool performance

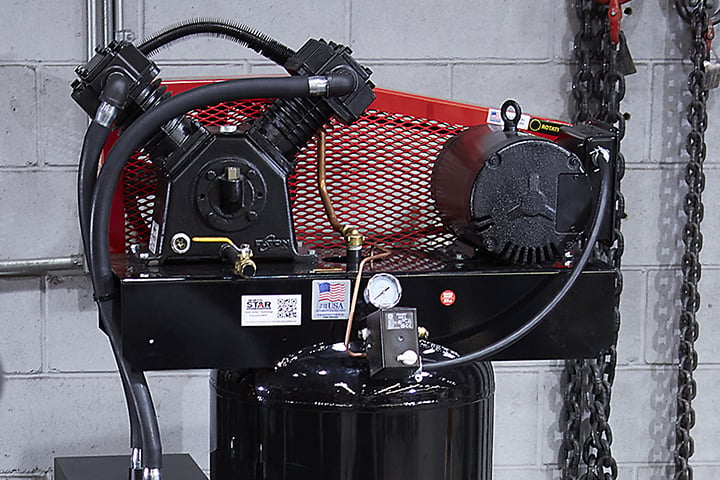

  • Single-stage, low 730 RPM, 2-cylinder cast iron belt drive pump for maximum performance and durability
  • 5-stage filtration system for extended compressor life and reduced contamination in airlines
  • 4-pole motor has low 1,740 RPM and 1.1 service factor
  • Cast iron pump for maximum durability designed for up to 50,000 hours of use
  • Removable industrial components include disc valves and solid steel rods
  • ASME-certified tank
  • Includes anti-vibration pads under feet to reduce vibration and improve sound insulation
  • Other features include magnetic starter pressure gauge, oil level sight glass and ball valve tank drain

Key Specs

AttributeSpecification

item#

5899641

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

510.0 LB

Air Tank Size

60 Gal

Volts

230

CFM at 90 PSI

19

Motor Phase

1

Stage

1

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

150

Air Outlets (qty.)

1

Amps

23

Duty Cycle

60 %

Fuel Capacity

0 Gal

Motor RPM

1,740

Working Pressure

120 PSI
AttributeSpecification

Pump Life

50,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

19

CFM at Max. PSI

15

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

6 min

Air Dryer

None

Drain Type

Manual

Product Weight

620.0000 lb

Dimensions L x W x H (in.)

42.0 x 34.0 x 75.0 in

Reviews

Questions & Answers

43 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. WHAT IS COVERED IN THE 4 YR WARRANTY ?

    1 answer

    1. Complete warranty details can be found on page 2 of the Product Manual which is located below the Product Summary on the web page.

      Helpful?

  2. How many dbs

    1 answer

    1. This Quiet Armor compressor operates at 67dB, a level no louder than a normal conversation.

      Helpful?

  3. I am looking for a replacement pulley for this north star.Air compressor I need the pulley that is on the electric motor.

    1 answer

    1. The pulley is part #NSPULLEY001. The required pulley insert is part #NSINSERT001. These parts can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  4. Will this compressor run all air tools

    1 answer

    1. This air compressor can support tools that require up to 15 CFM at 150 PSI and 19 CFM at 90 PSI. Please check the tool requirements for compatibility.

      Helpful?

  5. Does this come with a Baldor motor?

    1 answer

    1. This compressor is equipped with a Waylead ODP 4-pole 1740 RPM motor.

      Helpful?

  6. Does it come with oil

    1 answer

    1. The unit is shipped with pump break-in oil and should be ready to install. Be sure to check for proper oil level before running the compressor.

      Helpful?

  7. Is the eye bolt on the motor intended for lifting the compressor? Doesn't show it in the manual, but there is a picture of the compressor being lifted off the pallet in one of the reviews.

    1 answer

    1. The eye bolt is designed for lifting the motor only.

      Helpful?

  8. It says duty cycle 60% most other brands seem to have higher duty cycle. With it being at 60% how long can this be ran?

    1 answer

    1. The duty cycle is measured over a one-hour period: the machine can operate for 60 minutes, followed by a required 40-minute cooldown period.

      Helpful?

  9. Will this wire directly to a 220/240 single phase home system?

    1 answer

    1. The air compressor is designed to be hardwired to a 220/240V single phase system. Please consult a licensed electrician for installation.

      Helpful?

  10. Does this compressor really weight 620 pounds ? Seems like a lot for a 60 gallon.

    1 answer

    1. This air compressor does actually weigh 620 lbs. total.

      Helpful?
