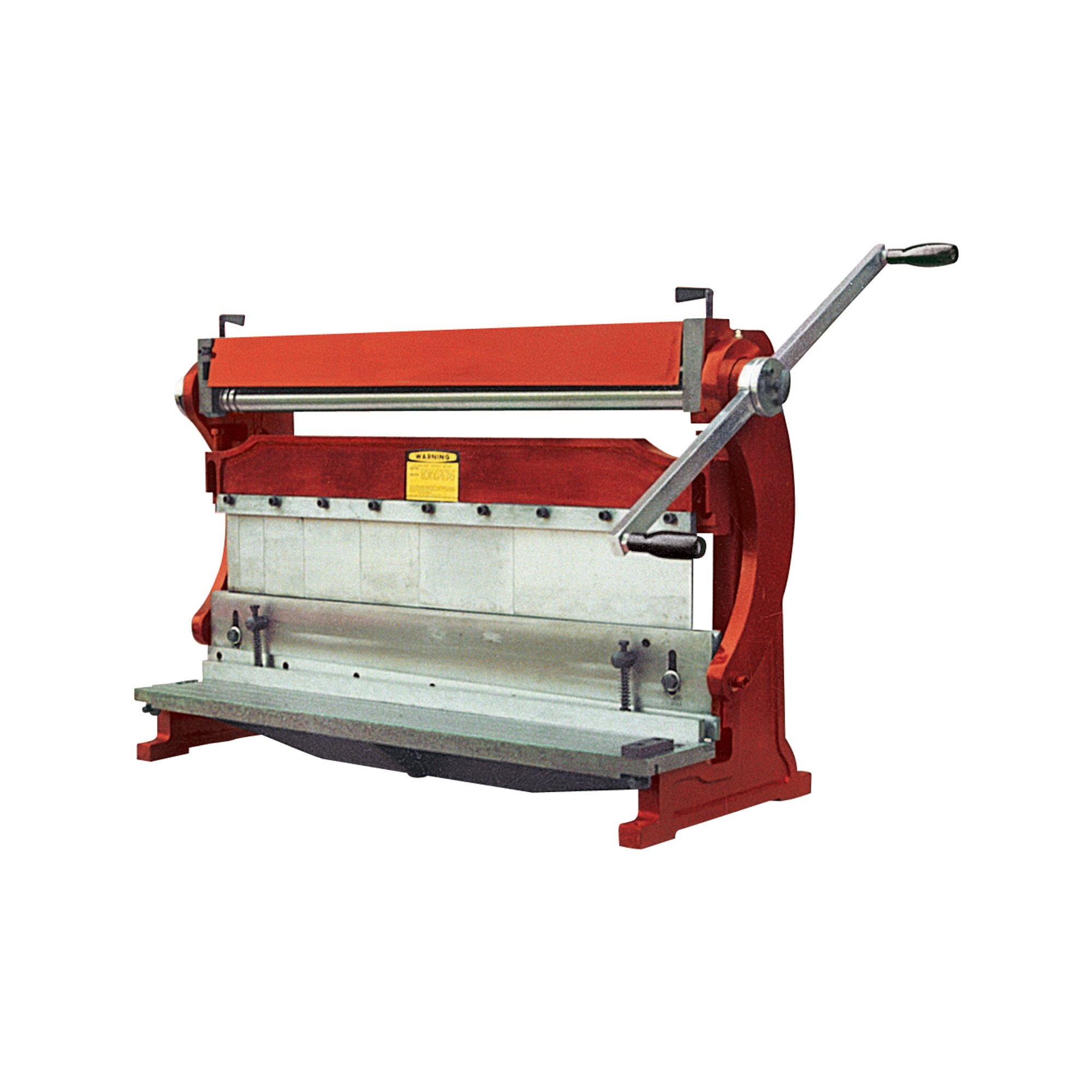

Northern Industrial 3-In-1 Shear, Brake and Roll

Item# 143343
Northern Industrial 3-In-1 Shear, Brake and Roll

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Northern Industrial 3-In-1 Shear, Brake and Roll

Click or Tap image to Zoom

  • Press brake bends boxes, channels, angles and other complex jobs

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Two-position handle. Sectional fingers allow box and pan work. Slip roll may be used to form straight cylindrical pieces and cones of limited size and wire loops by using the 5/32 & 7/32 inch wire-forming grooves. Model has a slip roll and shear capacity of .04 inch (1mm). Handles 2 inch (46mm) rolls. 1 inch, 2 inch, 4 inch, 6 inch, 7 inch, 8 inch and 12 inch die sizes.

Downloads

Product Manual

Features + Benefits

  • Press brake bends boxes, channels, angles and other complex jobs

Key Specs

AttributeSpecification

item#

143343

Brand

Northern Industrial Tools

Manufacturer's Warranty

12 months parts / 12 months labor
AttributeSpecification

Ship Weight

620.0 LB

Dies Included

Yes

Dimensions L x W x H (in.)

48 x 19 x 26

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Will this handle 36 inch wide material?

    1. Yes, if the shear brake roll is a 40 inch model. The 30 inch model will handle 29 3/4 inches with no problem. The shear engages just under 2 inches of material as the upper bed knife is lowered (material thickness of .039, 20 gauge or 1mm). The force required to shear the material is nearly constant throughout the cut.

      Helpful?

    2. The Northern Industrial 3-In-1 Shear, Brake and Roll will handle material up to 40 inches wide.

      Helpful?

  2. Item# 143343 - What thickness of sheetmetal will this handle?

    The other 3 n 1 says it will handle up to 20 ga but this one doesn't say what gauge it will handle I need one to handle up to 18 gauge

    1. The machine is fabricated for 20 gauge material maximum. The forces required to handle 20 gauge mild steel are right at the maximum design forces.
      I have sheared 18 gauge material in small widths. The machine will handle the forces required for 18 gauge if the stock is place very near or at the ends of the shear bed. 18 gauge cannot be handled in the center of the shear bed. The same is true for bending and rolling.

      Helpful?

    2. This Northern Industrial 3-In-1 can handle up to 20 gauge sheet metal.

      Helpful?

  3. Pan height? Will it make a 3" pan?

    1 answer

    1. This Shear, Brake and Roll can be used to make pans with 3" sides.

      Helpful?

  4. Made in USA or imported?

    1 answer

    1. This shear, brake and roll is made in China.

      Helpful?

  5. What are the diameter of the rolls?

    1 answer

    1. This shear, brake and roll has rolls that are 1-1/2" diameter.

      Helpful?

  6. What happened th the stand that used to be available for this?

    1 answer

    1. The stand for the Northern Industrial Shear, Brake and Roll is no longer available.

      Helpful?

  7. What thickness of sheet aluminum will this handle?

    1 answer

    1. Northern Industrial 3-In-1 Shear, Brake and Roll will handle aluminum up to 1.2 mm(18 gauge) thick.

      Helpful?

  8. What size stainless steel will it bend

    1 answer

    1. This will not bend stainless.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
