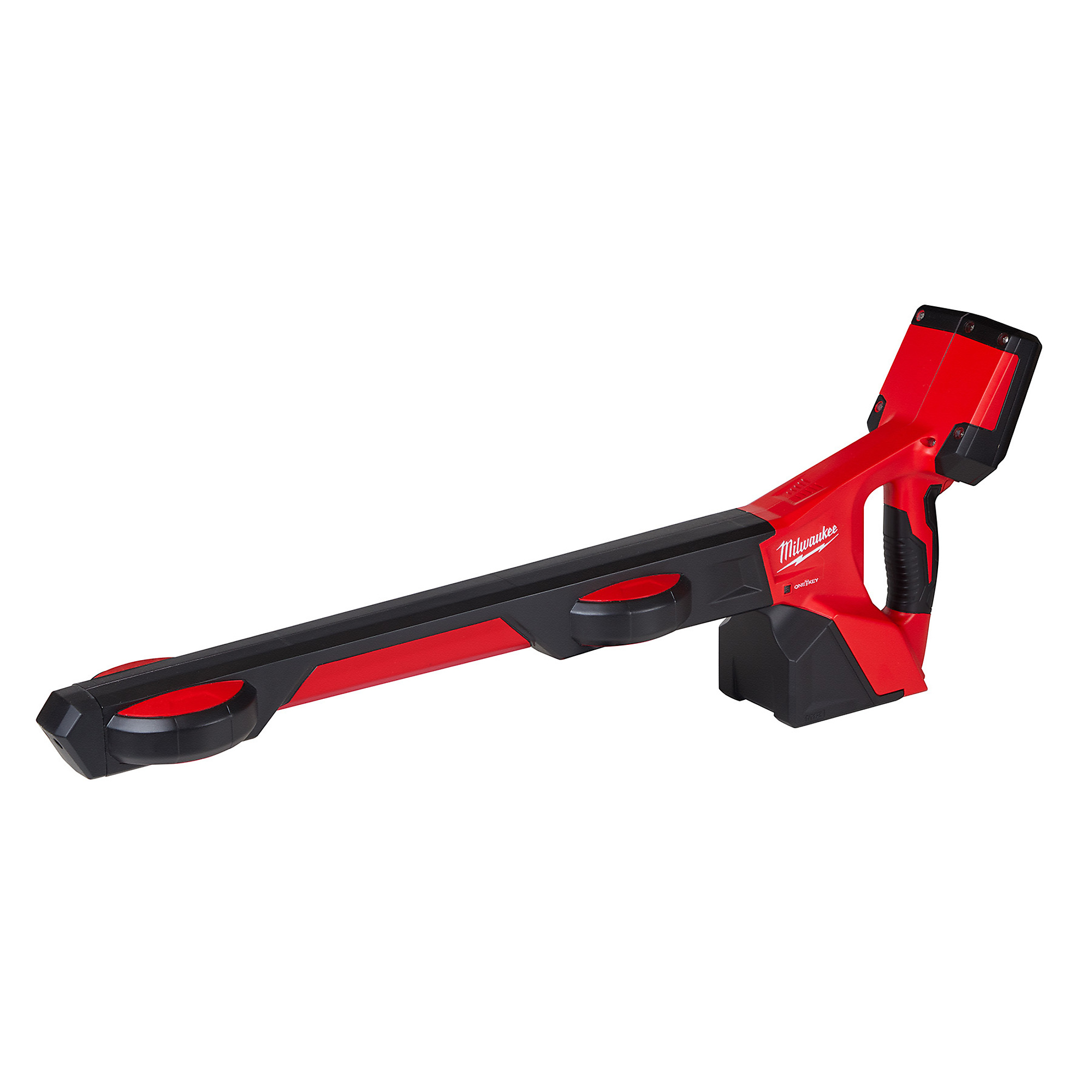

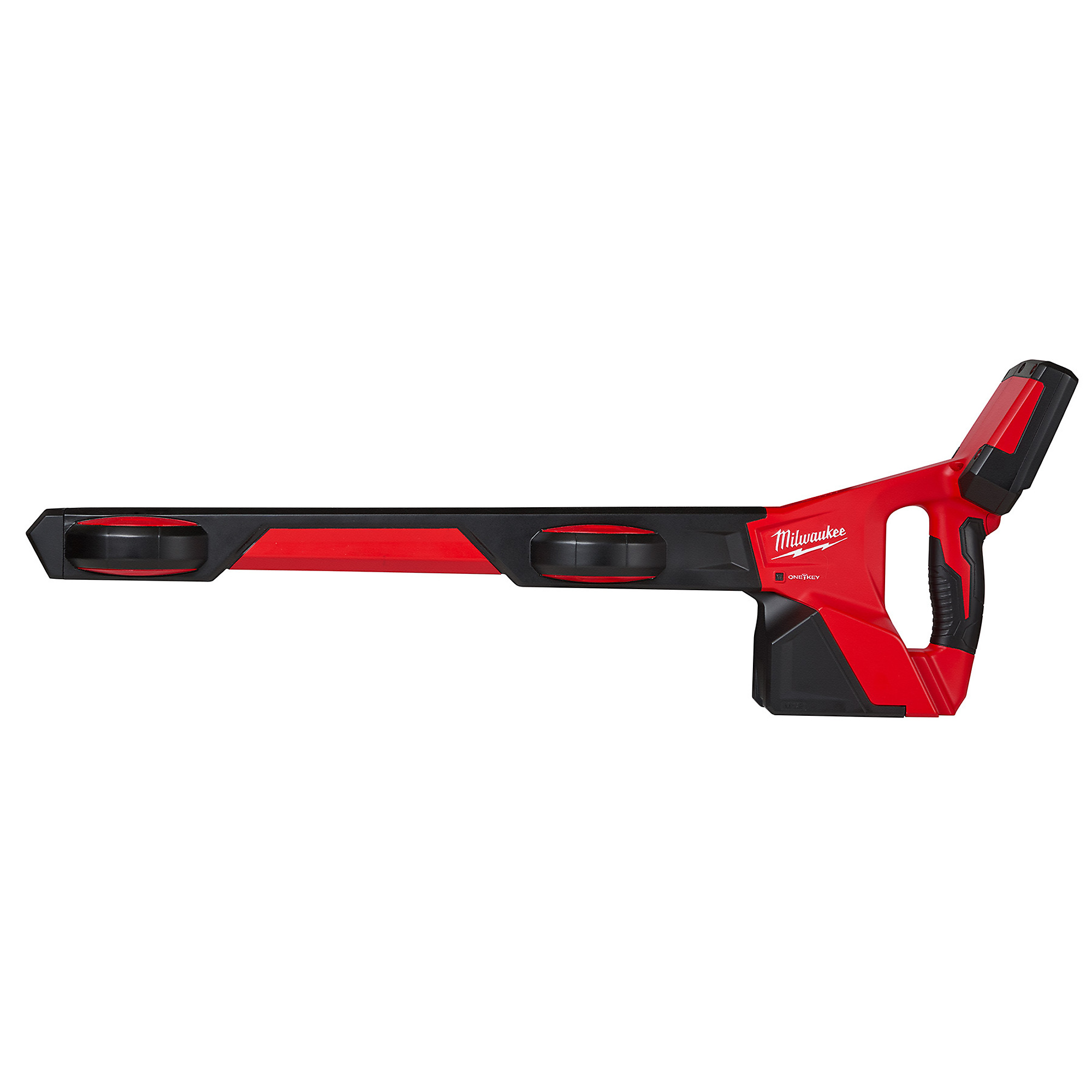

Milwaukee, M12 ONE-KEY Wireless Hand-Held Pipeline Locator Kit, Depth 20 ft, Frequency 22.7 kHz, Model# 2580-21

Item# 5185884
Milwaukee, M12 ONE-KEY Wireless Hand-Held Pipeline Locator Kit, Depth 20 ft, Frequency 22.7 kHz, Model# 2580-21

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milwaukee, M12 ONE-KEY Wireless Hand-Held Pipeline Locator Kit, Depth 20 ft, Frequency 22.7 kHz, Model# 2580-21

Click or Tap image to Zoom

  • 360 degree guidance arrow provides fast, accurate guidance upon start up

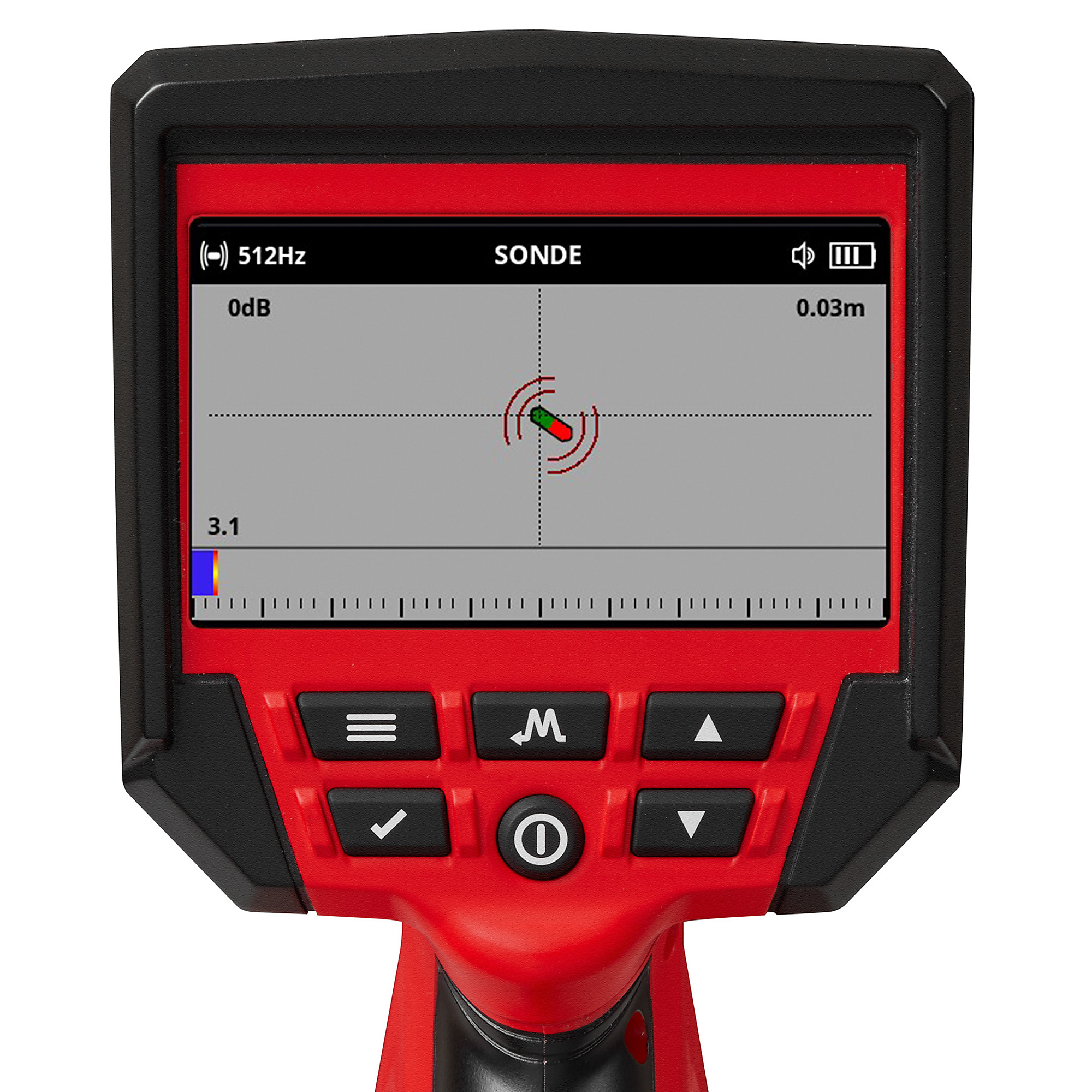

  • On-screen sonde icon confirms sonde's exact location
  • Line trace mode: compass icon follows energized line
  • Omni-directional antennas eliminate fales peaks
  • Onboard controls: quickly switch between locating modes

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Milwaukee M12 Pipeline Locator provides the most intuitive plumbing locating experience, simplifying the process of pinpointing sewer camera sondes and tracing underground sewer lines. A directional arrow appears on screen upon startup, immediately pointing in the direction of the sonde and eliminating the need to guess and check which direction to start. Once in range, a sonde icon appears on screen, confirming the exact location of the sonde. Dual 3D antennas eliminate fales peaks and increase both sensitivity and precision, making it easier to locate than ever before. Featuring a 4.3in. color LCD display, the locator simplifies navigation and provides a clear on-screen image even in direct sunlight. The locator is IP 65 rated for durability in harsh, outdoor working environments. Powered by M12 REDLITHIUM batteries, the M12 Pipeline Locator delivers all day runtime on a single charge. The locator is equipped with 1-KEY tracking, security, and inventory management to protect your investment.

What's Included

    (1) M12 Pipeline Locator, (1) M12™ 1.5AH Battery (48-11-2401), M12™ Charger (48-59-2401)

Features + Benefits

  • 360 degree guidance arrow provides fast, accurate guidance upon start up
  • On-screen sonde icon confirms sonde's exact location
  • Line trace mode: compass icon follows energized line
  • Omni-directional antennas eliminate fales peaks
  • Onboard controls: quickly switch between locating modes
  • Calibration test monitors tool's accuracy
  • Daylight readable screen for optimal outdoor viewing
  • IP65 rated: survives harsh jobsite conditions
  • OneKey tracking, security and inventory management
  • Sonde frequencies: 512 HZ, 640 Hz, 33 KHz
  • Line trace frequency: 33 kHz to 83 kHz
  • Power frequency: 50 Hz and 60 Hz
  • Radio frequency: 10 kHz to 22.7 kHz bandwidth
  • 2 multi-directional antennas
  • Includes: M12 pipeline locator, 1 M12 1.5 AH battery (48-11-2401), M12 charger (48-59-2401)

Key Specs

AttributeSpecification

item#

5185884

Brand

Milwaukee

Manufacturer's Warranty

5 year limited warranty

Ship Weight

17.27 LB

Depth

20 ft

Frequency

22.7 kHz

Display Size

4.3 in
AttributeSpecification

Cordless

Yes

Volts

12

Battery Type

Lithium-ion

Batteries Included

Yes

Product Weight

5.2500 lb

Dimensions L x W x H (in.)

11.38 x 4.88 x 32.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
