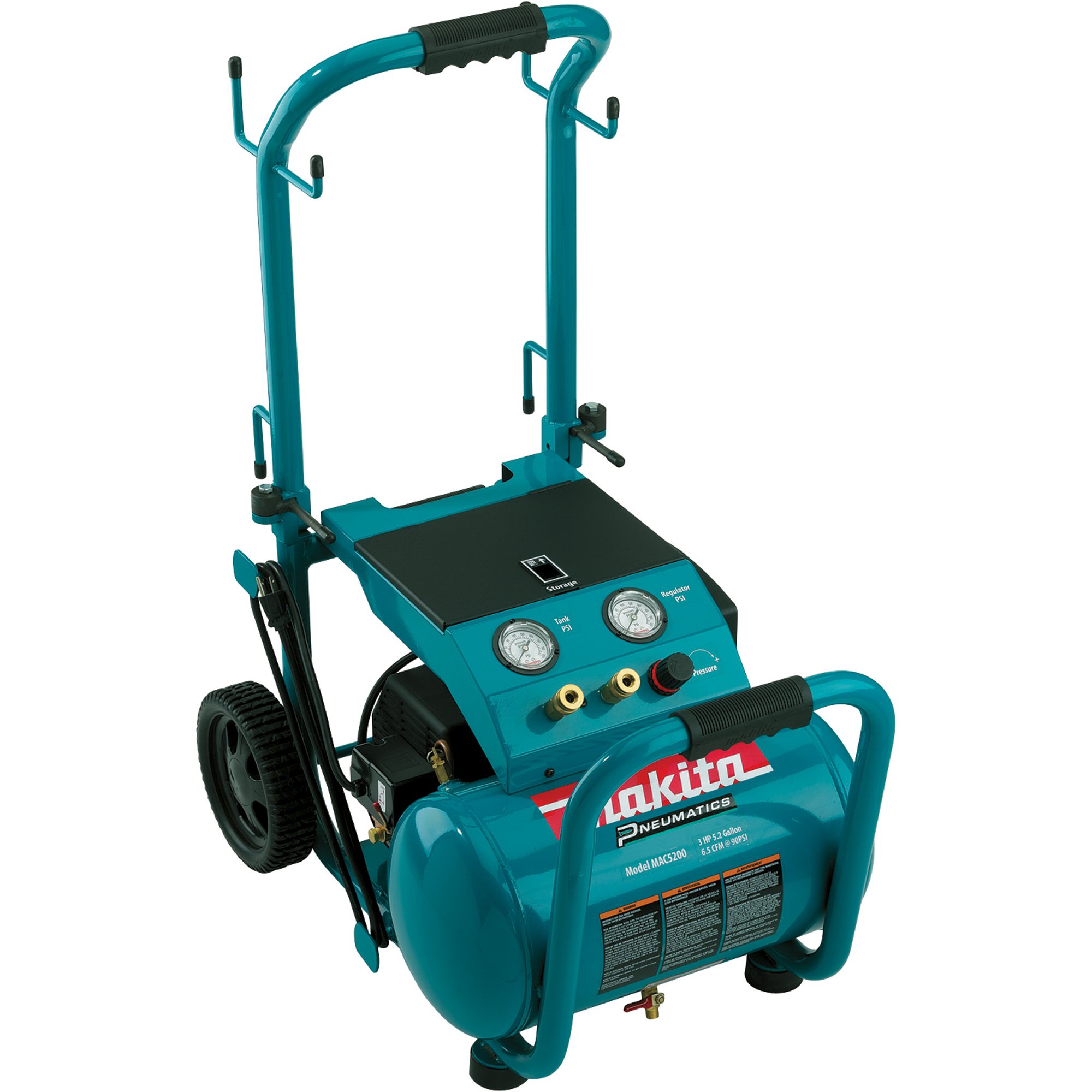

Makita Contractor Air Compressor — 3 HP, Model# MAC5200

Item# 999654
Makita Contractor Air Compressor — 3 HP, Model# MAC5200

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Makita Contractor Air Compressor — 3 HP, Model# MAC5200

Click or Tap image to Zoom

  • Single-phase
  • 6.9 CFM @ 40 PSI
  • 90dB noise level
  • Built-in storage compartment for air fittings and accessories
  • Air hose wrap stores 50ft. of 3/8in. air hose with handle folded or upright

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Power and performance to run two framing nailers. Contractor air compressor features a low profile for easy storage (with handle folded), rugged wheels for jobsite portability, cast iron cylinders, industrial air filter, thermal overload protection and more.

What's Included

  • (1) Air compressor
  • (1) 1/4in. brass Makita universal coupler

Downloads

Product Manual

Features + Benefits

  • Single-phase
  • 6.9 CFM @ 40 PSI
  • 90dB noise level
  • Built-in storage compartment for air fittings and accessories
  • Air hose wrap stores 50ft. of 3/8in. air hose with handle folded or upright
  • Tool hanger stores tools when not in use
  • Large automotive-style industrial air filter for increased air intake and greater efficiency
  • Durable cast iron cylinder reduces wear and increases pump life; removable for easy maintenance
  • Roll cage construction for extra protection to pump and motor assembly
  • Oil sight glass for fast, easy and efficient maintenance
  • Finned discharge tubing for increased heat dissipation and reduced moisture in the air
  • Convenient oil drain at the front of the pump for easy access
  • Built-in thermal overload for additional motor protection

Key Specs

AttributeSpecification

item#

999654

Brand

Makita

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

108.4 LB

Horsepower

3 HP

Air Tank Size

5.2 Gal

Volts

115

CFM at 90 PSI

6.5

Max. PSI

140

Stage

1

Amps

13.8
AttributeSpecification

Duty Cycle

50%

Working Pressure

140 PSI

Engine Start Type

Electric

Motor Phase

1

Pump Material

Cast Iron

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.9

Noise Level

90 dB

Lubrication System

Oil-Free

Tank Orientation

Horizontal

Dimensions L x W x H (in.)

30 x 20.5 x 21 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. What size Generator will run this Makita

    I own a Honda EU 2000 and a Champion 3500 Are either of these sufficient power to run this Makita?
    Thanks
    Matt

    1. no

      Helpful?

    2. Makita does not recommend using a Generator to power the MAC5200 Air Compressor.

      Helpful?

    3. This Makita compressor runs at approximately 1,587 watts (13.8 amps x 115 volts = 1587 watts). Therefore, both the EU 2000 and the Champion 3500 would supply sufficient power.

      Helpful?

  2. Can you run synthetic oil in the MAC 5200 compressor, and if so, what weight? what is rhe capacity?

    1. For the Makita 3 HP Air Compressor (model MAC5200), only use air compressor oil as noted in the Instruction Manual on pages 9 and 12. Multi-Viscosity motor oils, like 10W 30, should not be used in an air compressor, including the MAC5200. They leave carbon deposits on critical components, thus reducing performance and compressor life. Use air compressor oil only, and always keep oil level in the middle of the sight glass.

      Helpful?

    2. This compressor is not supposed to be used with synthetic oil. In most cases it runs off of a 30 weight oil. The capacity is 10 ounces.

      Helpful?

  3. What is the rpm of the motor

    1. The RPM of the motor in the Makita Air Compressor is 3400.

      Helpful?

    2. The Makita 3.0 HP Air Compressor (MAC5200) has a RPM of 3,400.

      Helpful?

  4. I wish to use the MAC5200 with a cnc plasma cutter. The MAC5200 specs say 50% duty cycle. I need to know how long I can run it before I must stop and

    I wish to use the MAC5200 with a cnc plasma cutter. The MAC5200 specs say 50% duty cycle. I need to know how long I can run it before I must stop and let it cool. How long?

    1. 50% Duty Cycle refers to the time that the compressor motor/pump should run on any given application. For example, if the compressor is use 4 hours a day, the motor/pump should only run 2 hours during the 4 hour period. If the compressor motor/pump runs much longer than 2 hours, it is an indication that the compressor may be too small for the desired application.

      Helpful?

    2. Duty cycle is based on a 10 minute time rating. A 50 % duty cycle means it can run for 5 minute over a 10 minute period. The compressor has 6.5 CFM at 90 PSI, if you use 1/2 of that on your plasma cutter you can use the compressor 100 % of the time. The compressor will cycle as needed.

      Helpful?

  5. 3 hp?

    The specs for this compressor claim 3 hp @ 13.8 amps, suitable for a 120 single phase outlet. The numbers do not add up. A true 3 hp motor would equal a running current of over 18 amps, not something you can plug into a standard outlet. What is the true motor rating?

    1. The Makita 3.0 HP* Air Compressor (MAC5200) comes equipped with a maximum 3.0 horse power motor that provides 2.1 running horse power.

      Helpful?

    2. The true motor rating of this air compressor is 3 horsepower.

      Helpful?

  6. MAC 5200

    Where is the thermal overload reset switch located?

    1 answer

    1. The reset switch is located behind the cylinder. Behind the cylinder either to the left or right you will find a corrugated tube. The switch is then located on the opposite side of the tube mounted to the motor housing.

      Helpful?

  7. Will this run 2 framing guns at once without lag in building air for framing residential new construction?

    1 answer

    1. Yes, as long as the the framing guns are not consuming more CFM than the unit can produce. If that is the case there should be no down time for pressure build up since the unit can replace air pressure faster than it is being used. This unit has a CFM rating of 6.5 at 90 psi, and 6.9 at 40 psi.

      Helpful?

  8. Can i run this compressor off of a 50' #12 extention cord without damaging the motor?

    1 answer

    1. The correct 50' cord needed to operate the Makita Air Compressor is a 12 gauge cord.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
