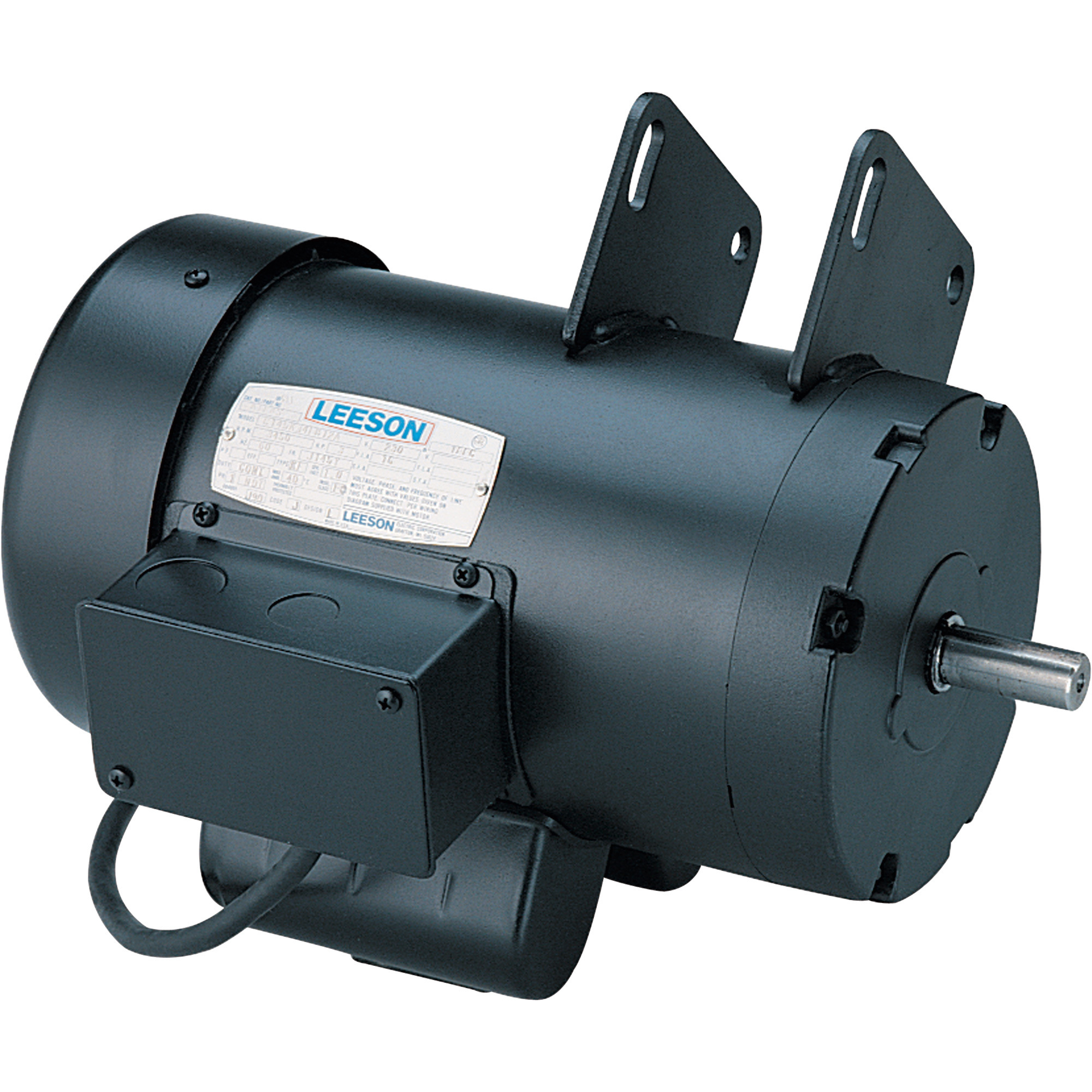

Leeson Contractor Power Saw Electric Motor, 2 HP, 3,600 RPM, 115/230 Volts, Single Phase, Model# 120997

Item# 46063
Leeson Contractor Power Saw Electric Motor, 2 HP, 3,600 RPM, 115/230 Volts, Single Phase, Model# 120997

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Leeson Contractor Power Saw Electric Motor, 2 HP, 3,600 RPM, 115/230 Volts, Single Phase, Model# 120997

Click or Tap image to Zoom

  • Motor pivots on rod for belt tensioning
  • Delta UNISAW mounting
  • Totally enclosed, fan-cooled (TEFC) housing has an external fan to provide cooling by blowing air over the outside frame
  • Fully gasketed to prevent dust entry
  • Durable rolled steel construction

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Leeson Contractor Power Saw Electric Motor is a powerful single-phase motor specially designed for use with woodworking equipment such as table saws with Delta UNISAW mounting (including Delta motor #83-621). UL listed. CSA certified.

What's Included

    (1) 2 HP table saw motor

Downloads

Additional Product Info

Features + Benefits

  • Motor pivots on rod for belt tensioning
  • Delta UNISAW mounting
  • Totally enclosed, fan-cooled (TEFC) housing has an external fan to provide cooling by blowing air over the outside frame
  • Fully gasketed to prevent dust entry
  • Durable rolled steel construction
  • Double-shielded ball bearings
  • Continuous duty operation
  • Extra-high breakdown torques for maximum cutting power
  • Includes 54in. power cord
  • Service factor 1.00

Key Specs

AttributeSpecification

item#

46063

Brand

Leeson

Manufacturer's Warranty

1 year limited warranty

Ship Weight

44.0 LB

Horsepower

2

RPM

3,600

Volts

115/230

Amps

11
AttributeSpecification

Hertz

60

Motor Phase

Single-phase

Rotation

Counter Clockwise

Shank Diameter

3/4 in

Shank Length

1.75 in

Reversible

Yes

Capacitor Start

Yes

Capacitor Run

No

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
