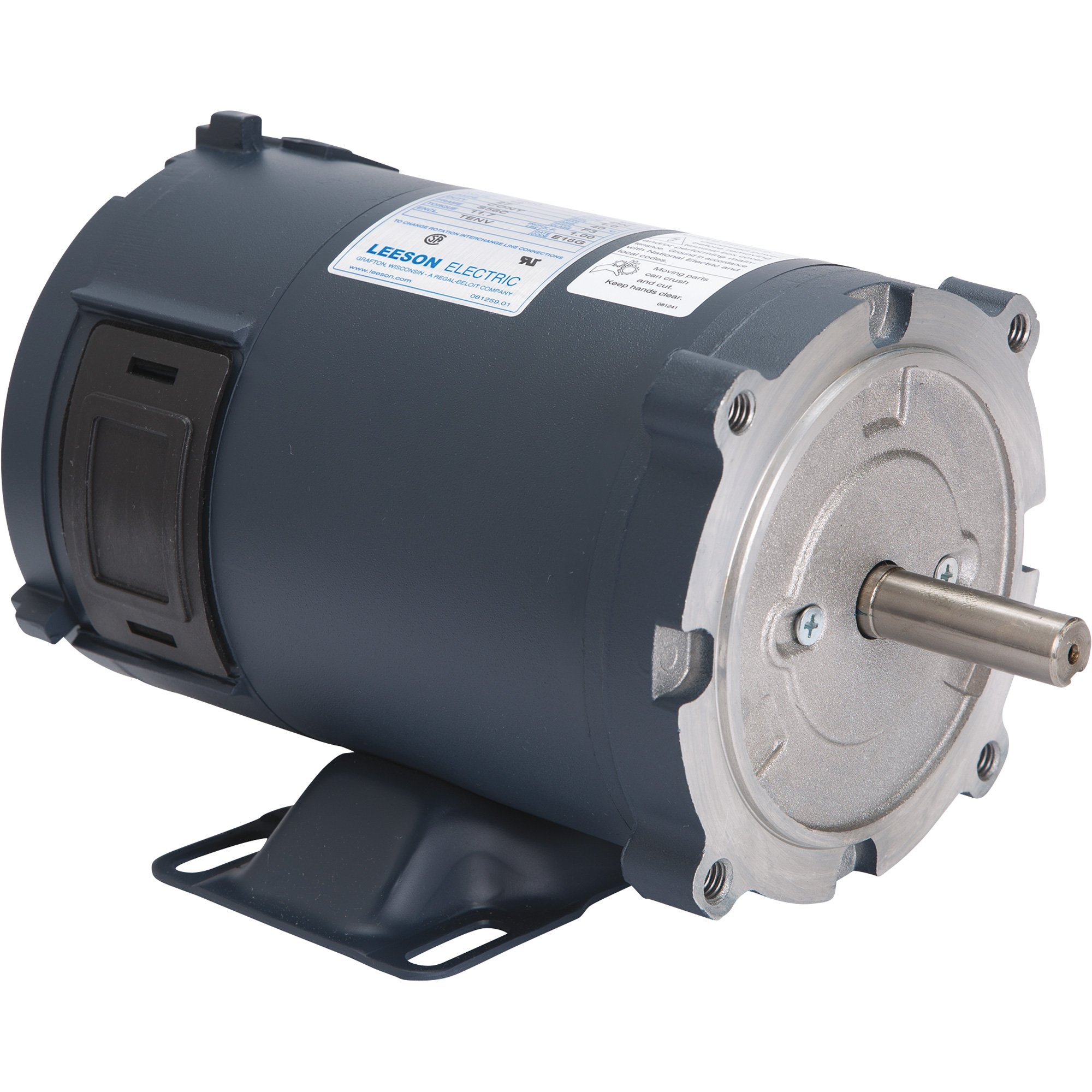

Leeson 24 Volt DC Electric Motor — 1/3 HP, 1,750 RPM, 13.5 Amps, Model# 108050.00

Item# 47018
Leeson 24 Volt DC Electric Motor — 1/3 HP, 1,750 RPM, 13.5 Amps, Model# 108050.00

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Leeson 24 Volt DC Electric Motor — 1/3 HP, 1,750 RPM, 13.5 Amps, Model# 108050.00

Click or Tap image to Zoom

  • Larger, over-sized brushes assure longer brush life
  • External access to brushes allows for easy replacement, further prolonging motor life
  • Heavy-duty, stamped steel, bolt-on base (removable)
  • NEMA C-Face mounting flange at no additional cost
  • High strength rolled steel frame

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This low voltage Leeeson 24V DC motor is suitable for installations having a battery or solar-powered operations, or generator-supplied low voltage DC applications.

What's Included

  • (1) 1/3HP, 24V DC electric motor

Downloads

Additional Product Info

Features + Benefits

  • Larger, over-sized brushes assure longer brush life
  • External access to brushes allows for easy replacement, further prolonging motor life
  • Heavy-duty, stamped steel, bolt-on base (removable)
  • NEMA C-Face mounting flange at no additional cost
  • High strength rolled steel frame
  • Permanently lubricated sealed ball bearings
  • High starting torque for heavy load applications
  • Linear speed/torque characteristics throughout the entire speed range
  • Reversible rotation direction adds versatility
  • Simple two-lead connection with convenient wiring access
  • Totally enclosed, non-ventilated (TENV) housing is tightly enclosed to prevent the free exchange of air, but is not air tight. Relies on convection for cooling
  • Speed control is available - compatible with LEESON Item#s 175291 or 174294 (sold separately)

Key Specs

AttributeSpecification

item#

47018

Brand

Leeson

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

22.0 LB

Horsepower

0.33

RPM

1,750

Volts

24
AttributeSpecification

Amps

13.5

Rotation

Counter Clockwise

Shank Diameter

5/8 in

Shank Length

1.9375 in

Reversible

Yes

Capacitor Start

No

Capacitor Run

No

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year Limited Warranty
