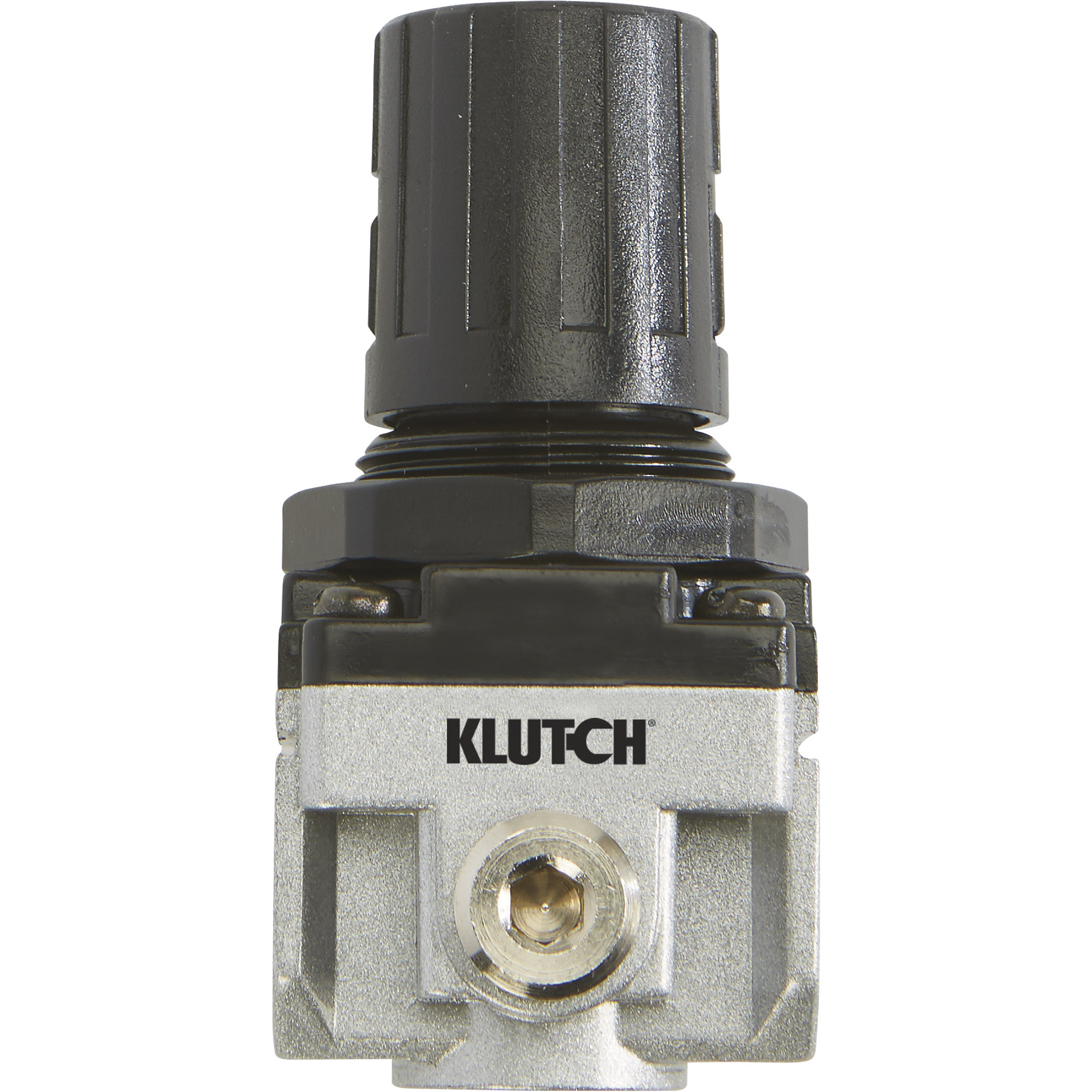

Klutch Mini Air Compressor Regulator, 1/4in., 220 Max. PSI, 21 CFM

Item# 48571
"Klutch Mini Air Compressor Regulator, 1/4in., 220 Max. PSI, 21 CFM"
Klutch Mini Air Compressor Regulator, 1/4in., 220 Max. PSI, 21 CFM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Mini Air Compressor Regulator, 1/4in., 220 Max. PSI, 21 CFM

Click or Tap image to Zoom

$24.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Aluminum die-cast construction with adjusting knob
  • Can be mounted in any position (horizontal, vertical, at angle or upside down)
  • Red Band alert indicates air regulator in unlocked position
  • Includes panel nut
  • 1/4in. NPT air inlet

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Klutch Mini Air Compressor Regulator, 1/4in., 220 Max. PSI, 21 CFM
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all two:

$26.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch Mini Air Compressor Regulator features modular construction. Can be installed in any position. Ideal for panel-mounting applications.

What's Included

    (1) Mini air compressor regulator (1) Panel-mounting nut

Features + Benefits

  • Aluminum die-cast construction with adjusting knob
  • Can be mounted in any position (horizontal, vertical, at angle or upside down)
  • Red Band alert indicates air regulator in unlocked position
  • Includes panel nut
  • 1/4in. NPT air inlet
  • 21 CFM
  • 220 max. PSI
  • Includes (2) 1/8in. ports for installing pressure gauge
  • 145 PSI max. inlet and outlet pressure

Key Specs

AttributeSpecification

item#

48571

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.38 LB

CFM

21 cfm
AttributeSpecification

Inlet Diameter

0.25 in

Outlet Diameter

0.25 in

Material

Aluminum

Recommended Use

Regulator

Max. PSI

220

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What diameter mounting hole is required for this regulator?

    1 answer

    1. The threaded diameter on the regulator measures 1 5/32". This is where the panel nut is screwed onto. The panel nut will have an outside measurement of 1 1/2".

      Helpful?

  2. Is this UL rated?

    1 answer

    1. This regulator is not UL listed. In general air regulators do not require UL certification.

      Helpful?

  3. Is this a self reliving regulator? Can I adjust pressure to a cylinder??

    1 answer

    1. This regulator does not self-release. It can adjust pressure to the cylinder within its range of 7 PSI - 220 PSI.

      Helpful?

  4. Please see the additional details.

    Klutch Mini Air Regulator - 1/4in. Item# 48571
    Is one of the two Included 1/8in. ports for installing pressure gauges for the inlet pressure and one for the outlet pressure or are they both for the outlet pressure? Also what is the minimum pressure setting?

    1 answer

    1. There are two 1/8" ports for the convenience of installing a gauge on either port depending where the air regulator is placed. The gauge would only show the pressure in the line after the regulator. The minimal pressures setting are 7 psi.

      Helpful?
