Klutch Electric Walk-Behind Concrete Curb Machine, 5.8in. Working Width, 3/4 HP, 550W Motor, 1700 RPM

Item# 49404
"Klutch Electric Walk-Behind Concrete Curb Machine, 5.8in. Working Width, 3/4 HP"
Top Seller
Klutch Electric Walk-Behind Concrete Curb Machine, 5.8in. Working Width, 3/4 HP, 550W Motor, 1700 RPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Electric Walk-Behind Concrete Curb Machine, 5.8in. Working Width, 3/4 HP, 550W Motor, 1700 RPM

Click or Tap image to Zoom

$1399.99

  • Shipping:

    Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 5.8in. Working Width: Forms uniform curbs for clean, consistent edges across sidewalks, driveways and landscaping
  • 3 Curb Mold Styles: Supports multiple curb profiles to match different project requirements

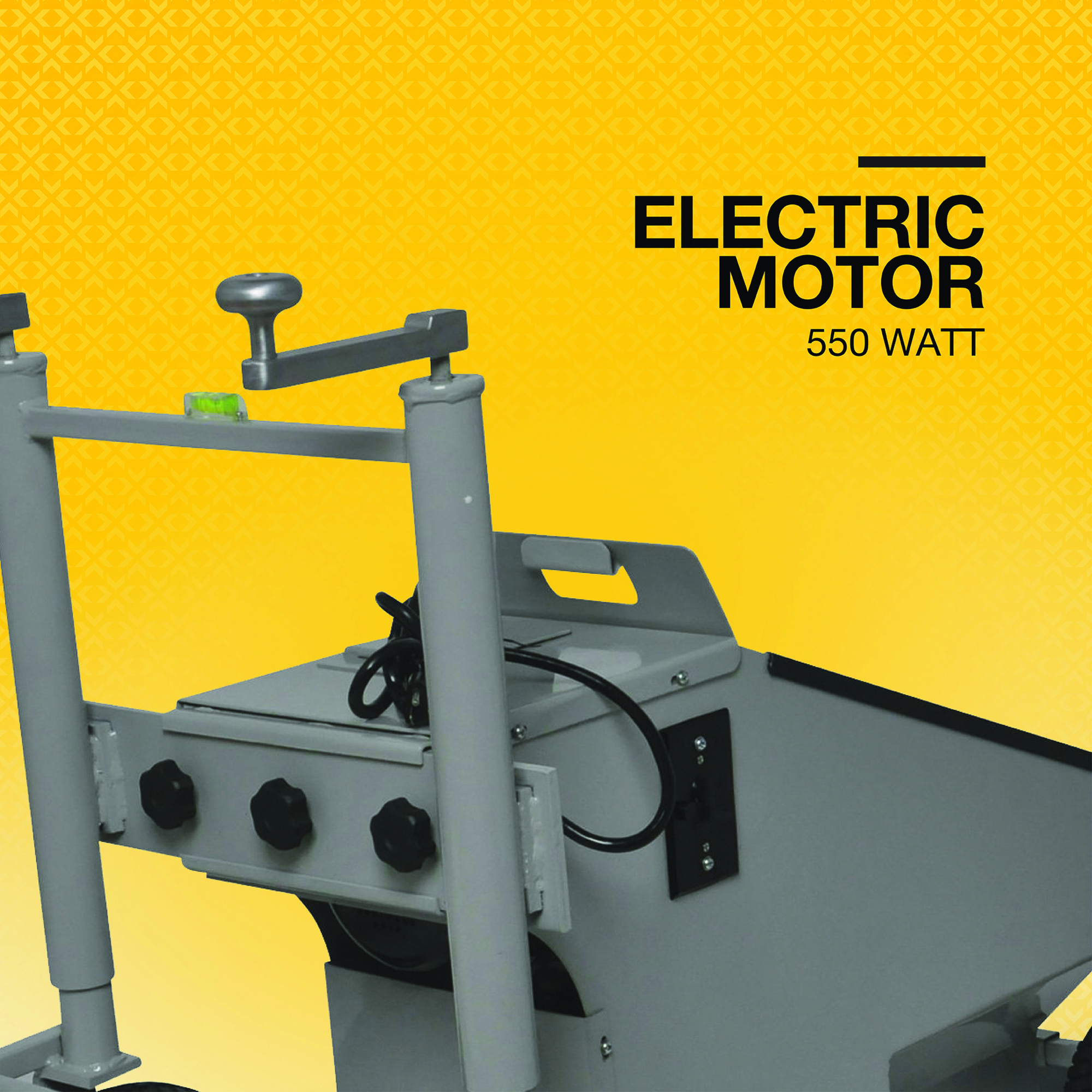

  • 550 Watt, 3/4 HP Motor: Delivers consistent electric power for controlled forming without gas engine maintenance
  • 1,700 RPM Output: Maintains steady operation to help produce smooth, even curb finishes
  • Integrated Cement Hopper: 17-1/8in.L x 9-3/8in.W capacity supports continuous feeding and reduces downtime

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

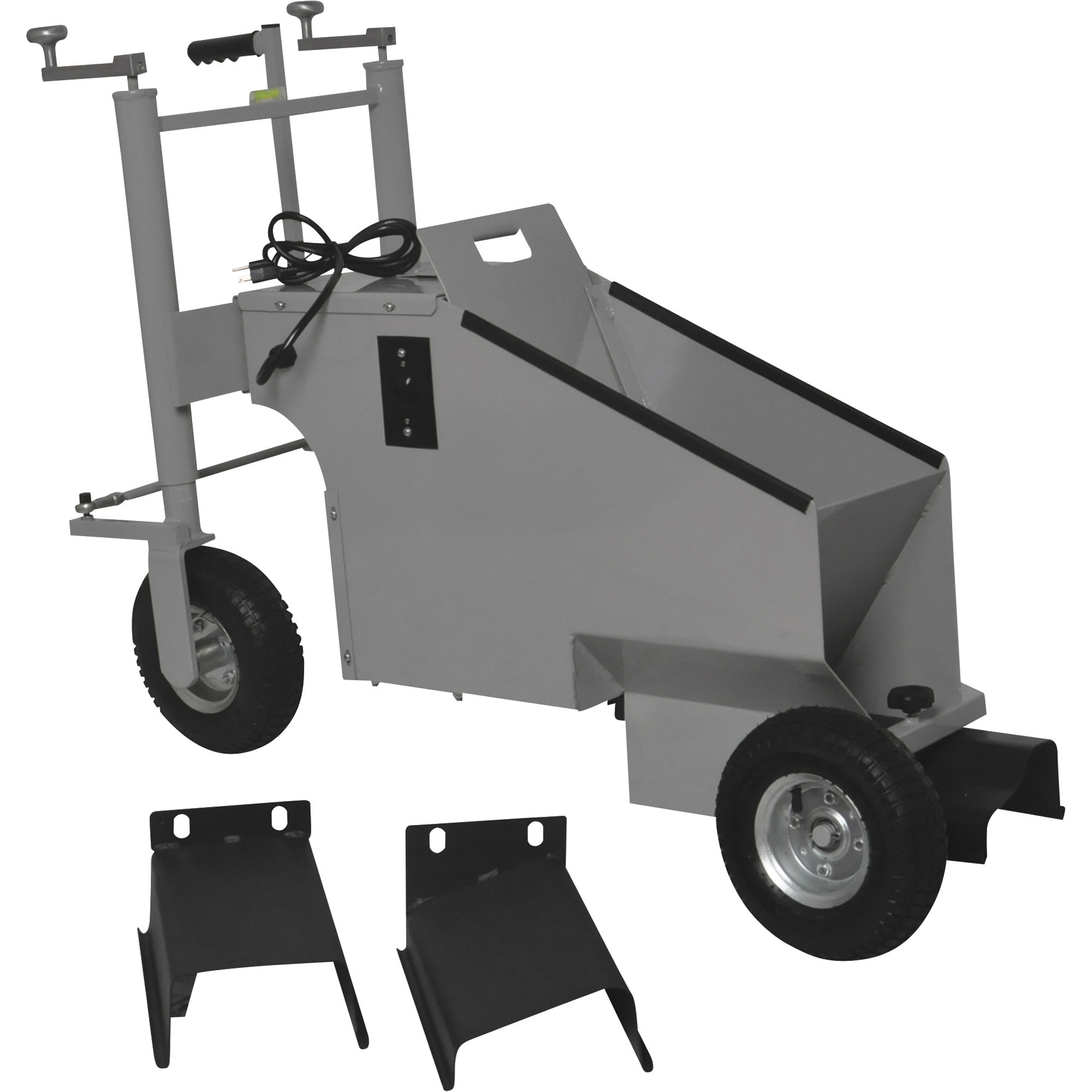

The Klutch Electric Walk-Behind Concrete Curb Machine is a 3-wheel self-propelled unit designed to form consistent concrete curbs up to 5.8in. wide. Powered by a 550 Watt, 3/4 HP electric motor running at 1,700 RPM, it delivers steady output for controlled curb shaping. The integrated hopper and included molds streamline setup and operation, while pneumatic tires provide smooth mobility across the worksite. The Klutch Electric Walk-Behind Concrete Curb Machine is built for efficient curb forming with consistent results.

What's Included

    (1) Klutch Electric Walk-Behind Concrete Curb Machine (3) Molds (4) Hand trowels

Downloads

Product Manual

Features + Benefits

  • 5.8in. Working Width: Forms uniform curbs for clean, consistent edges across sidewalks, driveways and landscaping
  • 3 Curb Mold Styles: Supports multiple curb profiles to match different project requirements
  • 550 Watt, 3/4 HP Motor: Delivers consistent electric power for controlled forming without gas engine maintenance
  • 1,700 RPM Output: Maintains steady operation to help produce smooth, even curb finishes
  • Integrated Cement Hopper: 17-1/8in.L x 9-3/8in.W capacity supports continuous feeding and reduces downtime
  • Included Accessories: Features 3 molds and 4 trowels to start forming immediately out of the box
  • 9in. x 3-1/2in. Pneumatic Tires: Provides stable movement across uneven ground for better control during operation
  • 5.4ft. Power Cord: Extends reach to nearby outlets for flexible jobsite positioning
  • Steel Frame Construction: 42in.L x 19in.W x 34in.H design supports durability and stability during use
  • Assembly Required: Ships ready for setup with straightforward assembly before operation

Key Specs

AttributeSpecification

item#

49404

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

212.0 LB

Max. Curb Width

5.8 in

Hopper Capacity

5 Gal

Max. RPM

1,700
AttributeSpecification

Trowel Included (qty.)

4

Molds Included (qty.)

3

Horsepower

0.75

Power Cord Length

5.4 ft

Product Weight

lb

Dimensions L x W x H (in.)

42.0 x 19.0 x 34.0 in

Reviews

Questions & Answers

33 Reviews This action will navigate to reviews.

Questions

1–10 of 30 Questions
Sort by:

  1. Is one of the molds a mowing edge mold?

    1. yes this unit came with 3 different molds, one of which is the mowing edge mold

      Helpful?

    2. Yes. Mower edge, slant and square molds. Also included are hand trowels for each.

      Helpful?

    3. yes

      Helpful?

    4. Yes, there is a mowers edge, slope, and block forms.

      Helpful?

    5. This curb machine includes: mower's edge, slant style, and curb style molds/slip forms.

      Helpful?

  2. hand trowels

    The description states it comes with 4 hand trowels, are these just generic tools or are they the same shape as the curb molds? thanks

    1. The curbing tools that come with the unit are surprisingly good tools. we were expecting cheap. the are the same shape as molds and are made of strong metal.

      Helpful?

    2. The included hand trowels are a 4" x 6" Mowers edge trowel, 4" x 8" Curb style trowel, 4" x 7" Slant trowel and a Finishing 90 degree trowel.

      Helpful?

  3. Does it have the ability to install a cable?

    1 answer

    1. This curb machine does not have a cable installation feature.

      Helpful?

  4. What are the available profiles for the curbs?

    1 answer

    1. This curb machine includes mower's edge, curb style and slant style slip forms. These can be viewed on page 10 of the Product Manual which is located on the web page.

      Helpful?

  5. How much cubic feet is the bin capacity?

    1 answer

    1. The bin capacity is 2.3 cubic feet.

      Helpful?

  6. Where can I get replacment tires?

    1 answer

    1. The replacement tire and wheel assembly is part number KLH49404.9. Parts are no longer available through Northern Tool. To order, please contact our sister company Jacks Small Engines at the link provided. https://jackssmallengines.com/

      Helpful?

  7. Where is the serial number located on these machines at? Thanks

    1 answer

    1. The serial number is found on the bottom of the Klutch label, which is located near the bottom edge of the left side when standing behind the machine.

      Helpful?

  8. Is it possible to extrude a 6" tall curb if a replacement mold was Installed ? If so, would the compaction ram would need to be modified ?

    1 answer

    1. The finished height of the curb is 3 3/8" high. There is not an option to increase the height of the curb. Modifications to the machine will void the manufacturers warranty.

      Helpful?

  9. What is the smallest radius or circle this product will make?

    1 answer

    1. There are two radius positions it will do, they are 0.47in.( 12mm) and 0.79in.(20mm).

      Helpful?

  10. How big is the box it comes in?

    1 answer

    1. The shipping box will be 36'' long, 20'' wide, and 24'' high.
