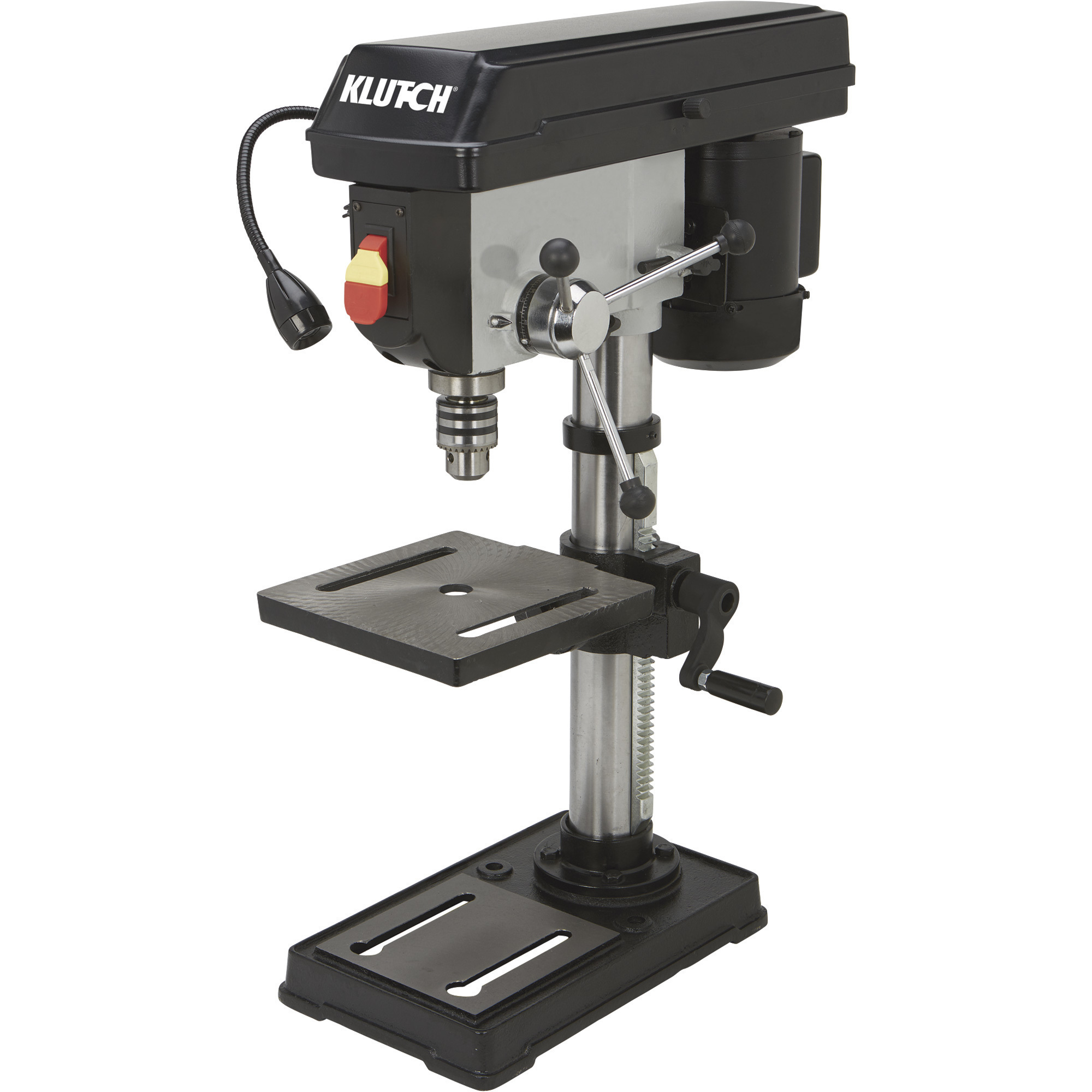

Klutch Benchtop Drill Press, 5-Speed, 10in., 1/2 HP, 120V

Item# 49382
On Sale
Klutch Benchtop Drill Press, 5-Speed, 10in., 1/2 HP, 120V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Benchtop Drill Press, 5-Speed, 10in., 1/2 HP, 120V

Click or Tap image to Zoom

  • 1/2in. chuck capacity with 1/2in. maximum drilling capacity
  • 2 1/2in. vertical stroke
  • 10in. swing adds versatility
  • Depth lock with a ball knob handle for precise adjustments that stay true, hole after hole
  • Roomy 7 7/8in. x 7 7/8in. worktable

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Klutch Benchtop Drill Press is a heavy-duty unit featuring 5 speeds for versatility. The drill press combines power with precision and accuracy for exceptional results every time. Has a 1/2 HP, 120V motor with 5 speeds that generate 740-3,140 RPM.

What's Included

    (1) Drill press (1) Chuck key (1) 3mm Allen key (1) 4mm Allen key

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 1/2in. chuck capacity with 1/2in. maximum drilling capacity
  • 2 1/2in. vertical stroke
  • 10in. swing adds versatility
  • Depth lock with a ball knob handle for precise adjustments that stay true, hole after hole
  • Roomy 7 7/8in. x 7 7/8in. worktable
  • 19 1/4in.L x 9 1/2in.W x 26 3/4in.H overall size
  • 3.2 Amp rating

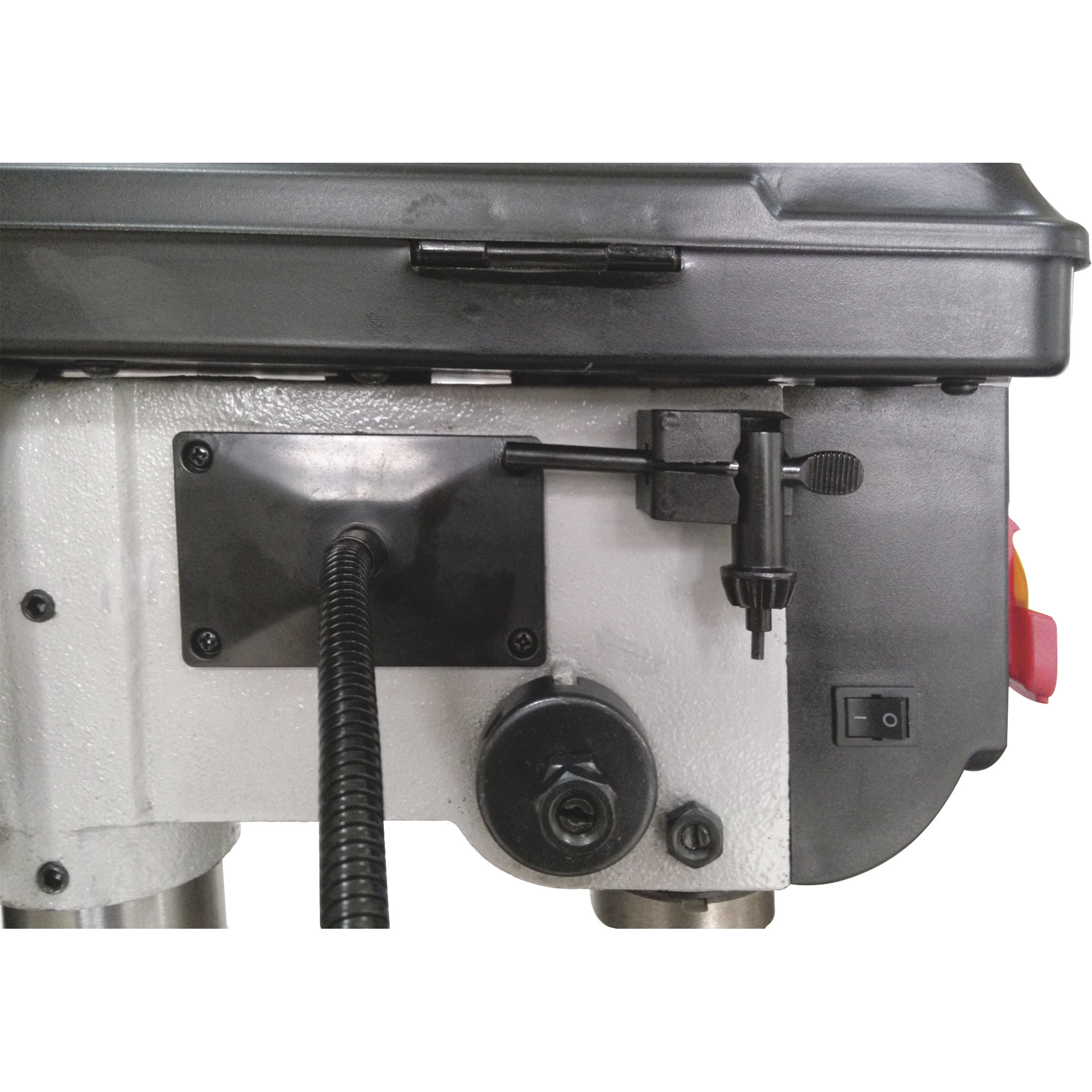

  • Built-in chuck key storage keeps the chuck close at hand and easy to find

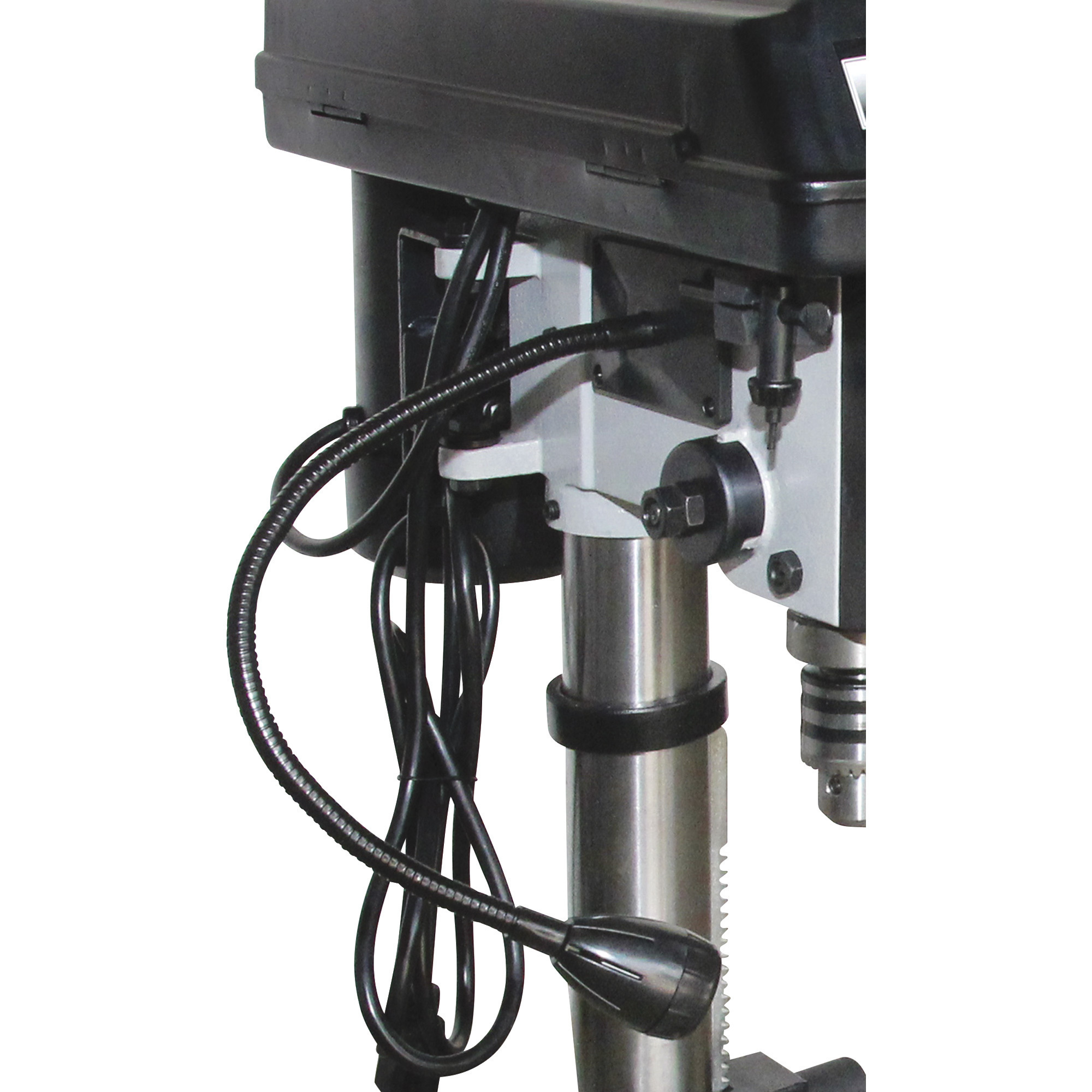

  • Includes a gooseneck LED light to illuminate your work surface

Key Specs

AttributeSpecification

item#

49382

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

59.4 LB

Horsepower

0.5 HP

Volts

120

Max. Speed

3,140 rpm

360 Degree Head Swivel

No

Speeds (qty.)

5

Product Type

Drill Press
AttributeSpecification

Vertical Stroke

2-1/2 in

Drilling Capacity

1/2 in

Chuck Size

1/2 in

Light Included

Yes

Stand Included

No

Variable Speed

No

Draw Bar

Yes

Swing

10 in

Product Weight

lb

Dimensions L x W x H (in.)

19.25 x 9.5 x 26.75 in

Reviews

Questions & Answers

33 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. does it have reverse?

    1 answer

    1. This drill press does not have reverse.

      Helpful?

  2. What is the belt size. I have the 762mm OD and 10mm wide specs, but is it an 3L/4L etc?

    1 answer

    1. This drill press has a 3L V-belt. It is 762mm (30") long by 10mm (0.39") wide. The replacement V-belt for the drill press is part number KLH49382-1. To order replacement parts, please contact the parts department at 1.800.657.0516.

      Helpful?

  3. Country of manufacture?

    1 answer

    1. This drill press is manufactured in China.

      Helpful?

  4. is the work light hard wired ?

    1 answer

    1. The work light is hardwired into the drill press.

      Helpful?

  5. Are the gears in the hand crank made out of metal? Are there any plastic parts in this Klutch drill press?

    1 answer

    1. The gears in the hand crank are constructed of carbon steel. The plastic parts of this drill press are the switch plate (27), the crank handle (50B-14) and the handle grip (51B).

      Helpful?

  6. Is there a laser or location marker?

    1 answer

    1. The drill press does not come with laser or location marker.

      Helpful?

  7. What material are the base, column mounting flange, and work table made from?

    1 answer

    1. The base, mounting flange, and work table are all made of cast iron.

      Helpful?

  8. What kind of bearings does the spindle have - sleeve or ball?

    1 answer

    1. The spindle on this drill press has ball bearings.

      Helpful?

  9. What is motor Full-Load-Amperage ?

    1 answer

    1. The amperage at full load is 3.2A. At different speeds and loads, it draws different amps.

      Helpful?

  10. Is there a vise available for this drill?

    1 answer

    1. Click the link below to view a vise that is compatible with this drill press.
