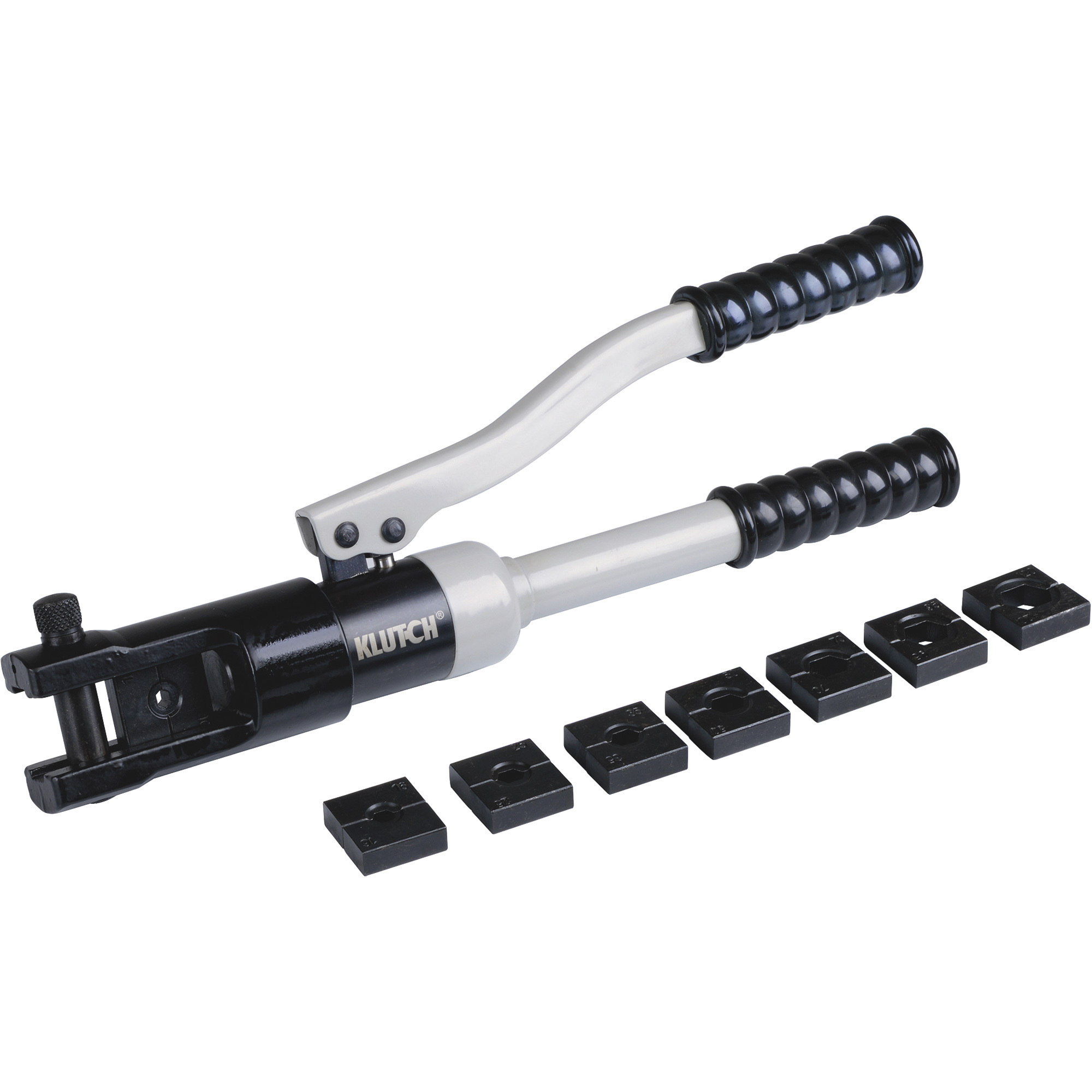

Klutch 10-Ton Hydraulic Cable Crimper

Item# 73168
Klutch 10-Ton Hydraulic Cable Crimper
Clearance
Klutch 10-Ton Hydraulic Cable Crimper

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 10-Ton Hydraulic Cable Crimper

Click or Tap image to Zoom

  • Delivers max. operating pressure of 10 tons
  • Tool free operation for changing dies quickly
  • On/off knob for fast tool operation
  • Hex dies used: 10, 16, 25, 35, 50, 70, 95, and 120mm
  • Max. operating stroke: 14mm

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The powerful Klutch® 10-Ton Hydraulic Cable Crimper allows you to crimp wires and butt connectors much easier than using a pair of hand crimpers. Tool uses 8 hex dies. Can be used with materials 0.14in.-0.48in. in diameter.

What's Included

    (1) 10-ton hydraulic cable crimper

Features + Benefits

  • Delivers max. operating pressure of 10 tons
  • Tool free operation for changing dies quickly
  • On/off knob for fast tool operation
  • Hex dies used: 10, 16, 25, 35, 50, 70, 95, and 120mm
  • Max. operating stroke: 14mm
  • 10-120 sq. mm crimping range
  • Can be used with materials 0.14in.-0.48in. in diameter.

Key Specs

AttributeSpecification

item#

73168

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

9.6 LB
AttributeSpecification

Power Supply

Hydraulic

Power Supply

Hydraulic

Product Weight

9 lb

Product Weight

9 lb

Reviews

Questions & Answers

31 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. Additional dies available?

    Are other die sets available? Particularly, round/oval die sets to be able to swage stainless steel wire rope sleeves?

    1. I bought Muzata pn MZZ638 swage die for wire rope. It fits the same as all the dies that come with this crimper. it isnt round its six sided but it worked for my 1/8" stainless steel cable ends for exercise equipment.

      Helpful?

    2. At this time additional dies are not available.

      Helpful?

  2. Will this do 2/0

    1 answer

    1. Yes, this will work on 2/0 which is 0.36" and up to 4/0 which is 0.46". The range for this tool is from 0.14" to 0.48" diameter.

      Helpful?

  3. Can this be shipped to a local store?

    1 answer

    1. This Klutch cable crimper is eligible to ship to a Northern Tool + Equipment retail location.

      Helpful?

  4. What are the dimensions of the dies?

    1 answer

    1. The exterior dimensions of all the dies are 33mm long x 36mm wide x 11.5mm high.

      Helpful?

  5. Will the klutch 10 ton cable crimped crimp 400 mcm wire splice

    1 answer

    1. This would not work on 400 MCM cable. It can be used with materials 0.14in.–0.48in. in diameter.

      Helpful?

  6. can this crimp 3/0 awg?

    1 answer

    1. The hydraulic cable crimper would not crimp 3/0 AWG wire.

      Helpful?

  7. Can this tool crimp oval ferrules for 1/4" wire rope

    1 answer

    1. This is capable of crimping oval ferrules for 1/4" wire rope.

      Helpful?

  8. WILL THIS CRIMP 1/0 AWG CAR AUDIO CABLE TO THE RING TERMIANALS, NOT O GAUGE 1/0 GAUGE. THANKS.

    1 answer

    1. Yes, the 50mm hex die would be used for 1/0 AWG wire.

      Helpful?

  9. will it crimp hydraulic hose fittings??

    1 answer

    1. This is designed for crimping cable, but it could crimp hose fittings. Typically the size and shape of hydraulic hose fittings would require a custom mold.

      Helpful?

  10. Can this crimper be used for swege crimps (i.e. two cables formed in an eye)?

    1 answer

    1. This cannot be used for swage crimping.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
