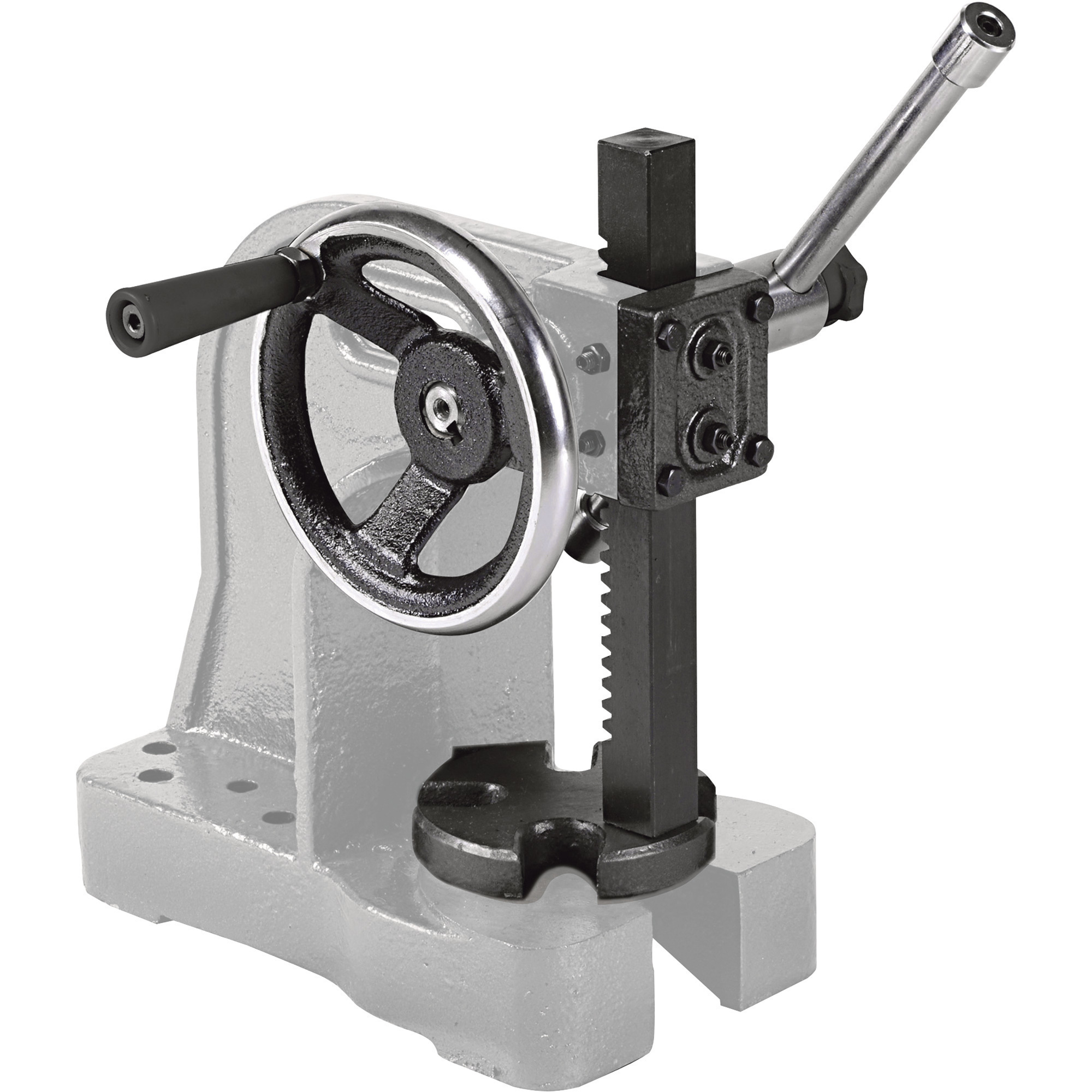

Klutch 1-Ton Arbor Press

Item# 49565
Klutch 1-Ton Arbor Press
Clearance
Klutch 1-Ton Arbor Press

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 1-Ton Arbor Press

Click or Tap image to Zoom

  • Applies 1 ton of continuous force
  • Durable cast iron construction
  • Solid anvil surface for tough pounding and shaping tasks
  • 105mm working depth

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Klutch® 1-Ton Arbor Press is a strong, precise press that applies the pressure essential for seating, stamping and removing bearings and performing other high-pressure assembly, repair and production jobs.

What's Included

    (1) 1-ton arbor press

Features + Benefits

  • Applies 1 ton of continuous force
  • Durable cast iron construction
  • Solid anvil surface for tough pounding and shaping tasks
  • 105mm working depth

Key Specs

AttributeSpecification

item#

49565

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

32.0 LB
AttributeSpecification

Continuous Force

1 Tons

Arbor Press Height

6 in

Base Width

4.25 in

Base Length

5.75 in

Reviews

Questions & Answers

13 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. Is the plate removable?

    1. Yes the plate is removable.

      Helpful?

    2. yes. held in place via metal stub in the center and gravity.

      Helpful?

    3. Yes, it lifts right off. It is located on the base by a lock pin on the underside of the round plate. Gravity keeps it in place.

      Helpful?

    4. The plate on this Klutch Arbor Press is removable.

      Helpful?

  2. What is included with this arbor press?

    If there are dies included, are they magnetic and do they fit into the end of the arbor? If there are dies included, what are they?

    1. The magnet is in the 1/2" hole in the ram. There are 3 smaller arbors: 1/2" square, pointed cone, and half-round sphere.

      Helpful?

    2. This includes 3 press bits with a magnetic insert that holds them in place.

      Helpful?

  3. Does the lever arm ratchet for optimal position?

    1 answer

    1. The lever arm for this does not ratchet.

      Helpful?

  4. What is the end of the ram size ?

    1 answer

    1. The ram end has a diameter of 1".

      Helpful?

  5. Do you have the specs for the top anvil and the bottom plate. i need to machine a fixture to accommodate.

    1 answer

    1. The top is 19 cm x 19 cm and the bottom plate is 10.5 cm x 10.5 cm.

      Helpful?

  6. What is the country of origin?

    1 answer

    1. This arbor press is manufactured in China.

      Helpful?

  7. what is distance from ram to back plate?

    1 answer

    1. The distance from the middle of the ram to the back plate is 4.25".

      Helpful?

  8. Will the press work without being bolted down? Also, is this press strong enough to imprint a brass blank with a 1" die?

    1 answer

    1. For safety reasons, this arbor press should be mounted to a solid surface such as a work bench. This can also be used for stamping applications.

      Helpful?

  9. Need to press rectangular shaped clamps that are 2 inches long and 1/2 inch wide.  Do you have press fittings that can do linear clamping.

    1 answer

    1. Linear clamping press fittings are not available for this arbor press.

      Helpful?

  10. Does the Hand wheel raise the Ram also ?

    1 answer

    1. The wheels only function will be to move the arbor up and down.

      Helpful?
