King Electric Thermalink RF Thermostat Kit, Model# KRF-B-KIT

Item# 7007299
1 Included
King Electric Thermalink RF Thermostat Kit, Model# KRF-B-KIT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

King Electric Thermalink RF Thermostat Kit, Model# KRF-B-KIT

Click or Tap image to Zoom

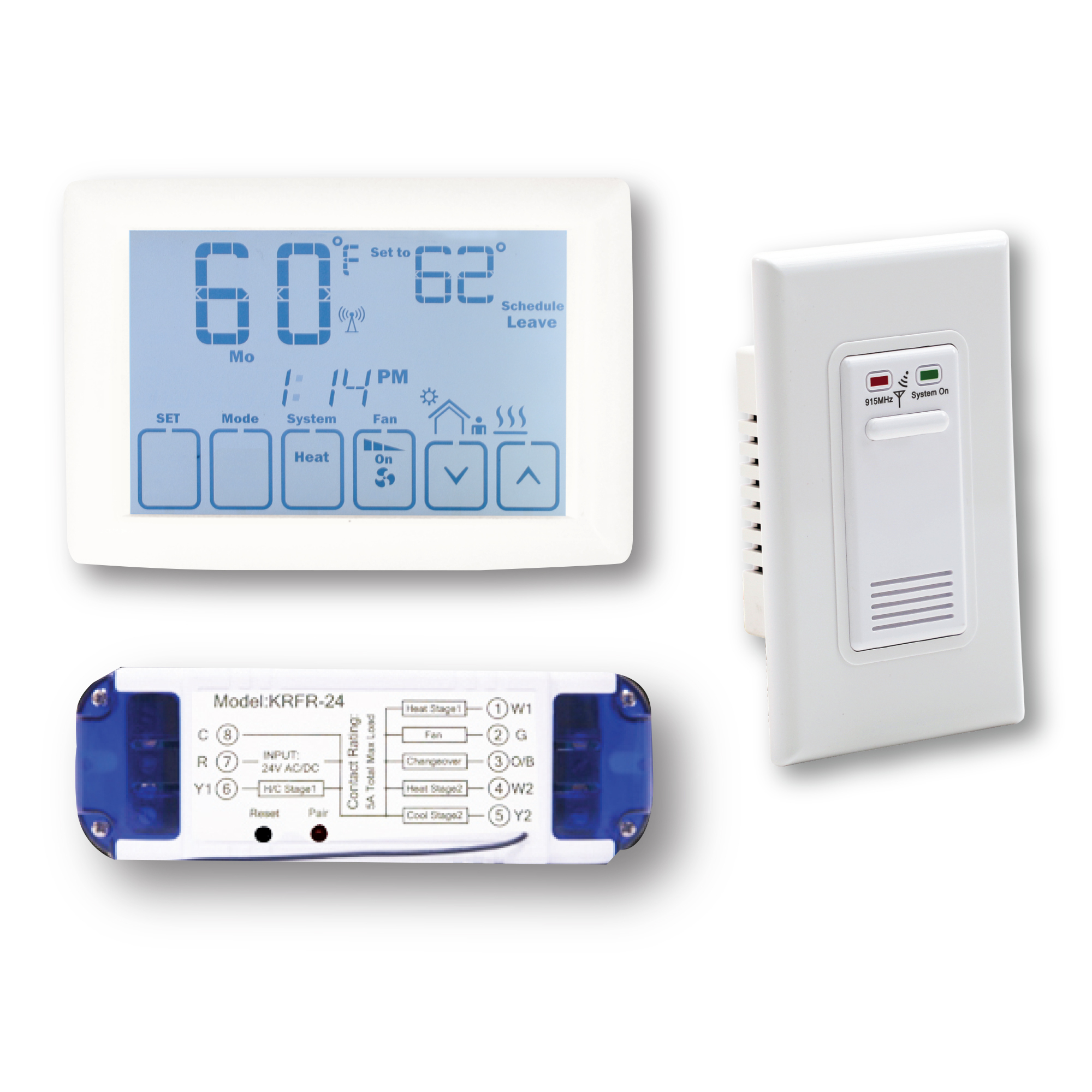

  • Kit Includes KRFTP-B RF 24V RF Thermostat, KRFLR-120/240 20A RF Heating Relay, & KRFR-24V 24V RF HVAC Relay
  • Wireless Two-way RF Communication - 915 MHz
  • 24V Heat pump or HVAC syste, control (Heating & Cooling) with Touch Screen display.
  • 7-day programmable schedule
  • Modes: Auto/Cool/Fan Only/Off/Heat with Auto Emergency Heat/ Manual E. Heat

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

ThermaLink: A Multi-System Thermostat That Runs Itself. ThermaLink adapts to a building’s changing climate demands, offering full control of a heat pump’s heating and cooling functions while supporting reliable backup from existing line-voltage electric heaters. It allows buildings with existing electric heaters to upgrade to a heat pump system, retaining the original heaters as backup. It meets State Energy Code requirements by using automatic controls that only activate emergency electric heat if the heat pump cannot maintain the desired temperature. The standard kit includes a 7-day programmable thermostat, a 120/240V 20A electric heat relay, and a 24V HVAC relay. Optional wireless RF sensors can detect when someone is in the room or if a door or window is left open and adjust the temperature automatically. An outdoor sensor can be added to limit electric heat use when the heat pump can meet demand, and enable it when outdoor temperatures fall below the heat pump’s effective range. Plus, multiple rooms can connect to a wireless master switch, letting you adjust the whole building with one button.

What's Included

    (1) KRFTP-B Programmable BP Thermostat (1) KRFLR-120/240V Heat Relay (1) KRFR-24V Heat Pump Relay

Features + Benefits

  • Kit Includes KRFTP-B RF 24V RF Thermostat, KRFLR-120/240 20A RF Heating Relay, & KRFR-24V 24V RF HVAC Relay
  • Wireless Two-way RF Communication - 915 MHz
  • 24V Heat pump or HVAC syste, control (Heating & Cooling) with Touch Screen display.
  • 7-day programmable schedule
  • Modes: Auto/Cool/Fan Only/Off/Heat with Auto Emergency Heat/ Manual E. Heat
  • Range:44°F to 90°F (7°C to 32°C) Accuracy: ± 1°F
  • Meets State Energy Code Requirements: Prevents emergency electric heat from activating unless heat pump fails to maintain setpoint within a designated timeframe.

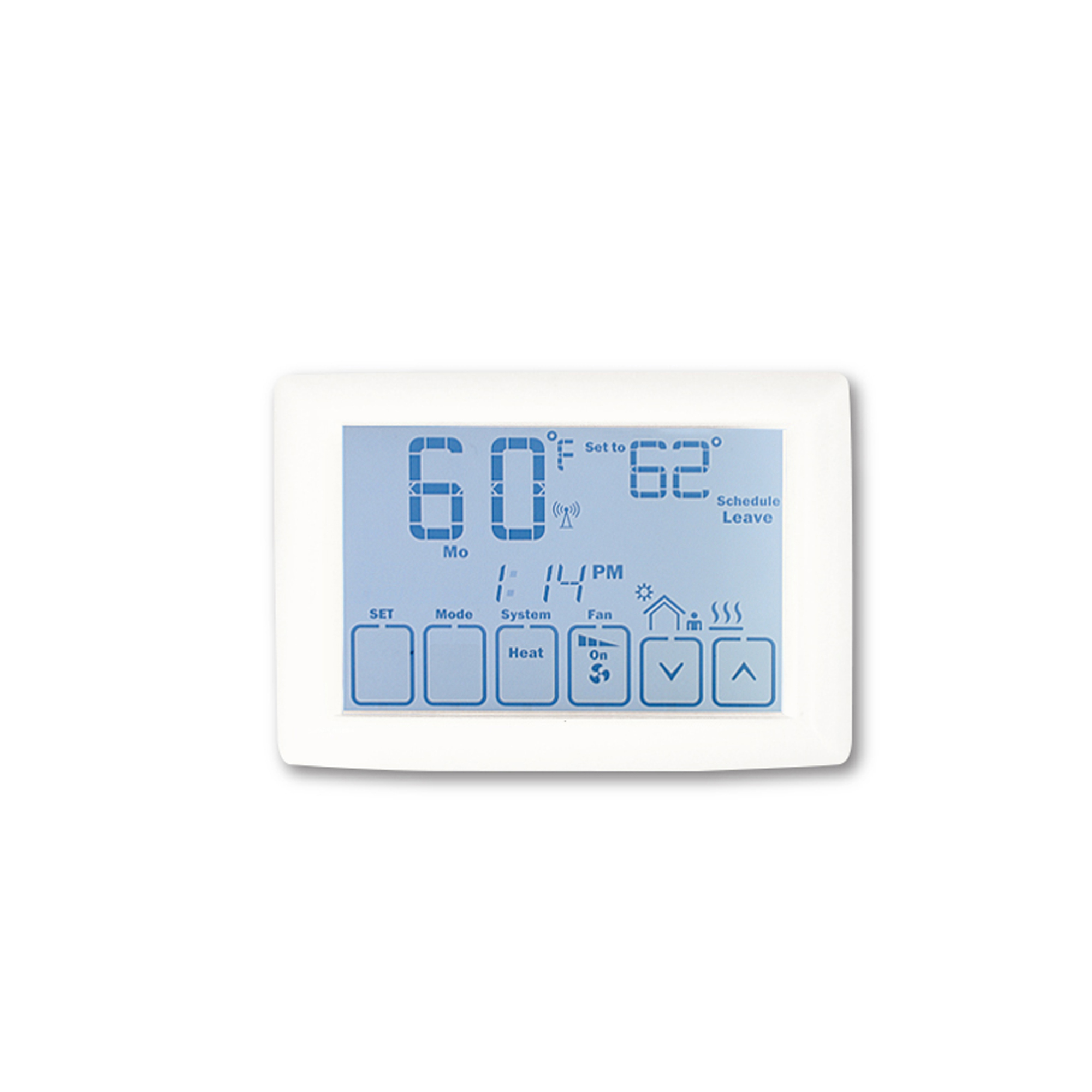

  • KRFTP-B RF: Power Source: 18 to 30 VAC, 50/60 Hz hardwired or Battery powered

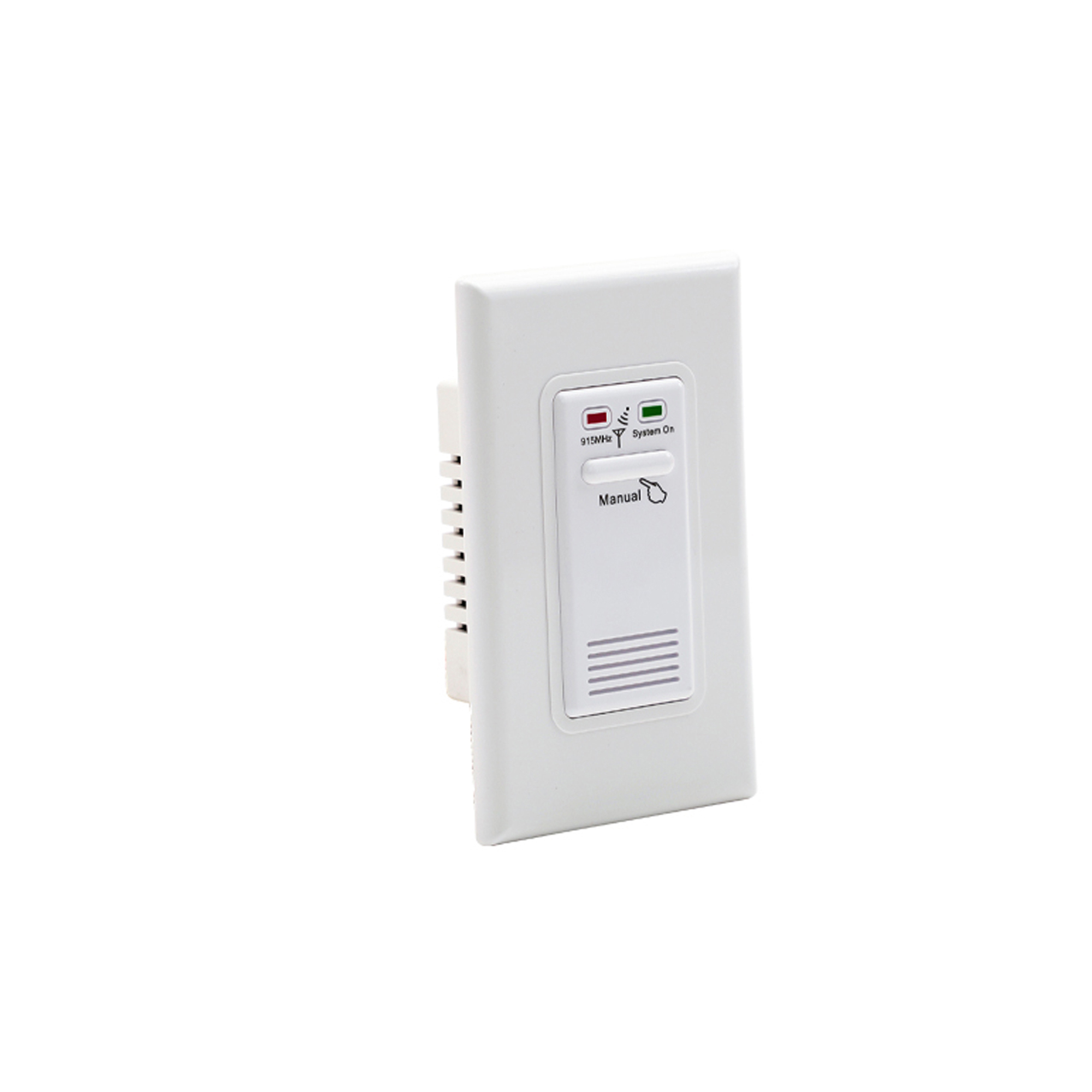

  • KRFLR-120/240: Rating: 120/240V/20A Resistive Load

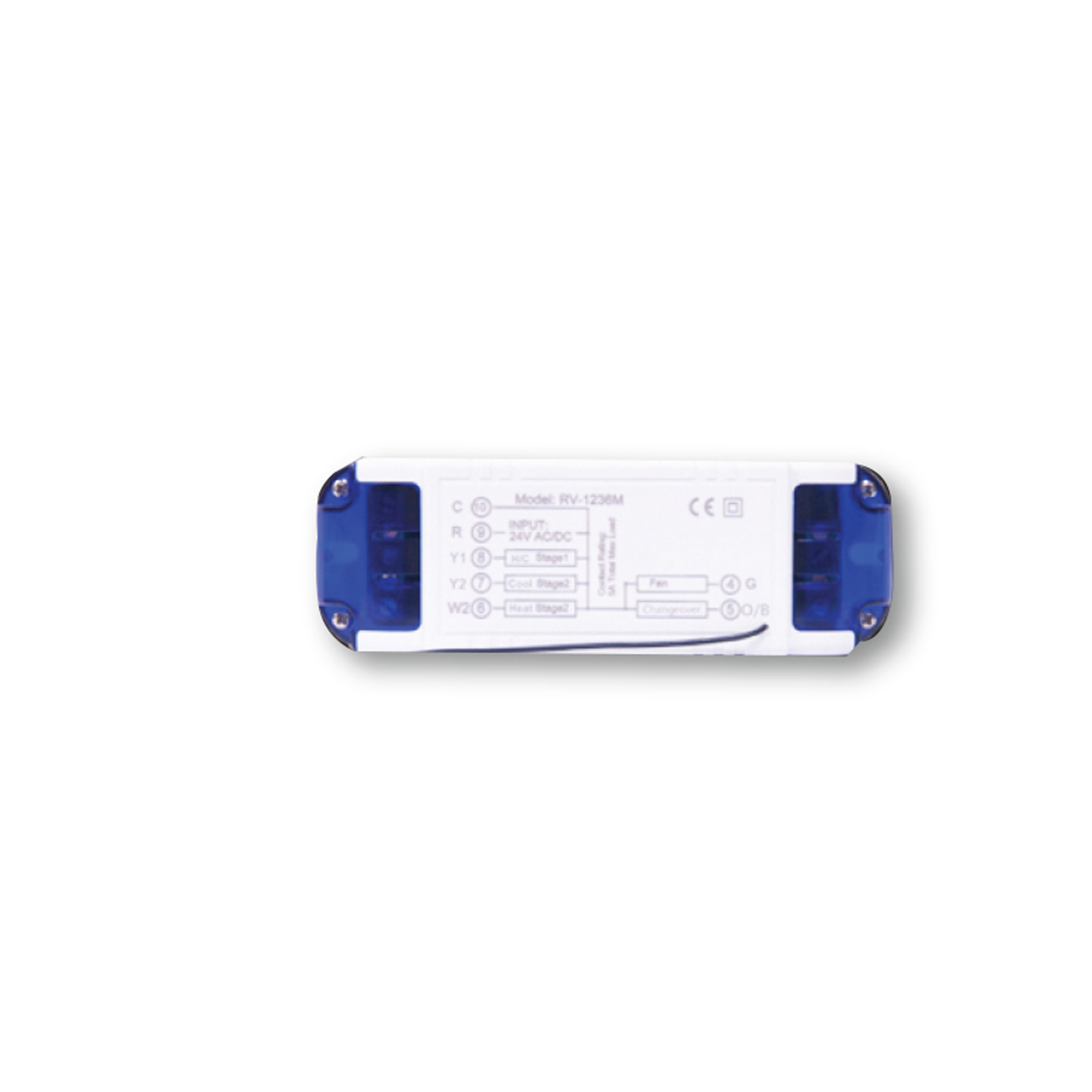

  • KRFR-24V: Input Rating: 24Vac/24Vdc, 2A
  • Boost Emergency Heat Stage (Electric) Time Variable: 5 minutes & 30 minutes
  • Optimal Start/Stop
  • Keypad lockout
  • UL Certified For USA & Canada
  • Maximum Cooling & Heat Temperature Limits 44°F to 90°F
  • Optional RF Accessories Include: KRF-PIR-SENSOR, KRF-WINDOW-SENSOR, KRF-OUTDOOR-SENSOR, & KRF-MASTER-SWTCH

Key Specs

AttributeSpecification

item#

7007299

Brand

King Electric

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1.0 LB

Included (qty.)

1

Compatible With

Electric Heaters & Heat Pump
AttributeSpecification

Length

5 in

Height

3.5 in

Volts

24

Amps

0.5

Dimensions L x W x H (in.)

5.0 x 1.0 x 3.5 in

Product Weight

1.0000 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
