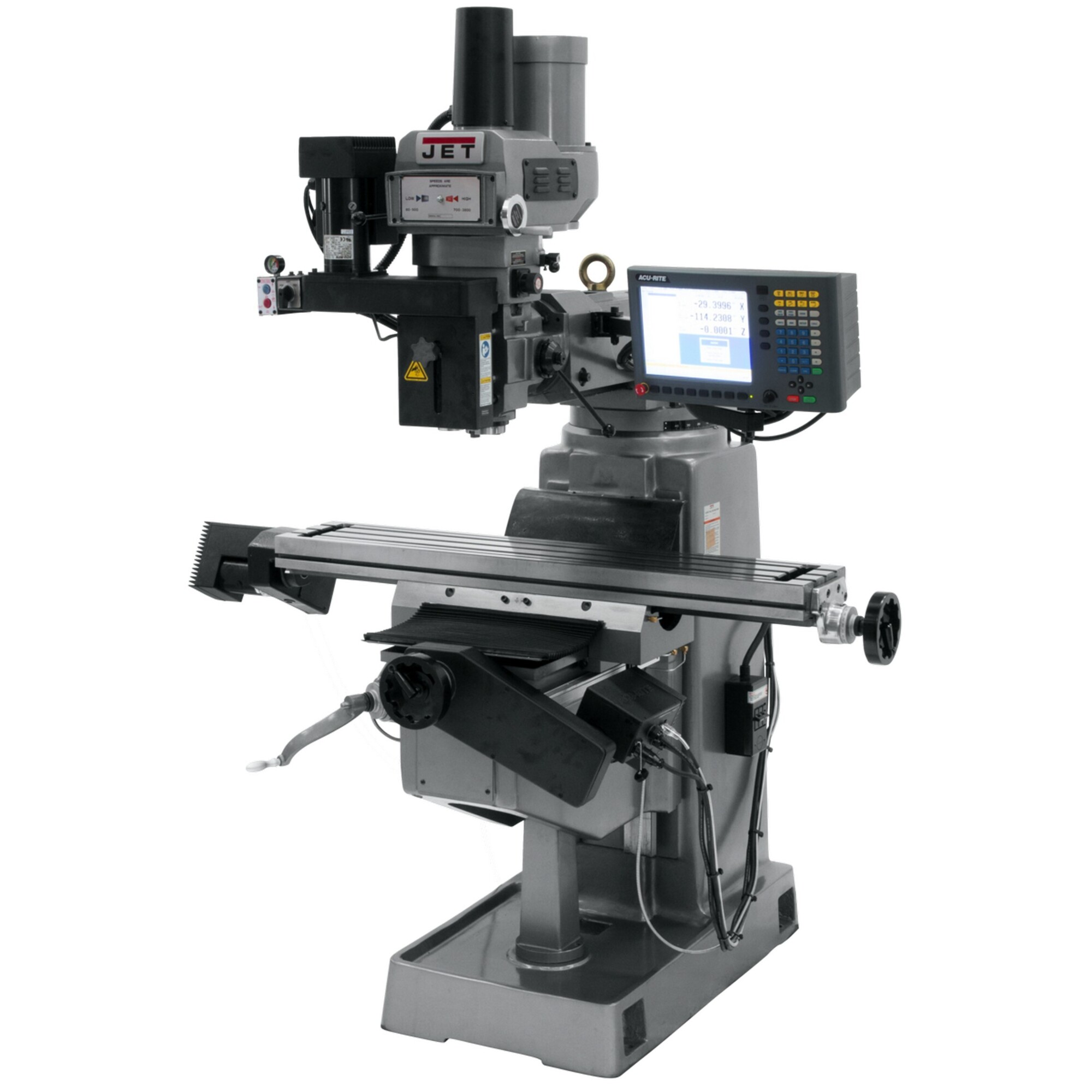

JET Milling Machine - 3 HP, 230 Volts, CNC, Model# JTM-949EVS/230

Item# 5753298
JET Milling Machine - 3 HP, 230 Volts, CNC, Model# JTM-949EVS/230

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Milling Machine - 3 HP, 230 Volts, CNC, Model# JTM-949EVS/230

Click or Tap image to Zoom

$46,958.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Adjustable gibs throughout
  • Class 7 bearings support the spindle for maximum rigidity in heavy cutting applications
  • Dual locks on all moveable surfaces

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time, while also providing an easier solution to leveling the machine. The inverter drive system and emergency stop located on a swing away control arm that moves all major functions within the operators reach. Our automatic lubrication cycles every 30 minutes with a flow of 3-6cc to reduce maintenance. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

What's Included

    (1) Milling Machine

Features + Benefits

  • Adjustable gibs throughout
  • Class 7 bearings support the spindle for maximum rigidity in heavy cutting applications
  • Dual locks on all moveable surfaces

Key Specs

AttributeSpecification

item#

5753298

Brand

JET

Manufacturer's Warranty

2 year limited warranty

Ship Weight

3000.0 LB

Horsepower

3 HP

Volts

230

Max. Speed

4,500 rpm

360 Degree Head Swivel

No

Speeds (qty.)

36

Product Type

Milling Machine

Vertical Stroke

5 in
AttributeSpecification

Drilling Capacity

5 in

Chuck Size

Multiple in

Light Included

No

Stand Included

Yes

Min. Speed

60 rpm

Variable Speed

Yes

Max. Spindle Distance

18.5 in

Draw Bar

Yes

Swing

18 in

Product Weight

3000.0000 lb

Dimensions L x W x H (in.)

66.0 x 63.0 x 86.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
