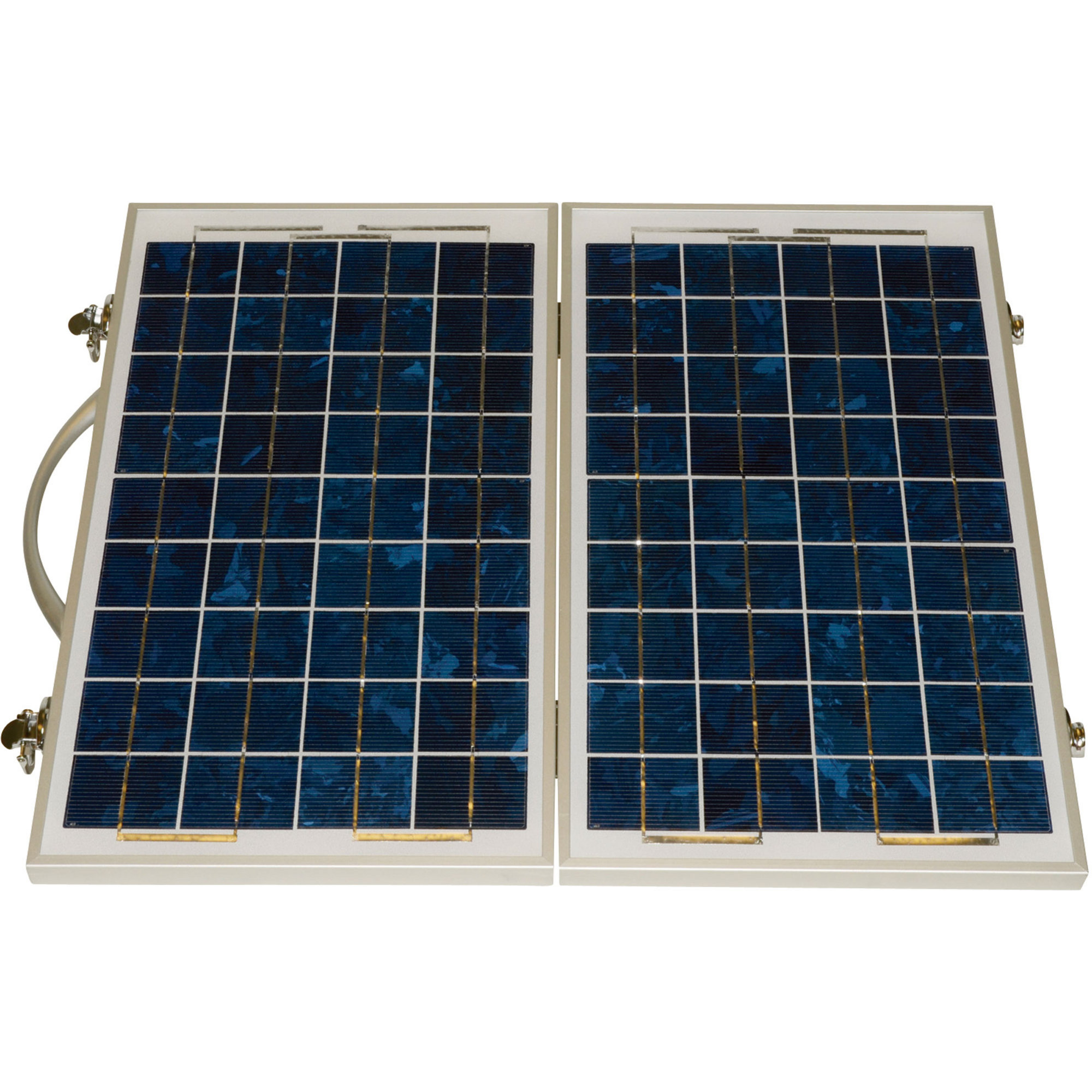

Ironton Folding Solar Kit — 30 Watts

Item# 35949
Ironton Folding Solar Kit — 30 Watts

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Folding Solar Kit — 30 Watts

Click or Tap image to Zoom

  • 19in.L x 16.5in.W x 0.75in.D solar panel features scratch-resistant, anti-reflective coating
  • Panel folds and locks into a 16.5in.W x 9.4in.L x 1.4in.D size with built-in handle for easy transport
  • Integrated stand allows solar panel to be positioned at the optimum angle to receive sunlight
  • No permanent mounting required
  • Quick connect plugs enable fast setup and takedown

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ironton® Folding Solar Kit is the ideal environmentally friendly solution for power in remote areas. Great for a variety of applications including deer feeders, 12V pumps, sump pumps, trickle charging vehicle batteries and much more. One 30 Watt folding polycrystalline solar panel with high efficiency solar cells delivers power to a 12V DC battery (not included).

What's Included

  • (1) Folding solar panel
  •  (1) Solar charge controller

Downloads

Product Manual

Features + Benefits

  • 19in.L x 16.5in.W x 0.75in.D solar panel features scratch-resistant, anti-reflective coating
  • Panel folds and locks into a 16.5in.W x 9.4in.L x 1.4in.D size with built-in handle for easy transport
  • Integrated stand allows solar panel to be positioned at the optimum angle to receive sunlight
  • No permanent mounting required
  • Quick connect plugs enable fast setup and takedown
  • Can be used with inverter systems (not included)
  • Includes solar charge controller

Key Specs

AttributeSpecification

item#

35949

Brand

Ironton

Manufacturer's Warranty

1 year Limited Warranty
AttributeSpecification

Ship Weight

7.4 LB

Battery Type

12 Volt required

Reviews

Questions & Answers

19 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. does this panel come with any connecting cables between the battery and the controller ?

    1. Yes there are mini clamps that run to the battery.

      Helpful?

    2. I used this setup last week while on vacation. The panel/charger come with clips to connect to the battery. It would be simple to make additional permanent wiring also.

      Helpful?

    3. This solar kit includes cables/wires with clamps to connect the charge controller to a 12 volt battery(not included).

      Helpful?

  2. Does the solar panel have a built in Diode to prevent discharging at night?

    1. yes they do

      Helpful?

    2. The solar panel comes with an 8 amp charge controller. This controller will keep the solar panel from overcharging the battery at any time, day or night.

      Helpful?

  3. Is there a minimum operating temperature for this unit?

    1. I would not worry about temperature. Should work fine in any climate.

      Helpful?

    2. This Ironton Folding Solar Kit does not have a minimum operating temperature rating available. This can stay outdoors under direct sunlight, rain and snow conditions (in fact this is the proper way to install it). With snow conditions the panel should be swept to avoid sunlight obstruction.

      Helpful?

  4. Can I extend the length of the wire attached to the connector clips?

    The clips are attached to a very short wire. Can I splice some wire onto the cables so I can position the solar panel further from the battery being charged? If so, what is the maximum length of the wire - 20 ft?

    1 answer

    1. This solar kit shouldn't be modified (including extending the connector clip wires) in any way. Northern Tool cannot advise on or recommend modifications as they will void the warranty.

      Helpful?

  5. Will the solar panel regulator overcharge AGM or Gel batteries?

    1 answer

    1. This solar panel kit comes with a charge controller that prevents overcharging of 12 volt batteries.

      Helpful?

  6. What would be a good inverter match

    1 answer

    1. This folding solar kit can be used with an inverter that connects directly to a 12 volt battery with wires/cables. It's necessary to size the inverter(wattage output capability) to the item you want to run off of it. If the item you're running draws more than 30 watts, it will deplete the 12 volt battery faster than this solar kit can charge it. Click the links below to view compatible inverters.

      Helpful?

  7. Are the Ironton folding 30 watt kit water proof

    Ironton Folding Solar Kit - 30 Watts

    1 answer

    1. The Ironton 30 Watt Folding Solar Kit is weather resistant. It can stay outdoors under direct sunlight, rain and snow conditions(in fact this is the proper way to install it). However, it cannot be immersed under water(it is not waterproof). With snow conditions, the panel should be swept to avoid sunlight obstruction. The aluminum frame helps protect the unit under high wind speeds and vibrations. It is recommended to protect it against heavy hail, covering it temporarily in some way(plywood, etc.) after unplugging it.

      Helpful?

  8. Do I need to disconnect this solar kit to the battery when I charge with gas generator.

    1 answer

    1. On this Ironton Folding Solar Kit it is best to disconnect the panel before charging the battery with an alternate source. If the panel is not disconnected when charging from an alternate source it could cause damage to the panel itself.

      Helpful?

  9. Can two or more of these panels be connected to create a 60W or 90W solar array?

    1 answer

    1. The Ironton Folding Solar Kit comes with an 8amp charge controller that will handle up to 120 watts of solar power. This kit is designed as a stand-alone portable application. Connecting two or more kits together may require creating a wiring harness using 12 volt quick connect plugs.

      Helpful?

  10. How many amps is the controller rated for?

    1 answer

    1. The charge controller that comes with this folding solar kit has an 8 amp maximum rating.

      Helpful?
