Ironton 20-Ton Hydraulic Shop Press

Item# 89156
Ironton 20-Ton Hydraulic Shop Press
Top Seller
Ironton 20-Ton Hydraulic Shop Press

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton 20-Ton Hydraulic Shop Press

Click or Tap image to Zoom

$299.99

  • Shipping:

    Available now
    $19.99 Same Day

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Strong 20-ton capacity handles straightening, bending, stamping and pressing tasks
  • Adjustable lower bolster adapts to a variety of workpieces
  • Reinforced-steel frame with wide base provides strength and stability
  • Lead-free, rust-resistant paint finish applied after chemical wash for long-term durability
  • Oil-, grease- and dirt-resistant coating allows fast cleanup

See full description

Complete Your Solution

  • Ironton 20-Ton Hydraulic Shop Press
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all two:

$301.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ironton 20-Ton Hydraulic Shop Press delivers the power and stability needed for straightening, stamping, bending and pressing stubborn components. Its adjustable lower bolster adapts to different workpieces, while the polished hydraulic cylinder and ram reduce wear for long service life. Reinforced-steel construction and a wide, rugged base provide the strength and stability required in automotive, fleet, truck and industrial repair shops. Built in ISO-certified facilities and engineered using aerospace- and automotive-grade processes, this press delivers reliable 40,000-lb. performance for installing bearings, U-joints, bushings, seals and more. Meets ASME PASE safety standards.

What's Included

    (1) Ironton 20-Ton Hydraulic Shop Press (2) Solid steel press plate (1) Hardware kit

Downloads

Product Manual

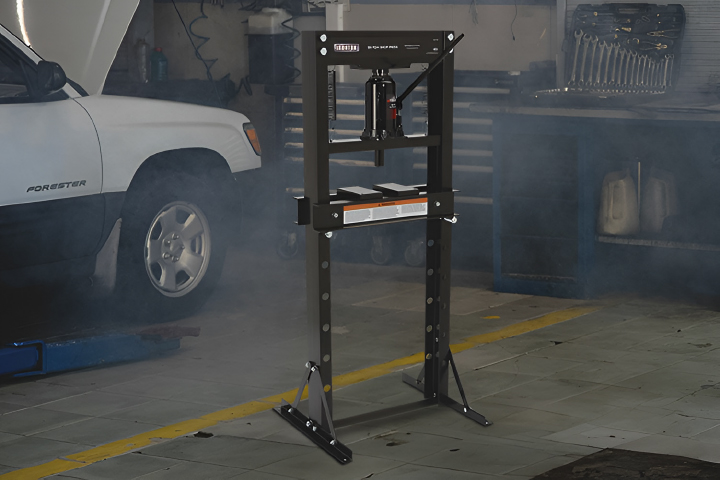

VERSATILE FUNCTIONALITY

Ideal for PRESSING, BENDING and FORMING with applications in automotive repairs including BEARINGS, SEALS and U-joints installation and removal

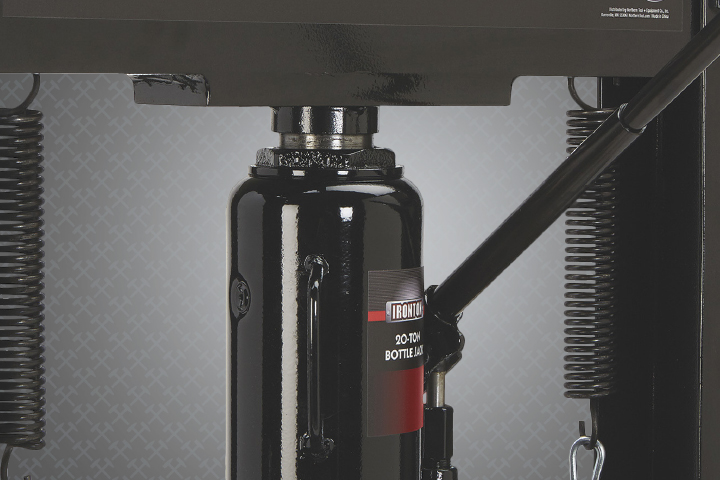

ENHANCED PERFORMANCE SEALS

Features HIGH-QUALITY LARGE DIAMETER HYDRAULIC STEEL CYLINDER units and Y-Style polyurethane sealing rings that ensure smooth operation and prevent oil drift

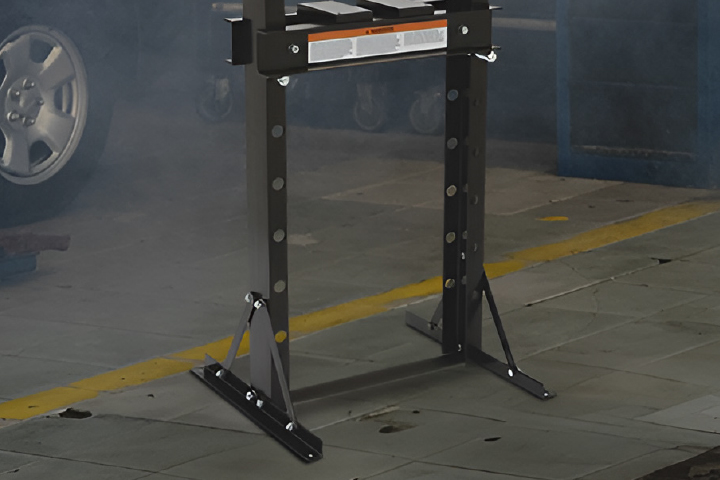

BUILT TO LAST

The structure’s strong steel construction and LEAD-FREE PAINT FINISH withstand rigorous use while PREVENTING RUST and facilitating easy cleanup

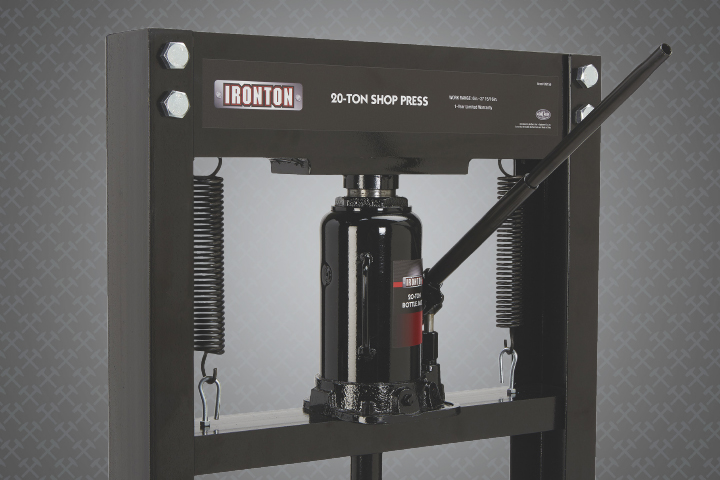

OPERATIONAL EXCELLENCE

Operates efficiently within a TEMPERATURE RANGE OF 40°F TO 105°F, powered by corrosion-resistant and flexible high-quality oil

Features + Benefits

  • Strong 20-ton capacity handles straightening, bending, stamping and pressing tasks
  • Adjustable lower bolster adapts to a variety of workpieces
  • Reinforced-steel frame with wide base provides strength and stability
  • Lead-free, rust-resistant paint finish applied after chemical wash for long-term durability
  • Oil-, grease- and dirt-resistant coating allows fast cleanup
  • Large-diameter hydraulic steel cylinder requires lower oil pressure to raise loads, reducing wear
  • Polished, treated piston ram resists skiving for smoother performance
  • Y-style polyurethane sealing ring with backup ring prevents slow load drift or oil bypass
  • Forged-steel hydraulic pump delivers lasting durability
  • High-quality hydraulic oil offers corrosion resistance and dependable operation from 40°–105°F
  • Extra-long handle provides easier pumping leverage
  • Built-in overload system prevents operation beyond rated load
  • Manufactured in ISO-certified facilities using aerospace- and automotive-grade engineering systems
  • 100% factory vertical load tested for safety and reliability
  • Meets ASME PASE safety standards

Key Specs

AttributeSpecification

item#

89156

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

157.0 LB

Press Type

Hydraulic

Max. Pressure

20 Tons
AttributeSpecification

Stroke Length

5.875 in

Bed Opening

3.93 in

Max. Working Distance

27.93 in

Product Weight

149.98 lb

Dimensions L x W x H (in.)

25.18 x 21.25 x 59.06 in

Reviews

Questions & Answers

87 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. Will this press press out most bearings?

    1. Yes, I used it to replace large front wheel bearings on a SUV.

      Helpful?

    2. Yes, this can be used for the installation and removal of alternator and power steering pump bearings, axle bearings, transmission bearings and many other jobs.

      Helpful?

  2. Length of bed?

    1 answer

    1. The bed measures 18-5/16" long x 3-15/16" wide.

      Helpful?

  3. Where do I get a new bottle jack for it?

    1 answer

    1. Parts for this shop press are available directly from the manufacturer, Torin Inc.

      Helpful?

  4. How much does the piston move per handle stroke?

    1 answer

    1. The stroke length is 5.875".

      Helpful?

  5. how big of a box does it come in?

    1 answer

    1. The shipping dimensions are 60 in L x 10 in W. x 9 in H.

      Helpful?

  6. Can this press operate Horizontally? On it's side ?

    1 answer

    1. The shop press would not operate horizontally on its side.

      Helpful?

  7. What gauge is the metal made of?

    1 answer

    1. The side column of this press is built using #8 channel steel. The top section features a 10mm thick steel plate, while the bottom is reinforced with #10 channel steel.

      Helpful?

  8. Can you put a pressure guage on the bottle jack

    1 answer

    1. Adding a pressure gauge to the jack is not recommended. Modifications could cause damage to the unit and would void the warranty.

      Helpful?

  9. What is the width between the cross beams?

    1 answer

    1. The width between the cross beams is 18.3 inches.

      Helpful?

  10. Is the jack a single or double action?   I would like to eventually add a pump.  Also, can you suggest a pump suggestion from your store?

    1 answer

    1. This is single acting. This shop press is equipped with a hydraulic pump.

      Helpful?
