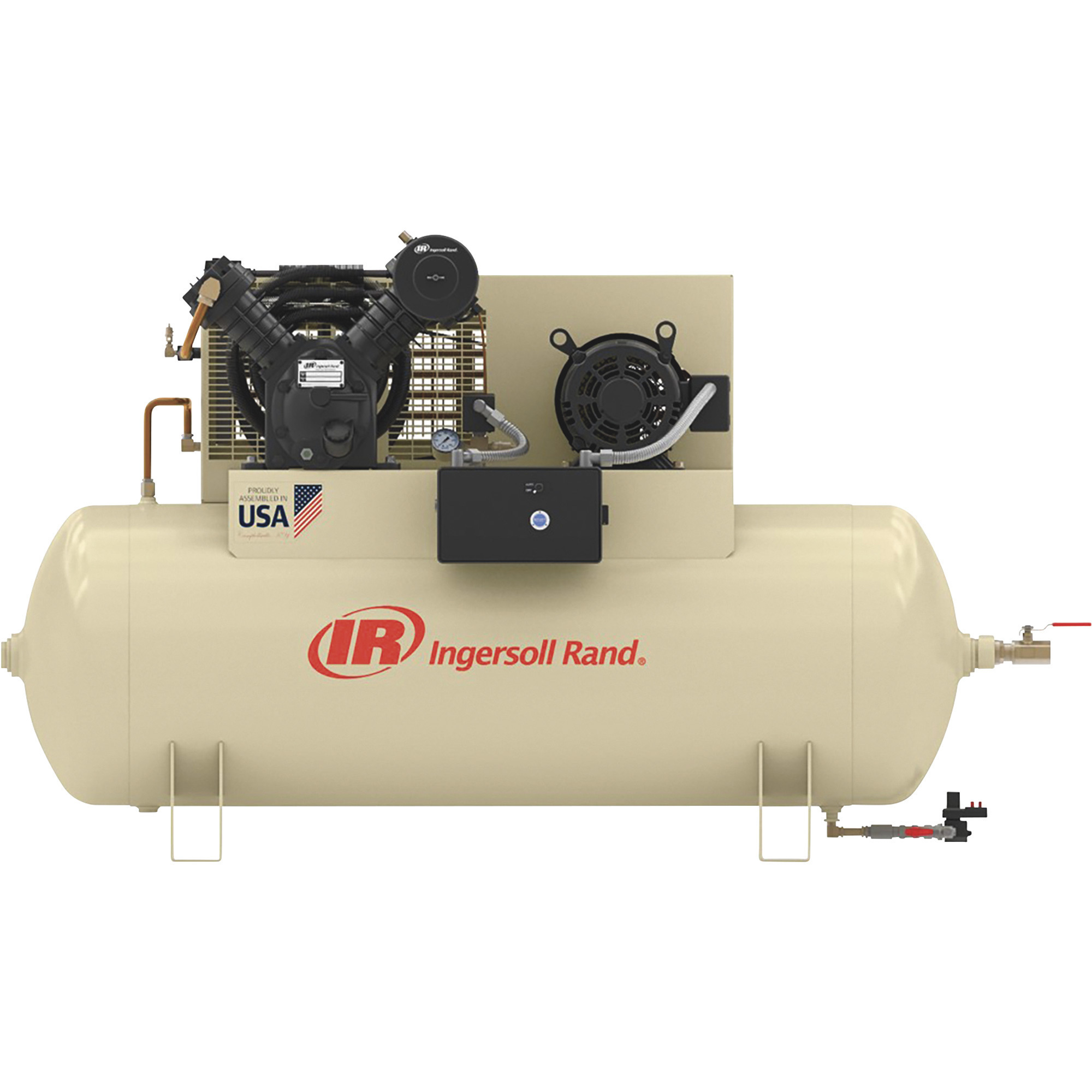

Ingersoll Rand Stationary Air Compressor, 10 HP, 460 Volt, 3-Phase, 35.8 CFM @ 90 PSI, 120 Gallon Horizontal, Value Plus, Model# 2545E10-VP

Item# 28483
"Ingersoll Rand Stationary Air Compressor, 10 HP, 460 Volt, 3-Phase, 35.8 CFM @ 90 PSI, 120 Gallon Horizontal, Value Plus, Model# 2545E10-VP"
Ingersoll Rand Stationary Air Compressor, 10 HP, 460 Volt, 3-Phase, 35.8 CFM @ 90 PSI, 120 Gallon Horizontal, Value Plus, Model# 2545E10-VP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Stationary Air Compressor, 10 HP, 460 Volt, 3-Phase, 35.8 CFM @ 90 PSI, 120 Gallon Horizontal, Value Plus, Model# 2545E10-VP

Click or Tap image to Zoom

$5449.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Legendary cast iron pump is built to last
  • Precision engineered components for high reliability

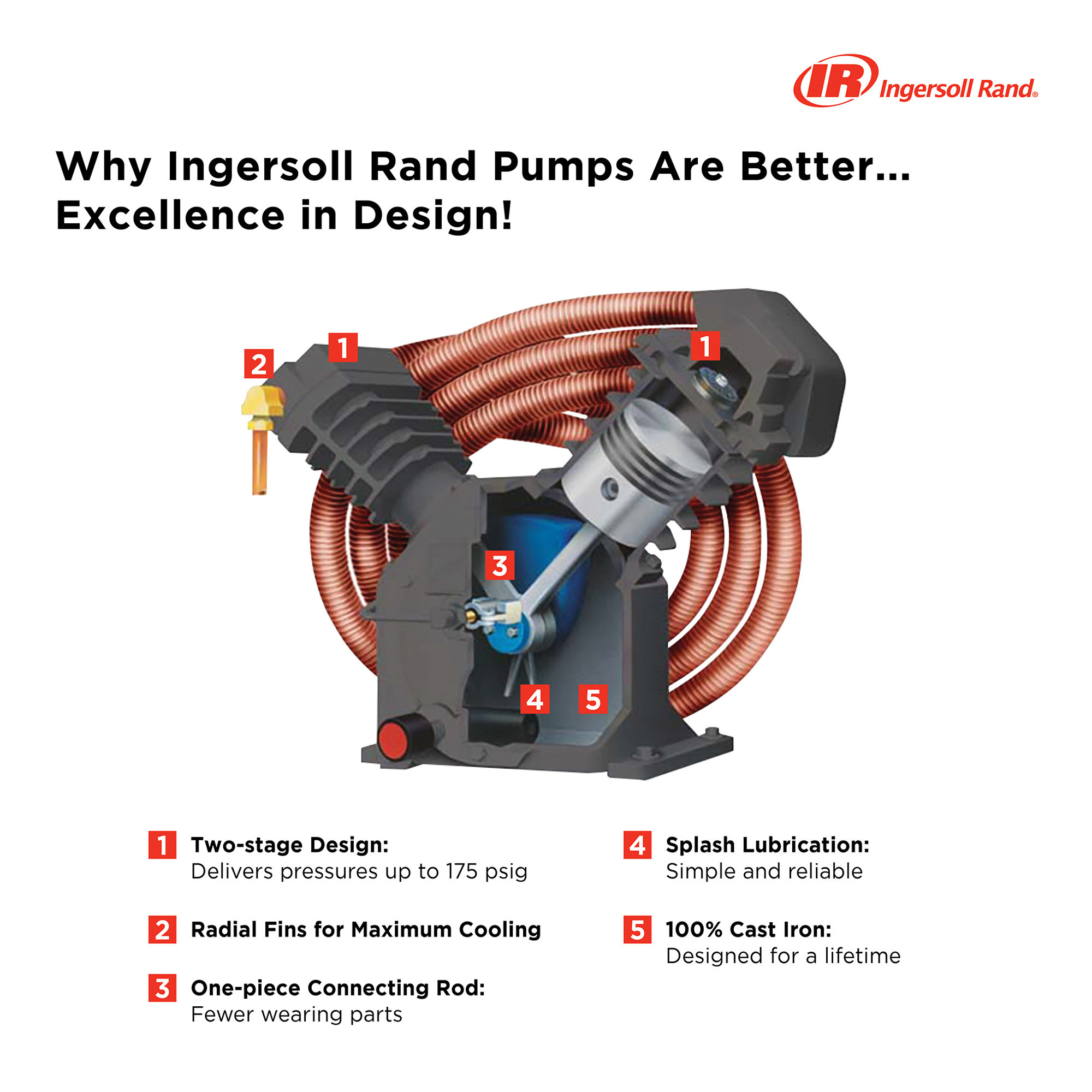

  • Individually cast cylinders, overhung crankshaft and one-pc. connecting rod for ease of maintenance and service
  • High efficiency finger valves
  • Extend you pump warranty from 1yr to 2yrs with the use of the 2yr Warranty Start Up Kit# 6131992 - wold seperately

See full description

Complete Your Solution

  • Ingersoll Rand Stationary Air Compressor, 10 HP, 460 Volt, 3-Phase, 35.8 CFM @ 90 PSI, 120 Gallon Horizontal, Value Plus, Model# 2545E10-VP
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2545/7100 Model# 47853635005-R
  • Ingersoll Rand Non-Cycling Refrigerated Air Dryer — 42 CFM, R513A Refrigerant, Model# DA72INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/4in., 45 CFM, Model# FA75IG
Price for all four:

$9408.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

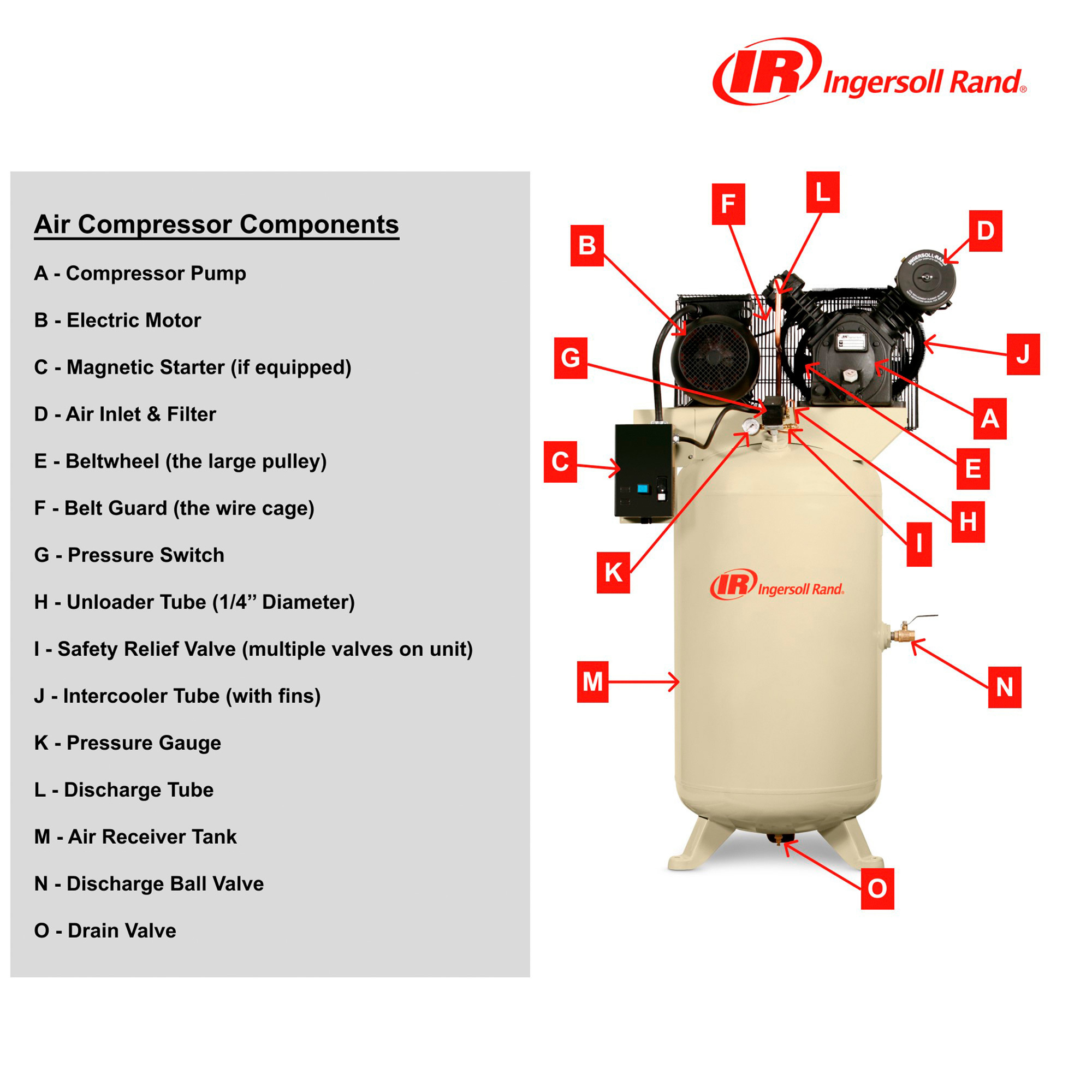

For applications that require heavier duty cycle, step up to the Ingersoll Rand 10 HP, 460V, 120 gallon, two-stage electric-powered Value Plus package. The compressor is factory fitted with Ingersoll Rand's legendary cast iron pump, ASME coded receiver, NEMA 1 and ODP motor, automatic start/stop control with pressure switch, electric drain valve, air-cooled aftercooler, oil sight glass, and magnetic starter with on-off switch. It's the perfect solution for commercial, automotive and light industrial applications with intermittent duty demand. U.S.A. Extend your pump warranty to 2yrs by purchasing the 2yr Warranty Start Up Kit# 6131992 - sold seperately

What's Included

    (1) 10 HP, 460V, 120 gallon horizontal electric air compressor

Features + Benefits

  • Legendary cast iron pump is built to last
  • Precision engineered components for high reliability
  • Individually cast cylinders, overhung crankshaft and one-pc. connecting rod for ease of maintenance and service
  • High efficiency finger valves
  • Extend you pump warranty from 1yr to 2yrs with the use of the 2yr Warranty Start Up Kit# 6131992 - wold seperately

Key Specs

AttributeSpecification

item#

28483

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

1104.0 LB

Air Tank Size

120 Gal

Volts

460

CFM at 90 PSI

35.8

Motor Phase

2

Stage

2

Tank Orientation

Horizontal

Horsepower

10 HP

Max. PSI

175

Air Outlets (qty.)

1
AttributeSpecification

Duty Cycle

100 %

Motor RPM

3,450

Pump Material

Cast Iron

Pump Drive

Belt

CFM at 40 PSI

44

CFM at Max. PSI

29

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

Engine Brand

Senci

Product Weight

lb

Dimensions L x W x H (in.)

83.0 x 36.0 x 65.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. how does it perform in 120° weather

    1 answer

    1. The air compressor is designed to handle high temperatures. It has a cooling feature to prevent it from overheating and still maintains 100% duty cycle.
