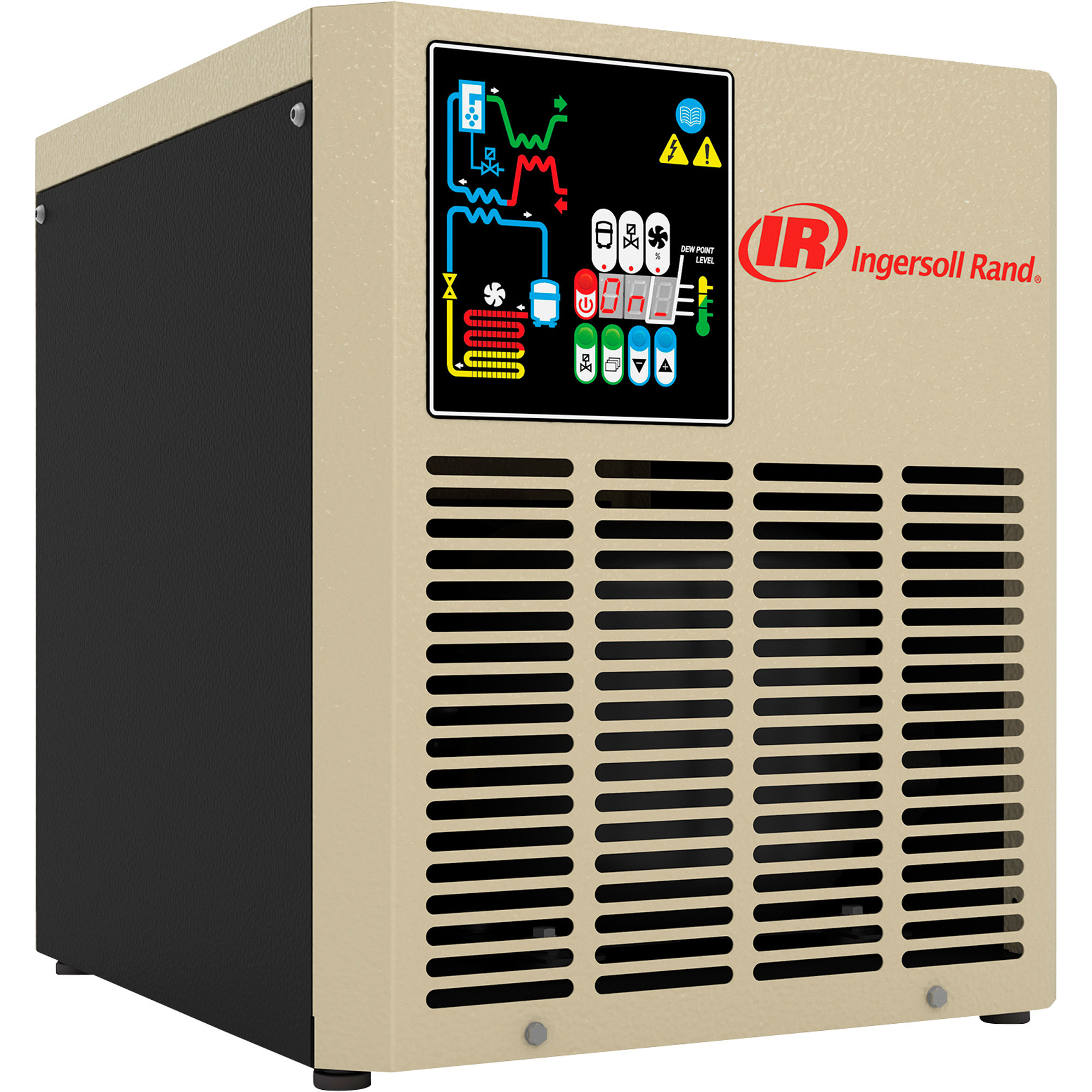

Ingersoll Rand Refrigerated Air Dryer, 32 CFM, Model# D54IN

Item# 1592072
Ingersoll Rand Refrigerated Air Dryer, 32 CFM, Model# D54IN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Refrigerated Air Dryer, 32 CFM, Model# D54IN

Click or Tap image to Zoom

  • Features energy-consumption reducing and reliability-improving technology
  • Corrosion-resistant heat exchangers reduce air flow restriction
  • Dryer provides more efficient throughput with less wasted energy
  • Microprocessor control with an easy-to-use graphic interface lets you adjust and manage system parameters efficiently
  • Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity while ensuring a consistent dew point

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Make providing continuous dry air easy by piping the Ingersoll Rand self-contained refrigerated air dryer unit into your compressed air supply line.

What's Included

    (1) Air dryer

Downloads

Product Manual

Features + Benefits

  • Features energy-consumption reducing and reliability-improving technology
  • Corrosion-resistant heat exchangers reduce air flow restriction
  • Dryer provides more efficient throughput with less wasted energy
  • Microprocessor control with an easy-to-use graphic interface lets you adjust and manage system parameters efficiently
  • Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity while ensuring a consistent dew point
  • Fully adjustable programmable electronic drain valve helps minimize air loss
  • 1/2" NPT Connection
  • Max Air Inlet Temp 140F
  • Min - Max Ambient Temp 36F - 122F
  • Max Air Pressure 203 Psig
  • 32 CFM
  • Dew Point <50<50F ISO Class 6 Dew Point

Key Specs

AttributeSpecification

item#

1592072

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

76.0 LB

Max. Flow Rate

32 cfm

Volts

115

Air Inlet Size

1/2 in

Max. Temperature

140 °F
AttributeSpecification

Dew Point

50 °F

Watts

0.37

Filter Type

Coalescing

Adjustable

Yes

Environmentally Friendly

Yes

Product Weight

lb

Dimensions L x W x H (in.)

18.0 x 16.0 x 18.0 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. can this or any of your driers provide a -40 dew point?

    1 answer

    1. This refrigerated air dryer could not provide a minus 40 dew point. It is designed to proved a standard refrigerated dew point of 50 degrees F. You would need a desiccant air dryer to achieve a lower dew point like minus 40. We do not carry a desiccant air dryer for a minus 40 dew point.

      Helpful?

  2. Do they make a stand for this Air Dryer? I need it to sit off the ground 6 or 7 inches.

    1 answer

    1. A stand is currently not available for this air dryer.

      Helpful?

  3. I have an IR CBV530749 Mod # 2475N5-P air compressor. Is this a suitable size dryer for this compressor?

    1 answer

    1. This air dryer would be suitable for the compressor.

      Helpful?

  4. It talks about need a prefilter. What is that filter?

    1 answer

    1. The filter is a 5 micron unit, item 404761, plumbed in at the input port of the dryer.

      Helpful?

  5. After a power outage, will this unit require manual restarting?

    1 answer

    1. This unit will not automatically turn back on after a power outage. It must be manually reset once power has been restored by pressing the on/off button.

      Helpful?

  6. Does refridgerated dryers need heated shops to operate

    1 answer

    1. It is not necessary to have a heated shop to run the refrigerated air dryer

      Helpful?

  7. fitting and psi rating

    Not sure how you hook this up, but was wondering what size fittings it uses and at what air pressure it works at?

    1 answer

    1. The fittings are 1/2" NPT and the maximum inlet PSI is 203.

      Helpful?

  8. What is the Current draw of this unit @ 120vac?

    1 answer

    1. The current draw of the Ingersoll Rand Refrigerated Air Dryer is 6 amps.

      Helpful?

  9. Is this air dryer a high temperature model?

    1 answer

    1. No, this Ingersoll Rand refrigerated air dryer is not approved for high temperatures, it requires a compressor with an after cooler to operate properly.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
