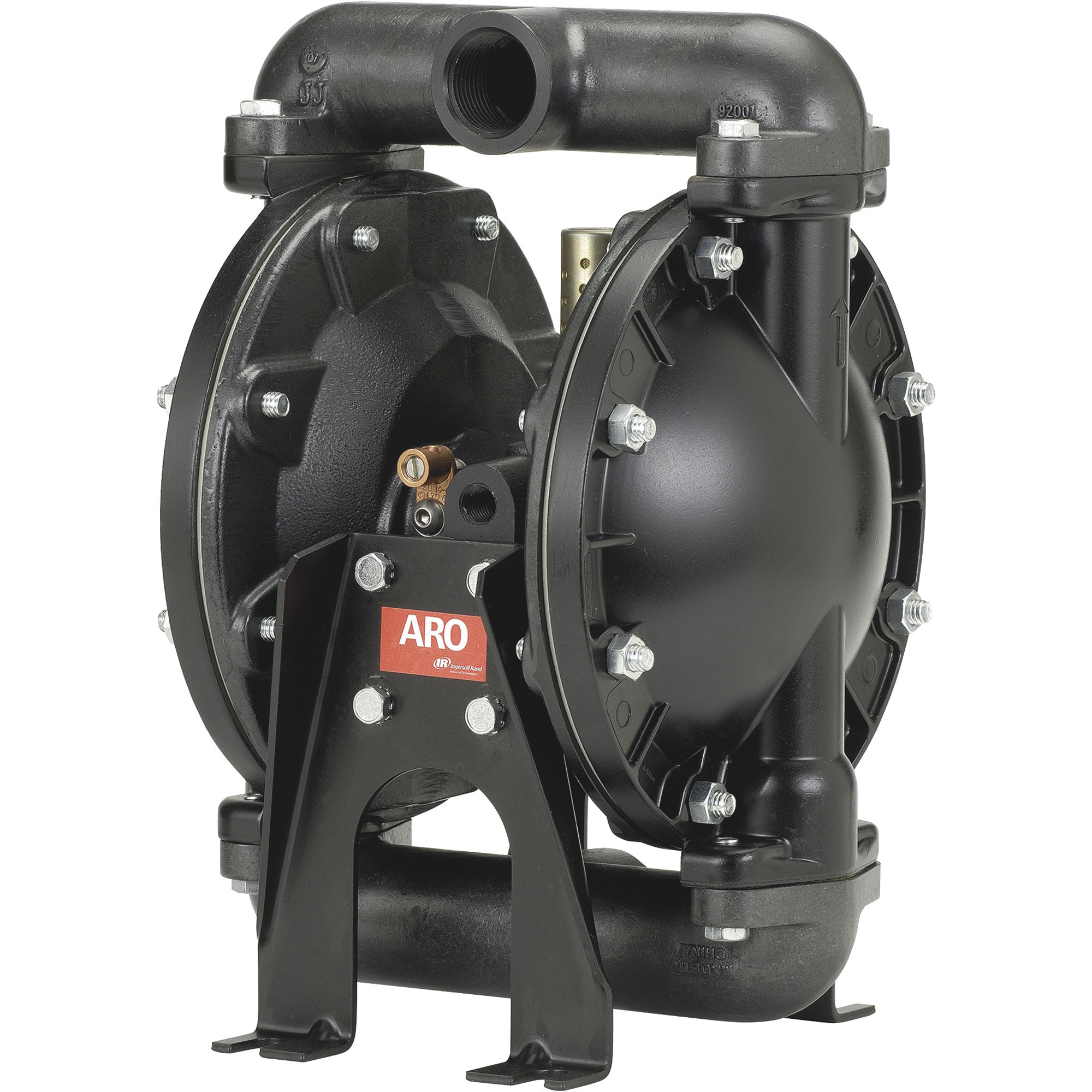

Ingersoll Rand Air-Operated Aluminum Hytrel Double Diaphragm Pump, 35 GPM, Model# 666100-3C9-C

Item# 85667
"Ingersoll Rand Air-Operated Aluminum Hytrel Double Diaphragm Pump, 35 GPM, Model# 666100-3C9-C"
Ingersoll Rand Air-Operated Aluminum Hytrel Double Diaphragm Pump, 35 GPM, Model# 666100-3C9-C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Air-Operated Aluminum Hytrel Double Diaphragm Pump, 35 GPM, Model# 666100-3C9-C

Click or Tap image to Zoom

$1460.32

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Air-operated double diaphragm pump with 1in. Inlet delivers 35 GPM flow rate
  • Delivers maximized flow rates with minimized pulsation and air consumption
  • Aluminum construction ensures long service life
  • D valve provides a positive seal avoiding costly air "blow-by"
  • 1in. NPT ports, groundable with Aceta ball and Hytrel diaphragm materials

See full description

Complete Your Solution

  • Ingersoll Rand Air-Operated Aluminum Hytrel Double Diaphragm Pump, 35 GPM, Model# 666100-3C9-C
  • JGB Enterprises Suction Hose, 1in. x 20ft., Model# A007-0169-0240
Price for all two:

$1520.31

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ingersoll Rand Air-Operated Aluminum Hytrel Double Diaphragm Pump is a compact 1in. Aluminum pump that delivers big performance in a small package. The compact, heavy-duty design enables usage in versatile locations including limited space. An unbalanced valve design helps to eliminate valve centering and pump stall-out. The Simul-Shift valve provides an ultra-positive, reliable shift signal for maximum efficiency. Rated for typical fluids: antifreeze, ATF, light viscosity petroleum, synthetic oil and more. 5-year limited warranty.

What's Included

    (1) Air-operated double diaphragm pump

Downloads

Product Manual

Features + Benefits

  • Air-operated double diaphragm pump with 1in. Inlet delivers 35 GPM flow rate
  • Delivers maximized flow rates with minimized pulsation and air consumption
  • Aluminum construction ensures long service life
  • D valve provides a positive seal avoiding costly air "blow-by"
  • 1in. NPT ports, groundable with Aceta ball and Hytrel diaphragm materials
  • Environmentally sound with bolted construction to provide maximum chemical and leak resistance
  • Designed for use with antifreeze, ATF, light viscosity petroleum, synthetic oil and more

Key Specs

AttributeSpecification

item#

85667

Brand

Ingersoll Rand

Manufacturer's Warranty

5 year limited warranty

Ship Weight

20.0 LB

Flow

35 GPM

Inlet Port

1 in
AttributeSpecification

Outlet Port

1 in

Diaphragm Material

Hytrel

Air Inlet Size NPT

1 in

Pump Housing Material

Aluminum

Product Weight

20.0000 lb

Dimensions L x W x H (in.)

9.0 x 8.0 x 12.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. Is this pump diesel and unleaeded fuel compatible

    1 answer

    1. This pump is not rated for use with diesel or unleaded fuel. See item #59752, that is UL 79 rated for use with fuels.
