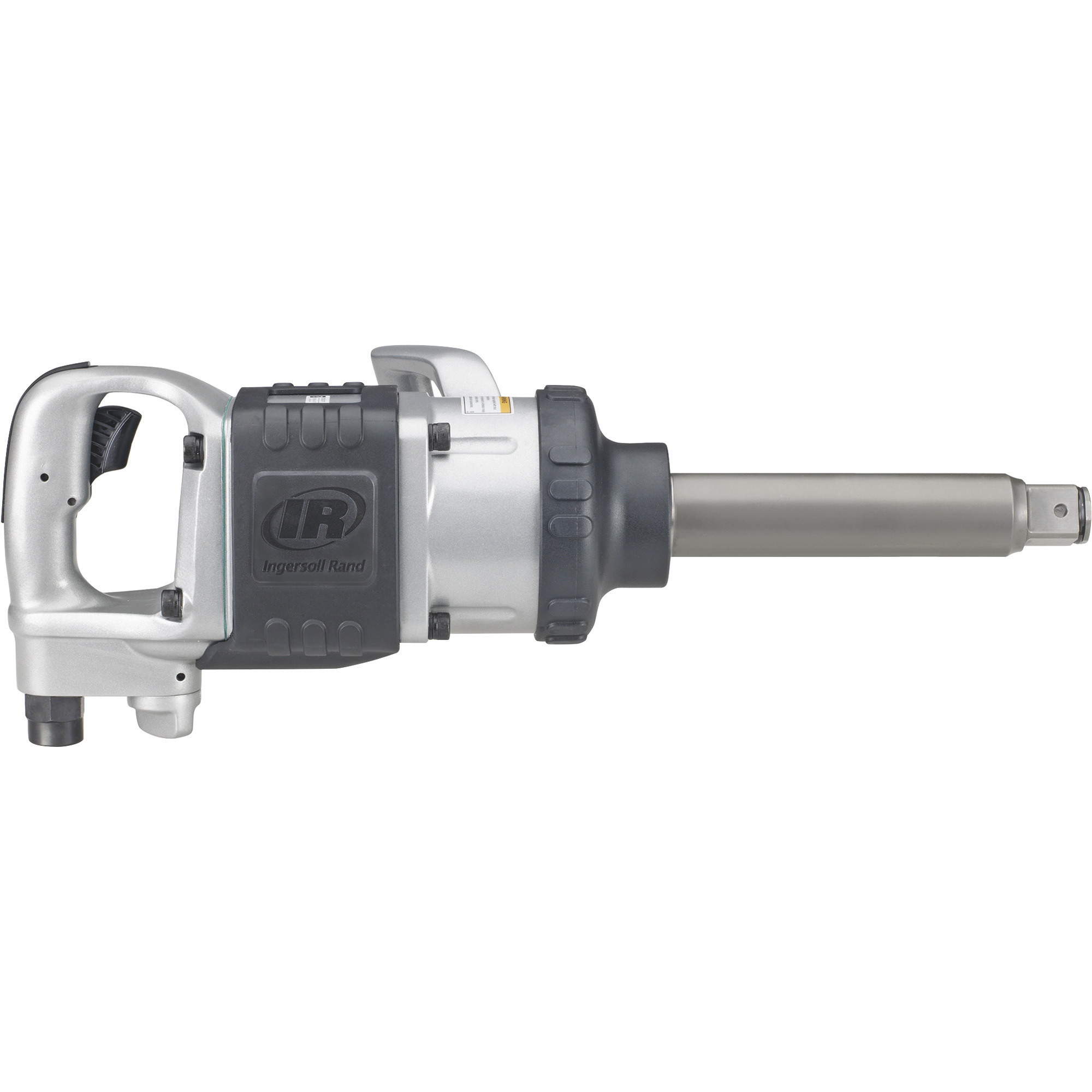

Ingersoll Rand Air Impact Wrench, 1in. Drive, 10 CFM, 1475 Ft./Lbs. Torque, Model# 285B-6

Item# 15414
"Ingersoll Rand Air Impact Wrench, 1in. Drive, 10 CFM, 1475 Ft./Lbs. Torque, Model# 285B-6"
Top SellerOn Sale
Ingersoll Rand Air Impact Wrench, 1in. Drive, 10 CFM, 1475 Ft./Lbs. Torque, Model# 285B-6

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Air Impact Wrench, 1in. Drive, 10 CFM, 1475 Ft./Lbs. Torque, Model# 285B-6

Click or Tap image to Zoom

$552.49
Reg $649.99Save $97.50

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • High-efficiency, 6-vane motor
  • 3-position power regulator
  • Includes protective boot kit

See full description

Complete Your Solution

  • Ingersoll Rand Air Impact Wrench, 1in. Drive, 10 CFM, 1475 Ft./Lbs. Torque, Model# 285B-6
  • Ingersoll Rand Mega Impact Sockets, 86-Pc. Set, 3/8in. and 1/2in. Drives, SAE and Metric, Model# SK34C86
  • Milton G-Style 1/2in. Coupler, 1/2in. FNPT, Model# S1815
  • Ingersoll Rand T-30 Select Compressor Oil, 1 Liter Bottle
Price for all four:

$1074.46

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ingersoll Rand air impact wrench delivers exceptional power, durability and operator convenience.

Downloads

Product Manual

Features + Benefits

  • High-efficiency, 6-vane motor
  • 3-position power regulator
  • Includes protective boot kit

Key Specs

AttributeSpecification

item#

15414

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

30.62 LB

Drive Size

1 in

Max. RPM

5,000

Impacts Per Minute

830

Max. Reverse Torque

1,475 ft-lbs.

Max. Forward Torque

900 ft-lbs.

Min. Working Torque

100 ft-lbs.
AttributeSpecification

Max. Working Torque

900 ft-lbs.

Air Consumption

10 cfm

CFM at Load

37

Air Inlet Size

1/2 in

Min. Hose Size

1/2 in

Variable Speed

Yes

Reversible

Yes

Bolt Capacity

1.25 in

Noise Level

103.4 dB

Tool Length

20.125 in

Reviews

Questions & Answers

30 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What air supply line size is recommended for this wrench? What oil should be used?

    1. I have used that impact with 5/16 air hose and 3/8, and it worked very good on both of those size hoses.

      Helpful?

    2. The IR air impact wrench will require a 1/2" air supply line. The wrench will use 10 wt. non-detergent oil.

      Helpful?

  2. How long is the shaft

    1 answer

    1. This air impact wrench would have a 6" extended shaft length.

      Helpful?

  3. Recommended psi for this impact

    1 answer

    1. This will require 37 CFM at 90 PSI, at full load.

      Helpful?

  4. how much does the impact wrench weigh

    1 answer

    1. This impact wrench weighs 27.8 pounds.

      Helpful?
