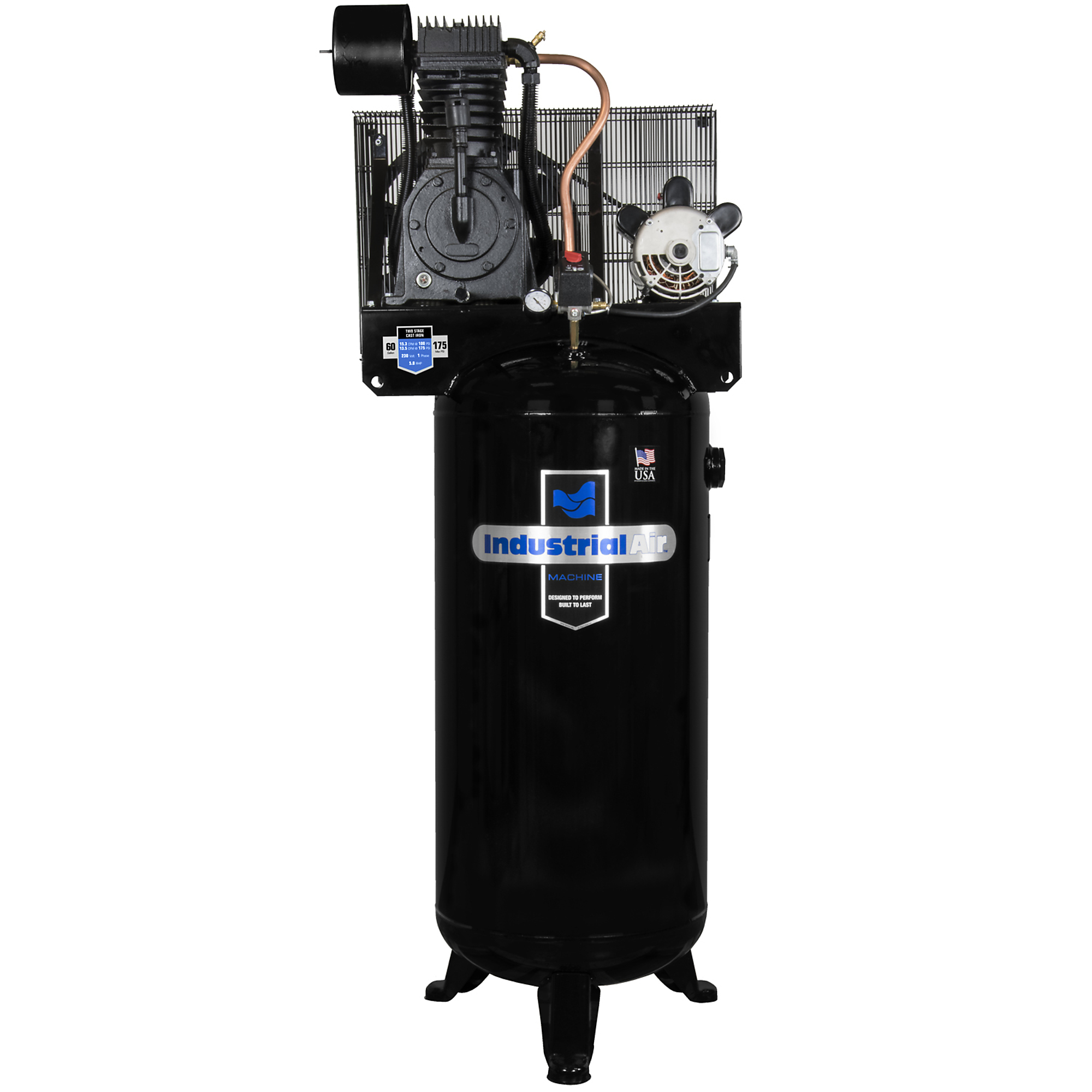

Industrial Air 60 Gallon, Two Stage, Vertical Air Compressor, Model# IV5076055

Item# 4920306
"Industrial Air 60 Gallon, Two Stage, Vertical Air Compressor, Model# IV5076055"
Industrial Air 60 Gallon, Two Stage, Vertical Air Compressor, Model# IV5076055

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Air 60 Gallon, Two Stage, Vertical Air Compressor, Model# IV5076055

Click or Tap image to Zoom

$1649.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  •  Industrial performance delivers 175 max PSI
  • Low pump RPM for longer life
  •  Patented design provides for a cooler running pump
  •  Patented piston design for improved efficiency

See full description

Complete Your Solution

  • Industrial Air 60 Gallon, Two Stage, Vertical Air Compressor, Model# IV5076055
  • Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211
  • Quincy Compressor 30W Compressor Oil, 1-Qt., Model# 112543Q100
Price for all three:

$1689.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Industrial Air 60 Gallon two stage compressor has a large enough capacity to operate multiple air tools at the same time. It generates up to 13.5 CFM at 175 PSI for superb performance. The uniquely designed two stage pump improves pump efficiency allowing it run cooler, at lower RPM, to improve its life. The 5.0 HP motor with thermal overload protection does not require a magnetic starter.

What's Included

    (1) 60 Gallon Vertical Single Stage 18.1 CFM @ 90

Features + Benefits

  •  Industrial performance delivers 175 max PSI
  • Low pump RPM for longer life
  •  Patented design provides for a cooler running pump
  •  Patented piston design for improved efficiency

Key Specs

AttributeSpecification

item#

4920306

Brand

Industrial Air

Manufacturer's Warranty

2 year limited warranty

Ship Weight

424.0 LB

Air Tank Size

60 Gal

Volts

230

CFM at 90 PSI

15.3

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Air Compressor Type

Stationary Electric

Horsepower

5 HP

Max. PSI

175
AttributeSpecification

Amps

22

Engine Start Type

Electric

Pump Material

Cast Iron

Air Outlet Size

11/32 in. NPT

CFM at Max. PSI

13.5

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Air Dryer

None

Drain Type

Manual

Product Weight

424.0000 lb

Dimensions L x W x H (in.)

40.0 x 80.0 x 31.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What are the correct dimensions? Says 31" wide which is a 80 gallon width not a 60 gallon...Plus in description it also says it comes with a 80-gallon tank. Which is it?

    1 answer

    1. The overall dimensions on the compressor are 37"L x 32" D x 79" H. The tank size is 60 gallons.

      Helpful?

  2. What is the Pump RPM?

    1 answer

    1. The pump RPM is 767.

      Helpful?

  3. pump life rating in hours. sounds like noise rating is little high. thank you

    1 answer

    1. The compressor pump has been tested to have a life rating of up to 2000 hours. The sound testing in a anechoic chamber was 78.4 decibels.

      Helpful?

  4. what is the duty cycle of this compressor?

    1 answer

    1. The compressor has a duty cycle of 75%.

      Helpful?

  5. what is the noise level (db rating) for this compressor?

    1 answer

    1. The noise level of this unit is 83.8 dBA.

      Helpful?
