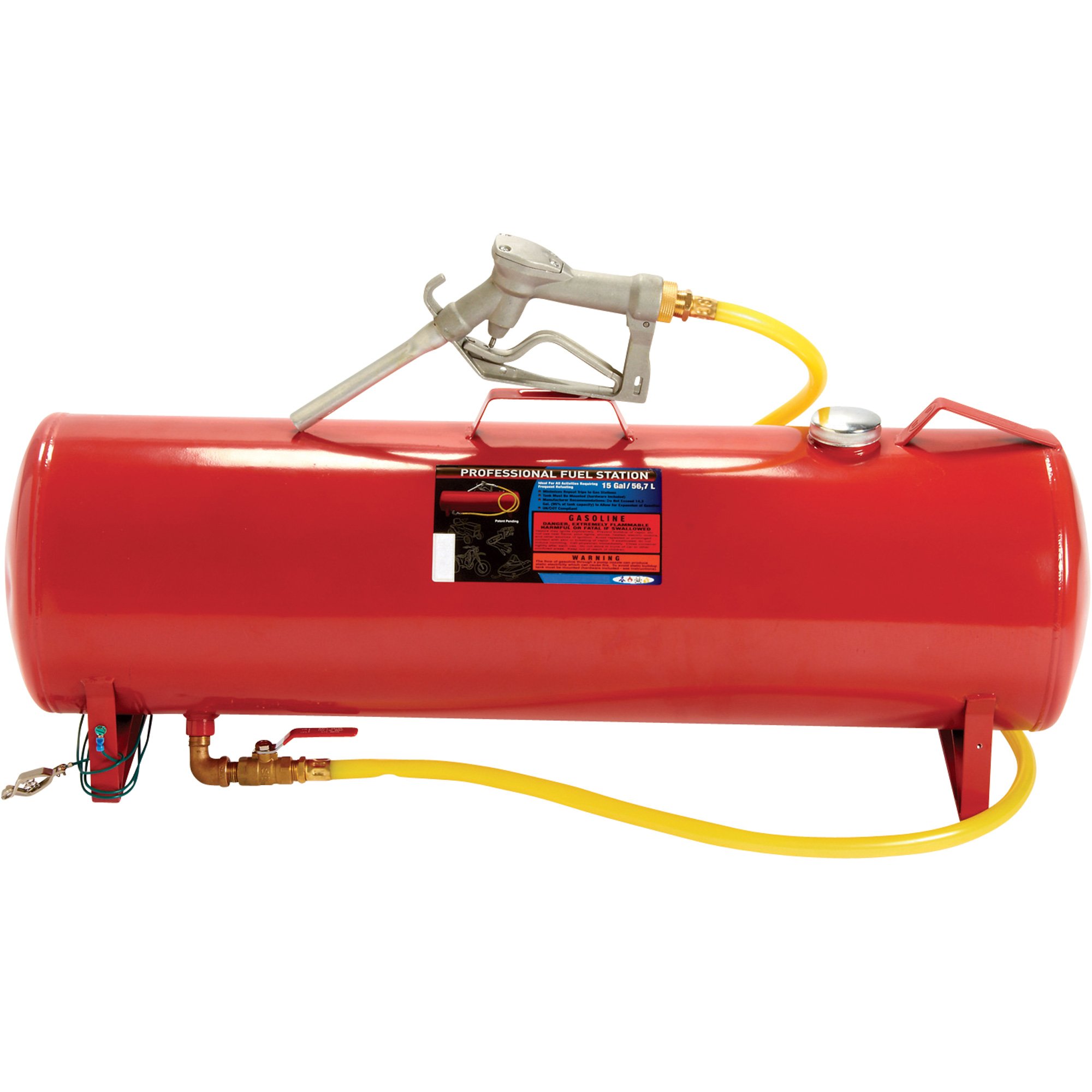

Hy-Pro Fuel Station — 15-Gallon, Steel, Model# FST-15

Item# 29578
"Hy-Pro Fuel Station - 15-Gallon, Steel, Model# FST-15"
Hy-Pro Fuel Station — 15-Gallon, Steel, Model# FST-15

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hy-Pro Fuel Station — 15-Gallon, Steel, Model# FST-15

Click or Tap image to Zoom

  • 15-gal. tank is constructed of 18 Gauge steel with a powder coat finish for durability
  • Features a brass shutoff valve preventing accidental draining of expensive fuels
  • Features ¾ in. cast aluminum manual nozzle with efficient squeeze handle dispenser for easy refueling
  • Includes 10 ft. long hose with brass couplers for easy connection to nozzle and shutoff valve
  • Includes a durable 1 1/2 in. steel fuel cap

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Hy-Pro 15-Gallon Fuel Station features a durable welded steel tank that can be used with gasoline, diesel and kerosene, minimizing repeated trips to the gas station. This fuel station is great for many applications including grounds maintenance to refuel lawn care equipment such as mowers, weed trimmers, chain saws and more. It's also great for refueling ATVs, boats, vehicles and any other applications requiring frequent refueling. UN/DOT compliant.

What's Included

  • (1) Fuel tank
  • (1) Hose assembly
  • (1) Cast aluminum fuel nozzle
  • (1) Shutoff valve
  • (1) Fastener package
  •  (1) Steel fuel cap

Downloads

Product Manual

Features + Benefits

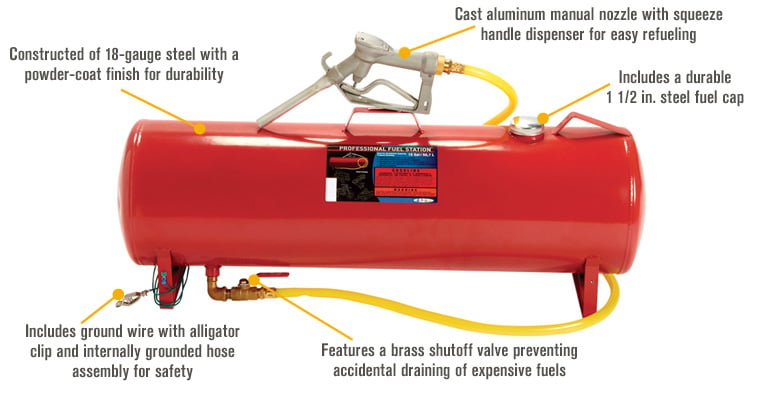

  • 15-gal. tank is constructed of 18 Gauge steel with a powder coat finish for durability
  • Features a brass shutoff valve preventing accidental draining of expensive fuels
  • Features ¾ in. cast aluminum manual nozzle with efficient squeeze handle dispenser for easy refueling
  • Includes 10 ft. long hose with brass couplers for easy connection to nozzle and shutoff valve
  • Includes a durable 1 1/2 in. steel fuel cap
  • Easy installation on a trailer with included hardware (fuel station must be mounted at a higher level than tank being re-filled for optimal performance)
  • Also can be mounted on other vehicles such as ATVs and trucks if properly vented, secured and grounded
  • Includes ground wire with alligator clip and internally grounded hose assembly for safety
  • UN/DOT compliant

Key Specs

AttributeSpecification

item#

29578

Brand

Hypro

Manufacturer's Warranty

NTE 1 year RA/Exchange Policy

Ship Weight

32.0 LB

Material

Steel
AttributeSpecification

Pump Type

Gravity

Wheels (qty.)

0

Compatible With

Gasoline, diesel, kerosene

Dimensions L x W x H (in.)

39 x 12 x 15

Reviews

Questions & Answers

37 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. Is the steel tank lined to avoid rust?

    1. No, the tank is Cold Rolled Steel. As long as you keep fuel in it and the cap on, minimal moisture should develop causing any rust. However, it is steel..so if you were to let the tank sit empty for a period of time, it would most likely develop some rust. The tanks are pre-treated with an anti-rust inhibitor at the factory...which keeps them in pristine condition while in inventory.

      Thanks for your business.

      Helpful?

    2. no, the tank is not lined. The interior appears to be unfinished good-quality steel. I have not had any issues with rusting as of yet.

      Helpful?

    3. The HY-Pro 15 gallon fuel station does not have a lined tank .

      Helpful?

  2. What is the ground clamp for

    1. There is a slight possibility of sparking when the Hy-Pro Fuel Station fuel nozzle touches the fuel tank on your mower or garden tractor, etc. due to a difference in static electricity charges between the two (the fuel station tank and your empty tank). Sparking can ignite any fuel vapors present and create anything from a brief "pop" as a small amount of vapor catches fire, all the way to a huge explosive fireball due to a large amount of vapor present. This can lead to further problems if liquid fuel catches fire from the ignition of the fireball. The ground clamp, applied to the empty fuel tank before using the hose to re-fill the empty tank, balances the electrical charge between the two tanks and prevents any such spark from occurring. You should use it each time you refuel.

      Helpful?

    2. To ground the tank. If the tank is properly it will remove the risk of static spark.

      Helpful?

    3. A ground clamp is used to eliminate the chance of a fire due to static electricity that could be present.

      Helpful?

  3. Filling it up

    Since there is a grounding cable/clamp can you fill this in the back of a pickup?

    1. Yes, but it is best to connect the grounding cable/clamp to the pump before re-filling the fuel station. The tank is far too heavy, when filled, to set on the ground before filling, and then have to lift it up into the pickup truck.

      It is also a good idea to have this fuel station grounded to your pickup truck by drilling and bolting the fuel station down to the truck bed. Then there is no more danger from static discharge with the fuel station than there is when you fill the tank on your pickup truck. "Touching" the fuel station tank with your empty hand before refueling, while holding the nozzle from the gas pump in the other hand, can also help to dissipate the static electric charge difference between the two. This helps to reduce any danger of a static electric spark occurring.

      Helpful?

    2. Yes as long as the ground clamp is properly grounded, there is no risk.

      Helpful?

    3. Yes you would be able to fill this station while it is in the back of a pickup.

      Helpful?

  4. does it come in yellow for diesel fuel?

    1. go down to your local fuel oil dealer and ask for a 1993 red sticker to put one (1) each on a side of this and legally fill and haul diesel in it.the sticker will identify it,instead of yellow paint.

      Helpful?

    2. If you want to fill this tank with diesel at the local gas station I suggest you paint it yellow. The EPA mandates specific color containers for specific fuels. Red/gasoline, blue/kerosene, and yellow/diesel. The attendants at the station may not allow diesel in a red container.

      Helpful?

    3. This 15-gallon fuel station is not available in yellow.

      Helpful?

  5. does it have a vented fuel cap?

    1. Yes it is vented like any standard fuel tank cap to let air back into the tank when the fuel is flowing out.

      Helpful?

    2. This unit has a vented fuel cap.

      Helpful?

  6. Does the tank have a mounting bracket to secure the nozzle and/or hose?

    1. No. You will need to figure out a way to mount the nozzle and/or hose according to your situation. I mounted an extra trailer wheel rim nearby and I coil the hose around that.

      Helpful?

    2. This fuel station does not include a mounting bracket to secure the nozzle and/or hose.

      Helpful?

  7. What size nozzle comes with this?

    Is it the 3/4" or 1"?

    1. 3/4

      Helpful?

    2. The nozzle is 3/4" OD and 5/8" ID.

      Helpful?

  8. Is it suitable for permanent mount in a truck bed?

    Text says the unit is "... UN and DOT compliant", and that it is apparently intended for mounting on a trailer.
    Is it suitable for permanent mounting in the bed of a pick-up truck?

    1. I did. the ground clamp is long enough to run under the bed to find a suitable grounding spot.

      Helpful?

    2. While the tank is intended to be mounted to a trailer it could be mounted to the bed of your pick up truck as long as it is grounded properly.

      Helpful?

  9. Can this be used with 90% gasoline / 10% ethanol blended fuel ?

    1. Yes

      Helpful?

    2. This unit can be used with gasoline which has a 10 percent ethanol blend.

      Helpful?

  10. Are the welds strong enough to mount the tank vertically?

    1. The tank is not designed to be mounted vertically. The leg supports are not designed to support the fully loaded tank in a vertical position. In addition, given the positioning of the filler neck and drain plumbing, you would not be able to fully fill OR fully drain this tank in a vertical position.

      Helpful?

    2. This Hy-Pro 15-Gallon Fuel Station is not designed to be mounted vertically.

      Helpful?
