This filter will fit all Honda GX690 engines. -Robert@Honda

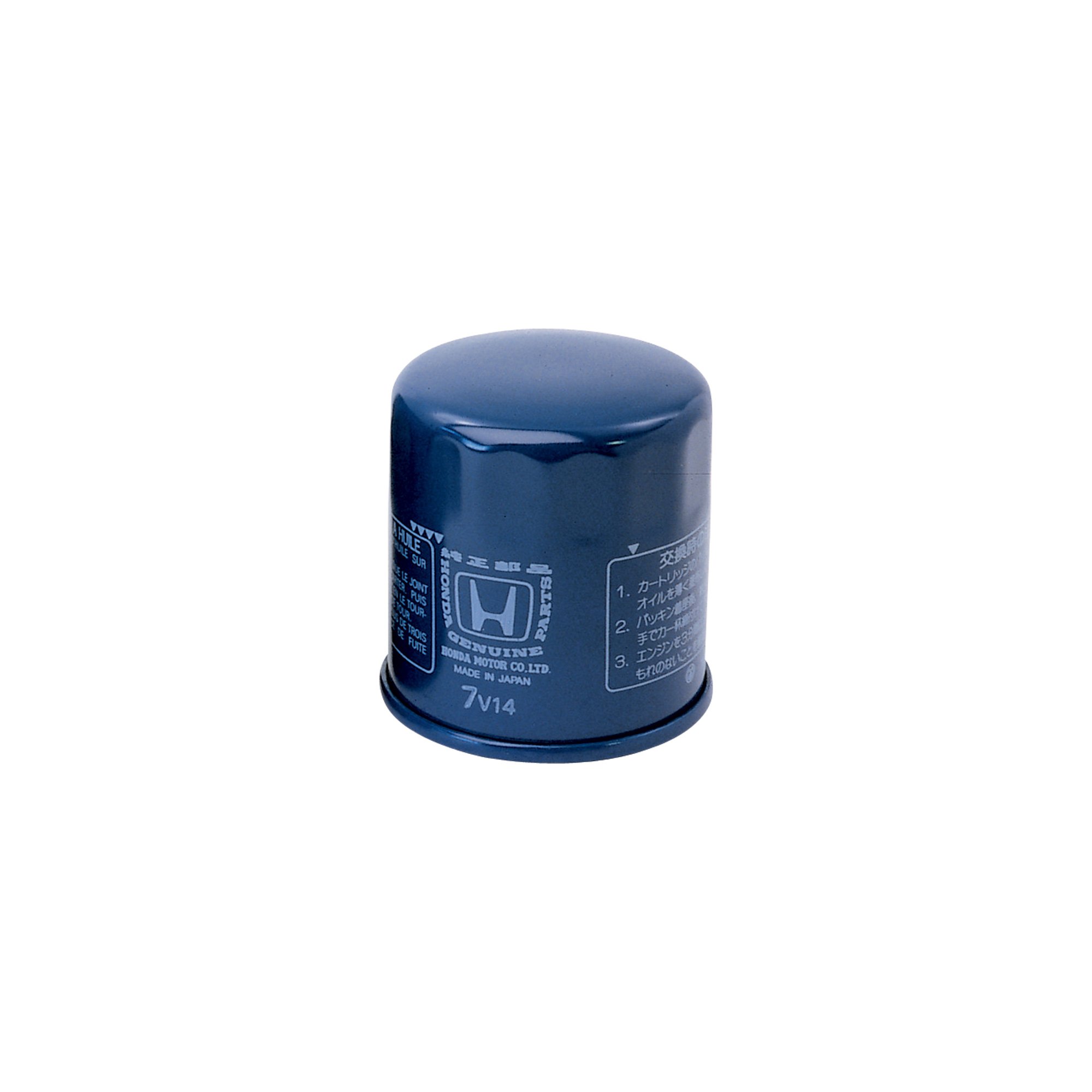

Honda OEM Oil Filter — Model# 15400-PLM-A02PE
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
Prop 65 Warning: See Details
See full description
-
Will this fit the GX 690?
-
Helpful?
-
This filter will fit a Honda GX690 motor.
Helpful?
-
-
will the 15400-plm-AO2 work as a replacement for theA01PE?
-
The filter #15400-PLM-A02 can only be used on the GXV520/530 engine. The part #15400-PLM-A01PE will fit many other Honda models, but it will not work with the GXV520/530 and cannot be used as a replacement for the 15400-PLM-A02.
Helpful?
-
HowardG, Honda Part Number 15400-PLM-A02 is only used for the GXV520/530 engine. Honda Part Number 15400-PLM-A01PE fits hundreds of other Honda models, but is NOT for the GXV520/530. Hope this helps. -Robert@Honda
Helpful?
-
-
What is the diameter of this filter?
-
The Honda OEM Oil Filter measures 3 7/16" H, 2 3/4" in diameter at the bottom where the lip is and 2 9/16" in diameter at the top.
Helpful?
-
The parts catalog lists the dimensions as length 83mm, width 70mm, and height 70mm. Hope this helps. -Robert@Honda
Helpful?
-
-
will this fit gxv530 16.5 hp motor
1 answer-
This oil filter is designed for use with 18, 20, and 24 HP V-Twin engines, plus GXV340 and GXV390 engines.
Helpful?
-
-
Is this the correct filter for a new GX630RH?
1 answer-
This filter would be a correct replacement filter for the GX630RH.
Helpful?
-
-
Will this filter fit my GX630?
1 answer-
This oil filter will fit a Honda GX630 engine.
Helpful?
-
-
IS THIS THE FILTER FOR GX-620 V TWIN
WILL THIS FILTER FIT MY HONDA ENGINE ? IT IS A GX-620 IF SO WHAT WOULD THE PRICE BE ON 5 FILTERS?
1 answer-
Honda OEM Oil Filter - Model# 15400-PLM-A01PE will fit Honda 18,20, & 24 HP V-TWIN ENGINES plus GXV340 & GXV390 engines. This will fit the GX620.
Helpful?
-
See All Oil Filters
See All Honda Engines Oil Filters
Currently Viewing This Product
Specifications
Specifications
Honda OEM Oil Filter — Model# 15400-PLM-A02PE
Briggs & Stratton 3 1/4in. Oil Filter, OEM Replacement Part# 696854
Briggs & Stratton 2 1/4in. Oil Filter, OEM Replacement Part# 492932S
Briggs & Stratton Oil Filter, Model# 5076K
Thread Size
Same
-
3/4
3/4
3/4
Outside Diameter
Same
-
3 in
2.93 in
3 in
Height
Same
-
2.25 in
2.25 in
2.25 in
Micron Rating
Same
-
28
28
28
Gasket Material
Same
-
Rubber
Rubber
Rubber
Bypass Valve
Same
-
Yes
Yes
Yes
Anti-Drain Back Valve
Same
-
Yes
Yes
Yes
Removal Nut
Same
-
No
No
No
Product Weight
Same
-
0.7300 lb
0.4700 lb
-
Dimensions L x W x H (in.)
Same
-
3.0 x 3.0 x 2.25 in
2.93 x 2.93 x 2.375 in
-
