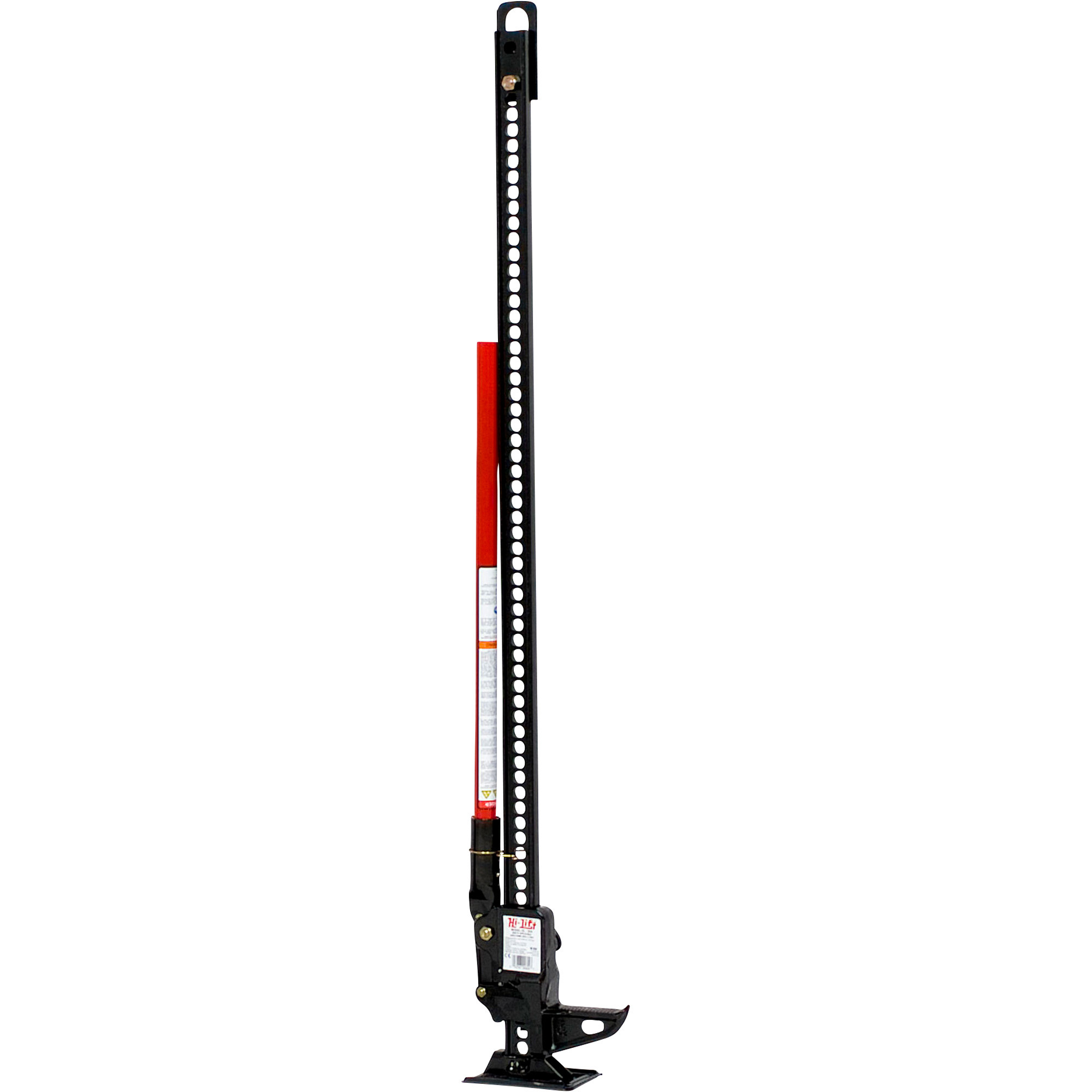

Hi-Lift 7000-Lb Capacity Farm Jack, 60in., Model# HL-604

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
This item is no longer available.
- 60in. Hi-Lift jack
- Rated load: 4,660 lbs.
- Tested load: 7,000 lbs.
- Winching capacity: 5,000 lbs.
- Clamping capacity: 750 lbs.
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) Hi-Lift 7000-Lb Capacity Farm Jack -- 60in., Model# HL-604
Downloads
Features + Benefits
- 60in. Hi-Lift jack
- Rated load: 4,660 lbs.
- Tested load: 7,000 lbs.
- Winching capacity: 5,000 lbs.
- Clamping capacity: 750 lbs.
Key Specs
| Attribute | Specification |
|---|---|
item# | 14421 |
Brand | Hi-Lift |
Manufacturer's Warranty | 12 months parts/12months labor |
Ship Weight | 30.0 LB |
Lift Capacity | 3.5 Tons |
| Attribute | Specification |
|---|---|
Max. Lift Height | 47 in |
Min. Lift Height | 4.5 in |
Product Type | Jack |
Material | Alloy Steel |
Reviews
Questions & Answers
Questions
-
· 12 years ago
Does the jack handle come off ?
-
OldOldFarmer· 10 years ago
Helpful?
-
jwm1941· 11 years ago
Mine is removable, but I store the handle in situ (in place). If you are jacking up a truck, this is the most appropriate jack.
Helpful?
-
ProductExpert6· 12 years ago
The handle can be removed. There is a cotter pin that holds the handle on and can be pulled off to remove the handle.
Helpful?
-
-
· 15 years ago
I want to use this jack to do maintenance on my lawn tractor. Will it remain stable when lifted and I am working underneath?
-
DCP123· 13 years ago
You should really never work under anything that is supported only by a jack. That applies to any jack I've ever heard of. If you need to go under a vehicle, you need jack stands or some other form of more stable support.
Helpful?
-
heywhat1· 14 years ago
This is a jack, and Should Never be used to work underneath anything. Use jack stands! once lifted. Good luck
Helpful?
-
ProductExpert10· 15 years ago
This is a jack that has a large rigid base adding to the stability. A better choice for added security would be Northern's Lawn Tractor Lift, our item # 174889.
Helpful?
-
-
· 10 years ago
can I lift concrete slab?
The concrete slab on the side walk has gone down 4 inches on one side, (4' x 6'). Will I be able to lift it with this to make it even?
-
OldOldFarmer· 10 years ago
To lift anything with a jack, any jack, you have to get the jack under it. How are you going to get a jack underneath a concrete slab? And, concrete is strong only under compression, but if you try to lift concrete in any given spot, it will likely crack and break. This jack will lift a ton or more. It will lift the end of a truck, but most trucks have strong frames and bumpers. It's not the jack you need to worry about, rather the material you want to lift and how to grab onto that material.
Helpful?
-
ProductExpert38· 10 years ago
The Hi-Lift All Purpose Mechanical Jack would not be recommended to lift a concrete slab. The possibility of the slab cracking or breaking is high.
Helpful?
-
-
· 13 years ago
what country is this jack manufactured ?
-
OldOldFarmer· 10 years ago
This jack is manufactured in the USA.
Helpful?
-
ProductExpert12· 13 years ago
The Hi-Lift Mechanical Jack is manufactured in the United States.
Helpful?
-
-
· 3 years ago
How do I release the jack to come down?
1 answer-
ProductExpert37· 3 years ago
1. Position the jack under the raised load and raise the stationary load (see Raising a Stationary Load). 2. Remove blocks from under the load. 3. Be sure the handle is in the upright position clipped to the steel standard bar before lowering the load. 4. Move the reversing latch to the down position. 5. Grasp the handle firmly with both hands. Carefully pump the handle up and down to lower the load. 6. The load will be lowered on each up stroke of the handle (refer to Binding if the jack binds). Additional operation instructions can be found in the product manual underneath the product summary.
Helpful?
-
-
· 5 years ago
what is the difference between rated and tested load?
1 answer-
ProductExpert38· 5 years ago
The manufacturer shows the tested load as the max weight the jack can withstand, but only warranties the product for use at the rated limit of 4660 lbs.
Helpful?
-
