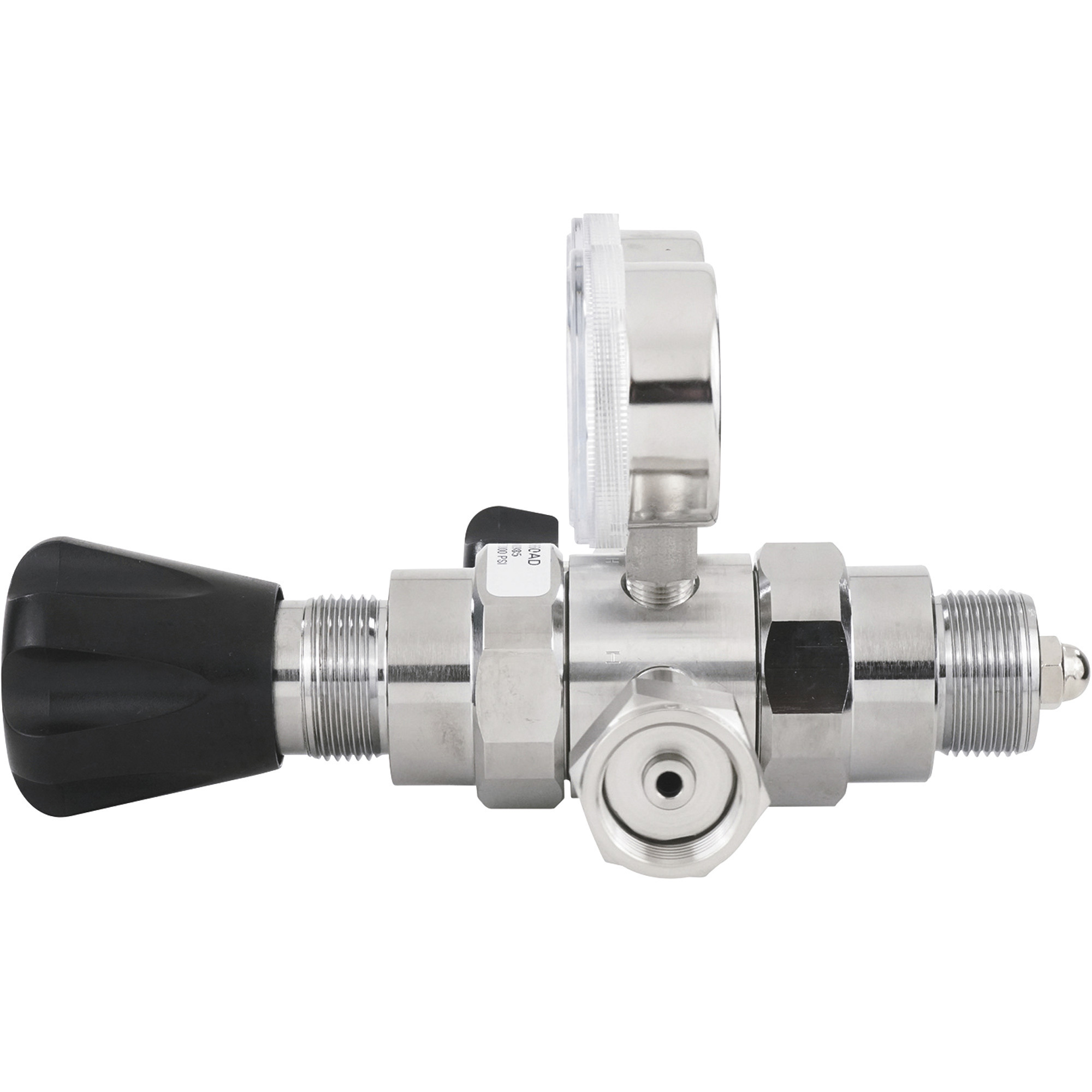

Harris, REG,HP742-050-660-AD, Max. Inlet Pressure 3000 PSIG, Model# HP742-050-660-AD

Item# 87684
Harris, REG,HP742-050-660-AD, Max. Inlet Pressure 3000 PSIG, Model# HP742-050-660-AD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Harris, REG,HP742-050-660-AD, Max. Inlet Pressure 3000 PSIG, Model# HP742-050-660-AD

Click or Tap image to Zoom

  • 2in. dual scale stainless steel gauges (psi/bar)
  • Mountable on the front panel
  • Maximum inlet pressure of 3000 PSIG
  • Suitable for corrosive gas applications, high purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems
  • 1 11/16in. 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This high-purity two-stage cylinder Harris® Corrosive Gases Specialty Gas Lab Regulator is constructed of stainless steel for constant delivery pressure from full to near empty cylinder conditions. The Model HP742 is suitable for corrosive gas applications, high purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems. The 100 PSIG delivery pressure gauge features a delivery pressure range of 0 to 50 PSIG.

What's Included

    (1) Two-stage cylinder regulator with CGA inlet connection and outlet diaphragm valve (1) 1/4in. compression fitting

Features + Benefits

  • 2in. dual scale stainless steel gauges (psi/bar)
  • Mountable on the front panel
  • Maximum inlet pressure of 3000 PSIG
  • Suitable for corrosive gas applications, high purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission monitoring systems
  • 1 11/16in. 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • Designed to 1 x 10-9cc/sec. inboard helium leak rate to maintain gas purity levels
  • One-piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
  • Chrome-plated stainless steel barstock bonnet, body and fittings
  • Cleaned per CGA G4.1

Key Specs

AttributeSpecification

item#

87684

Brand

Harris

Manufacturer's Warranty

3 month limited warranty

Ship Weight

6.13 LB

Max. Inlet Pressure

3,000 PSIG

Max. Delivery Pressure

50 PSIG

Body Material

Stainless Steel
AttributeSpecification

Gas Service

Other

Welding Process

Gas

Supply Pressure Gauge

4,000 PSIG

Inlet Connection

CGA 660

Product Weight

6.1300 lb

Dimensions L x W x H (in.)

9.5 x 9.5 x 9.5 in

Reviews

Questions & Answers

Questions

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

3 month limited warranty
