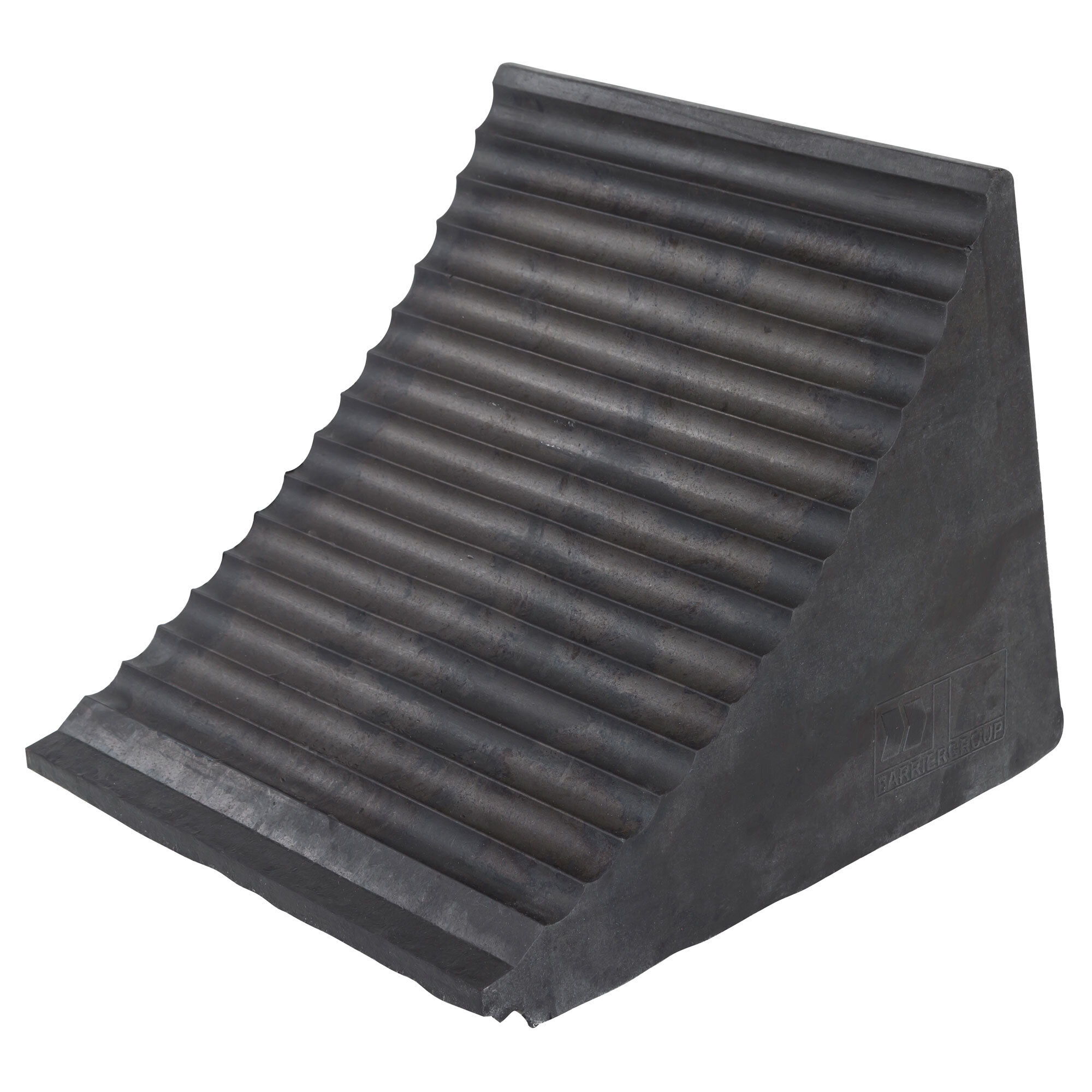

Guardian, wheel chock,12-3/4in.L x 11-1/2in.W x 10-1/2in.H, Working Width 11.5 in, Height 10.5 in, Included (qty.) 1 Model# DH-WC-3

Item# 5813351
Guardian, wheel chock,12-3/4in.L x 11-1/2in.W x 10-1/2in.H, Working Width 11.5 in, Height 10.5 in, Included (qty.) 1 Model# DH-WC-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Guardian, wheel chock,12-3/4in.L x 11-1/2in.W x 10-1/2in.H, Working Width 11.5 in, Height 10.5 in, Included (qty.) 1 Model# DH-WC-3

Click or Tap image to Zoom

  • Manufactured from heavy-duty thermoplastic rubber which is resistant to oils, fuel, and solvents

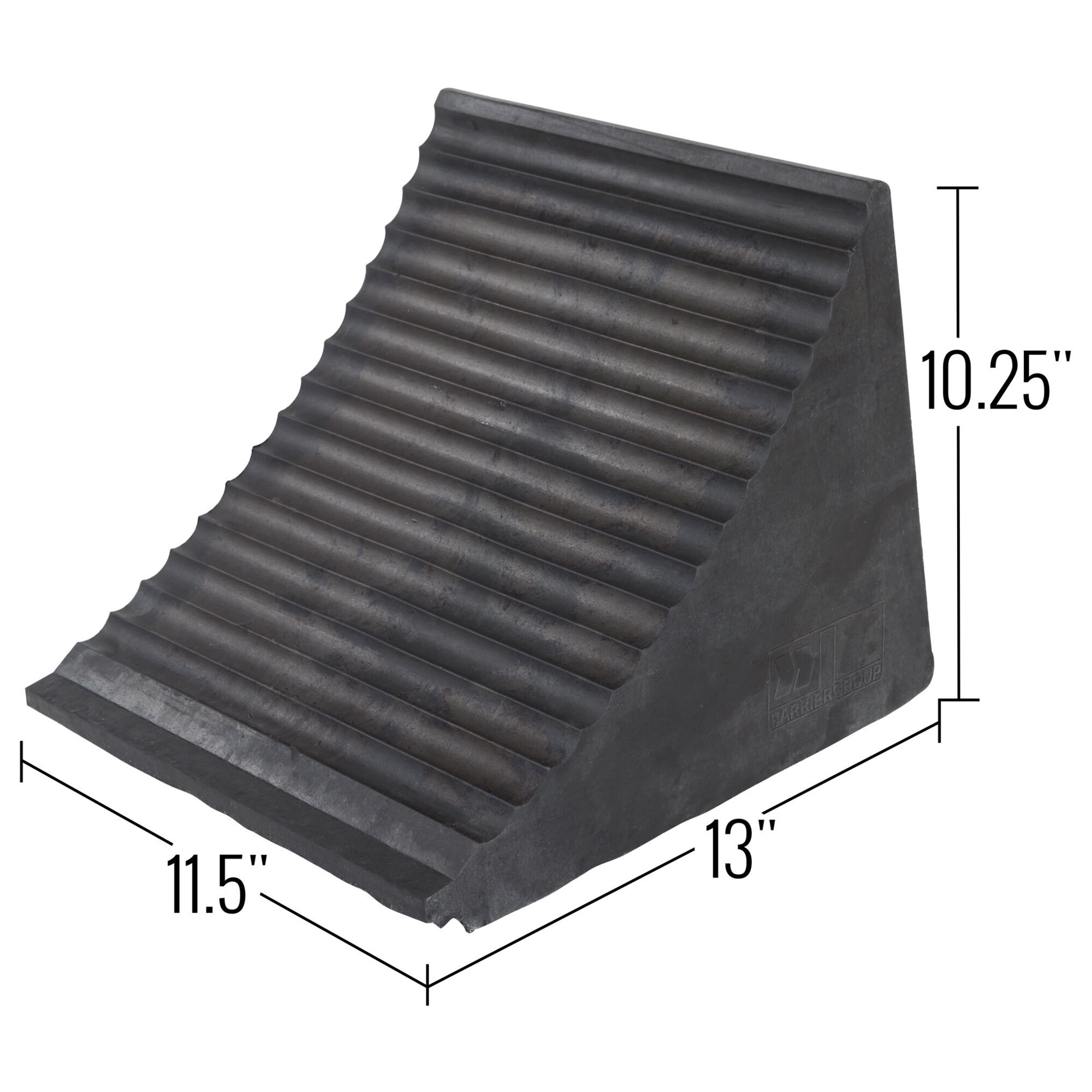

  • Measures 13" L x 11-1/2" W x 10-1/4" H
  • 80,000 lb. Weight capacity
  • 40 degree slope for use with fire, hauler, or other commercial trucks
  • Anti-slip high-traction rubber surface

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This industrial-strength chock is built for large, heavy-duty commercial vehicles like fire, hauler, or other commercial trucks. The chock has a slope of 40 degrees, and is ideal for vehicles weighing up to 40 tons. Its molded rubber construction is resistant to oil, fuel, and solvents for durability and has a ridged, anti-slip surface for traction. The built-in 6-1/2in. x 2in. handle makes moving and carrying the chock easy. Formed with a bottom void for maximum traction on gravel. OSHA safety regulations require all power industrial trucks to be chocked with at least two wheels chocks to prevent the vehicle from rolling when it is parked. All industrial wheel chocks are sold as singles. Improper use may result in product failure; Select wheel chock according to vehicle type and size; Always use in pairs and on firm surfaces; Chock in direction of grade; Chock both sides of wheel if direction of grade is undetermined; Use only after parking brake is applied and tested; Center chocks snugly and squarely against tread of each wheel; Always test chocks to insure they meet requirements; Do not drive over wheel chocks OSHA Safety Regulations Powered Industrial Trucks - 1910.178(k)(1) The brakes of highway trucks shall be set and wheel chocks placed under the rear wheels to prevent the trucks from rolling while they are boarded with powered industrial trucks. Powered Industrial Trucks - 1910.178(m)(7) Brakes shall be set and wheel blocks shall be in place to prevent movement of trucks, trailers, or railroad cars while loading or unloading. Fixed jacks may be necessary to support a semi trailer during loading or unloading when the trailer is not coupled to a tractor. The flooring of trucks, trailers, and railroad cars shall be checked for breaks and weakness before they are driven onto. Storing/Handling Anhydrous Ammonia - 1910.111(f)(9) Chock Blocks. At least two chock blocks shall be provided. These blocks shall be placed to prevent rolling of the vehicle whenever it is parked during loading and unloading operations. For further information on regulations please visit OSHA .

What's Included

    (1) Wheel Chock

Features + Benefits

  • Manufactured from heavy-duty thermoplastic rubber which is resistant to oils, fuel, and solvents
  • Measures 13" L x 11-1/2" W x 10-1/4" H
  • 80,000 lb. Weight capacity
  • 40 degree slope for use with fire, hauler, or other commercial trucks
  • Anti-slip high-traction rubber surface
  • Mounting hole for rope, chains, or brackets
  • OSHA safety regulations require the use of 2 wheel chock on every vehicle

Key Specs

AttributeSpecification

item#

5813351

Brand

Guardian

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

25.0 LB

Working Width

11.5 in

Height

10.5 in
AttributeSpecification

Primary Color

Black

Material

Rubber

Rope Included

No

Reflective

No

Product Weight

23.5000 lb

Dimensions L x W x H (in.)

12.75 x 11.5 x 10.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months parts/12months labor
