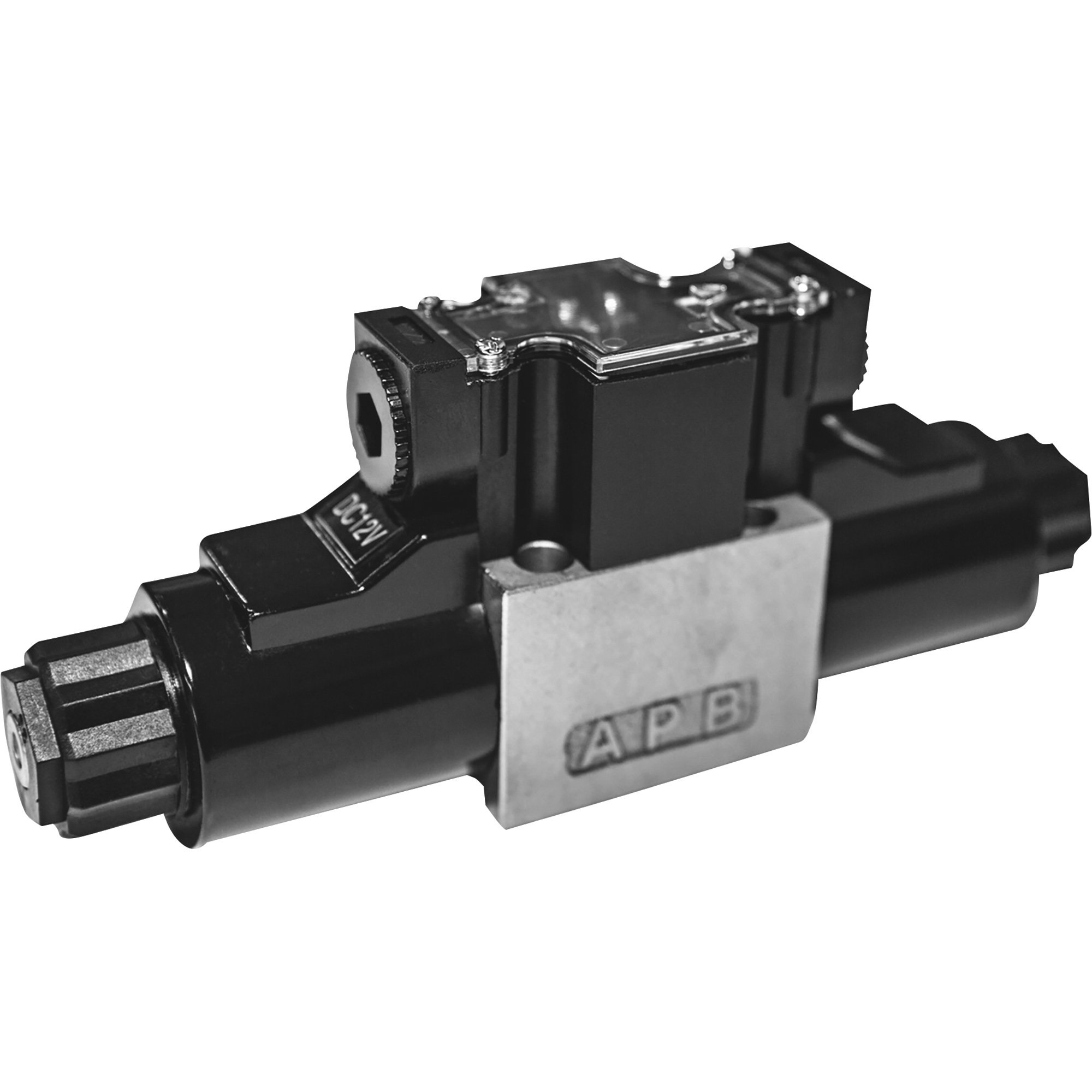

GRH Nickel-Plated Hydraulic Directional Control Valve – 16.5 GPM, 4560 PSI, 3-Position, Spool Style 3, 12V Solenoid, GRH-01-3C3-D12-D-NP-33

Item# 73708
GRH Nickel-Plated Hydraulic Directional Control Valve – 16.5 GPM, 4560 PSI, 3-Position, Spool Style 3, 12V Solenoid, GRH-01-3C3-D12-D-NP-33

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GRH Nickel-Plated Hydraulic Directional Control Valve – 16.5 GPM, 4560 PSI, 3-Position, Spool Style 3, 12V Solenoid, GRH-01-3C3-D12-D-NP-33

Click or Tap image to Zoom

  • Closed during shift transition
  • Nickel plating withstands the harshest environments with a 500 hour salt resistance rating
  • Delivers high pressure and high flow rate
  • Low pressure drop for stable operation
  • 16.5 GPM flow rate

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This industrial-mobile GRH Nickel-Plated Hydraulic Directional Control Valve conforms to the National Fluid Power Association (NFPA) D03 mounting pattern for subplate or manifold mounting. As a 3-position, 4-way valve, it is commonly used to extend and retract a double-acting hydraulic cylinder. As a single-solenoid valve, it will remain in its home position until shifted electrically, returning to home when the power is removed. Its molded coils are moisture and dirt resistant. Comes standard with indicating signal lights, manual override, bolt kit and electrical junction box.

What's Included

  • (1) Hydraulic directional control valve
  • (1) Bolt kit

Features + Benefits

  • Closed during shift transition
  • Nickel plating withstands the harshest environments with a 500 hour salt resistance rating
  • Delivers high pressure and high flow rate
  • Low pressure drop for stable operation
  • 16.5 GPM flow rate
  • Small, compact, shockless design
  • 3-position, 4-way spring centered
  • Deutsch Style connectors
  • 12 Volt direct current coils with manual override
  • IP65-equivalent high dust and waterproof protection
  • Includes bolt kit

Key Specs

AttributeSpecification

item#

73708

Brand

GRH

Manufacturer's Warranty

12 months limited parts / No labor

Ship Weight

5.0 LB

GPM

16.5
AttributeSpecification

Max. PSI

4,560

Directional Control

4-way, 3-position

Indicator Light

Yes

Product Weight

5 lb

Dimensions L x W x H (in.)

9 x 4.5 x 2.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months limited parts / No labor
