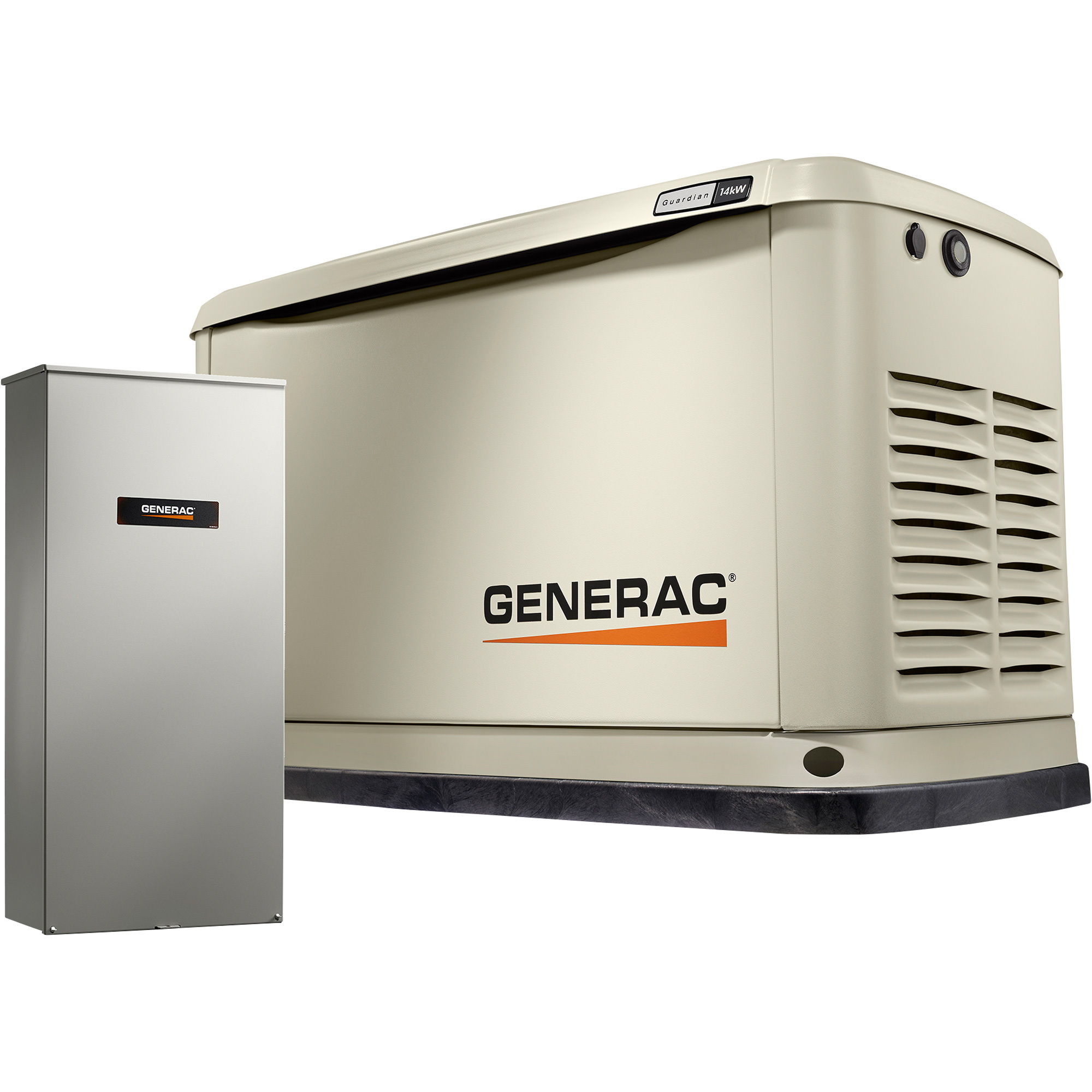

Generac Guardian Series Air-Cooled Home Standby Generator, 14kW (LP)/14kW (NG), 200 Amp Transfer Switch, Model# 7225

Item# 105880
"Generac Guardian Series Air-Cooled Home Standby Generator, 14kW (LP)/14kW (NG), 200 Amp Transfer Switch, Model# 7225"
On Sale
Generac Guardian Series Air-Cooled Home Standby Generator, 14kW (LP)/14kW (NG), 200 Amp Transfer Switch, Model# 7225

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Generac Guardian Series Air-Cooled Home Standby Generator, 14kW (LP)/14kW (NG), 200 Amp Transfer Switch, Model# 7225

Click or Tap image to Zoom

  • True Power™ technology delivers superior power quality with less than 5% total harmonic distortion
  • Generac G-Force engine requires less maintenance
  • Quiet-Test™ self-test mode is quieter and uses less fuel
  • Tough, durable all-weather, corrosion-resistant aluminum enclosure
  • Pre-attached composite mounting pad

See full description

  • FREE 7-Year Warranty with Purchase—a $735 Value

    Purchase a qualifying Generac home standby generator and receive a FREE 7-Year Warranty. See details.

    Terms and conditions apply. Generator must be purchased between 4/6/26−6/12/26 and activated by 8/23/26.

  • Availability Varies

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Generac Guardian Series Air-Cooled Home Standby Generator protects your home automatically 24/7. Runs on natural gas or liquid propane (LP) fuel, and sits outside just like a central air conditioning unit. No refueling, no manual starting and no extension cords are necessary. Delivers power directly to your home's electrical system, backing up your entire home or just the most essential items. Tool-less fuel conversion, internal main circuit breaker and system status LED. Includes Mobile Link remote monitoring for checking the status of your generator from anywhere in the world using your smartphone, tablet or PC for free. Assembled in U.S.A. with 24/7/365 customer support. Not intended for use as primary power in place of utility or in life-support applications. Read the owner's manual in its entirety before using this product.

What's Included

    (1) Standby generator (1) 200 Amp transfer switch (1) Pre-attached composite mounting pad

Downloads

Product Manual

Features + Benefits

  • True Power™ technology delivers superior power quality with less than 5% total harmonic distortion
  • Generac G-Force engine requires less maintenance
  • Quiet-Test™ self-test mode is quieter and uses less fuel
  • Tough, durable all-weather, corrosion-resistant aluminum enclosure
  • Pre-attached composite mounting pad
  • Smart, user-friendly Generac Evolution™ Controller features a dual-line multilingual LCD display
  • Includes Mobile Link™ remote monitoring for checking the status of your generator from anywhere in the world using your smartphone, tablet or PC for free
  • 24/7/365 Customer Support Team
  • Includes transfer switch

Key Specs

AttributeSpecification

item#

105880

Brand

Generac

Manufacturer's Warranty

5 year limited warranty

Ship Weight

446.0 LB

Voltage

120/240

Rated Kilowatts LP

14

Surge Kilowatts LP

14

Rated Kilowatts NG

14

Surge Kilowatts NG

14

Max. Amps

58.3

Fuel Type

Multi-Fuel
AttributeSpecification

Engine Brand

Generac

Engine Model

G-force

Engine Displacement

816 cc

Enclosure Material

Aluminum

Start Type

Automatic

Battery Required

Yes

Battery Included

No

Transfer Switch Amps

200

Auto Shutdown

Yes

Product Weight

446.0000 lb

Dimensions L x W x H (in.)

48.0 x 25.0 x in

Reviews

Questions & Answers

3115 Reviews This action will navigate to reviews.

Questions

1–10 of 23 Questions
Sort by:

  1. What are the concrete base dimensions and enty point dimensions for the gas and electrical entry through the bottom?

    1 answer

    1. The concrete base dimensions would be 54 inches long x 31 inches wide and 3 inches thick. It is best to check with your local codes. The entry point dimensions for the gas and electrical entry would be listed in the product manual that can be found on our website.

      Helpful?

  2. Can the unit be mounted on an elevated platform or must it be on the ground?

    1 answer

    1. The generator requires the use of the mounting pad shipped with the generator. It is recommended to be installed on a cement slab no closer than 18" away from structure.

      Helpful?

  3. What size gas line would be needed to run this 14kW generator?

    1 answer

    1. The gas pipe size will depend on length of run from the source and how many elbows and T’s there are. Gas line size on the generator can range in size from ¾” to 1 ¼” or greater, depending on how far from the gas source. Units running on natural gas need 3.5” to 7” of water column of pressure and units running on propane will need 10” to 12” of water column of pressure. It is recommended that you contact a gas provider or licensed installer per your application.

      Helpful?

  4. Does model # 7225 come with a battery charger

    1 answer

    1. The battery charger is integrated into the control panel module. It operates as a smart charger, verifying output charging levels are safe and continuously optimized to promote maximum battery life. A kit is provided to install a fuse in transfer switch for T1 battery charger connection. Do not use an external battery charger.

      Helpful?

  5. where are they made

    1 answer

    1. The generator and transfer switch are manufactured in the United States.

      Helpful?

  6. How many breakers in mod 7225 transfer switch?

    1 answer

    1. The transfer switch will have one service rated 200 amp breaker. This is intended to be the service entrance for the home.

      Helpful?

  7. WHAT SIZE GAS LINE IS REQUIRED? WHAT ARE THE DIMENSIONS OF THE TRANSFER SWITCH?

    1 answer

    1. The fuel pipe must be sized per full load. Required fuel pressure to the generator fuel inlet at all load ranges 3.5-7.0 in water column for natural gas and 10-12 in water column for LP gas. The overall dimensions on the transfer switch is 13.5" W x 30.1" H x 6.91" D.

      Helpful?

  8. Does the engine block have a cast iron sleeve

    1 answer

    1. The generator would have a cast iron cylinder sleeve.

      Helpful?

  9. HOW MANY BTU OF NATURAL GAS DOES THIS TAKE

    1 answer

    1. The generator would be rated at 47,768 BTU or 3,412 BTU's per KW per hour. It would use 195 cu ft per hour at 1/2 load and 256 cu ft per hour at full load on natural gas.

      Helpful?

  10. If I have Liquid propane, does the generator have to remain a certain distance from my house?

    1 answer

    1. Installation should be done in accordance to local codes and regulations. This generator must be greater than 10ft. away from any air intake openings. Shrubs and tall grasses should not be within 3 ft. of the intake and discharge louvers on the sides of the generator enclosure either.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
