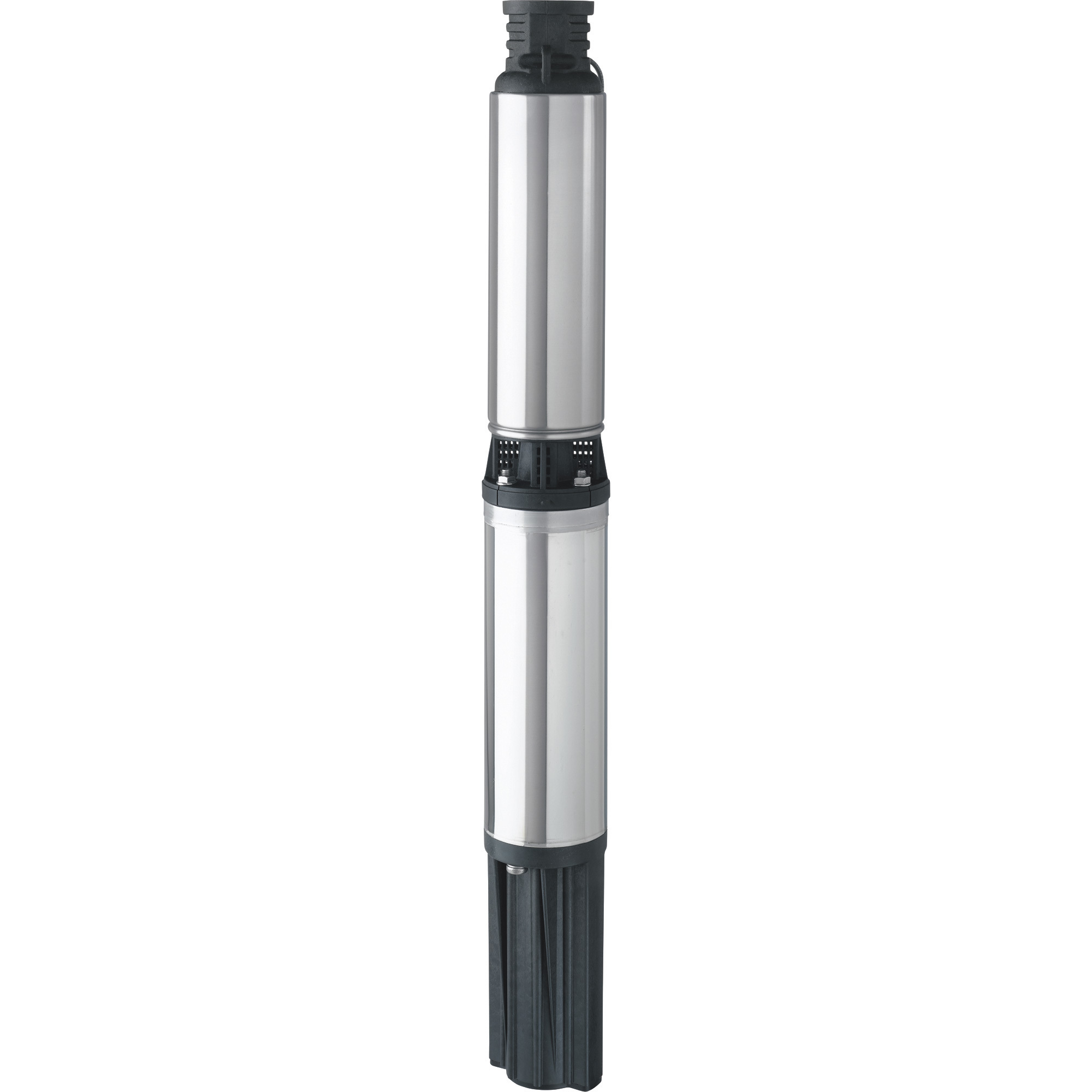

Flotec 2-Wire 4in. Submersible Deep Well Pump, 3/4 HP, 1 1/4in., Model# FP2222-02

Item# 1085271
Flotec 2-Wire 4in. Submersible Deep Well Pump, 3/4 HP, 1 1/4in., Model# FP2222-02

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Flotec 2-Wire 4in. Submersible Deep Well Pump, 3/4 HP, 1 1/4in., Model# FP2222-02

Click or Tap image to Zoom

  • 360 GPH @ 200ft.
  • 714 GPH @ 100ft.
  • Stainless steel pump and motor housing for durability and corrosion resistance
  • Two wire
  • Floating Stack design

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Economical, energy-efficient pumps for 4in. inside diameter or larger wells. Pump from depths of 200 feet. Patented "Floating Stack" design resists sand and reduces sand locking. Stainless steel pump and motor housing for long life. Heavy-duty 1 1/4in. NPT discharge connection. Water-filled submersible motor. Precision-molded impellers and diffusers. 230 Volts. UL approved. U.S.A.

What's Included

    (1) Submersible deep well pump

Downloads

Product Manual

Features + Benefits

  • 360 GPH @ 200ft.
  • 714 GPH @ 100ft.
  • Stainless steel pump and motor housing for durability and corrosion resistance
  • Two wire
  • Floating Stack design
  • Water filled submersible motor with precision molded impellers and diffusers
  • Built-in check valve

Key Specs

AttributeSpecification

item#

1085271

Brand

Flotec

Manufacturer's Warranty

36 months parts/36months labor

Ship Weight

34.0 LB

Max. Flow

600 GPH
AttributeSpecification

Volts

230

Amps

6.8

Housing Material

Stainless Steel

Horsepower

0.75

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. are the electrical wiring already installed in the pump motor

    1 answer

    1. This has 48" leads that are already installed.

      Helpful?

  2. Can you 1” PEX or does it need to be Schedule 80?

    1 answer

    1. This pump can be used with 1" PEX.

      Helpful?

  3. What is the GPM @ 200 ft? It says 360GPM @ 200 ft that can not be right.

    1 answer

    1. The GPM at 200 feet is 5.2 GPM.

      Helpful?

  4. what is the black part on the bottom for? what is the distance from bottom to water inlet? how long are the wires for splicing?

    1 answer

    1. The bottom part of the pump is where the capacitor is located. The length of the pump from the bottom to the water inlet is 18". The wires are 48" in length.

      Helpful?

  5. 3/4 Inch feed.

    What would be the consequence to pressure and delivery capacity if I use only 3/4 inch piping from the pump to the irrigation system? Would there be any effective difference if I ran 1 1/2 for, say, 60 feet, and 3/4 for the remaining 200?

    1 answer

    1. If you are free flowing it at this distance you would go from 10 GPM to 6.3 GPM with the 3/4" pipe. You also have friction loss which will effect the pump life considerably. It would not affect the PSI. You would be better if you put a pressure tank at the end of the 60 feet with the 1 1/4" pipe and then step down to your 3/4" pipe.

      Helpful?

Warranty

Manufacturer's Warranty

36 months parts/36months labor
