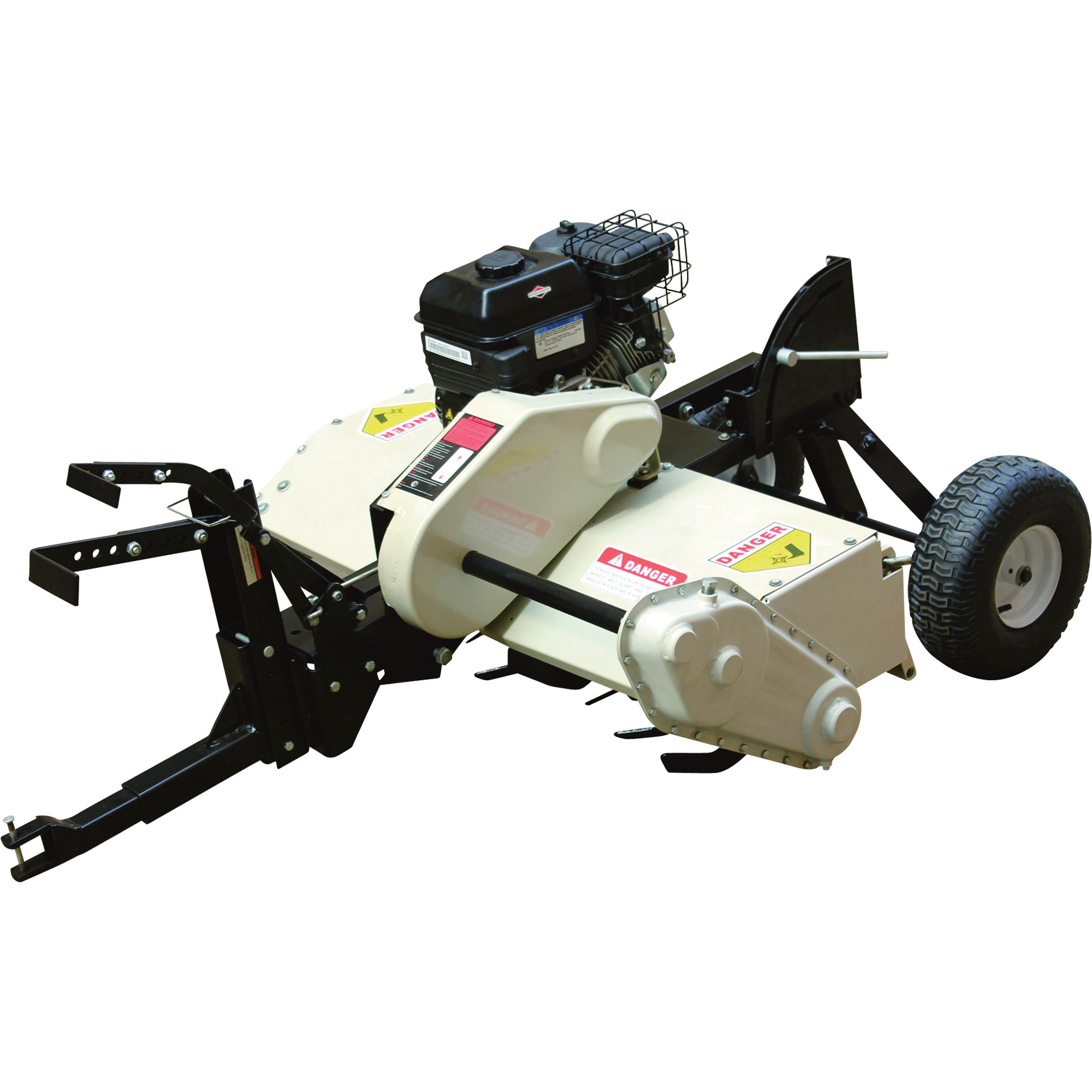

Field Tuff Tow-Behind Tiller, 36in. Width, Model# ATV-3665

Item# 41966
Field Tuff Tow-Behind Tiller — 36in. Width, Model# ATV-3665
Field Tuff Tow-Behind Tiller, 36in. Width, Model# ATV-3665

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Field Tuff Tow-Behind Tiller, 36in. Width, Model# ATV-3665

Click or Tap image to Zoom

  • Powerful Briggs & Stratton® I/C 208cc engine
  • (24) 12in. hardened steel tines for tilling compacted soil
  • Manual lever for height adjustment up to 5in.
  • Long handle lets you make height adjustments from your seat
  • Shock absorbing hitch and 15in. pneumatic turf tires for working on uneven terrain

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Field Tuff Tow-Behind Tiller has 24 12in. hardened steel tines for tilling compacted soil, with a manual lever for height adjustment up to 5in. Shock absorbing hitch and 15in. pneumatic turf tires for working on uneven terrain.

What's Included

    (1) Tow-Behind Tiller -- 36in. Width, Model# ATV-3665

Downloads

Product Manual

Features + Benefits

  • Powerful Briggs & Stratton® I/C 208cc engine
  • (24) 12in. hardened steel tines for tilling compacted soil
  • Manual lever for height adjustment up to 5in.
  • Long handle lets you make height adjustments from your seat
  • Shock absorbing hitch and 15in. pneumatic turf tires for working on uneven terrain
  • Belt-driven with engagement lever
  • Metal shield protects tires
  • Replaceable tines
  • Universal pin-style hitch
  • Requires ATV/tractor with 16 HP minimum
  • Optional Tow Tuff ATV weight-distributing dolly (Item# 47375, sold separately) makes it easy to move this implement with your ATV

Key Specs

AttributeSpecification

item#

41966

Brand

Field Tuff

Manufacturer's Warranty

1 year limited warranty

Ship Weight

369.0 LB

Product Type

Tiller

Power Source

Oil

Working Width (in.)

36

Max. Working Width

36 in

Displacement (cc)

208

Engine Displacement

208 cc

Horsepower

6.5
AttributeSpecification

Overall Width (in.)

39.4

Tine Type

Steel Forged

Tines (qty.)

24

Height Range (in.)

Up to 5

Tire Size

15 in

Tire Size (in.)

15

Max. Height

5 in

Disc Diameter (in.)

205

Depth

33.4 in

Disc Diameter

205 in

Depth (in.)

33.4

Reviews

Questions & Answers

27 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. Does it ship fully assembled?

    Want to know how it ships, fully assembled, in 2 or 3 main pieces, etc? Also does it ship on a pallet? What is the shipping weight?

    1. You have to assemble the wheels and levers on it. It comes in a wood box on a pallet. The tiller is very heavy and the tongue is short, so it is hard to lift and move around. Taking out of the crate and assembly will take about two hours.

      Helpful?

    2. Yes, it ships mostly assembled. Just have to install the pulling arm. It comes in a crate, and on a pallet.

      Helpful?

    3. The Field Tuff Tow-Behind Tiller does require assembly. The main body is shipped intact. The engine needs to be mounted, the rear wheel carriage needs to be assembled and wheels mounted, and the front hitch needs to be assembled and attached. The entire unit ships by truck on a pallet and weighs 364 pounds total pallet weight.

      Helpful?

  2. What engine hp riding mower will work with this tiller?

    1. I have used a 250cc 4 wheeler, 24HP lawnmower and 25HP garden tractor and all have had no issues.

      Helpful?

    2. Not sure on minimum HP but I am using a 21 hp at idle when tilling. The forward rotating tines give some push so not much power is needed on the towing machine.

      Helpful?

    3. This tow-behind tiller requires a minimum of 16 Horse Power to operate.

      Helpful?

  3. Which way do the tines spin?

    Do the tines spin backward, pulling against what is pulling the tiller or do they spin forward pushing the machine pulling the tiller?

    I have heard the best tiller to buy to pull behind rotates backward, which ends up the in the best broken up ground.

    Thanks,

    Cory

    1. Hi Cory,
      To answer your question, or to make it clear, backward rotating tines are best for the job of sod busting. For chopping up green manure crops, or to till a plot that has been tilled before, use forward rotating tines. I have both, and the backward rotating sets while I use to forward rotating one for almost all my work. Forward will give you a lot better seed bed. Both have their use. I hope this helps!

      Helpful?

    2. They spin forward pushing. Dunno bout backward rotating tines. Forward rotating tines require less power from your towing machine.

      Helpful?

    3. The tines rotate forward as you are towing the unit.

      Helpful?

  4. Field Tuff Tow-Behind Tiller - 36in. Width, Model# ATV-3665

    When you get the end of the garden to turn around and make the next pass how hard is it to raise the tiller tines so you do not tear up the yard.

    1. I also stop (most of the time) to disengage at the ends. I am a smaller woman and have only had difficulty if I am trying it when in a canted position.

      Helpful?

    2. I stop at the end of the row, disengage the pto and pull the lift lever as I start to go foward. The tines will drag breifly as you go foward but I found this helps it raise up.

      Helpful?

    3. This Field Tuff Tow-Behind Tiller has a lever to lower and raise the tiller tines. Once you get to the end of the garden you would lower the wheels with the lever to raise the tines. Once turned around you would then use the lever to raise the wheels, which in turn will lower the tines.

      Helpful?

  5. I see two adjusting levers, I imagine one is for depth but what is the other for?

    1. One is for the up and down depth and the other is to engage/disengage the tines

      Helpful?

    2. Other is to engage tiller tines

      Helpful?

    3. The one lever is for the height/depth adjustment, and the other one is an engagement lever for the belt drive.

      Helpful?

  6. field tuff tow behind tiller mod.atv 3665

    how much assembly is there on item#41966 when shipped.

    1. just a couple wrenches to put the tow arm on. However, mine had been run at some point, and the fuel left in for an extended period of time, so I also needed all the tools to take the carburetor apart, clean, and reassemble.

      Helpful?

    2. Not a whole lot, attach the rear wheels, a couple of brackets, engine oil, gear oil, and fuel.

      Helpful?

    3. The tow behind tiller would require complete assembly when you receive it.

      Helpful?

  7. Where is this manufactured or made? Is it imported?

    1. China

      Helpful?

    2. This Field Tuff tow-behind tiller is manufactured in China.

      Helpful?

  8. what size is the belt on this tiller

    what size is the belt for this tiller? I don't what to wait for one to be shipped and the belt that comes from the factory is a cheaper style. I what to upgrade.

    1. Bring the old belt to an auto parts store and they should be able to measure it and fix you up with a new one.

      Helpful?

    2. The belt size for this tiller is 12.7 mm top width, 10 mm thick and 1120 mm in length.

      Helpful?

  9. Who is the manufacturer?

    1. TGB International, LLC

      Helpful?

    2. The manufacturer is TGB International, LLC.

      Helpful?

  10. What size is the drive belt

    1 answer

    1. The drive belt is a SPA1120 belt. The pitch length is 1,120 mm. The top width is 13 mm.

      Helpful?
