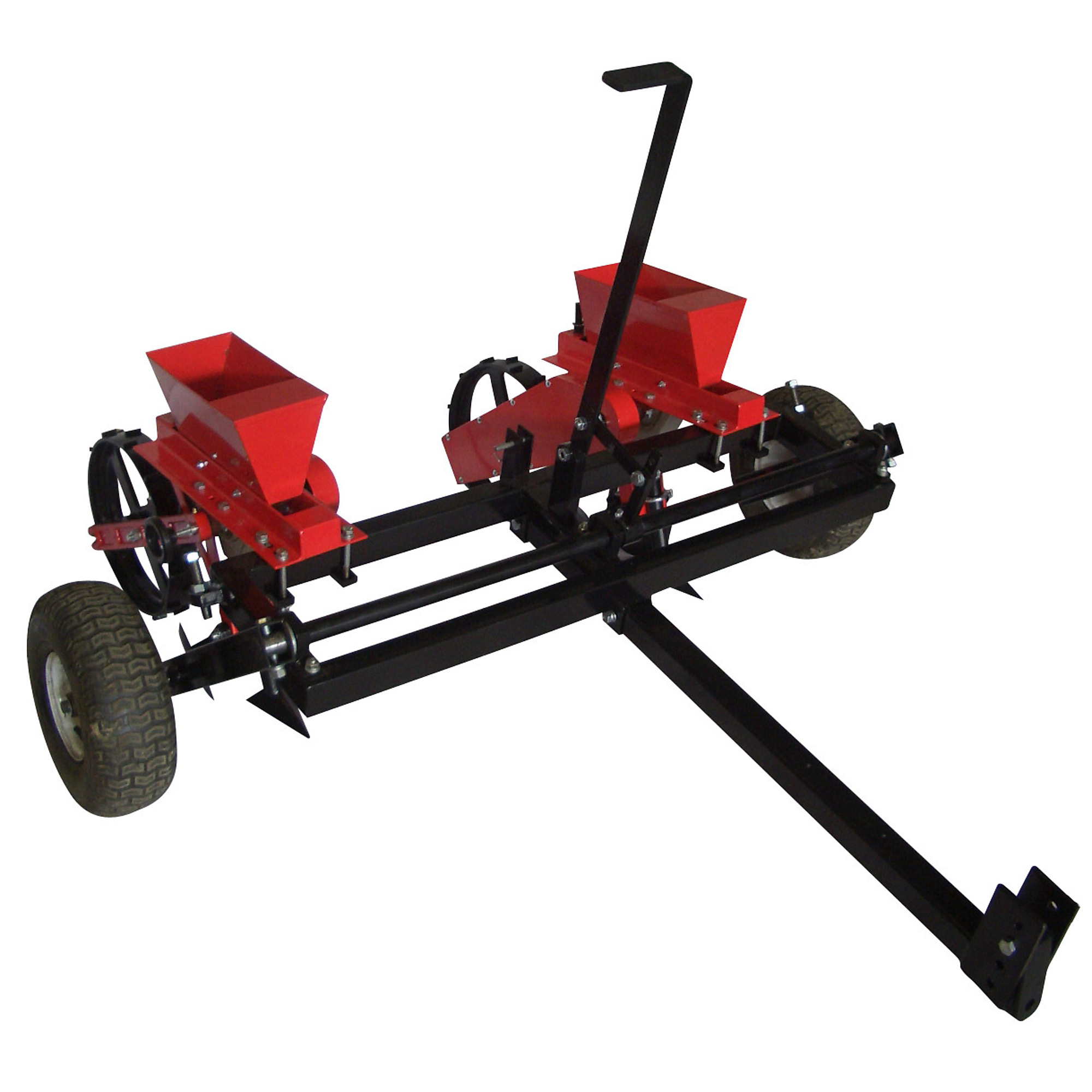

Field Tuff 2-Row Corn and Bean Planter — Adjustable Row Width, 15 Lb. Hopper Capacity, Pneumatic Tires, Model# ATV-CBP

Item# 365392
Field Tuff ATV-CBP 2 Row Corn and Bean Planter
Field Tuff 2-Row Corn and Bean Planter — Adjustable Row Width, 15 Lb. Hopper Capacity, Pneumatic Tires, Model# ATV-CBP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Field Tuff 2-Row Corn and Bean Planter — Adjustable Row Width, 15 Lb. Hopper Capacity, Pneumatic Tires, Model# ATV-CBP

Click or Tap image to Zoom

$1699.99

Buy 2 or more at $1674.49 ea.

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • The adjustable 2 row width adjusts from 14” – 36.6” and the seed drop rate can be adjusted to fit your needs; the planter features a manual lifting mechanism to easily raise and lower the planter.
  • Each hopper holds .22 bushels and measures 12” x 6” at the top, 10” x 2” at the bottom, and is 8” deep to hold up to 15 lbs; the whole planter weighs only 303 lbs!
  • The 13” pneumatic tires that can easily handle a wide variety of tough terrains; the adjustable depth control allows you to adjust the depth of the planter.
  • Especially designed for small food plots, hobby farms, large gardens, and small acreages; Makes planting fast and easy!
  • Pull this Field Tuff planter behind your ATV, UTV, or utility tractor with the pin hitch.

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Field Tuff 2-Row Corn and Bean Planter — Adjustable Row Width, 15 Lb. Hopper Capacity, Pneumatic Tires, Model# ATV-CBP
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
Price for all two:

$1739.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Efficiently and effectively plant corn and beans with Field Tuff’s ATV-CBP 2 Row Corn and Bean Planter. This planter is especially designed for small food plots, hobby farms, large gardens, and small acreages and is made of a durable construction. This planter has an adjustable row width of 14” – 36.6,” allowing you to adjust the planter to fit your specific needs. Each hopper holds .22 bushels, or 15lbs, and measures 12” x 6” at the top, 10” x 2” at the bottom, and is 8” deep. This ground driven planter can even be adjusted according to the different size of seeds being used in the planter. In addition, the user can also adjust the depth of the planter with the adjustable depth control. Adding yet another great feature to this planter is the manual lifting mechanism, which allows the user to easily raise and lower the planter. The planter also has 13” pneumatic tires that allow you to take this planter on a wide variety of tough terrains. The planter features adjustable seed rate drop. The entire planter weighs only 303 lbs, making this the ideal tool for your planting needs. Pull this planter behind your ATV, UTV, or utility tractor for easy planting.

What's Included

    (1) Corn and Bean Planter

Downloads

Product Manual

Features + Benefits

  • The adjustable 2 row width adjusts from 14” – 36.6” and the seed drop rate can be adjusted to fit your needs; the planter features a manual lifting mechanism to easily raise and lower the planter.
  • Each hopper holds .22 bushels and measures 12” x 6” at the top, 10” x 2” at the bottom, and is 8” deep to hold up to 15 lbs; the whole planter weighs only 303 lbs!
  • The 13” pneumatic tires that can easily handle a wide variety of tough terrains; the adjustable depth control allows you to adjust the depth of the planter.
  • Especially designed for small food plots, hobby farms, large gardens, and small acreages; Makes planting fast and easy!
  • Pull this Field Tuff planter behind your ATV, UTV, or utility tractor with the pin hitch.
  • 1 year limited Manufacturer’s warranty.

Key Specs

AttributeSpecification

item#

365392

Brand

Field Tuff

Manufacturer's Warranty

1 year limited warranty

Ship Weight

334.0 LB

Product Type

Planters
AttributeSpecification

Capacity

30 lb

Tire Size

13 in

Assembly Required

Yes

Product Weight

303.0000 lb

Dimensions L x W x H (in.)

51.0 x 42.5 x 17.0 in

Reviews

Questions & Answers

17 Reviews This action will navigate to reviews.

Questions

1–10 of 24 Questions
Sort by:

  1. Can you adjust the planting depth and how?

    1. Yes, the planting depth very easy to set. You just park the planter on your flat driveway, patio or garage floor. Stick a board under each wheel that is the same thickness as your desired planting depth while the tines (planting furrows) are resting on the ground. (I used a 2X4 that was actually 1.5 inches thick.) Then you basically just use a socket driver to turn a bolt on each wheel arm that will maintain the wheel/tine distance. The manual does a better job of explaining. It is 5 minute job the first time, then a two minute job when you see how easy it is.

      Helpful?

    2. You can adjust the depth two ways. One by raising the the opening plows or by raising the tongue.

      Helpful?

    3. The depth on the seeder is adjustable. There are bolts on the wheels that you move to a different slot to change the depth.

      Helpful?

  2. no till? fingers crossed!

    Can this be used in a no till application? It's hard to tell by the picture but it does not look heavy enough to drive through uncultivated soil.

    1. The field needs to be tilled just right. If you have large clumps of dirt, clumps of grass/turf, or corn stover, all the debris will get caught under the planter.

      Helpful?

    2. This seed planter is not designed to function with satisfactory results on anything other than cultivated soil.

      Helpful?

  3. What is the in-row spacing distance for this unit?

    1. You can move the planter boxes very easily to make whatever row spacing you want. However, there is an engagement bar in the middle of the planter that needs to be able to move freely. You can't crowd the two planter boxes too close to that engagement bar. I was planning to have 15 inch rows for my soybeans but I had to settle for 16 1/2 inch rows because if I moved the planter boxes any closer to each other, they would block the engagement bar. (The "engagement bar" is used to lower the unit when you are ready to plant, and raise the unit when you want to tow it to/from the field.) Something else to think about: There is not a good way to adjust the seeding rate. Each box basically drops a seed every for inches. If your rows are two close together, you will end up using too much seed per acre.

      Helpful?

    2. The Field Tuff Hobby Seed Planter has an adjustable hopper. You can adjust the size depending on the amount and size of seed you are planting.

      Helpful?

  4. how do you start planting and then stop planting

    when planting how do you start the seeds to plant then when at end of row how do you stop planting?

    1. To plant you lower the planters using the L shaped lever. To stop planting you must raise the planter using the L shaped lever and lock it in place.

      Helpful?

    2. By positioning the handle to raise or lower the wheels will stop or start the planting.

      Helpful?

  5. will this plant seeds such as ,clover,grass,or other small seeds?

    1. Not intended for small seeds. Wrks best for large seed like corn and beans.

      Helpful?

    2. This does have an adjustment on it to accommodate the seed size you will be using.

      Helpful?

  6. How do you keep brush from building up on the furrow?

    I have a vineyard and the ground is covered with mulch consisting of chopped up vines and other plant material (the ground is not disked)

    1. This is probably not the planter for you. I planted one field today that went perfectly because the field was tilled well and there was no debris. But the other fields were a nightmare because the corn stover, and/or clumps of grass/turf kept accumulating under the planter.

      Helpful?

    2. The seeder will work best with ground that is prepared for planting. The unit does not provide a way to keep excessive brush from build up.

      Helpful?

  7. can i convert my pull type to a threepoint

    1 answer

    1. The planter could not be converted to a three-point.

      Helpful?

  8. where is the Field Tuff hobby seed planter made

    1 answer

    1. This is manufactured in China.

      Helpful?

  9. will it plant beans

    1 answer

    1. The hobby seed planter will plant beans.

      Helpful?

  10. is this spreader good to plant soy beans and a product called chufa

    1 answer

    1. The spreader is designed to spread corn and beans. It would not be able to be used to spread chufa seeds.

      Helpful?
