ELGI Trailer Mount Portable Rotary Screw Air Compressor, 24.8 HP, Kubota Engine, 90 cfm, Model #D90KA-P

Item# 6461001

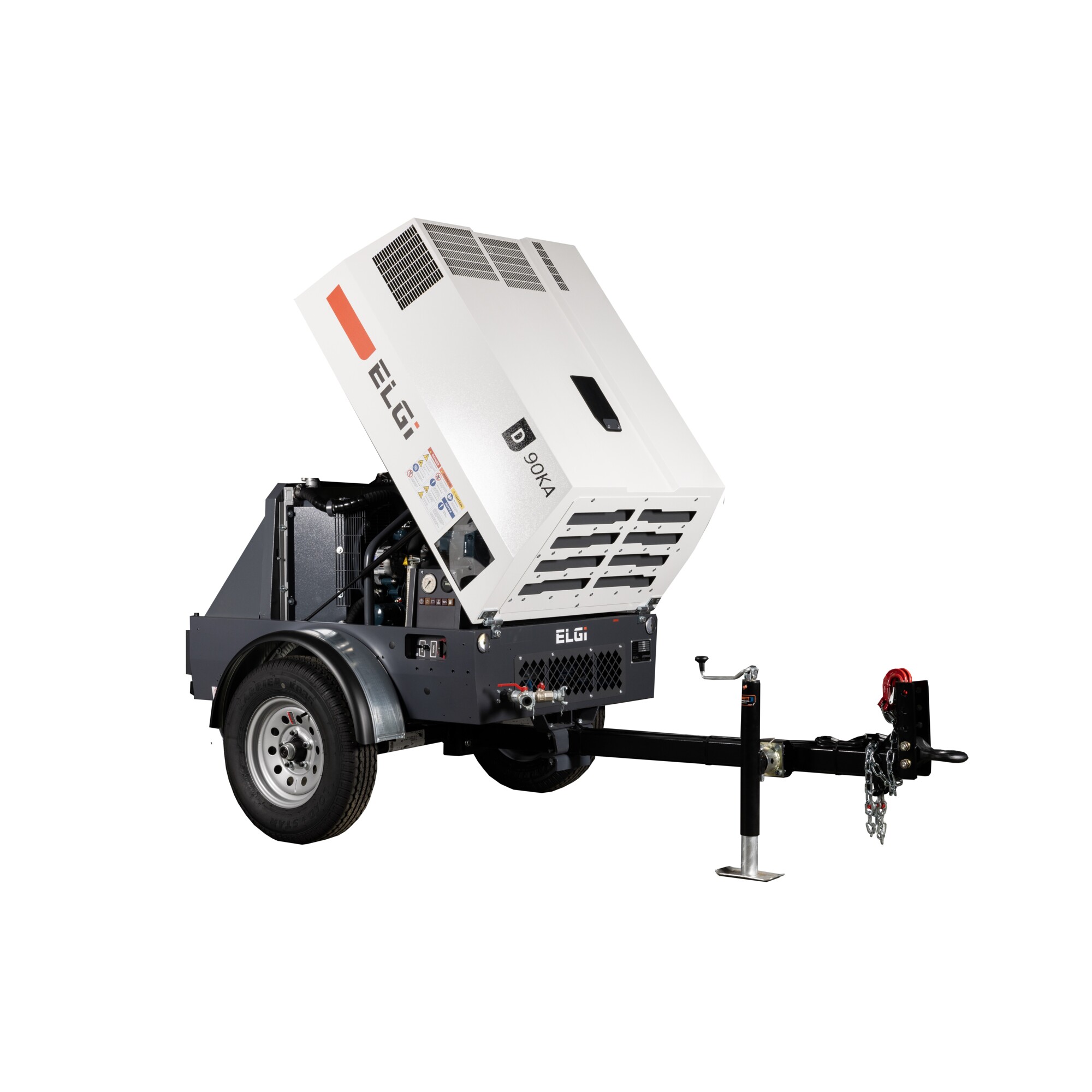

ELGI Trailer Mount Portable Rotary Screw Air Compressor, 24.8 HP, Kubota Engine, 90 cfm, Model #D90KA-P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ELGI Trailer Mount Portable Rotary Screw Air Compressor, 24.8 HP, Kubota Engine, 90 cfm, Model #D90KA-P

Click or Tap image to Zoom

$18,395.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • The towable D90KA delivers 90cfm@100 psi great for sprinkler blow outs and construction tools.

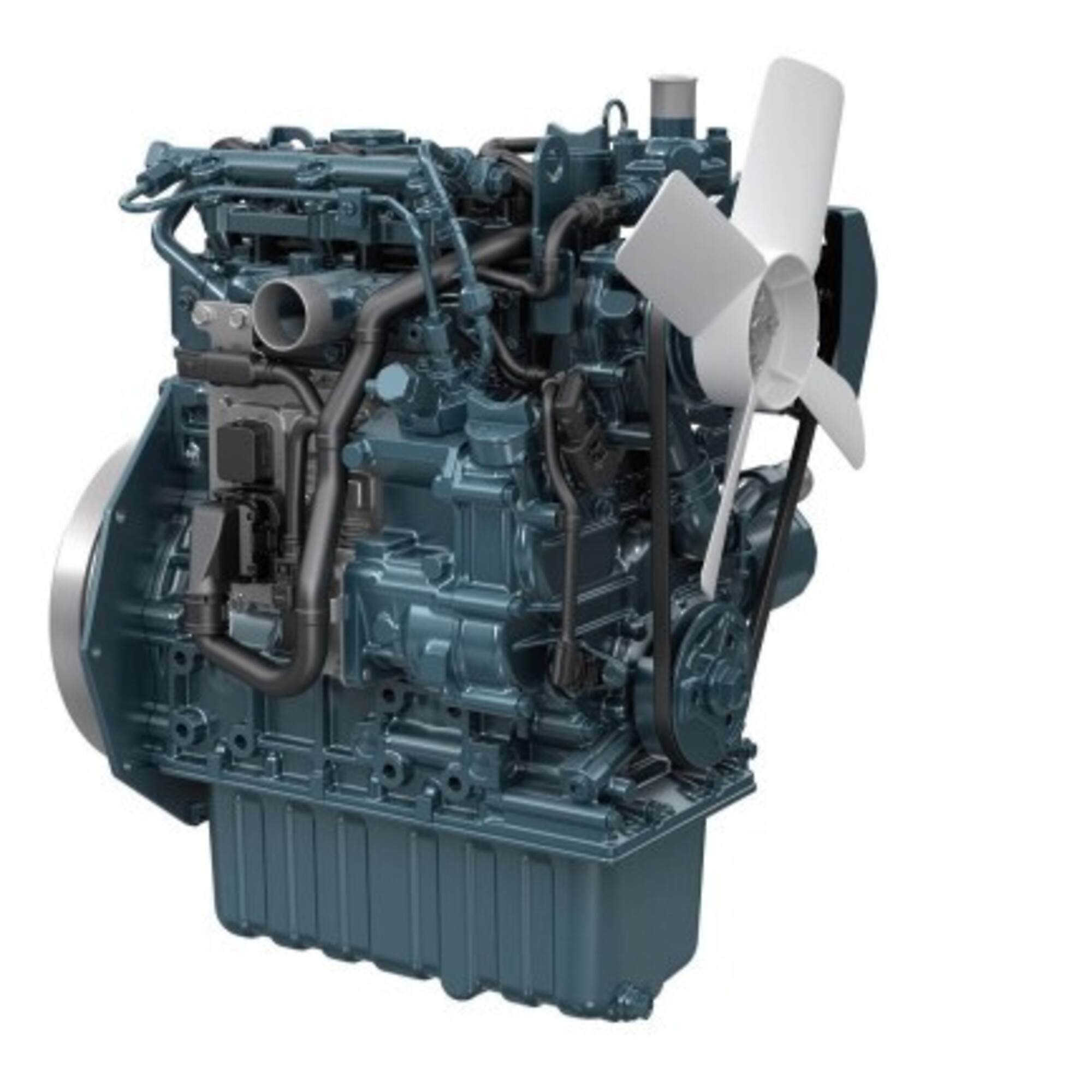

  • Powered by the high performance Kubota D1105 engine with a 2-year/4000 hour Kubota Engine Warranty
  • Assembled in the USA with an ELGI Engineered and manufactured air end.
  • Tier 4 Compliant to meet EPA Standards.
  • Belt driven drive to provide reliability and efficiency.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The ELGI D90KA is a 24.8 HP Air Compressor that is powered by the high performance Tier 4 Diesel Kubota engine. This lightweight compressor allows for almost any vehicle to tow. This compact, but high performing compressor provides air at 90 cfm100 psi and has the capability to operate a 90 lb. hammer or two 60 lb. hammers. The D90 Air Compressor is the only 90cfm100 psi with a standard toolbox in the Industry! A 5-Year, unlimited hour air end warranty is included.

What's Included

    (1) D90KA-P

Downloads

Product Manual

Features + Benefits

  • The towable D90KA delivers 90cfm@100 psi great for sprinkler blow outs and construction tools.
  • Powered by the high performance Kubota D1105 engine with a 2-year/4000 hour Kubota Engine Warranty
  • Assembled in the USA with an ELGI Engineered and manufactured air end.
  • Tier 4 Compliant to meet EPA Standards.
  • Belt driven drive to provide reliability and efficiency.

Key Specs

AttributeSpecification

item#

6461001

Brand

ELGi

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1600.0 LB

Horsepower

24.8 HP

Engine Brand

Kubota

Max. PSI

100

Air Outlets (qty.)

2

Fuel Capacity

7.9 Gal

Motor RPM

3,000

Working Pressure

73 PSI

Engine Displacement

1,123 cc

Engine Start Type

Electric

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

90

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Ball Valve

Engine Model

KDI 1903 TCR

Product Weight

1600.0000 lb

Dimensions L x W x H (in.)

112.0 x 56.0 x 49.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
