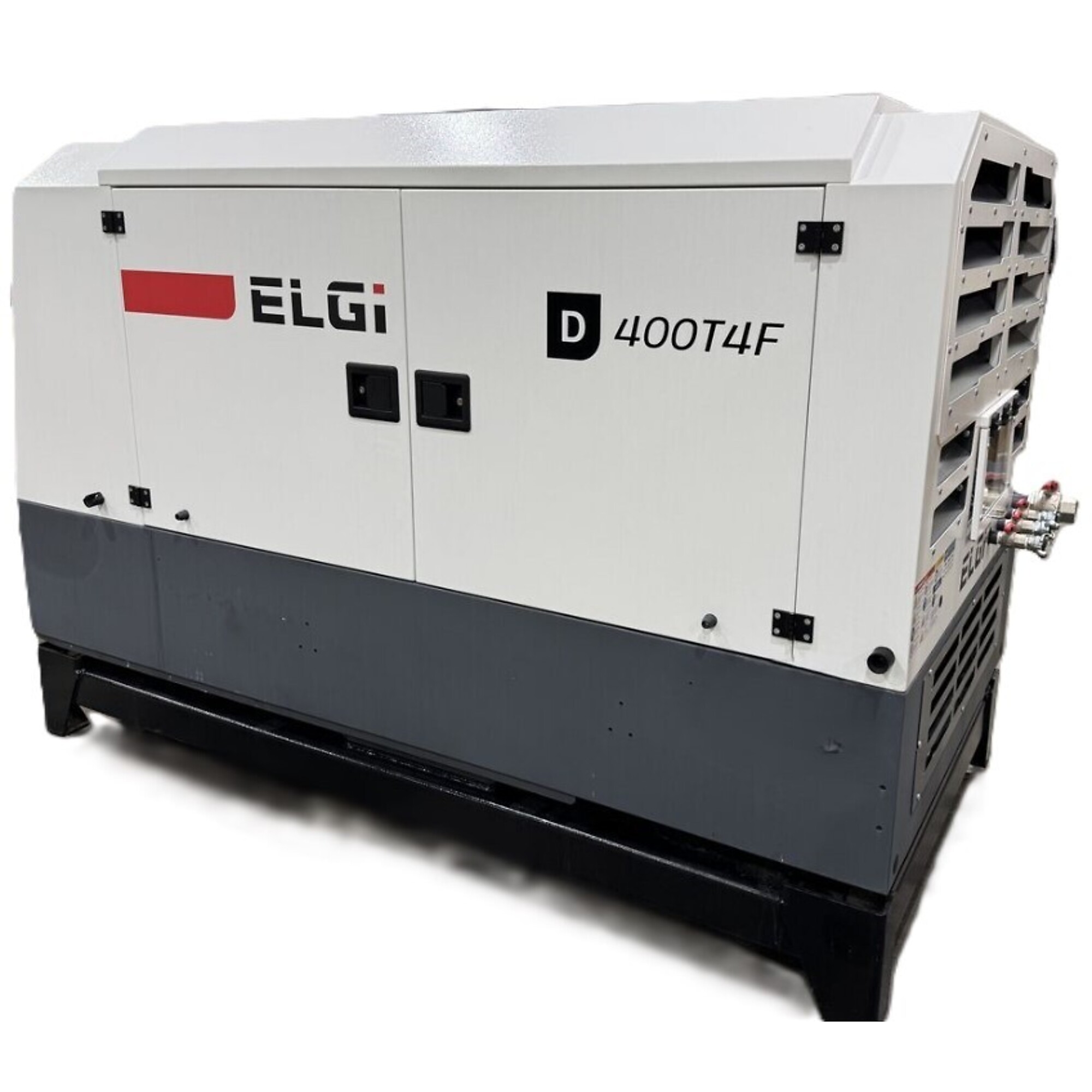

ELGI Skid Mount Portable Rotary Screw Air Compressor, 130 HP, Cummins Engine, 400 cfm Dual Pressure, Model #D400T4F-S

Item# 6460905
ELGI Skid Mount Portable Rotary Screw Air Compressor, 130 HP, Cummins Engine, 400 cfm Dual Pressure, Model #D400T4F-S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ELGI Skid Mount Portable Rotary Screw Air Compressor, 130 HP, Cummins Engine, 400 cfm Dual Pressure, Model #D400T4F-S

Click or Tap image to Zoom

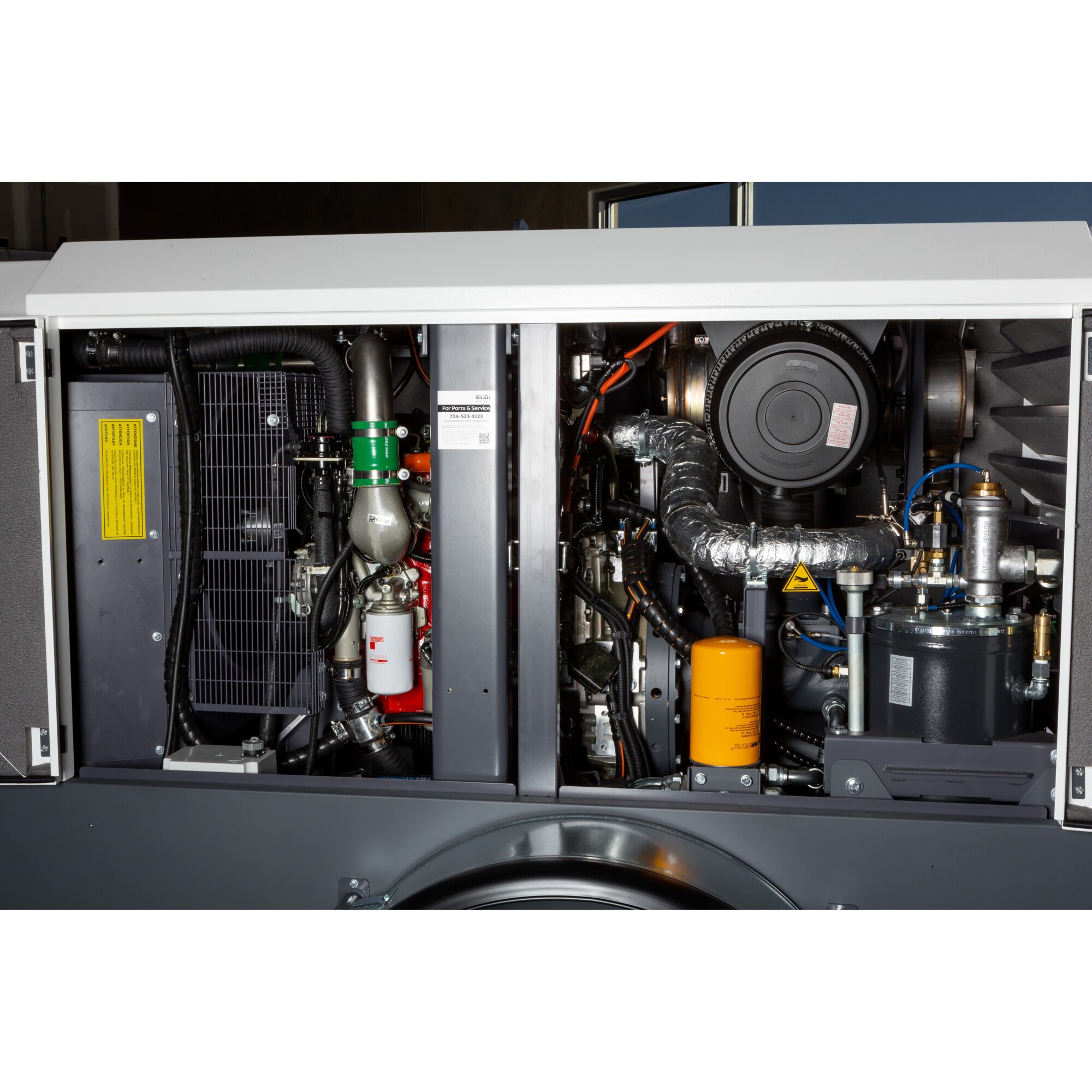

  • The skid mount D400T4F is a dual pressure compressor that delivers 375 cfm@100psi or 375cfm@150psi at a flip of a switch. Large double doors are located on each side of the machine for easy access for maintenance.
  • Powered by the Cummins QSF 3.8 Engine with a 2-year /4000 hour Cummins Engine Warranty
  • Assembled in the USA with an ELGI Engineered and manufactured air end.
  • Equipped with Intellingent start/stop system to prevent cold starts and blowback.
  • Tier 4 Compliant to meet EPA Standards.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

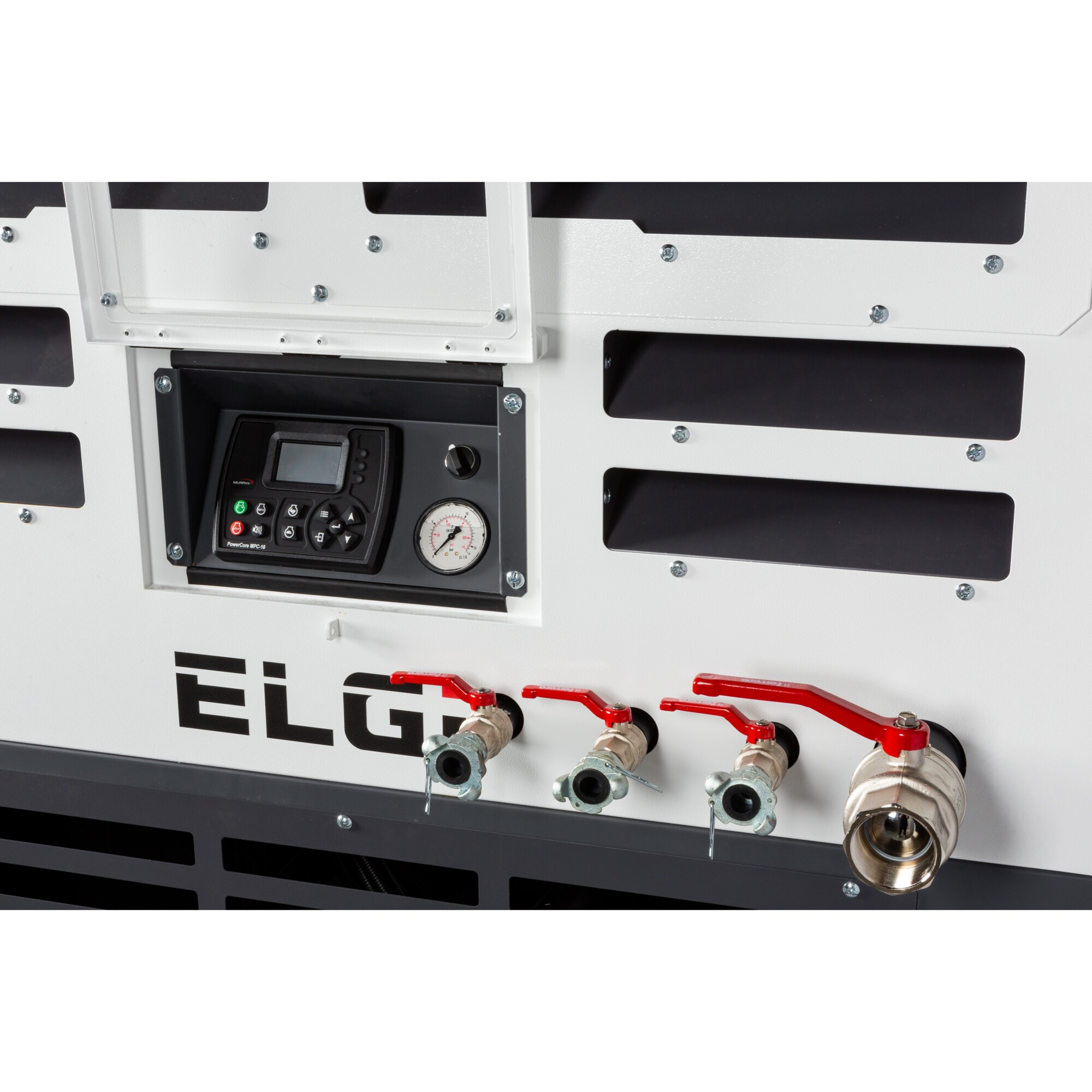

The ELGI D400 is a skid mount 130 HP Air Compressor that is powered by Cummins highly reliable and powerful Tier 4 Diesel Engine that provides up to 11 hours of run time at 375 cfm 100psi or 375cfm 150 psi. Each D400 unit is equipped with a Murphy Controller which offers flixble control with built-in monitoring and protection and each unit has an Itelligent Start/Stop System that prevents cold-starting and blowback. The skid unit is ideal for versatile truck mount applications. A 5-Year, unlimited hour air end warranty is included.

What's Included

    (1) D400T4F-S

Downloads

Product Manual

Features + Benefits

  • The skid mount D400T4F is a dual pressure compressor that delivers 375 cfm@100psi or 375cfm@150psi at a flip of a switch. Large double doors are located on each side of the machine for easy access for maintenance.
  • Powered by the Cummins QSF 3.8 Engine with a 2-year /4000 hour Cummins Engine Warranty
  • Assembled in the USA with an ELGI Engineered and manufactured air end.
  • Equipped with Intellingent start/stop system to prevent cold starts and blowback.
  • Tier 4 Compliant to meet EPA Standards.
  • Direct Drive to increase output efficiency.

Key Specs

AttributeSpecification

item#

6460905

Brand

ELGi

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4345.0 LB

Horsepower

130 HP

Engine Brand

Cummins

Max. PSI

150

Air Outlets (qty.)

3

Fuel Capacity

53 Gal

Motor RPM

2,200

Working Pressure

73 PSI

Engine Displacement

3,800 cc

Engine Start Type

Electric

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Direct

Air Outlet Size

Multiple in. NPT

CFM at Max. PSI

375

Oil Required

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Ball Valve

Engine Model

QSF 3.8

Product Weight

4345.0000 lb

Dimensions L x W x H (in.)

112.0 x 54.0 x 72.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
