EAGLE, 60 Gallon 12.5 CFM Air Compressor, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Volt, Model# C4160V1

Item# 6039686
EAGLE, 60 Gallon 12.5 CFM Air Compressor, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Volt, Model# C4160V1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 60 Gallon 12.5 CFM Air Compressor, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Volt, Model# C4160V1

Click or Tap image to Zoom

$1249.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • V Style design improves cooling & extends compressor life+C28:L28
  • Space Saving Vertical Tank Design
  • Industry Leading 12.5CFM @ 100PSI
  • Convenient Extended Oil Drain
  • 3.7 HP Motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

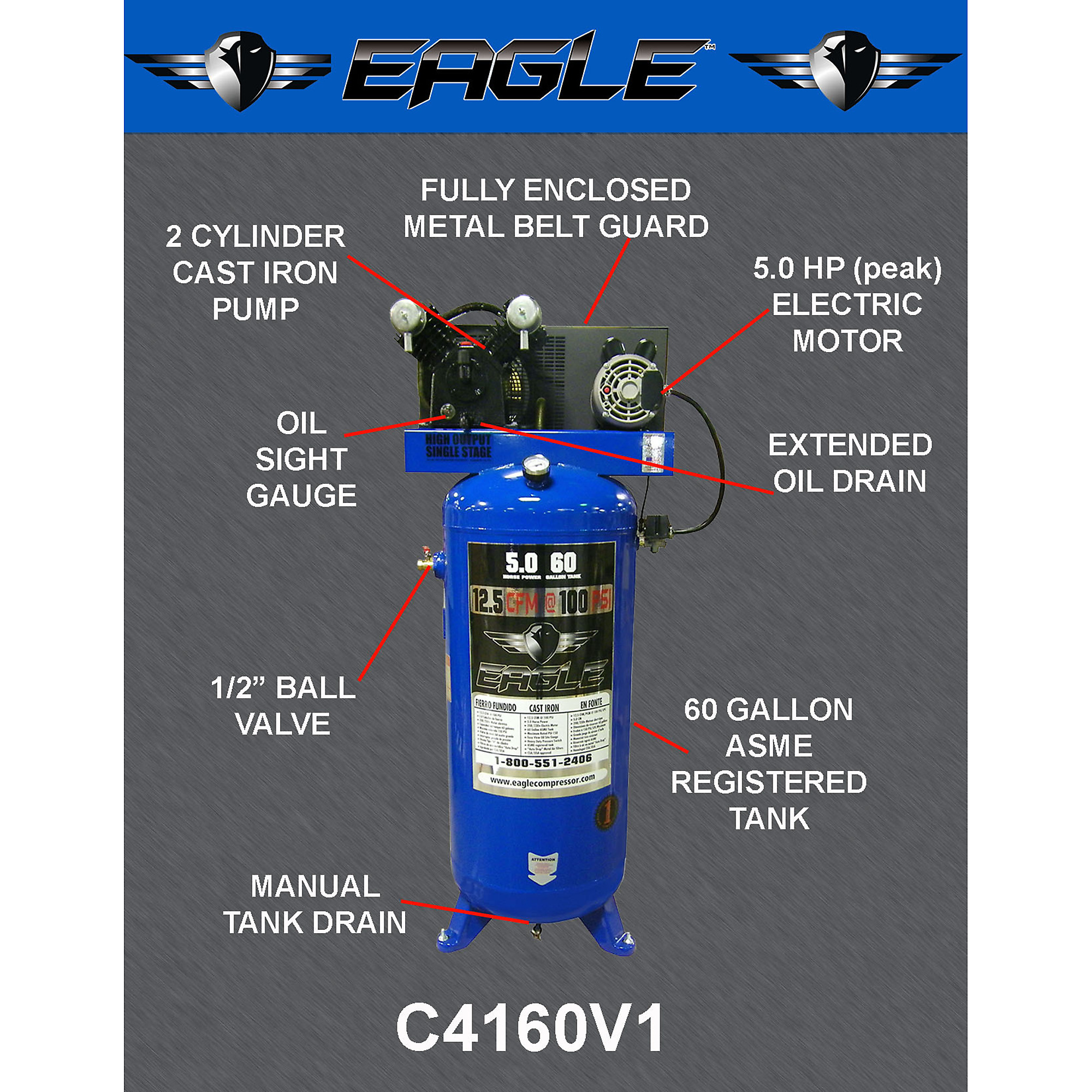

The Eagle 60 gallon shop compressor is perfect for the professional or the enthusiast. The large tank allows for longer runs times between the on/off intervals. The reliable 3.7hp motor drives the heavy duty V-twin cast iron pump and delivers an industy leading 12.5 CFM's of air with a max PSI of 150. The Eagle unit has an extended oil drain for easy clean service when it's time and convenient oil site glass for monitoring lubrcants. The Government certified ASME tank pressure release valve ensures your safety as you work along beside the unit. The V-Style pump allows for the larger bore pistons to run at lower RPM rate while still producing more air than the competition. The lower speed, creates less friction and less heat ultimately givnig the compressor longer life. The fully enclosed metal belt guard meets or exceeds UL OSHA requirements. Features like the automotive style air filters, 1/2in. ball valve, heavy duty ON/OFF pressure switch, and manual tank drain all add up to a greater value. This Eagle model has proven to be a dependable unit at the top of it's class.

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual
Play Item Video

Features + Benefits

  • V Style design improves cooling & extends compressor life+C28:L28
  • Space Saving Vertical Tank Design
  • Industry Leading 12.5CFM @ 100PSI
  • Convenient Extended Oil Drain
  • 3.7 HP Motor
  • Operates Multiple Impact & Mechanic Tools at Once
  • Easy View Oil Site Guage
  • Larger Bore Pistons Produce More Air and Generate less Heat
  • Dual Automotive Style Air Filters
  • Assembled in the USA!
  • 150 psi Cast Iron Pump

Key Specs

AttributeSpecification

item#

6039686

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

300.0 LB

Air Tank Size

60 Gal

Volts

220 Volt

CFM at 90 PSI

12.5

Motor Phase

1

Stage

1

Tank Orientation

Vertical

Horsepower

4 HP

Max. PSI

150

Air Outlets (qty.)

1

Amps

15

Duty Cycle

0.5 %

Fuel Capacity

0 Gal
AttributeSpecification

Motor RPM

3,400

Working Pressure

95-125 PSI

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Engine Model

Not Applicable

Product Weight

240.0000 lb

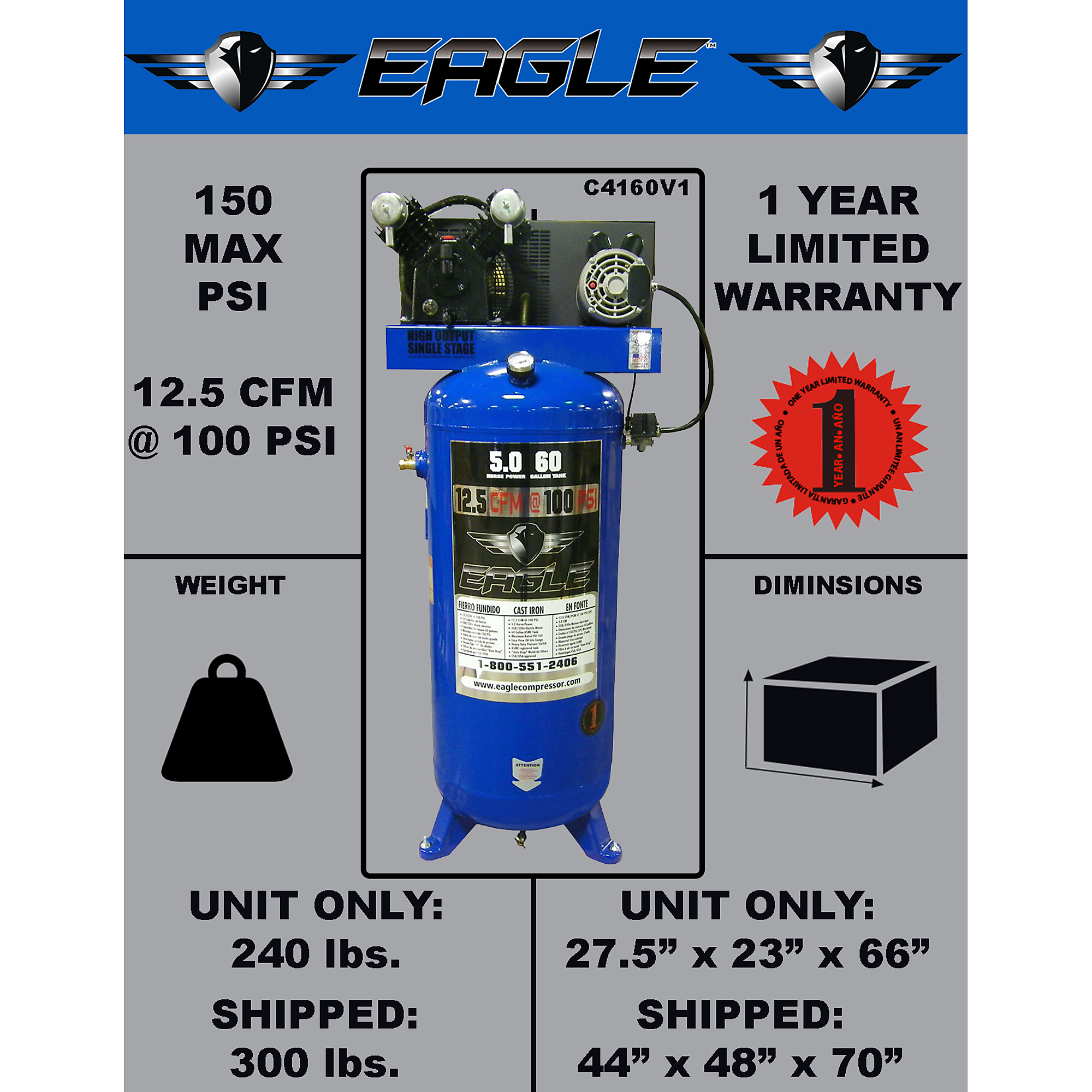

Dimensions L x W x H (in.)

27.5 x 23.0 x 66.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
