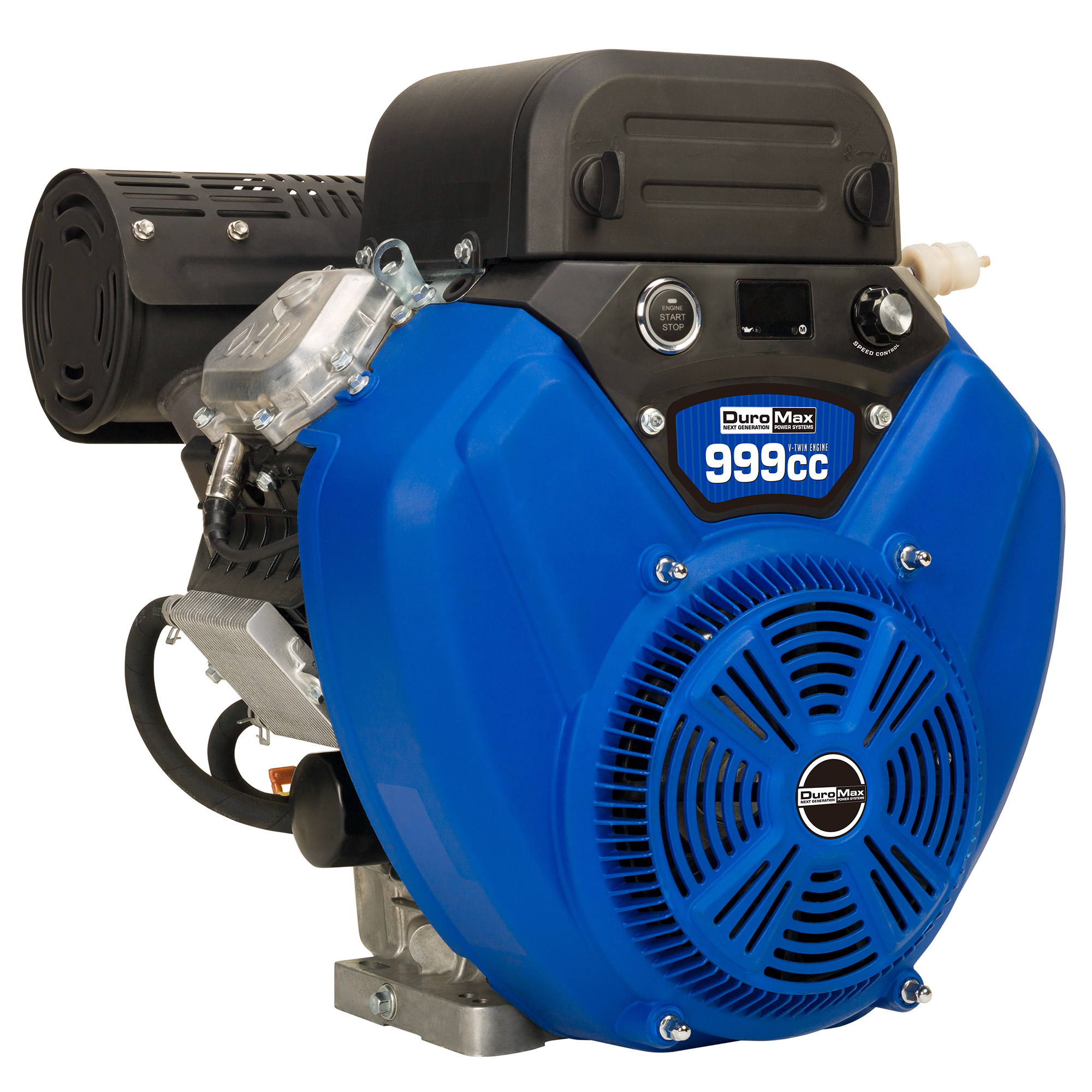

DuroMax, 999cc 1-7/16in. Shaft V-Twin Gasoline Engine, Engine Displacement 999 cc, Engine Type Gasoline Engines, Shaft Diameter 1-7/16 in, Model# XP35HPE

Item# 5184005
DuroMax, 999cc 1-7/16in. Shaft V-Twin Gasoline Engine, Engine Displacement 999 cc, Engine Type Gasoline Engines, Shaft Diameter 1-7/16 in, Model# XP35HPE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DuroMax, 999cc 1-7/16in. Shaft V-Twin Gasoline Engine, Engine Displacement 999 cc, Engine Type Gasoline Engines, Shaft Diameter 1-7/16 in, Model# XP35HPE

Click or Tap image to Zoom

  • 999cc 4 Stroke OHV engine
  • Runs on Standard 87 Octane Gasoline
  • Push Button Start
  • Variable Speed Control
  • EPA and CARB Approved for Safe Mandated Use

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Introducing the most POWERFUL engine in our lineup: The DuroMax XP35HPE 999cc V-Twin Engine. This 4-stroke OHV powerhouse features a quick push button start, electronic speed control, and digital RPM display. Runs on standard 87 octane gasoline, and comes equipped with an oil cooler and muffler. Perfect for your go karts, ATVs, boats, and any project that demands serious POWER!

What's Included

    (3) Engine / Compatible Muffler / Owner's Manual

Features + Benefits

  • 999cc 4 Stroke OHV engine
  • Runs on Standard 87 Octane Gasoline
  • Push Button Start
  • Variable Speed Control
  • EPA and CARB Approved for Safe Mandated Use
  • Applications: Go Karts, Pressure Washers, Trailer Mounted - Mobile Carwashes, Log Splitters, RotoTillers - Cultivators, Water/Trash Transfer Pump

Key Specs

AttributeSpecification

item#

5184005

Brand

DuroMax

Manufacturer's Warranty

3 year limited warranty

Ship Weight

175.0 LB

Engine Displacement

999 cc

Engine Type

Gasoline Engines

Shaft Diameter

1-7/16 in

Shaft Diameter Metric

36.5 mm

Shaft Length

4.6 in

Shaft Length Metric

119.06 mm

Fuel Type

Gasoline

Start Type

Electric
AttributeSpecification

Shaft Keyway

.375inch in

Net Torque

58 ft-lbs.

Oil Capacity

0.25 qt

Max. RPM

4,000

CARB Approved

Yes

Ignition System

Push Start

Carburetor

Yes

Stroke

3.09 in

Muffler Included

Yes

Product Weight

157.0000 lb

Dimensions L x W x H (in.)

19.7 x 20.3 x 22.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Can this engine be run on propane?

    1 answer

    1. The engine could not be run on propane.

      Helpful?

  2. what is the length of the crank, is it keyed?

    1 answer

    1. The shaft on this engine is 4.6" long, the diameter is 1 7/16". It would have a 3/4" keyed shaft.

      Helpful?

  3. What is the horse power rating of this engine?

    1 answer

    1. The engine would be rated at an approximate 34 HP.

      Helpful?

  4. Can I purchase this muffler separately?

    1 answer

    1. Please contact the manufacturer directly for parts. We do not sell parts for this item through Northern Tool.

      Helpful?

  5. What are the torque specs for this motor

    1 answer

    1. This engine provides 58 ft-lbs of torque at 2500 RPM.

      Helpful?

  6. Is this a manual throttle engine and if not what do I need?

    1 answer

    1. The engine will have electronic throttle control.

      Helpful?

  7. Is this CW or CCW rotation.?

    1 answer

    1. This engine has a counter clockwise shaft rotation.

      Helpful?

  8. Is there a transmission for this motor

    1 answer

    1. A transmission is not available.

      Helpful?

  9. HP and torque ratings?

    1 answer

    1. The engine would be rated at an approximate 34 HP. It would have 58 ft lbs (78 N.M.) maximum torque at 2500 RPM.

      Helpful?

  10. who and where is the manufactory of this engine

    1 answer

    1. This engine is manufactured by Duromax in the United States.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
