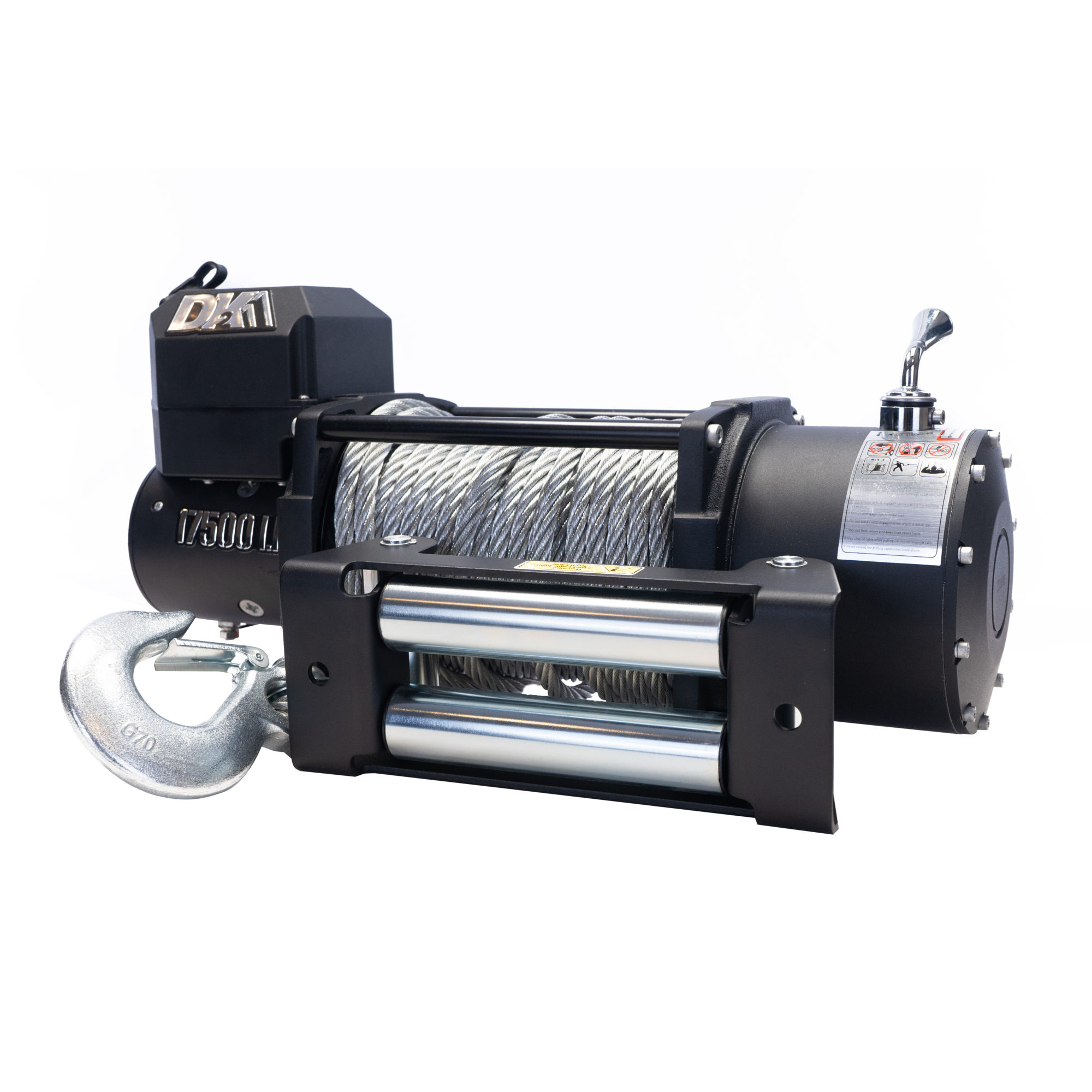

DK2 17.5k lb Electric Winch (Steel Cable Included), Capacity (Line Pull) 17500 lb, Volts 12 Model# S17500

Item# 6023326
DK2 17.5k lb Electric Winch (Steel Cable Included), Capacity (Line Pull) 17500 lb, Volts 12 Model# S17500

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DK2 17.5k lb Electric Winch (Steel Cable Included), Capacity (Line Pull) 17500 lb, Volts 12 Model# S17500

Click or Tap image to Zoom

  • Laser etched extruded aluminum tie bars, reinforced with steel body and double-sealed motor to ensure product meets IP68 water and dust standards
  • 3-stage sealed planetary gears and maintenance free bearings provide quiet and silky smooth performance and fully sealed 600 amp copper contactors to prevent corrosion and electrical failure
  • All brass high quality series wound motor prevents corrosion and extends life span of winch
  • Stainless steel 4-way fairleads, integrated wireless remote (12V only), and double-sealed drum (gearbox/motor)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DK2 17,500 lb winch is the best $ for lb winch on the market. Outstanding features includes Huge 7.0 hp high quality double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, fully sealed efficient full steel planetary gearing. Stainless steel roller fairleads and fittings as standard. Makes a great gift!

What's Included

    (1) Winch

Features + Benefits

  • Laser etched extruded aluminum tie bars, reinforced with steel body and double-sealed motor to ensure product meets IP68 water and dust standards
  • 3-stage sealed planetary gears and maintenance free bearings provide quiet and silky smooth performance and fully sealed 600 amp copper contactors to prevent corrosion and electrical failure
  • All brass high quality series wound motor prevents corrosion and extends life span of winch
  • Stainless steel 4-way fairleads, integrated wireless remote (12V only), and double-sealed drum (gearbox/motor)

Key Specs

AttributeSpecification

item#

6023326

Brand

DK2

Manufacturer's Warranty

3 year limited warranty

Ship Weight

150.0 LB

Horsepower

6 HP

Capacity (Line Pull)

17,500 lb

Volts

12

Application

Truck

Gear Type

Planetary

Line Speed

22.3 ft./min.

Gear Ratio

432 to 1

Rope Length

85 ft
AttributeSpecification

Rope Material

Steel

Brake Type

Automatic

Remote

Yes

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Hawse

Underwater Use

No

Engine Brand

OEM

Mounting Hardware Included

No

Dimensions L x W x H (in.)

24.0 x 10.0 x 8.5 in

Product Weight

148.0000 lb

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. What diameter cable comes with this winch

    1 answer

    1. The winch would come with 12mm (0.47") diameter cable.

      Helpful?

  2. What is duty cycle, what is line speed under load, what is warranty

    1 answer

    1. The winch is designed for intermittent use only. Do not pull for more than one minute at or near rated load. The line speed is 22.3 ft./min at 0 pounds, 9.8 ft./min at 10,000 pounds, 3.9 ft./min at 17,500 pounds. The winch will have a three year limited warranty.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
