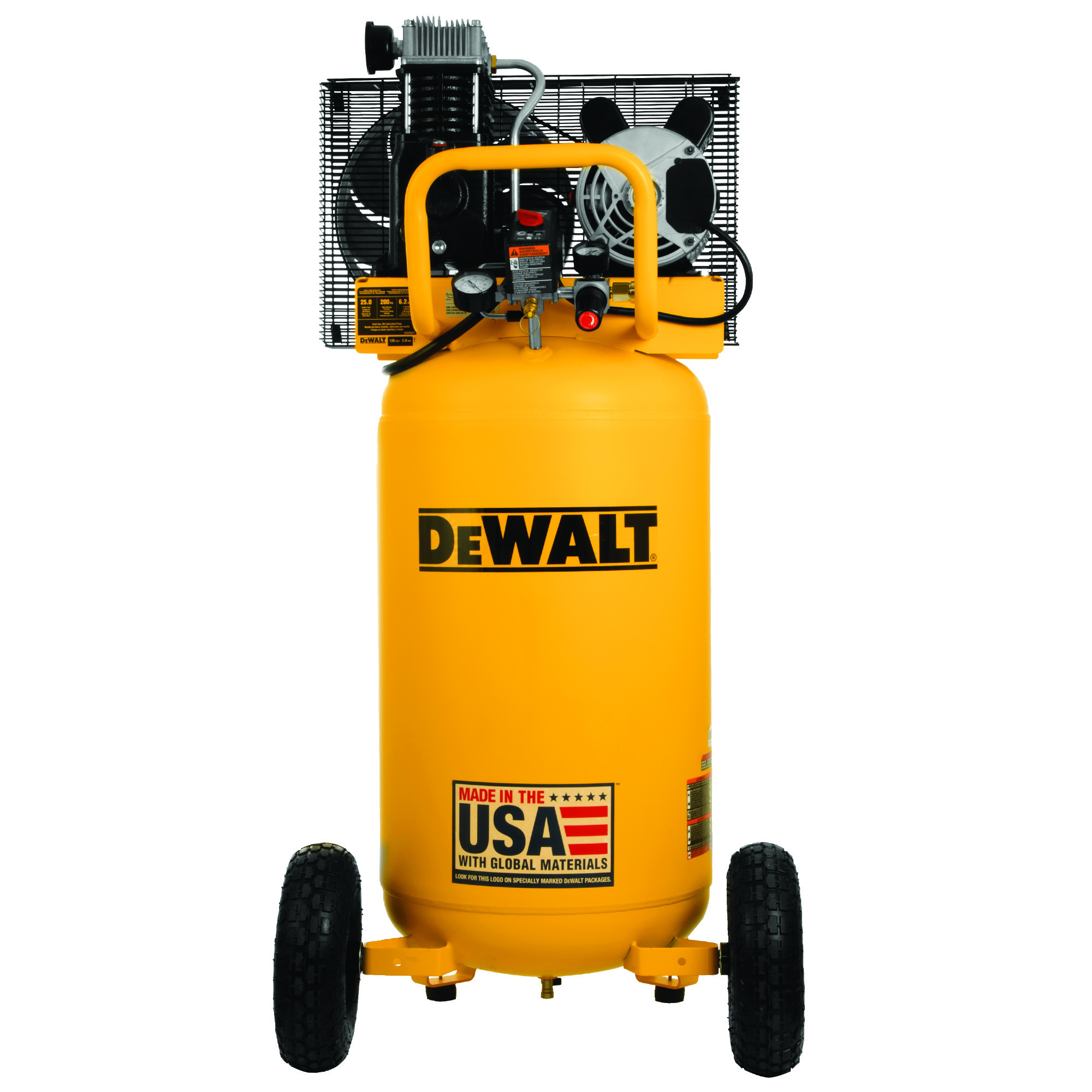

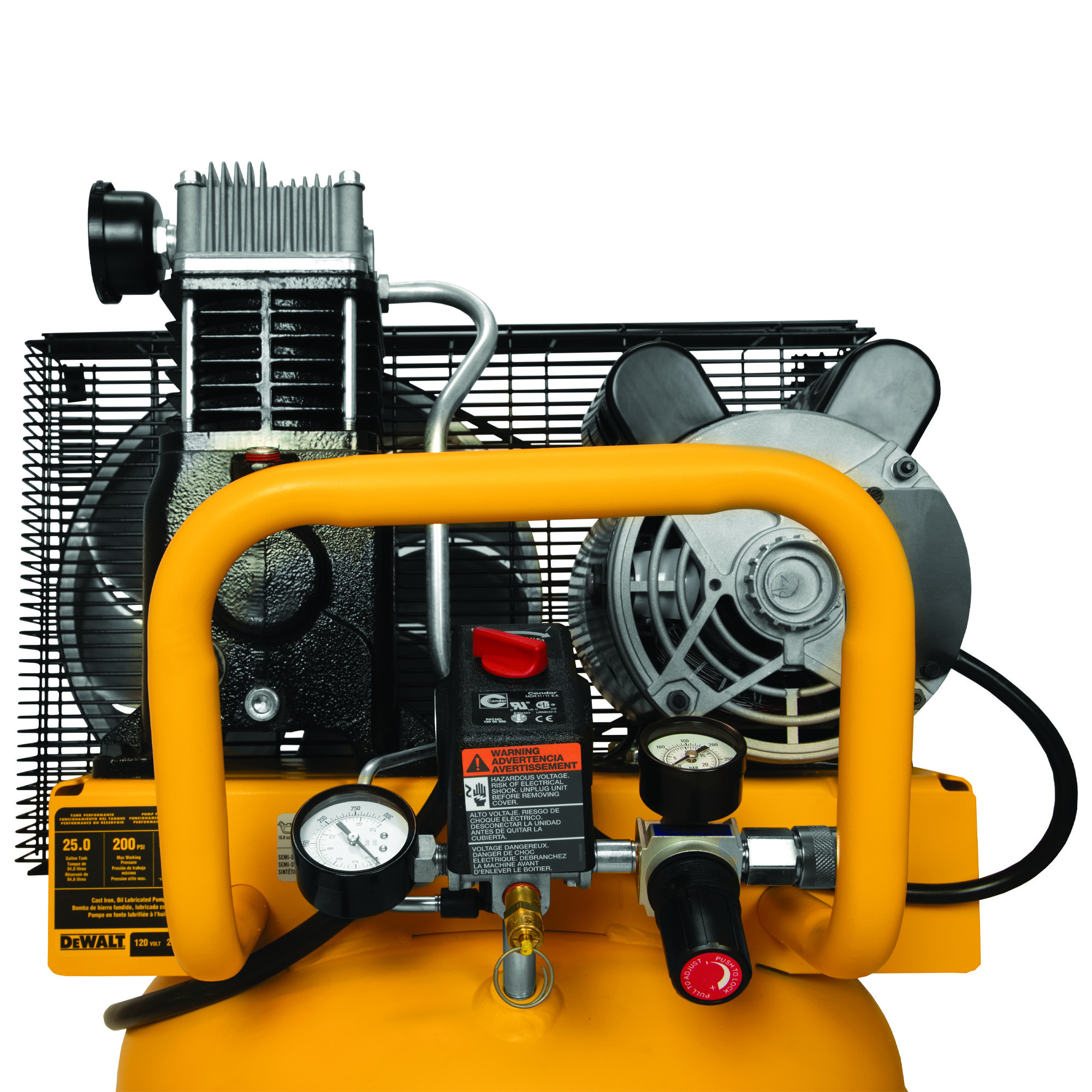

DEWALT 25 Gallon Air Compressor, Vertical Portable Belt Drive 200 PSI, 2 HP, Model# DXCM251

Item# 4920197
DEWALT 25 Gallon Air Compressor, Vertical Portable Belt Drive 200 PSI, 2 HP, Model# DXCM251

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT 25 Gallon Air Compressor, Vertical Portable Belt Drive 200 PSI, 2 HP, Model# DXCM251

Click or Tap image to Zoom

  • 200 maximum PSI provides 76% longer air tool run time vs. 30 Gal. 155 PSI belt drive air compressors
  • 6.2 SCFM at 90 PSI provides the ability to operate a larger selection of air tools
  • Precision automotive style pistons for greatly improved balance and durability
  • 78 dBA operational noise level for a quieter work environment than direct drive oil free compressors
  • High flow regulator and coupler provide maximum air flow to air tools

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The DEWALT 25 Gal. oil lubed belt drive air compressor is industry leading with 2-stage performance. With 200 maximum PSI, this air compressor provides 76% more air tool runtime versus 30 Gal. 155 PSI compressors. At 78 dBA, the oil lubricated twin cylinder pump with cast iron construction allows for a quieter work environment. The 10in. pneumatic wheels allow easy transport on jobsites and inside your garage or shop. The DEWALT 25 Gal. 200 PSI air compressor is perfect for light automotive tasks, medium duty metal working and agricultural equipment repairs.

What's Included

    (1) 25 Gal. 200 PSI Oil Lubed Belt Drive Portable Vertical Electric Air Compressor

Features + Benefits

  • 200 maximum PSI provides 76% longer air tool run time vs. 30 Gal. 155 PSI belt drive air compressors
  • 6.2 SCFM at 90 PSI provides the ability to operate a larger selection of air tools
  • Precision automotive style pistons for greatly improved balance and durability
  • 78 dBA operational noise level for a quieter work environment than direct drive oil free compressors
  • High flow regulator and coupler provide maximum air flow to air tools

Key Specs

AttributeSpecification

item#

4920197

Brand

DEWALT

Manufacturer's Warranty

2 year limited warranty

Ship Weight

167.0 LB

Horsepower

2 HP

Air Tank Size

25 Gal

Volts

120

CFM at 90 PSI

6.2

Max. PSI

200

Stage

1

Amps

15

Engine Start Type

Electric
AttributeSpecification

Pump Material

Cast Iron

CFM at 40 PSI

7.7

Noise Level

78 dB

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

155.0000 lb

Dimensions L x W x H (in.)

20.0 x 24.0 x 49.0 in

Reviews

Questions & Answers

Questions

1–6 of 6 Questions
Sort by:

  1. Is this product UL/FM listed

    1 answer

    1. The air compressor is UL and CSA certified.

      Helpful?

  2. Will this compressor run on a 20 amp breaker?

    1 answer

    1. The compressor should be plugged into a dedicated circuit closest to the fuse box or circuit breaker. The circuit must be equipped with a 15 amp circuit breaker or 15 amp time delay fuse. The compressor will use the full capacity of a typical 15 amp household circuit.

      Helpful?

  3. IS THE MOTOR INSTALLED DUAL VOLTAGE? NEED TO REWIRE TO 230V AC

    1 answer

    1. The motor is not dual voltage. The compressor would need to be run on 120 volt only.

      Helpful?

  4. What size quick change air line???

    1 answer

    1. This compressor would have a 1/4" F quick change coupler. It can use any size hose however the most common diameter hoses would be 1/4" or 3/8".

      Helpful?

  5. What's the duty cycle rating?

    1 answer

    1. The compressor would have a 50% duty cycle.

      Helpful?

  6. cold weather use: how low of a temperature will this operate ???

    1 answer

    1. The operating temperatures of this air compressor are 32 degrees F to 104 degrees F.

      Helpful?
