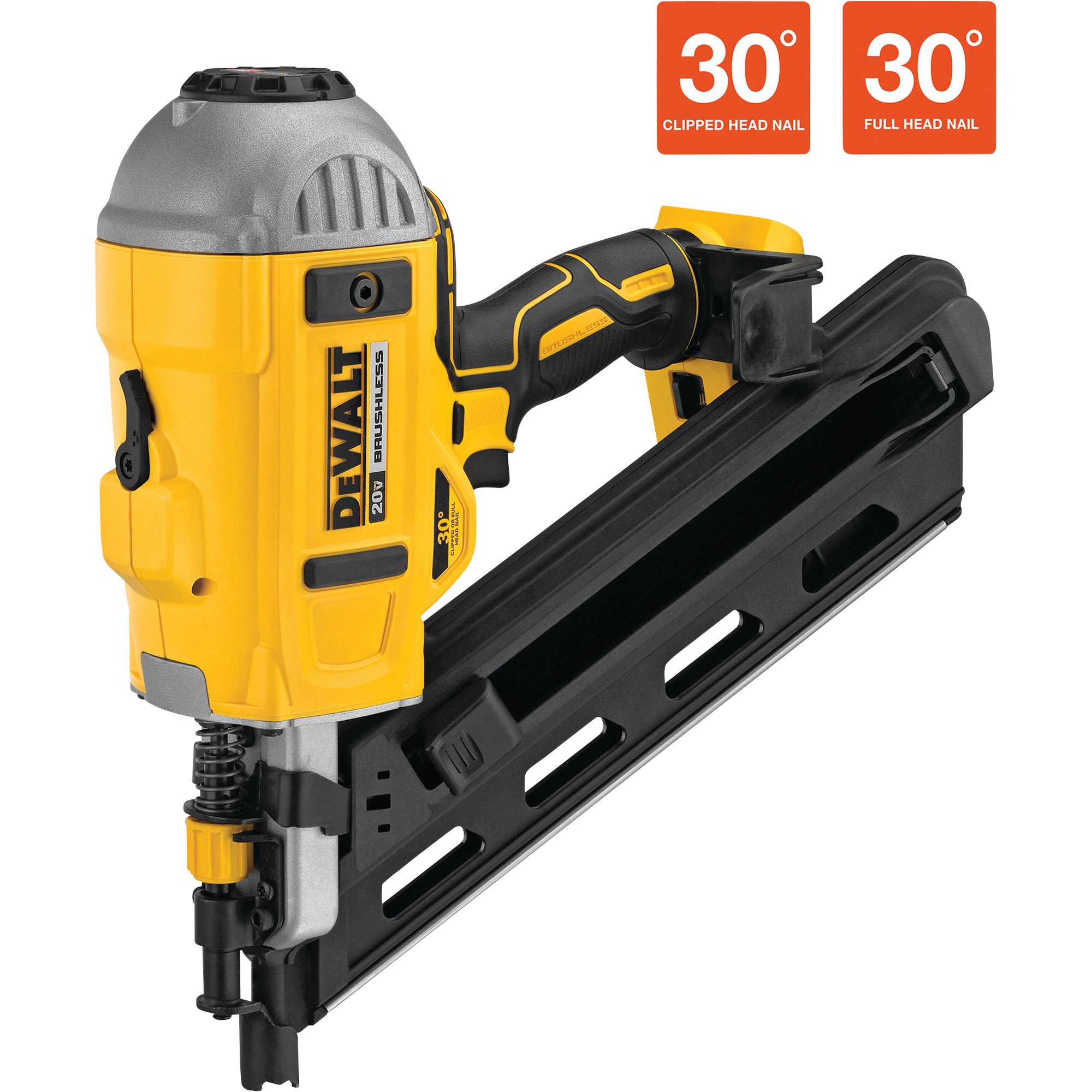

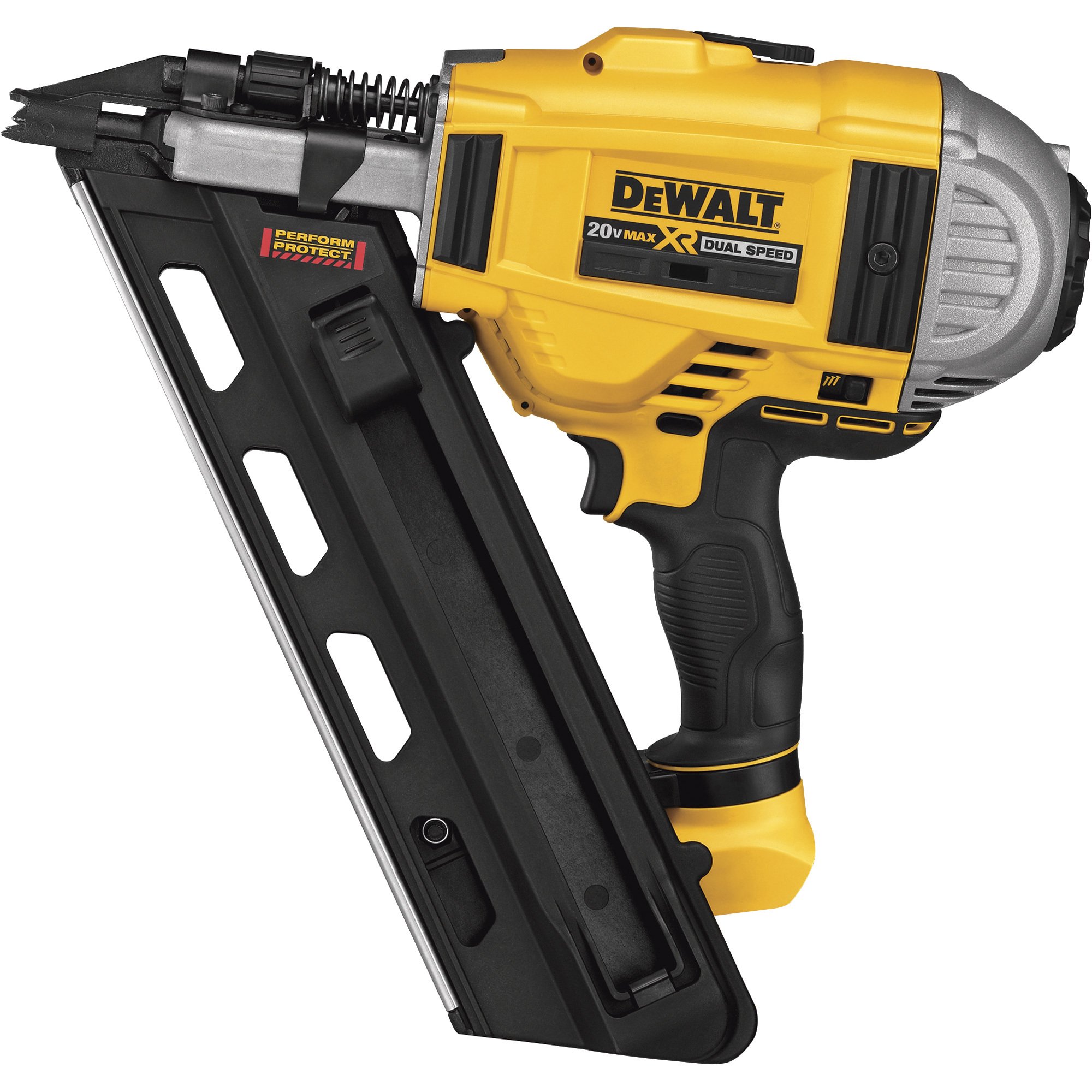

DEWALT 20 Volt Max Cordless Framing Nailer — Tool Only, Model# DCN692B

Item# 50276
DEWALT 20 Volt Max Cordless Framing Nailer — Tool Only, Model# DCN692B
DEWALT 20 Volt Max Cordless Framing Nailer — Tool Only, Model# DCN692B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT 20 Volt Max Cordless Framing Nailer — Tool Only, Model# DCN692B

Click or Tap image to Zoom

  • Tool only; battery and charger sold separately
  • Brushless motor and engine provide the "readiness to fire" (4-5 nails per second firing rate) and power the user needs
  • Selective actuation operating mode can be used in either sequential or bump operating mode
  • 2-speed selector switch optimizes speed for fastener lengths
  • Uses 30° paper tape framing nails

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The DEWALT 20 Volt Max Cordless Framing Nailer delivers outstanding performance and is the world's first gas-free, dual speed cordless framing nailer. This powerful nailer features a brushless motor and engine design that allows the tool to work as fast as the end user with consistent nail penetration into both soft and hard joints. Sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed. Two-speed selector switch optimizes speed for different fastener lengths. Nailer features easy access to the nosepiece for the removal of jammed nails. Trigger lock-off allows trigger to be disabled when tool is not in use. Top cap is impact resistant and easy to remove for troubleshooting.

SAVE MONEY by replacing or adding specific tools that work with the 20V Lithium-Ion battery and charger you already own. The DEWALT 20V bare tool system lets you choose the tool you need to get the job done — without buying a complete kit. Add a DEWALT bare tool to your 20V cordless system today.

What's Included

  • (1) 20V Max cordless framing nailer

Downloads

Product Manual

Features + Benefits

  • Tool only; battery and charger sold separately
  • Brushless motor and engine provide the "readiness to fire" (4-5 nails per second firing rate) and power the user needs
  • Selective actuation operating mode can be used in either sequential or bump operating mode
  • 2-speed selector switch optimizes speed for fastener lengths
  • Uses 30° paper tape framing nails
  • Hex key jam clear for easy removal of broken nails
  • Trigger lock-off allows trigger to be disabled when tool is not in use
  • Metal top cap is impact resistant for better durability and easy to remove for access to repair

Key Specs

AttributeSpecification

item#

50276

Brand

DEWALT

Manufacturer's Warranty

3 Yr Consumer Limited

Ship Weight

40.35 LB

Nail Size

3.5 in
AttributeSpecification

Gauge

0.131

Magazine Capacity (qty.)

55

Volts

20

Dimensions L x W x H (in.)

13.3 x 4.7 x 13 in

Reviews

Questions & Answers

44 Reviews This action will navigate to reviews.

Questions

  1. Which kind of battery does this accept?

    Does this work with the 20v or the 20v XR battery? Both? Which battery do I need to purchase. Thank you

    1 answer

    1. This cordless nail gun will accept all Dewalt 20 volt batteries. A 20v is a 2.0 amp hour battery and the 20v XR is a 4.0 amp hour battery. A higher amp hour battery can run longer between charges.

      Helpful?

Warranty

Manufacturer's Warranty

3 Yr Consumer Limited
