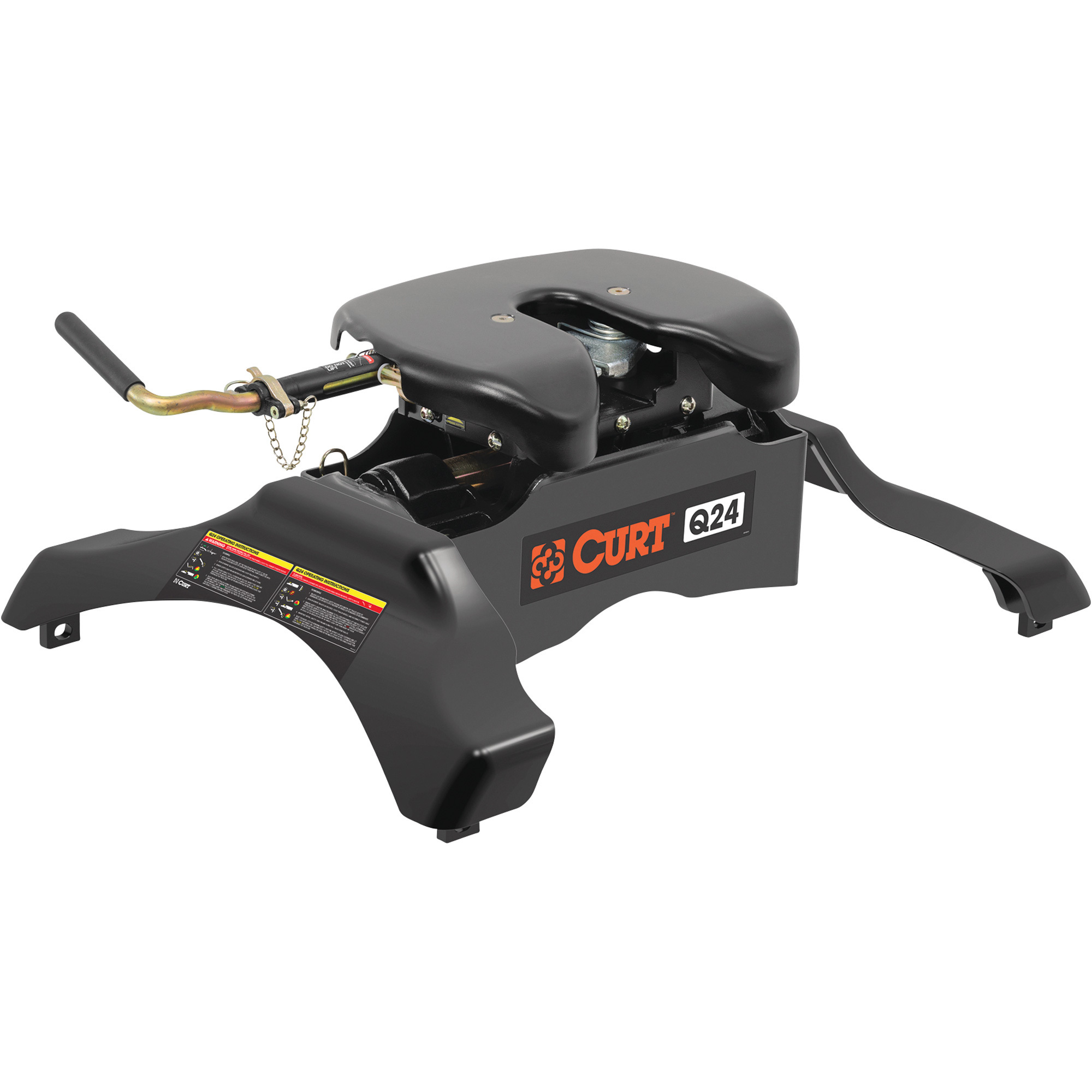

CURT Q24 5th Wheel, 24,000-Lb. Capacity, Model# 16245

Item# 59947
CURT Q24 5th Wheel, 24,000-Lb. Capacity, Model# 16245

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

CURT Q24 5th Wheel, 24,000-Lb. Capacity, Model# 16245

Click or Tap image to Zoom

  • Ideal for towing 5th wheel trailers up to 24,000 lbs.
  • Spherical axial bearing for unimpeded head movement and smooth, quiet towing
  • Dual jaws provide 360° kingpin contact

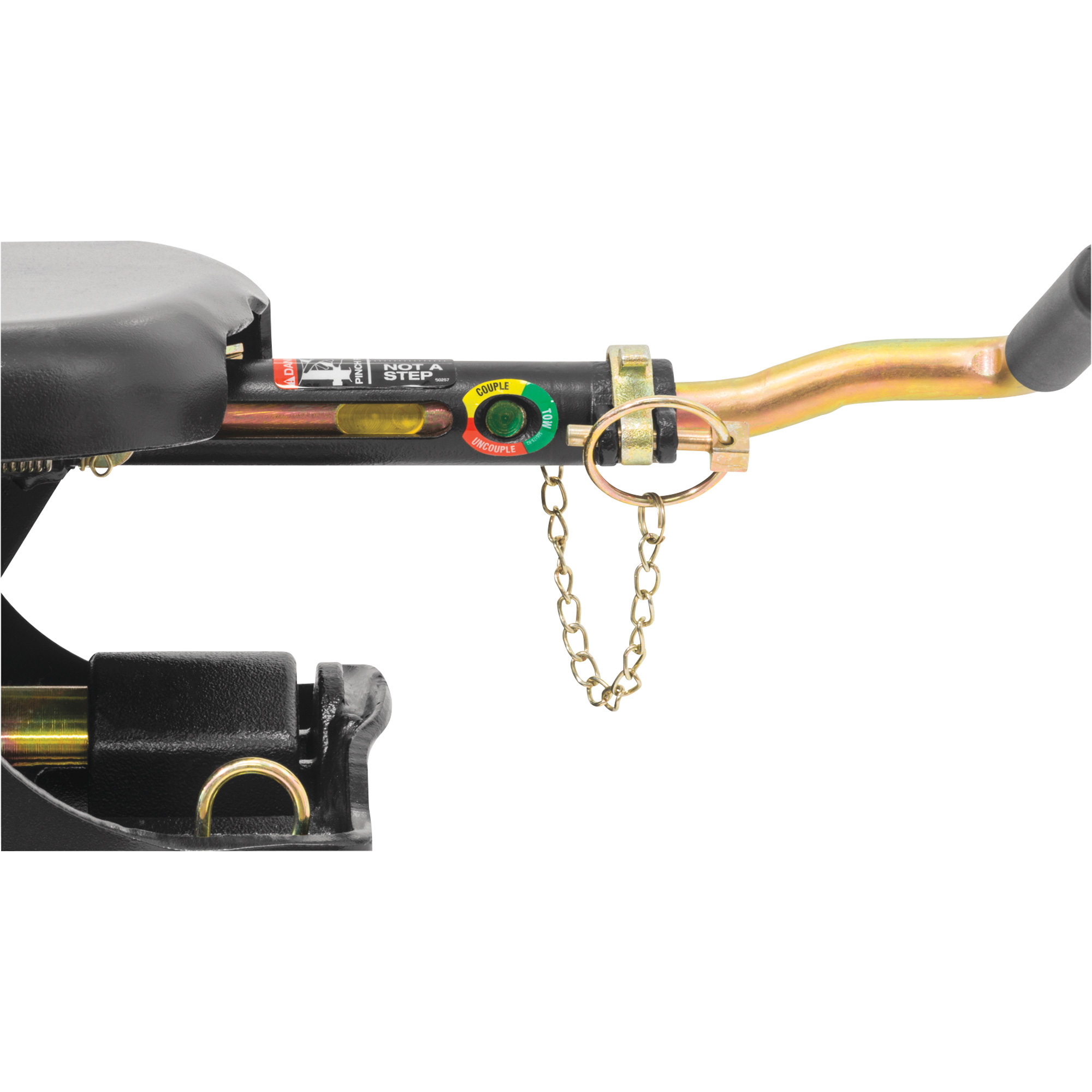

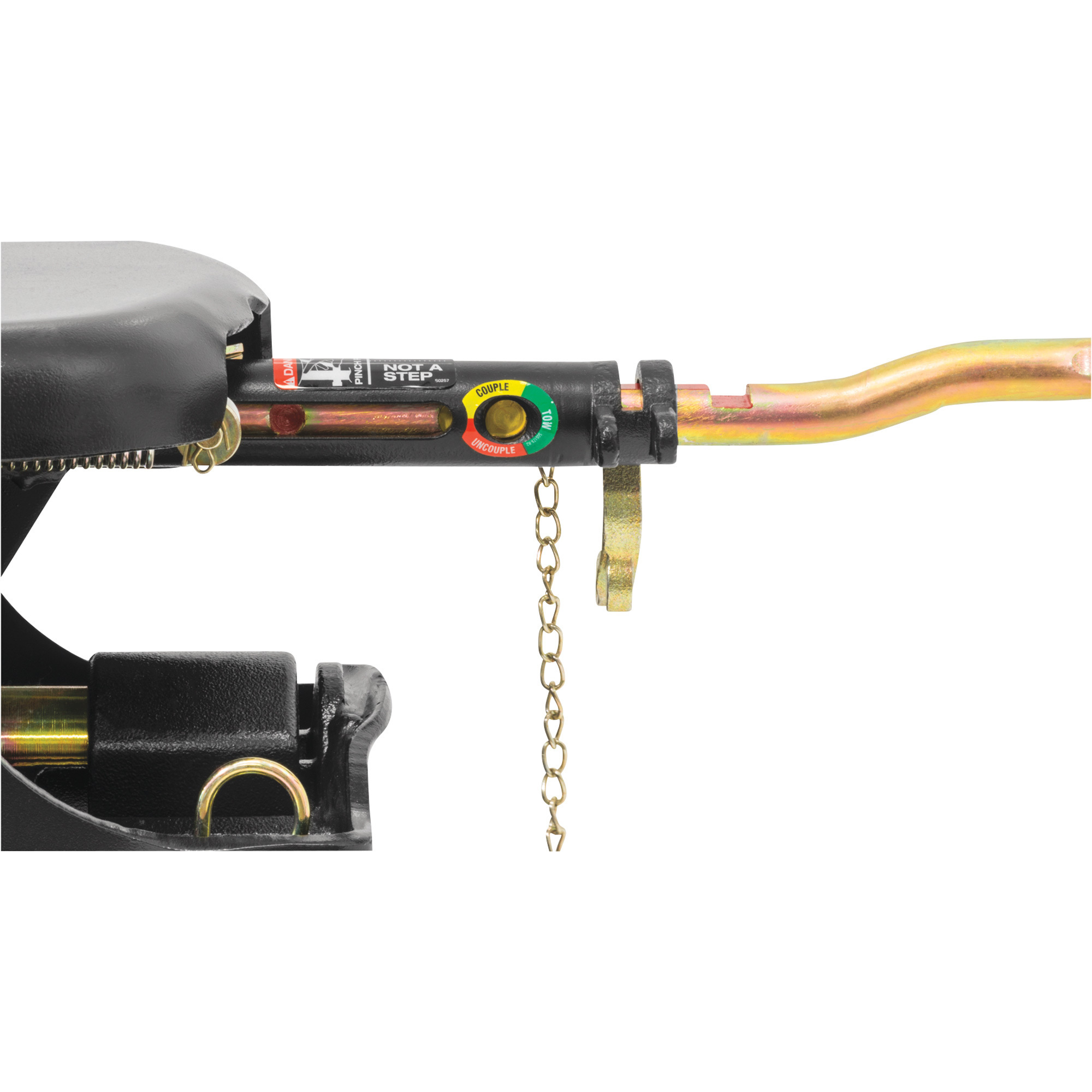

  • 3-position coupling indicator clearly shows coupling status
  • Self-aligning head offers a wide opening for easy coupling

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CURT Q24 is the heavyweight champion of 5th wheel hitches. With a gross trailer weight capacity of 24,000 lbs. and a vertical load limit of 6000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers. Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing. Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation, and a 3-position coupling indicator. It comes with a durable carbide powder-coat finish and meets proposed SAE J2638 testing standards. This 24K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets. Backed by a 10-year limited warranty.

What's Included

    (1) CURT Q24 5th wheel
Play Item Video

Features + Benefits

  • Ideal for towing 5th wheel trailers up to 24,000 lbs.
  • Spherical axial bearing for unimpeded head movement and smooth, quiet towing
  • Dual jaws provide 360° kingpin contact
  • 3-position coupling indicator clearly shows coupling status
  • Self-aligning head offers a wide opening for easy coupling
  • Mounts to all industry-standard base rails
  • Operates using a short, lockable handle
  • 3 grease fittings for easy lubrication
  • Includes a polyethylene lube plate to eliminate messy grease deposits
  • Meets proposed SAE J2638 testing standards
  • Protected by a highly durable carbide powder-coat finish
  • Backed by a 10-year limited warranty

Key Specs

AttributeSpecification

item#

59947

Brand

Curt Manufacturing

Manufacturer's Warranty

10 year limited warranty
AttributeSpecification

Ship Weight

136.0 LB

Product Type

Hitch

Max. Gross Trailer Weight

24,000 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

10 year limited warranty
