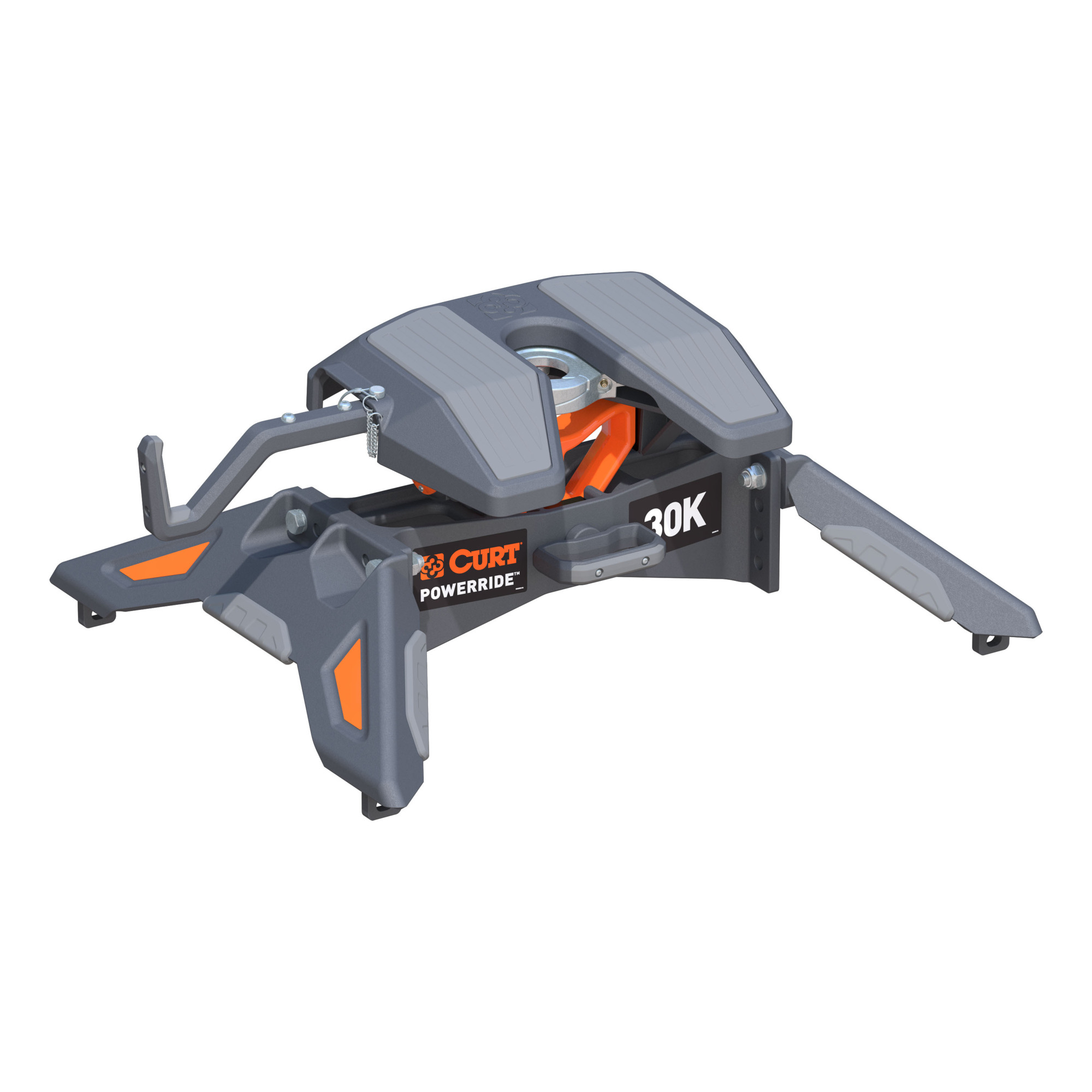

Curt Manufacturing, 30K PowerRide 5th Wheel Hitch, Model# 16320

Item# 6130041
1 of 12 reviewers received a sample product or took part in a promotion
Curt Manufacturing, 30K PowerRide 5th Wheel Hitch, Model# 16320

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing, 30K PowerRide 5th Wheel Hitch, Model# 16320

Click or Tap image to Zoom

$1348.95

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Tough, professional-grade capacity and enhanced functionality|Ergonomic, self-resetting handle for easier use from the side of the truck bed|Multi-directional, cast yoke head for a smooth ride and less strain on the truck|Constructed with a cast steel main body for dependable strength|Tested and rated to 30,000 lbs. GTW / 7,500 lbs. vertical load per SAE J2638|Integrated wear plates for smooth operation, extended longevity and no grease|Fast, one-pin head removal makes moving easy with smaller, lighter pieces|Strategic grip points for ergonomic moving and handling|Three-position coupling indicator clearly shows coupling status|Patented interlocking jaws for full kingpin contact and coupling security|Premium, textured, dark grey teridium finish for lasting rust resistance|4" height adjustment for greater versatility versus 3" options|No welding or fabrication required for installation|Patent# 8,827,298
  • Includes hitch head and legs (rails and brackets sold separately)
  • Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering.
  • Capacity limited to lowest-rated towing component

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

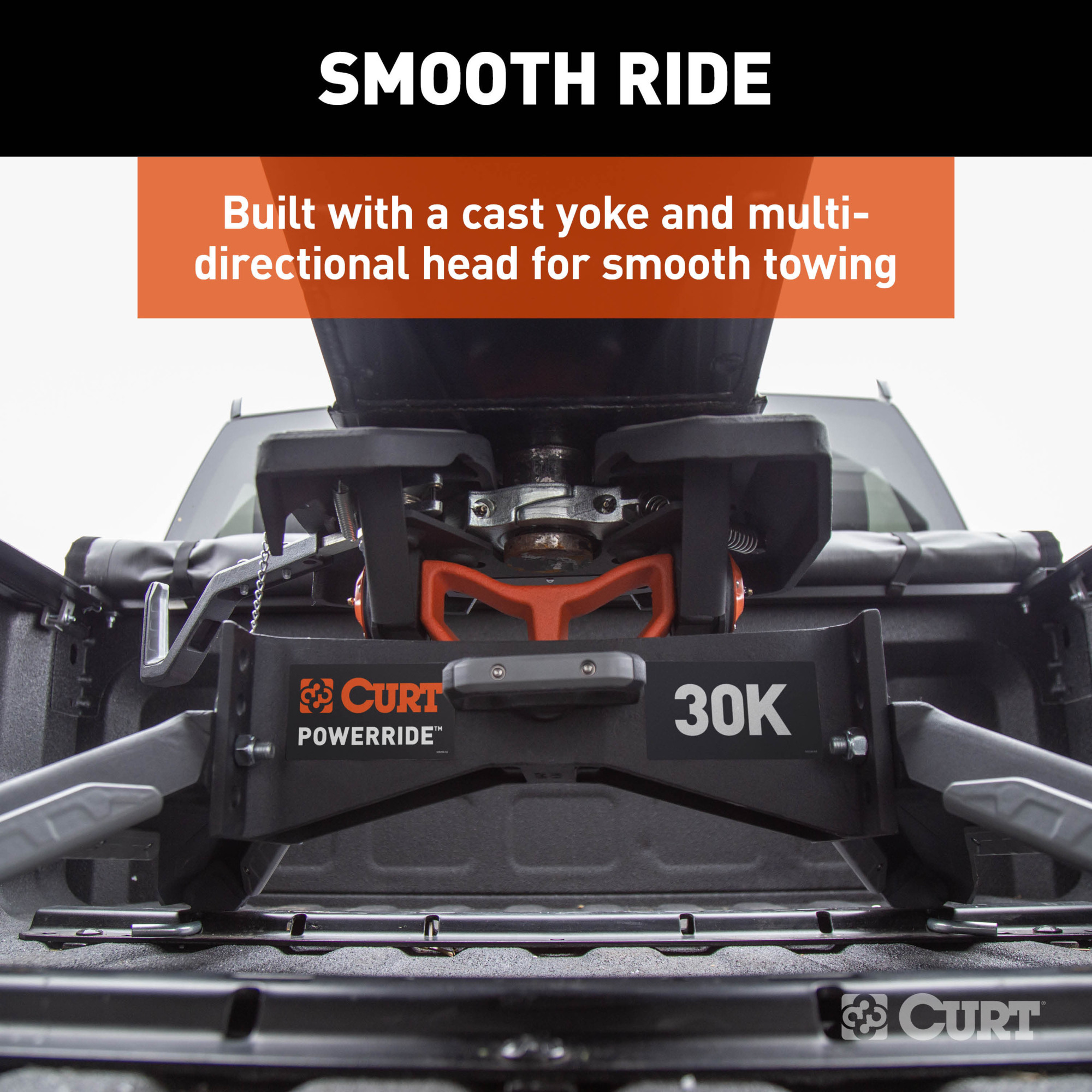

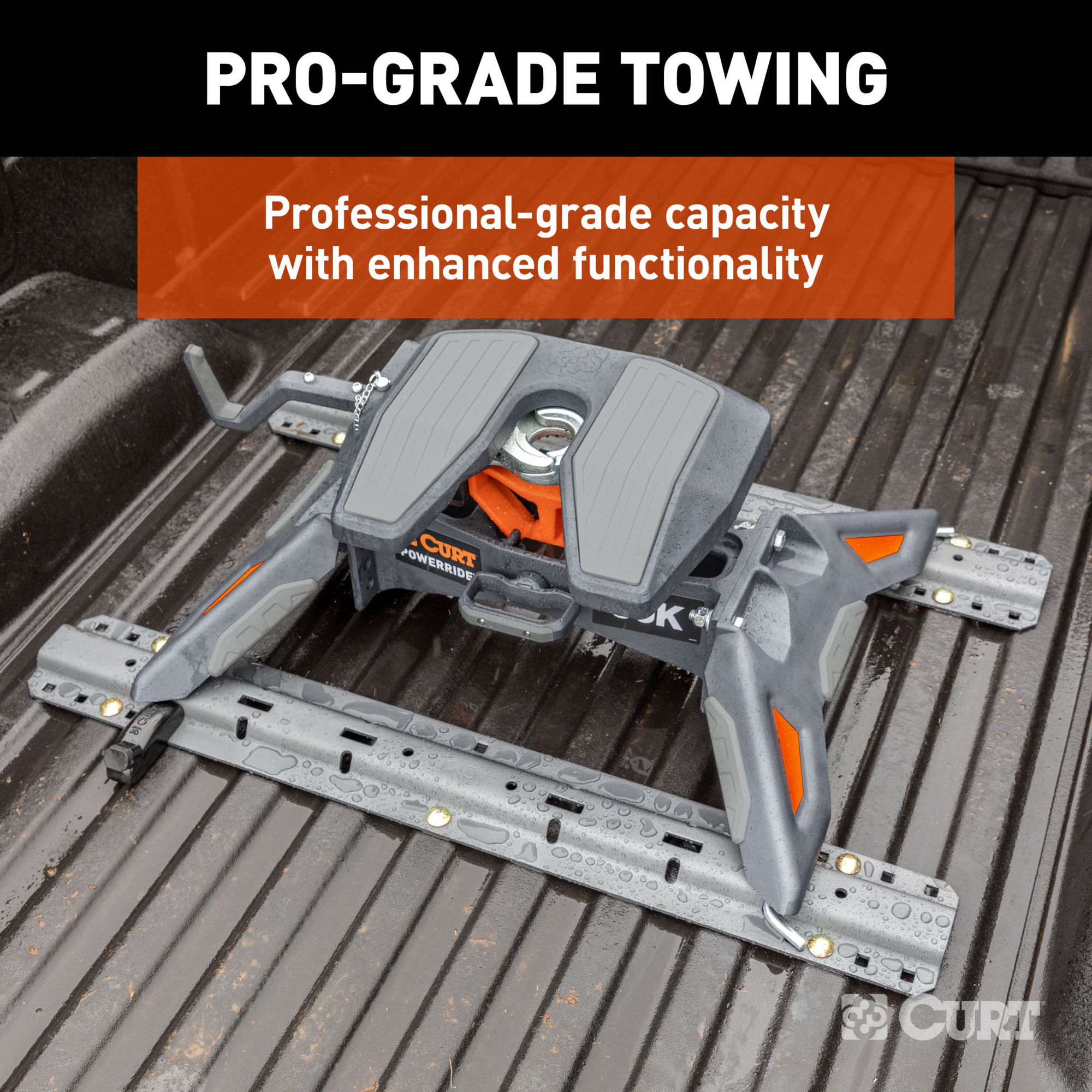

The CURT PowerRide 30K 5th wheel hitch equips your pickup truck with a profession-grade solution for 5th wheel towing. It features a 30,000-pound, fully tested rating, a cast head with multi-directional tilt, an easy-to-use self-resetting handle, enhanced portability and no welding or fabricating required for installation. This CURT 5th wheel hitch offers exceptional towing power with its 30K gross trailer weight rating and 7,500-pound vertical load limit. It is constructed with a cast steel main body for dependable strength, and it is thoroughly tested to SAE J2638 specs for safety. It's ideal for towing the largest RV trailers, camper motorhomes and other 5th wheel trailers. The PowerRide 5th wheel trailer hitch also features a cast yoke head that tilts in multiple directions -- not just forward and backward -- to promote a smooth ride. PowerRide is very easy to operate. It is engineered with a self-resetting handle, a simple mechanism that resets the jaws to the ready-to-couple position after uncoupling, saving you an extra step in the hookup process. The handle is easy to reach and operate from the side of the truck, and the hitch is also equipped with a three-position coupling indicator to further streamline the process. For installation and removal, PowerRide is unique with a one-pin head removal system. The central pin can be removed as needed, breaking the hitch down into smaller, easier-to-lift pieces. Strategically placed grips also offer a comfortable handhold. The CURT PowerRide 5th wheel hitch installs without any welding or fabricating required. It easily drops into any industry-standard 5th wheel rails. This kit comes with the hitch head and legs. Rails and brackets must be purchased separately.

What's Included

    (1) PowerRide 30K 5th Wheel Hitch

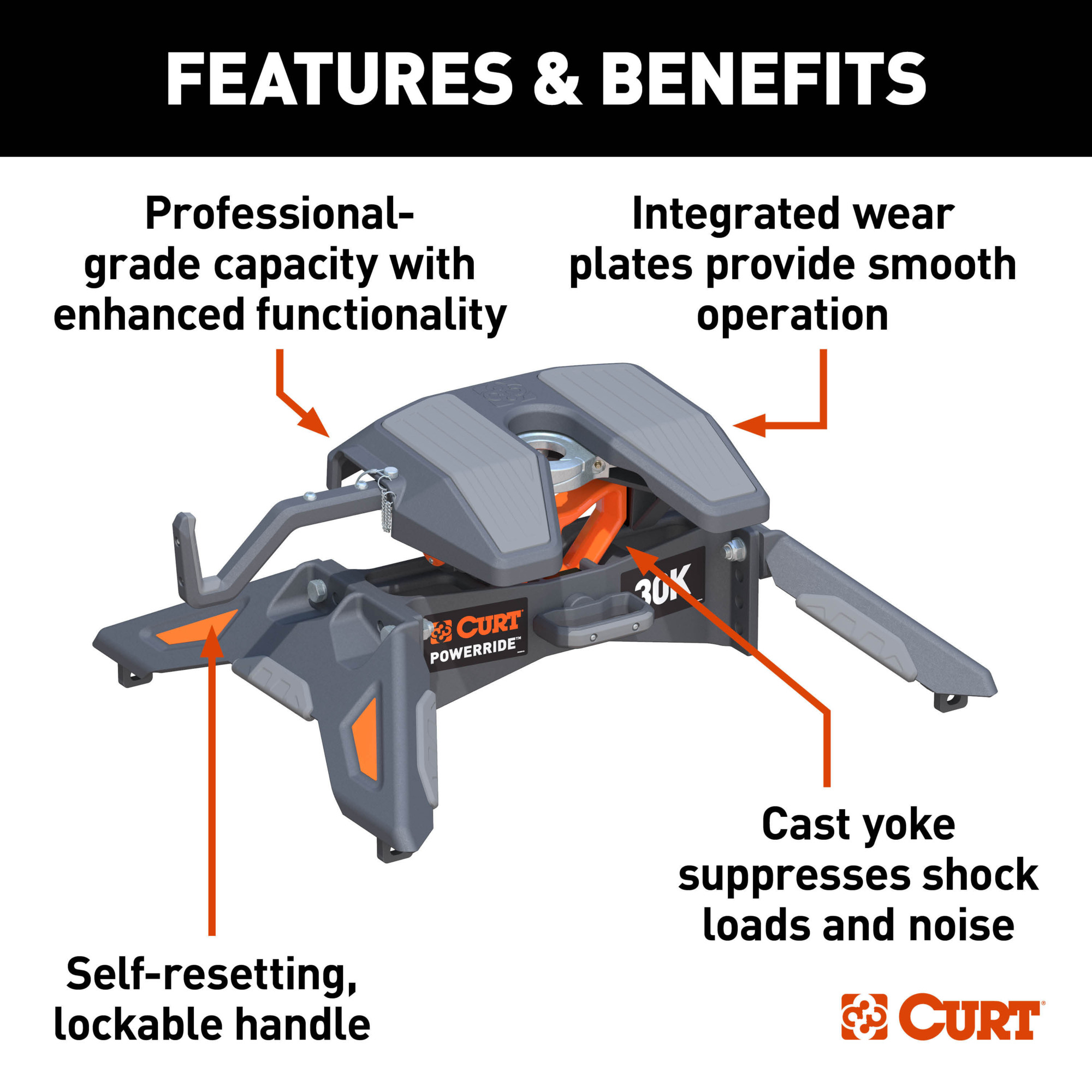

Features + Benefits

  • Tough, professional-grade capacity and enhanced functionality|Ergonomic, self-resetting handle for easier use from the side of the truck bed|Multi-directional, cast yoke head for a smooth ride and less strain on the truck|Constructed with a cast steel main body for dependable strength|Tested and rated to 30,000 lbs. GTW / 7,500 lbs. vertical load per SAE J2638|Integrated wear plates for smooth operation, extended longevity and no grease|Fast, one-pin head removal makes moving easy with smaller, lighter pieces|Strategic grip points for ergonomic moving and handling|Three-position coupling indicator clearly shows coupling status|Patented interlocking jaws for full kingpin contact and coupling security|Premium, textured, dark grey teridium finish for lasting rust resistance|4" height adjustment for greater versatility versus 3" options|No welding or fabrication required for installation|Patent# 8,827,298
  • Includes hitch head and legs (rails and brackets sold separately)
  • Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering.
  • Capacity limited to lowest-rated towing component

Key Specs

AttributeSpecification

item#

6130041

Brand

Curt Manufacturing

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

152.0 LB
AttributeSpecification

Product Type

Other

Product Weight

152.0000 lb

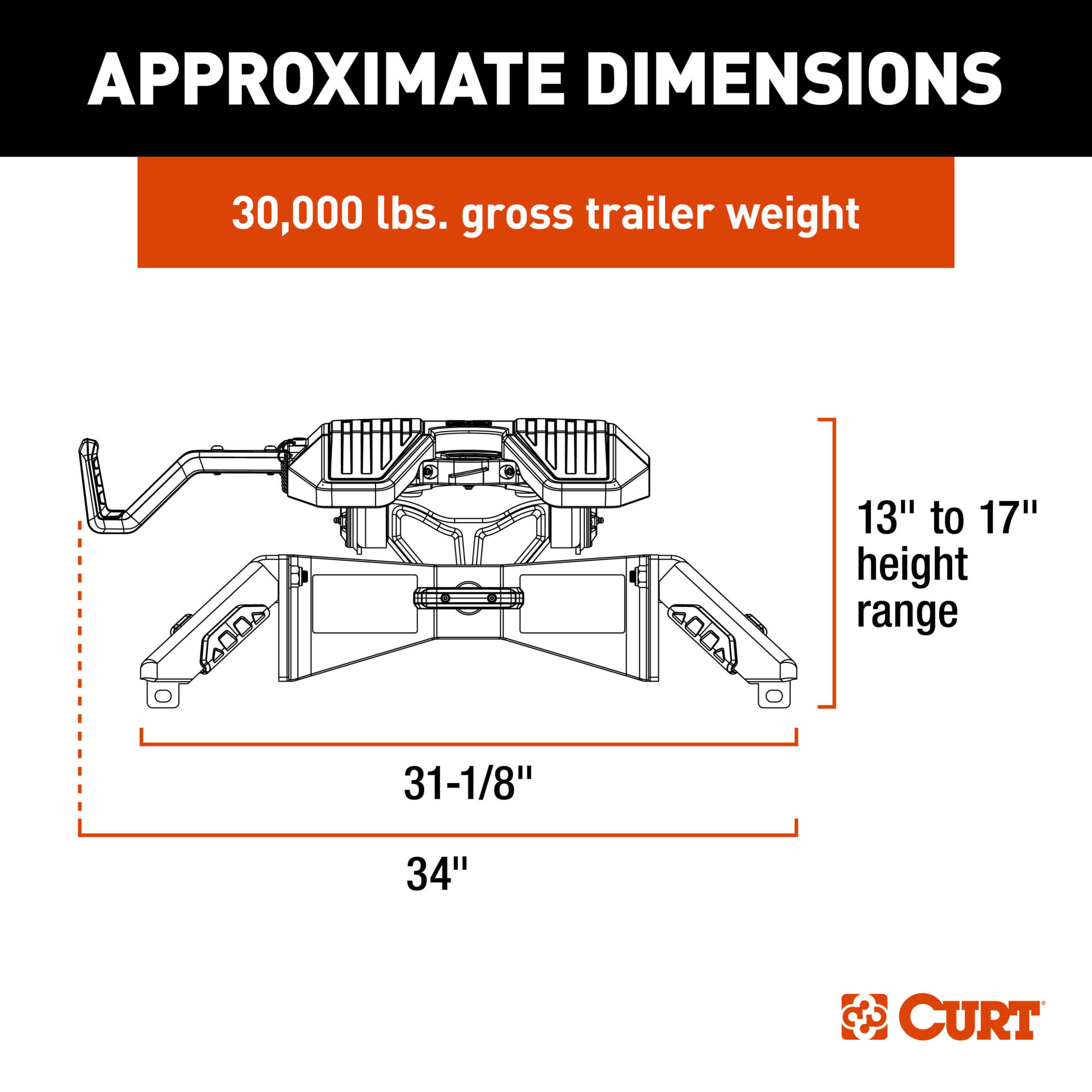

Dimensions L x W x H (in.)

18.0 x 0.0 x 15.0 in
