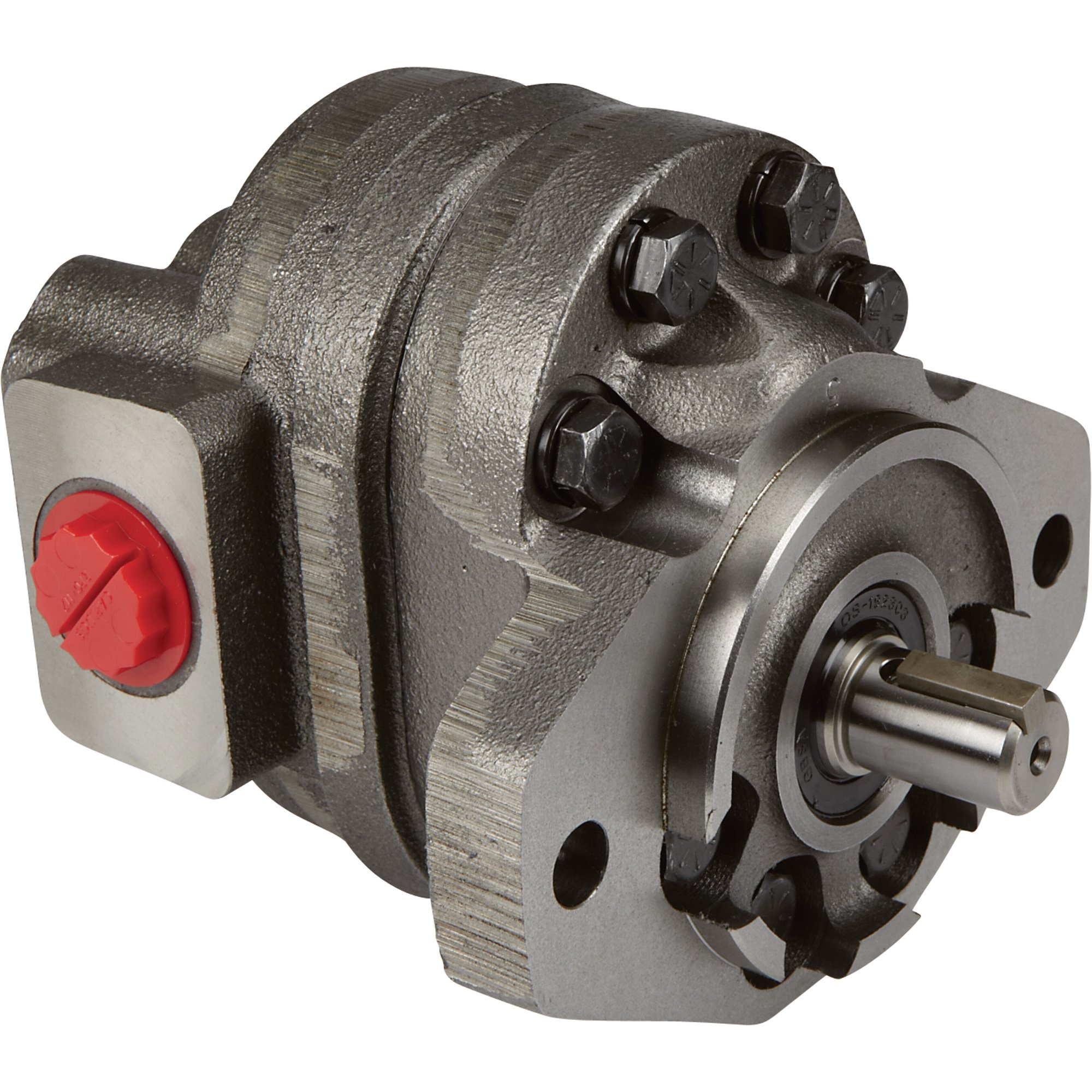

Concentric/Haldex Cast Iron Hydraulic Gear Pump — 1.8 Cu. In., Model# F20W-2W9T1-G1A10R-S63

Item# 10581
Concentric/Haldex Cast Iron Hydraulic Gear Pump — 1.8 Cu. In., Model# F20W-2W9T1-G1A10R-S63

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric/Haldex Cast Iron Hydraulic Gear Pump — 1.8 Cu. In., Model# F20W-2W9T1-G1A10R-S63

Click or Tap image to Zoom

  • Cubic Inch Size: 1.80
  • Rotation: CW
  • Flow at 1800 RPM: 13.9 GPM
  • Flow at 3600 RPM: 27.8 GPM
  • Maximum PSI: 4000

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Heavy-duty cast iron pump has high pressure capability. Pressure-balanced. Operates at up to 3600 RPM. Similar to Webster YD Series. Parker M Series. Rexroth S20, Cross 50P, Cessna 25550, Ultra 2PX, 2PR and 3PR. Commercial P330, and Tyrone P16. Standard SAE 2-bolt B flange, 4.00in. diameter pilot with 7/8in. x 1 5/8in. shaft, 1/4in. square key. SAE O-ring ports: inlet 1 5/8-12, outlet 1 1/16-12. 85% efficient.

Features + Benefits

  • Cubic Inch Size: 1.80
  • Rotation: CW
  • Flow at 1800 RPM: 13.9 GPM
  • Flow at 3600 RPM: 27.8 GPM
  • Maximum PSI: 4000

Key Specs

AttributeSpecification

item#

10581

Brand

Haldex

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

30.2 LB
AttributeSpecification

Max. PSI

4,000

Max. Flow Rate

27.8 GPM

Shaft Diameter

1.62 in

Material

Cast Iron

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Pump drive question.

    Can the pump be belt driven? In my application I can not direct drive the pump.

    1 answer

    1. This pump is designed to be direct drive could not be used as a belt driven pump.

      Helpful?

  2. Can i run hydraulic motor whit this pump

    1 answer

    1. Yes, this pump will run a hydraulic motor. It would require the appropriate hydraulic couplings to make the connection between the pump and motor.

      Helpful?

  3. What hp gas engine to run this pump?

    1 answer

    1. To determine the HP to operate a hydraulic pump, take the GPM of the pump x the PSI and divide this total by 1714.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
