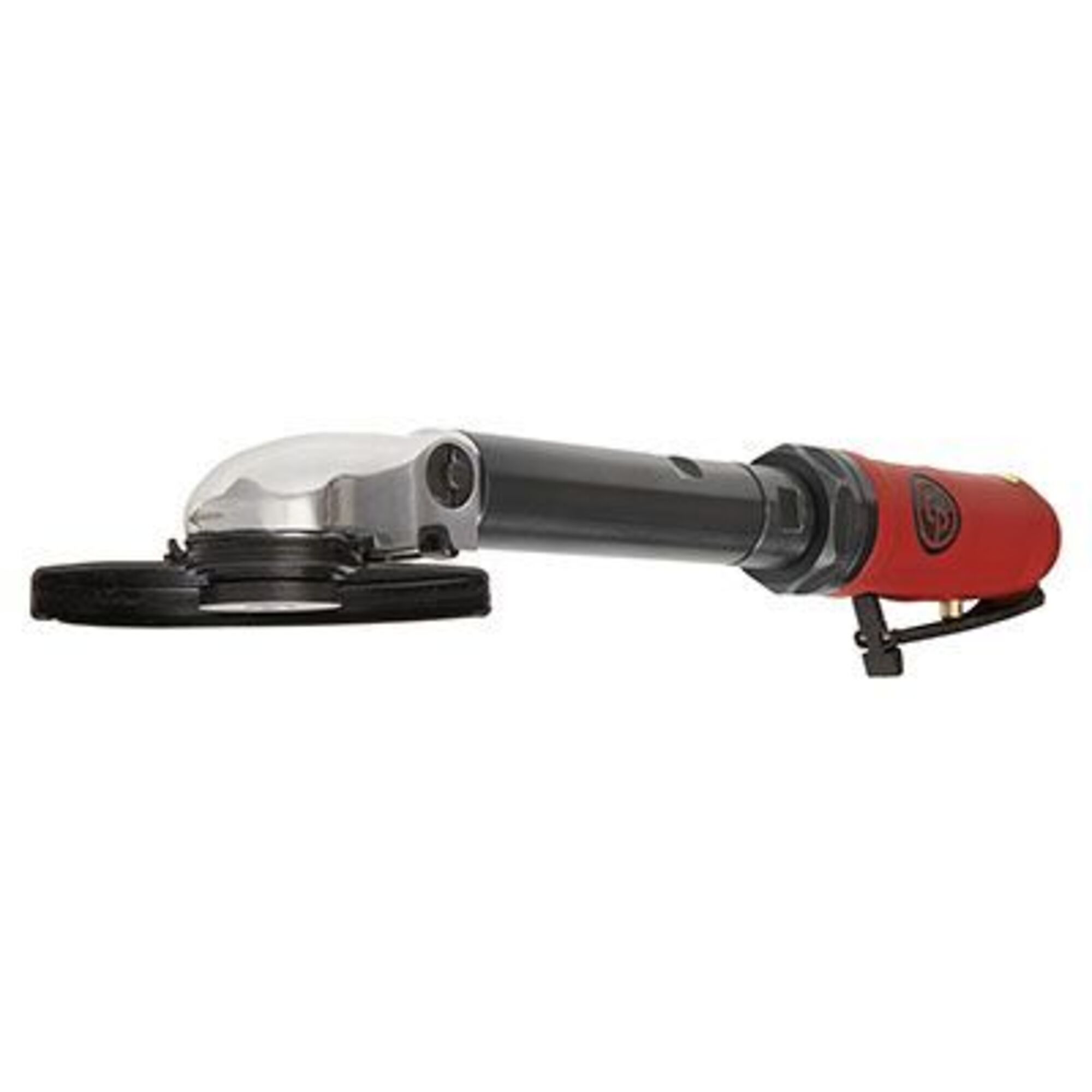

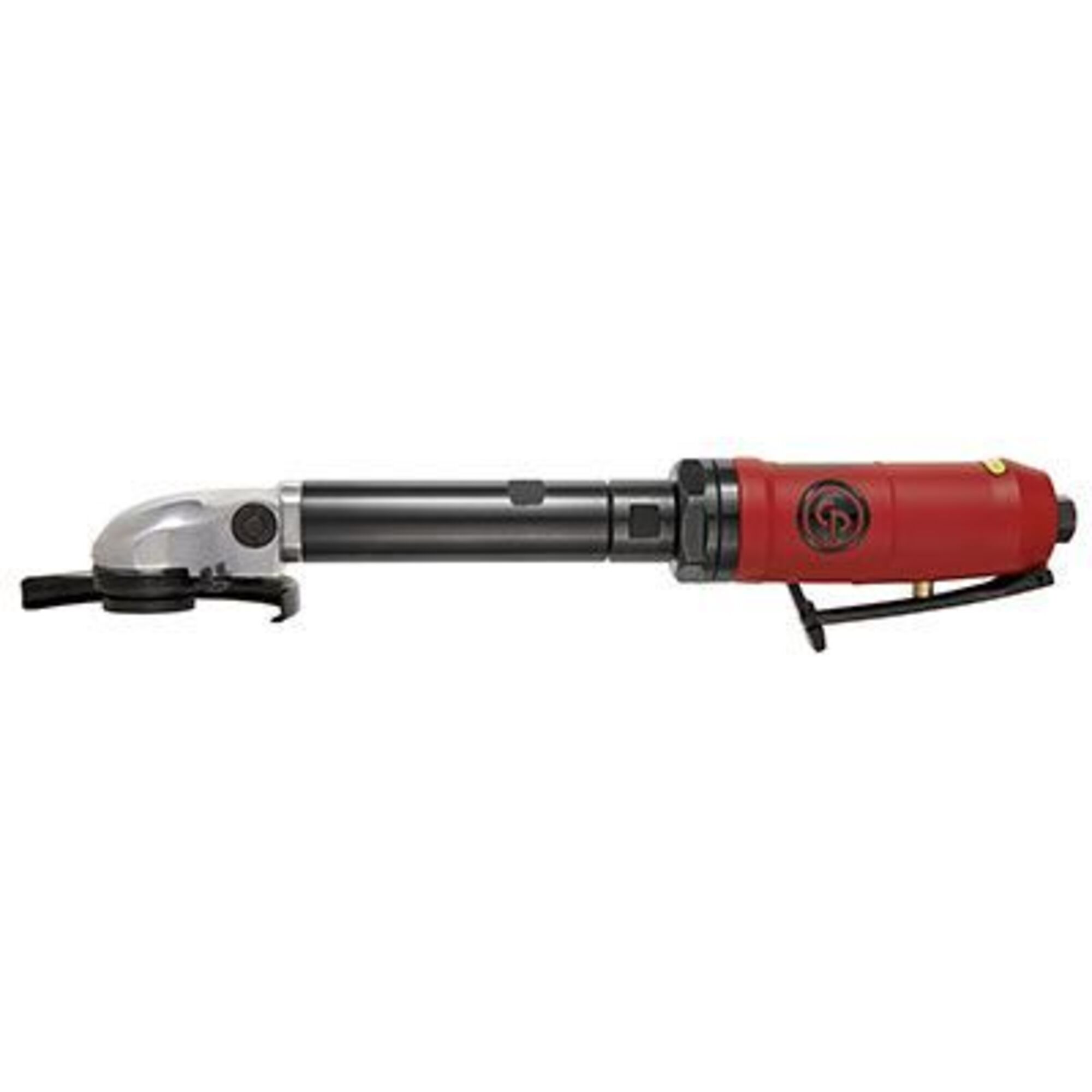

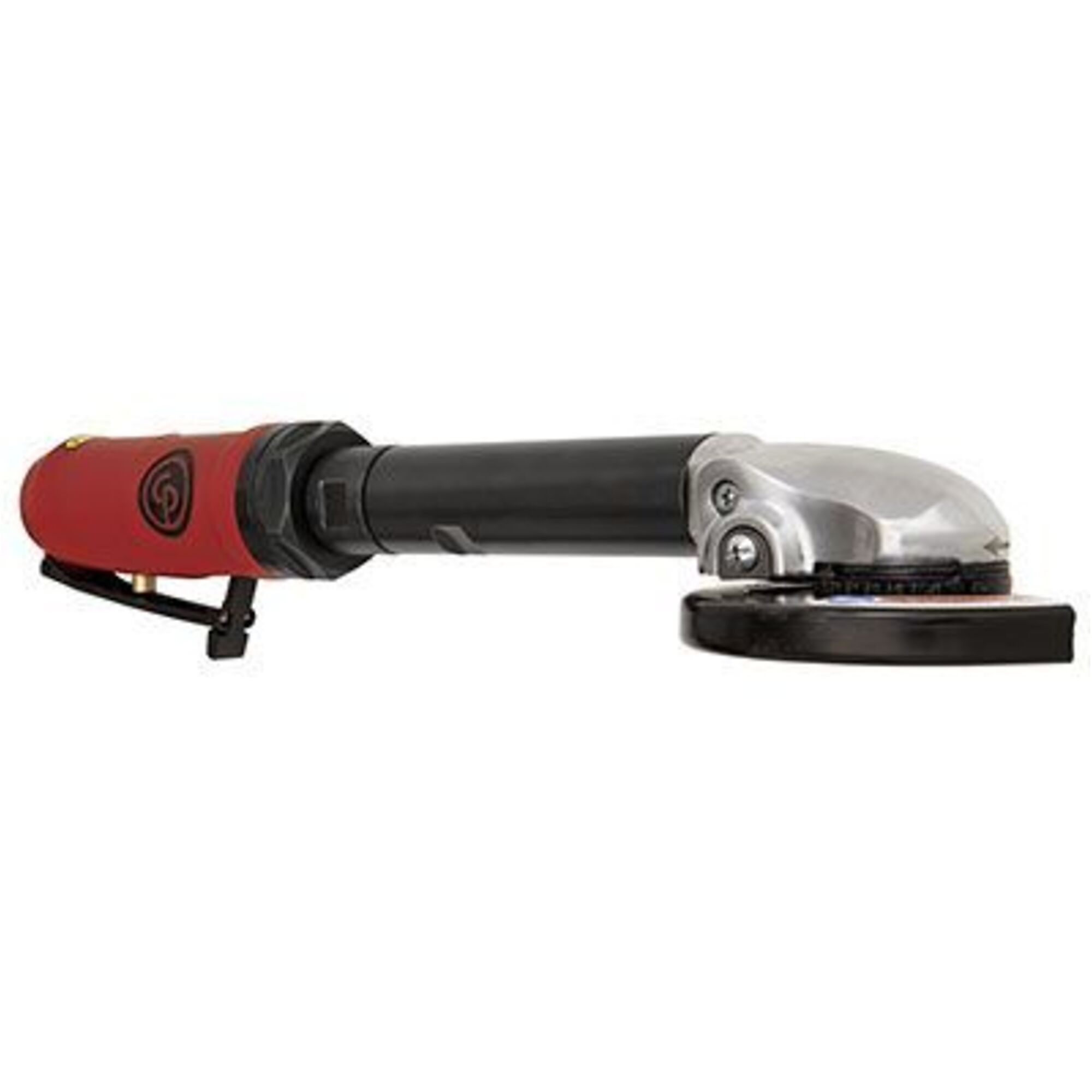

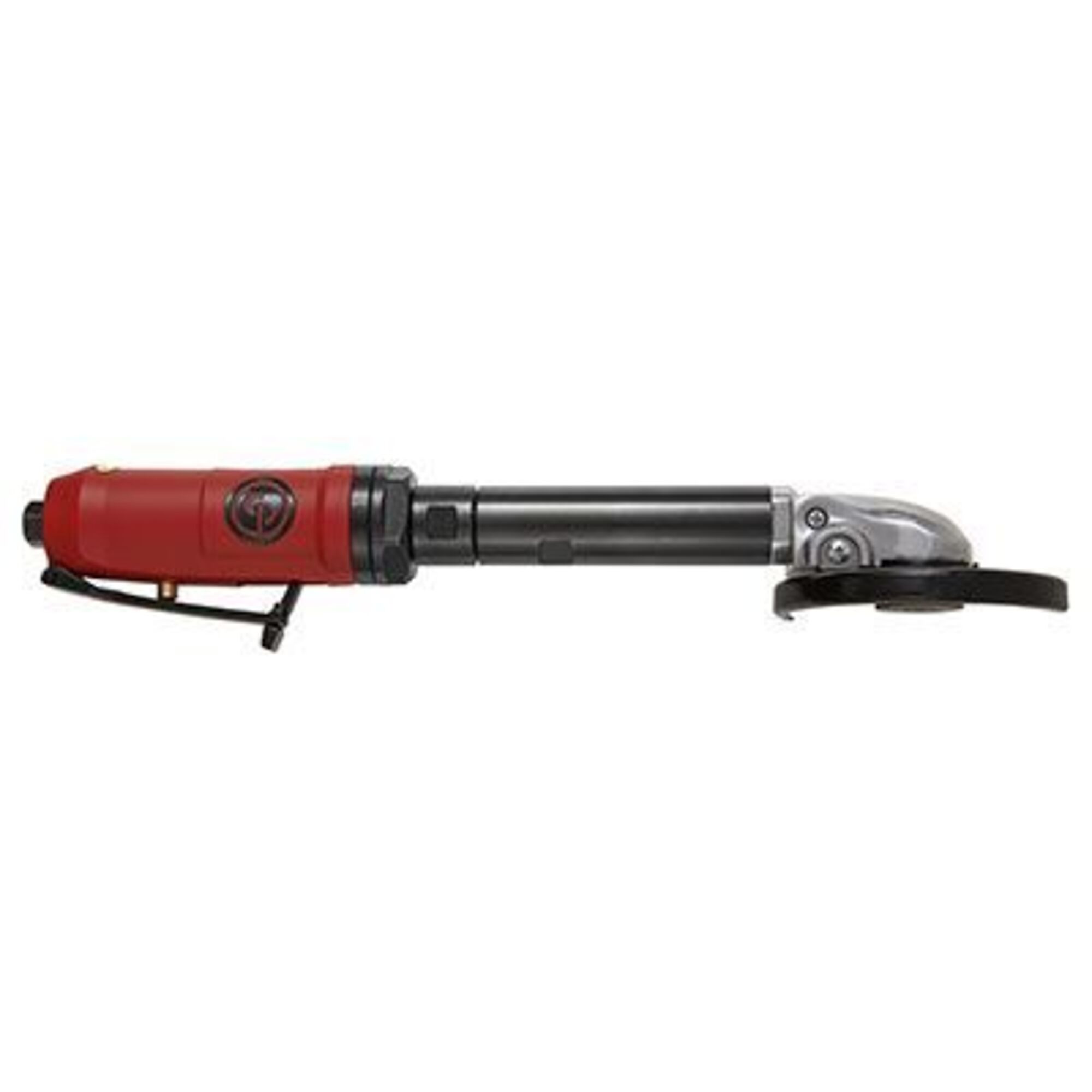

Chicago Pneumatic CP9116 - Air Angle Cut-off tool, 4 in, Ext, Spindle Lock, 1/4 in NPT, 1 HP, 14,000 RPM
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Powerful and Efficient: With a 1 HP (746 W) motor, the CP9116 Air Angle Cut-off Tool is capable of high efficiency and fast metal removal. It has a free speed of 14,000 RPM and a maximum wheel capacity of 4 inches (100 mm), making it ideal for general maintenance applications such as cutting through composite, fiberglass, steel metal, bolts, or clamps
- Ergonomic Design: The CP9116 Air Angle Cut-off Tool is designed with a composite grip that reduces cold air transmission to the operator. It also has an 11-position adjustable swivel guard and a spindle lock system that makes it easy to use and comfortable to hold for extended periods of time
- Safety Features: The CP9116 Air Angle Cut-off Tool is equipped with a helical bevel gear design that ensures high durability. It also has a sound pressure level of 84 dB(A) and a sound power level of 95 dB(A), making it safe to use in various industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications
- Versatile Applications: The CP9116 Air Angle Cut-off Tool is suitable for cutting through composite, fiberglass, steel metal, bolts, or clamps. It can be used with 4-inch (100 mm) cutting wheels, making it ideal for various applications
- General Specifications: The CP9116 Air Angle Cut-off Tool has a spindle thread of 3/8-24, a free speed air consumption of 21 cfm (9.9 l/s), and an actual air consumption of 29.7 cfm (14 l/s). It has a length of 14.6 inches (370 mm) and weighs 1.8 pounds. It is equipped with a 1/4-inch air inlet size and a 4-inch (100 mm) wheel. It is also harmonized with EN ISO 12100 and ISO 8662 8/ISO 8662 4, PN8NTC1.2 standards
See full description
See All Air Grinders
See All Chicago Pneumatic Air Grinders
Currently Viewing This Product
Specifications
14,000 rpm
20,000 rpm
22,000 rpm
11,000 rpm
90 PSI
-
-
90 PSI
1/4 in
3/8 in
1/4 in
1/4 in
Angle
Die
Die
Angle
4 in
-
-
-
No
No
No
No
36 cfm
6 cfm
29 cfm
6 cfm
Yes
-
-
-
Yes
Yes
-
-
1.8000 lb
-
1.1000 lb
4.0000 lb
14.6 x 0.0 x 0.0 in
-
6.6 x 1.4 x 2.75 in
9.0 x 3.5 x 7.5 in
-
1/4 in
1/4 in
1/4 in
-
3/8 in
3/8 in
3/8 in
