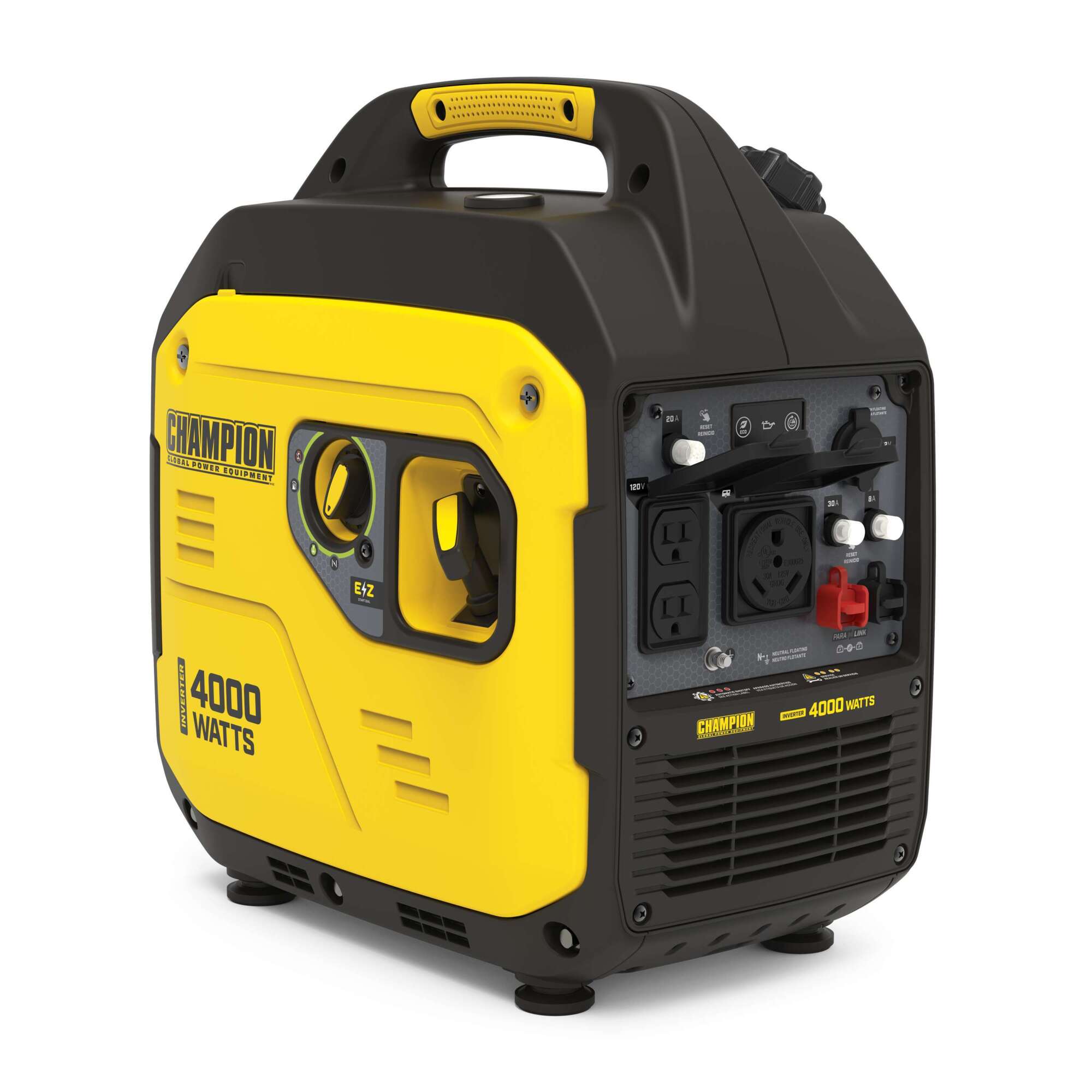

Champion Power Equipment Portable Inverter Generator — 4000W, RV Ready, Quiet Technology, CO Shield, Model# 100809

Item# 6734793
Champion 4000-Watt RV Ready Portable Inverter Generator with Quiet Technology and CO Shield®
Champion Power Equipment Portable Inverter Generator — 4000W, RV Ready, Quiet Technology, CO Shield, Model# 100809

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Champion Power Equipment Portable Inverter Generator — 4000W, RV Ready, Quiet Technology, CO Shield, Model# 100809

Click or Tap image to Zoom

  • Ultra-Lightweight - 48.8lbs
  • Quiet Operation - 64dBa @ 23'
  • Clean Inverter Power for sensitive electronics - <3% THD
  • 4000w Start Up & 3000w Running

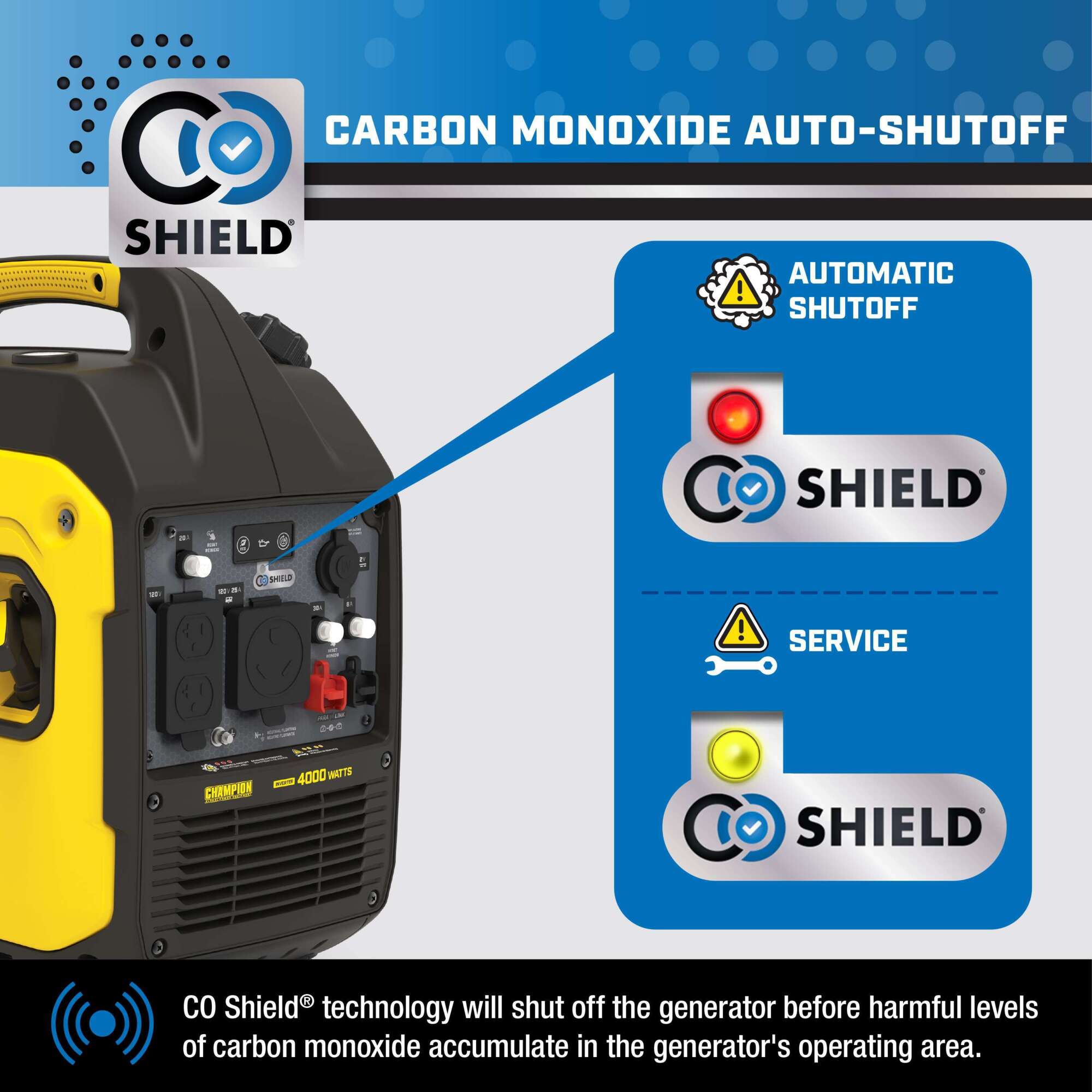

  • CO Shield Auto Shut Off

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

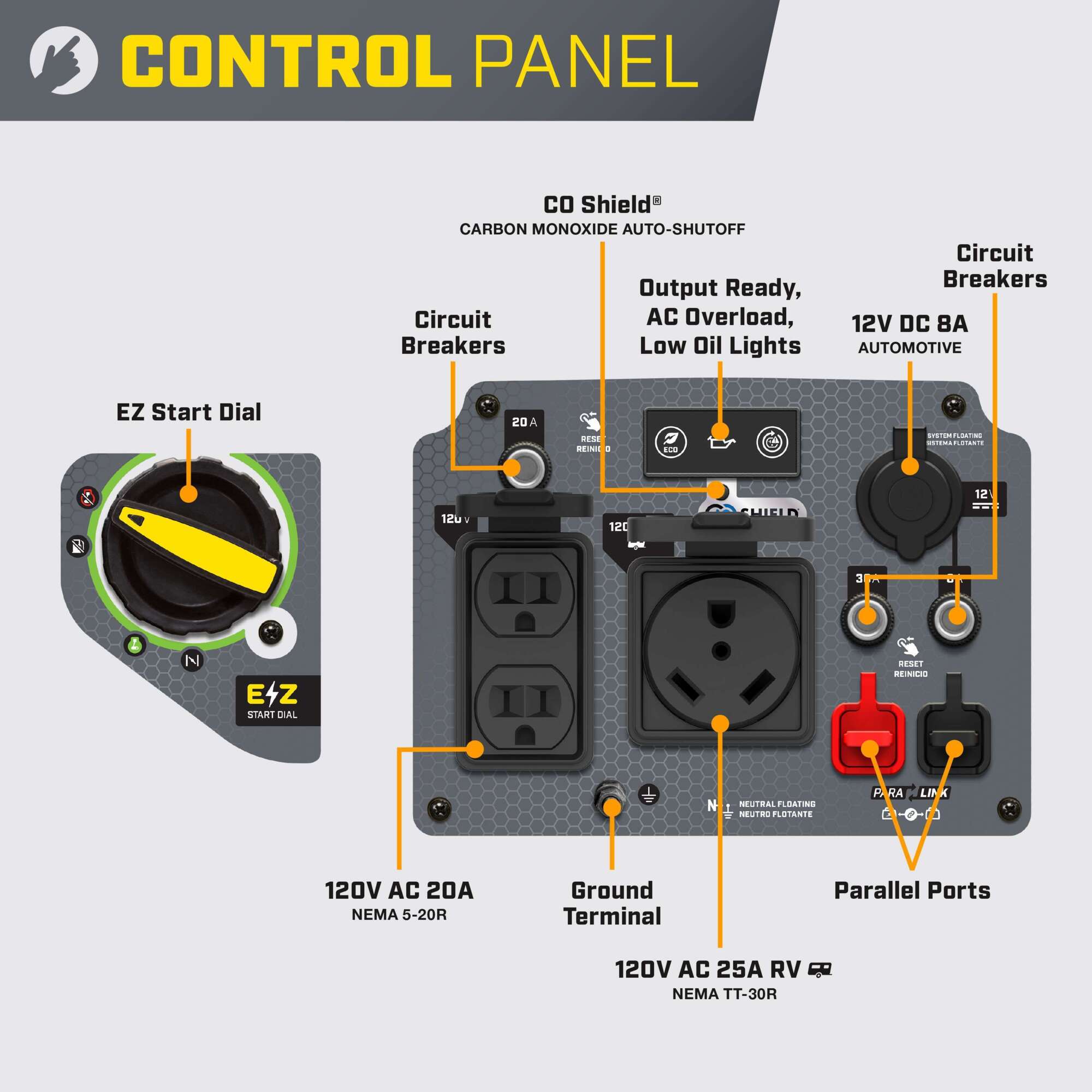

The Champion Power Equipment 100809 4000-Watt Portable Inverter Generator with CO Shield® is ideal for camping, tailgating, powering items around the RV or providing backup for a few basics. This unit is not recommended for emergency home backup. Weighing less than 49 pounds, this light model is one of the lightest 4000-watt inverters in the industry. Thanks to Champion’s innovative design, power on the go has never been easier. Power up with the reliable recoil start, plus Cold Start Technology ensures a quick start in cold weather. Included are a 120V 25A TT-30R outlet, a 120V 20 A household duplex outlet (5-20R), plus a 12V automotive-style outlet, and Parallel outlets. This inverter operates at 64 dBA from 23ft. Using gasoline, the 149cc Champion engine produces 4000 starting watts and 3000 running watts. When the 1.54-gallon tank of gasoline is full, this inverter will run up to 10 hours at 25% load. Confidently connect your sensitive electronics since this inverter produces Clean Power (< 3% THD). Designed for safety with a low oil shut-off sensor, this model has a 0.5-quart oil capacity. Champion’s Inverter Technology includes smart Economy Mode, which monitors the electrical load to reduce engine speed, noise, and fuel consumption. Buy this EPA certified generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support. CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine.

What's Included

    (1) Fully Assembled Generator (1) 1 Engine Oil, Oil Funnel, Spark Plug Wrench

Features + Benefits

  • Ultra-Lightweight - 48.8lbs
  • Quiet Operation - 64dBa @ 23'
  • Clean Inverter Power for sensitive electronics - <3% THD
  • 4000w Start Up & 3000w Running
  • CO Shield Auto Shut Off

Key Specs

AttributeSpecification

item#

6734793

Brand

Champion Power Equipment

Manufacturer's Warranty

3 year limited warranty

Ship Weight

52.5 LB

Surge Watts

4,000

Rated Watts

3,000

Voltage

120

Max. Amps

33.3

Fuel Type

Gasoline

Engine Brand

Champion

Engine Model

Champion 149

Engine Displacement

149 cc

Noise Level

64 dB

Enclosure Material

Molded Plastic

Start Type

Recoil

Fuel Capacity

1.54 Gal
AttributeSpecification

Half-Load Run Time

5 hr

Number of Outlets

4

Outlet Type

2qty 120v, 1 qty 120v RV, 1qty Automotive 12v

Battery Required

No

Auto Shutdown

Yes

Overload Protection

Yes

Low Oil Shutdown

Yes

Hour Meter

Yes

Hertz

60

Engine Cooling

Air

Built-in Inverter

Yes

Total Harmonic Distortion

<3%

CARB Compliant

No

Product Weight

48.1000 lb

Dimensions L x W x H (in.)

17.9 x 11.7 x 19.7 in

Reviews

Questions & Answers

416 Reviews This action will navigate to reviews.

Questions

  1. Will the 4000W inverter pull a 13,500 AC in living quarter horse trailer.

    1 answer

    1. This generator is capable of supporting up to 3,000 continuous watts at one time. It is best to check the requirements of the horse trailer to determine if this will work.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
