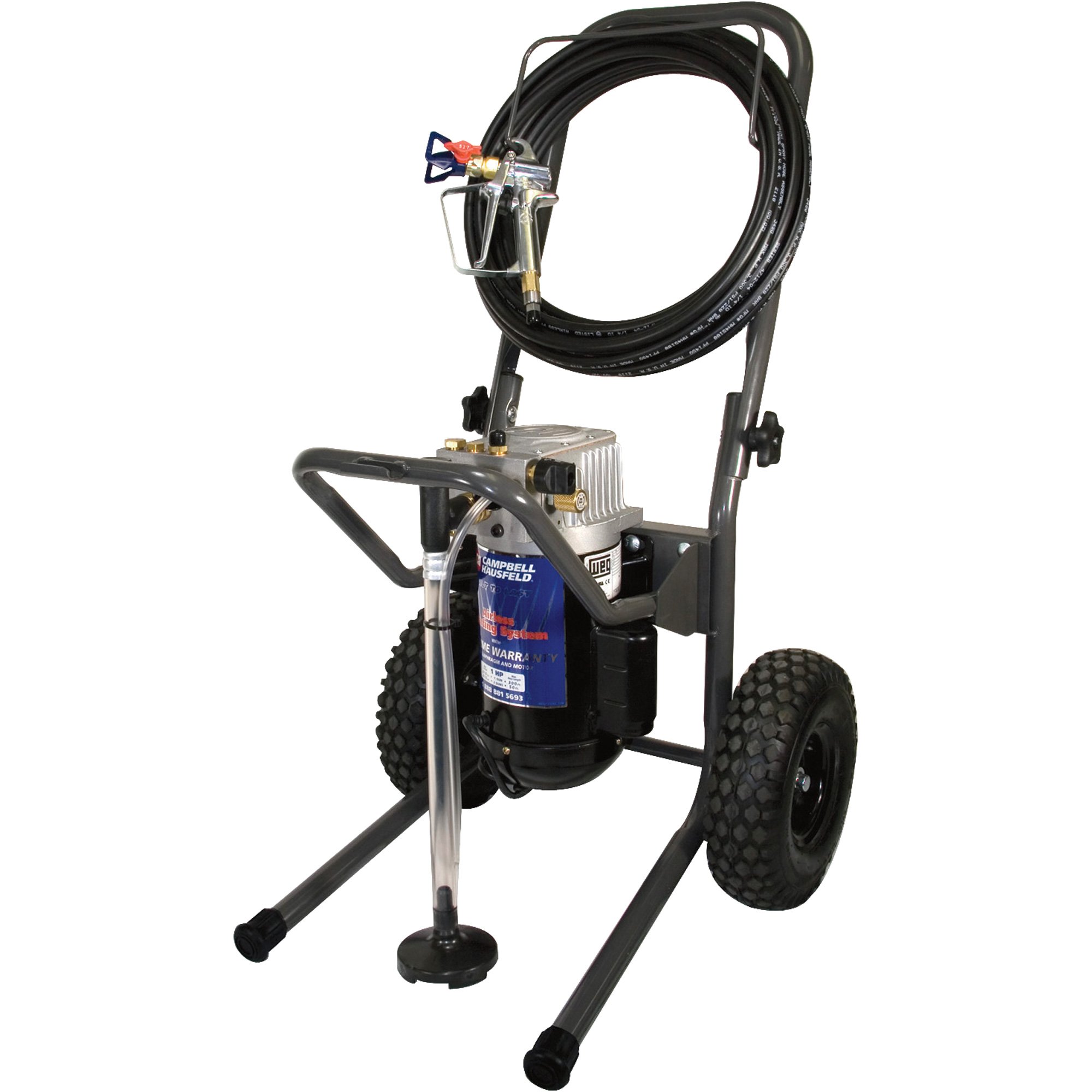

Campbell Hausfeld 1 HP Airless Paint Sprayer — Model# PS270D
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Runs 2 spray guns at once
- Sprays latex and oil-based paints, oil-based stains, primers
- Quadraflow tip for precise spray pattern
- Totally enclosed fan cooled motor for safe operation
- Diaphragm pump has solid aluminum block, brass fittings
See full description
What's Included
- (1) 1 HP airless paint sprayer
- (1) Metal spray gun with .017in. tip and hose swivel
- (1) Hose adapter for 2-gun operation
- (1) 5-ft. whip hose
- (1) 50-ft. high-pressure hose
Downloads
Features + Benefits
- Runs 2 spray guns at once
- Sprays latex and oil-based paints, oil-based stains, primers
- Quadraflow tip for precise spray pattern
- Totally enclosed fan cooled motor for safe operation
- Diaphragm pump has solid aluminum block, brass fittings
- Pump has long-life cartridge valves for easy maintenance
- Flexible suction assembly has prime booster for fast starts, large suction filter
- Works with 1-gallon or 5-gallon buckets
- Pneumatic wheels and folding handle for portability
- Heavy-duty frame has integrated hose rack
See All Paint Sprayers
See All Paint Sprayers
Currently Viewing This Product
Specifications
Specifications
Campbell Hausfeld 1 HP Airless Paint Sprayer — Model# PS270D

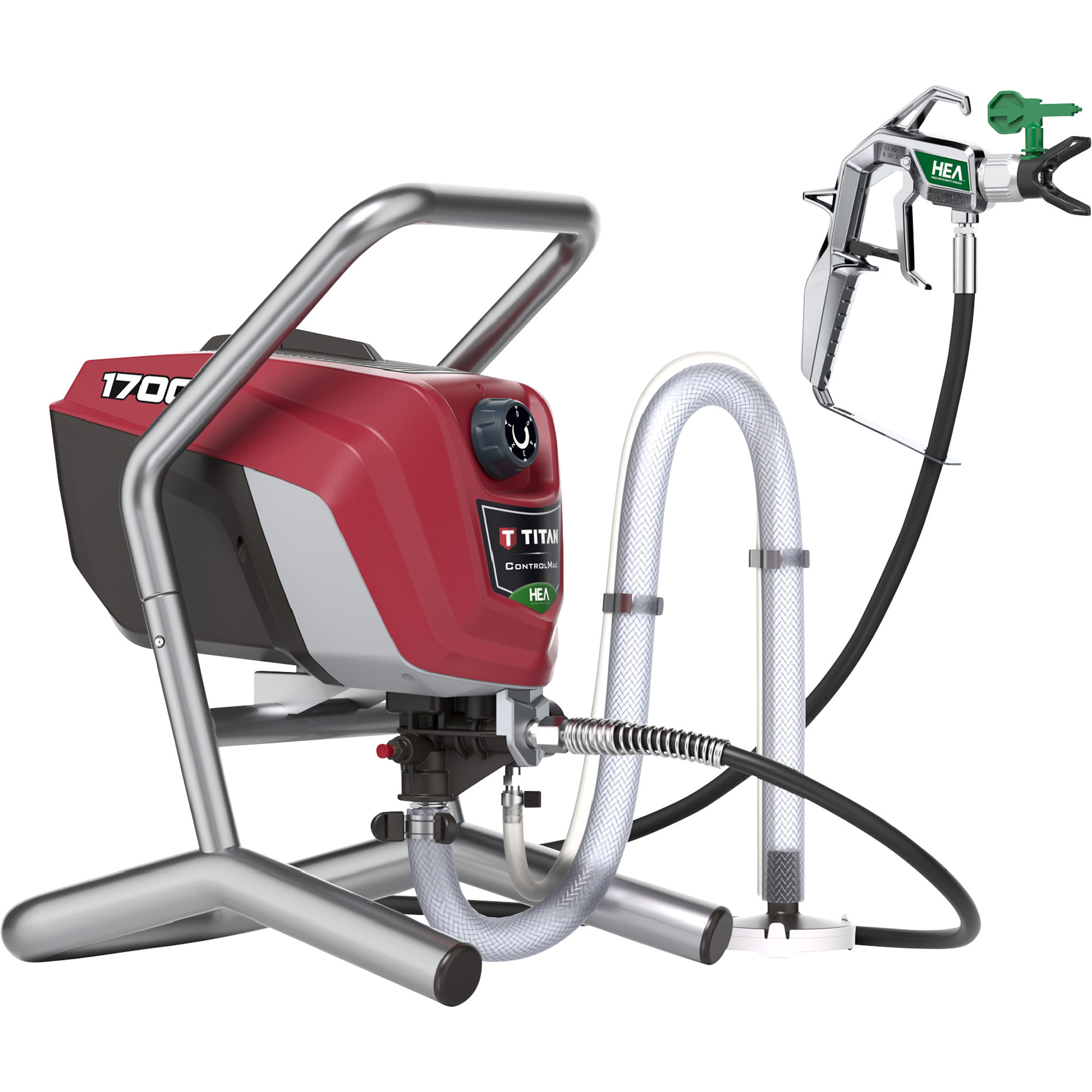

Titan ControlMax 1700 HE Airless Spray Paint Gun, 0.6 HP, 120V, 10 Amp, 1500 PSI, Model# 0580009
Titan ControlMax 1900 PRO HE Airless Spray Paint Gun, 0.7 HP, 110V, 10 Amp, 1600 PSI, Model# 0580008
Titan ControlMax 1500 HE Airless Spray Paint Gun, 0.55 HP, 120V, 10 Amp, 1500 PSI, Model# 0580005
Horsepower
Same
1 HP
0.6
0.7
0.55
Max. PSI
Same
3,000
1,500
1,600
1,500
Capacity
Same
-
5 Gal
5 Gal
5 Gal
Volts
Same
-
120
110
120
Amps
Same
-
10
10
10
Max. Flow Rate
Same
-
0.33 GPM
0.4 GPM
0.29 GPM
Max. Tip Size
Same
-
0.017 in
0.019 in
0.015 in
Hose Length
Same
-
30 ft
50 ft
25 ft
Product Weight
Same
-
23.1000 lb
39.7000 lb
19.4000 lb
Dimensions L x W x H (in.)
Same
-
16.0 x 18.25 x 13.5 in
32.0 x 20.0 x 17.0 in
16.0 x 18.25 x 13.5 in
