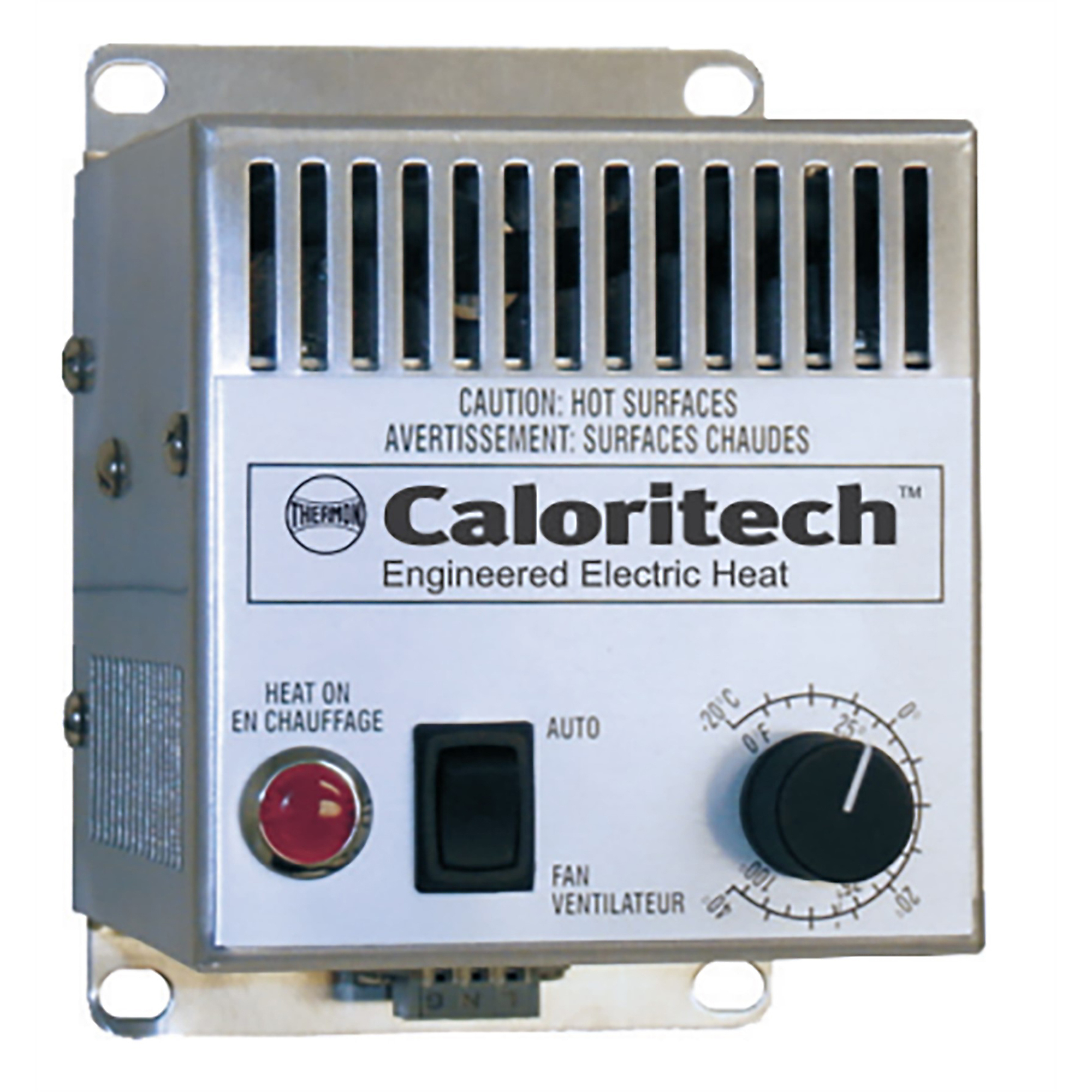

Caloritech, PH Series 120V 1O 125W, Model# PH12511

Item# 5736990
Caloritech, PH Series 120V 1O 125W, Model# PH12511

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Caloritech, PH Series 120V 1O 125W, Model# PH12511

Click or Tap image to Zoom

$355.30

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Heat Type: Electric Fan-Forced Air Heaters
  • Thermostat Type: Externally Adjustable Thermostat 0°F to 100°F (-18°C to 38°C)
  • Fan AUTO/ON switch to prolong motor life
  • Pilot light for ‘HEAT ON’ indication
  • Terminal strip provides quick installation with both stranded and solid wire

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

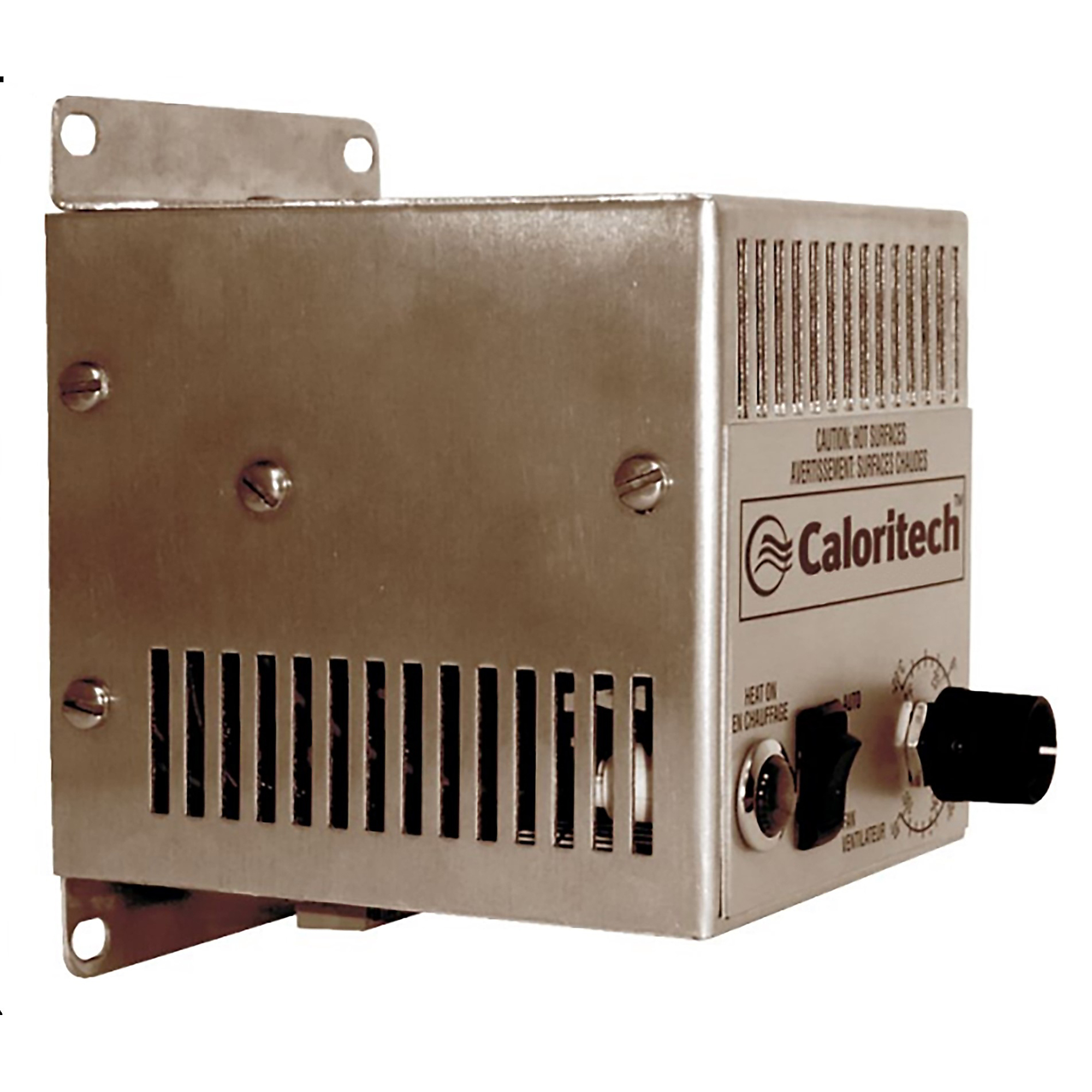

Caloritech Type "PH" Electric Control Panel Enclosure Heaters are fan-forced air heaters designed to control the environment within enclosures by maintaining a stable temperature. Effects of low temperatures such as corrosion, freezing or condensation will adversely affect the components inside control panels. The Caloritech PH enclosure heater provides an optimal performance environment for the critical components contained within the control panel. Features + Benefits Fan AUTO/ON switch to prolong motor life Externally adjustable thermostat 0°F to 100°F (-18°C to 38°C) Pilot light for ‘HEAT ON’ indication The terminal strip provides quick installation with both stranded and solid wire High-temperature safety protection Optional DIN rail mounting CSA C/US approved Aluminum alloy outer casing protects interior components Screw fasteners provide easy access to components inside the casing Heater Selection - The wattage requirement is determined from a consideration of the surface area, insulation properties of the enclosure or space, and the temperature difference between the ambient and the enclosure. For small enclosures (less than 100ft.2 surface area) conservative values for heat losses are as shown in Table 1. Example: To find wattage requirements in an uninsulated enclosure 2’ x 3’ x1’, which must be held at 40?F in a 10?F outdoor ambient, with internal electrical components that generate 80 watts. Surface Area = 2[(2’ x 3’) + (2’ x 1’) + (3’ x 1’)] = 22ft.2. From Table 1 an uninsulated outdoor enclosure requires 7 watts per square foot for each 10?F temperature difference. Temperature Difference = 40?F - 10?F = 30?F Wattage Required = (30?F ÷ 10?F) x 7 W/ft2 x 22ft.2 = 462 watts Heater Wattage = Wattage required - component wattage = 462 - 80 = 382 watts. Use one PH400 rated at 400 watts. For enclosures requiring more than 800 watts, two or more PH heaters may be used. Installation - The Caloritech PH enclosure heater should be installed in the center of the cabinet and as low as practical for the best possible heat distribution. The optimum efficiency is obtained when the unit is mounted in a vertical position allowing the top air vents to release the heated air in the most effective manner. The enclosures should be sealed and free from dust and dirt. Do not install the heaters on wood, cardboard, or other flammable panels.

What's Included

    (1) Caloritech™ PH Series Electric Control Panel Enclosure Heaters, 120V, 1Ø, 125W

Features + Benefits

  • Heat Type: Electric Fan-Forced Air Heaters
  • Thermostat Type: Externally Adjustable Thermostat 0°F to 100°F (-18°C to 38°C)
  • Fan AUTO/ON switch to prolong motor life
  • Pilot light for ‘HEAT ON’ indication
  • Terminal strip provides quick installation with both stranded and solid wire
  • High temperature safety protection
  • Optional DIN rail mounting
  • CSA C/US approved
  • Light Weight
  • Low Maintenance
  • Aluminum alloy outer casing protects interior components
  • Screw fasteners provide easy access to components inside casing

Key Specs

AttributeSpecification

item#

5736990

Brand

Caloritech

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

3.0 LB

Dimensions L x W x H (in.)

5.5 x 4.0 x 5.5 in

Product Weight

2.0000 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
